AERIAL SQ

AERIAL SQ

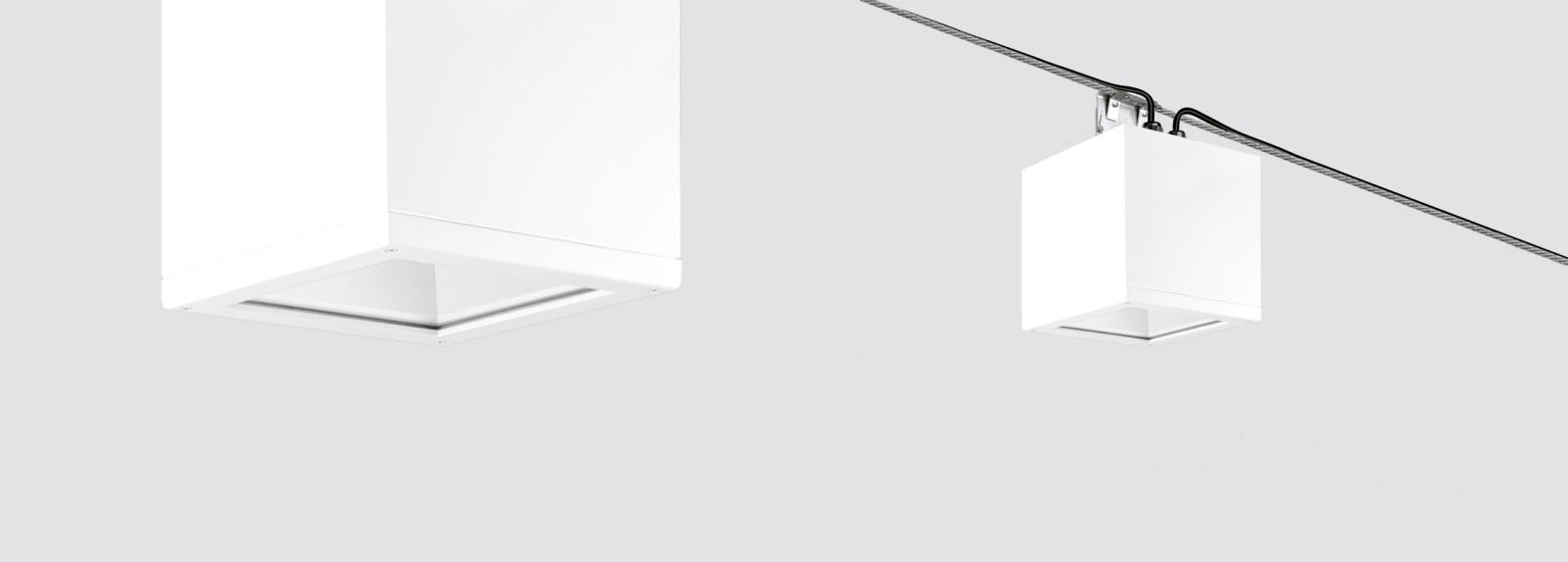

Pendant downlights with symmetrical light distribution.
Cubic design available in 2 sizes: 212mm x 212mm and 277mm x 277mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK07.
Robust body and trim made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Special C5-M coating for environments with very high corrosivity is available under request.
High-purity aluminium reflectors in various finishes depending on the beam angle outcome.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to get IK10 protection degree.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included.
Passive temperature management: heat dissipation via the fixture body itself.

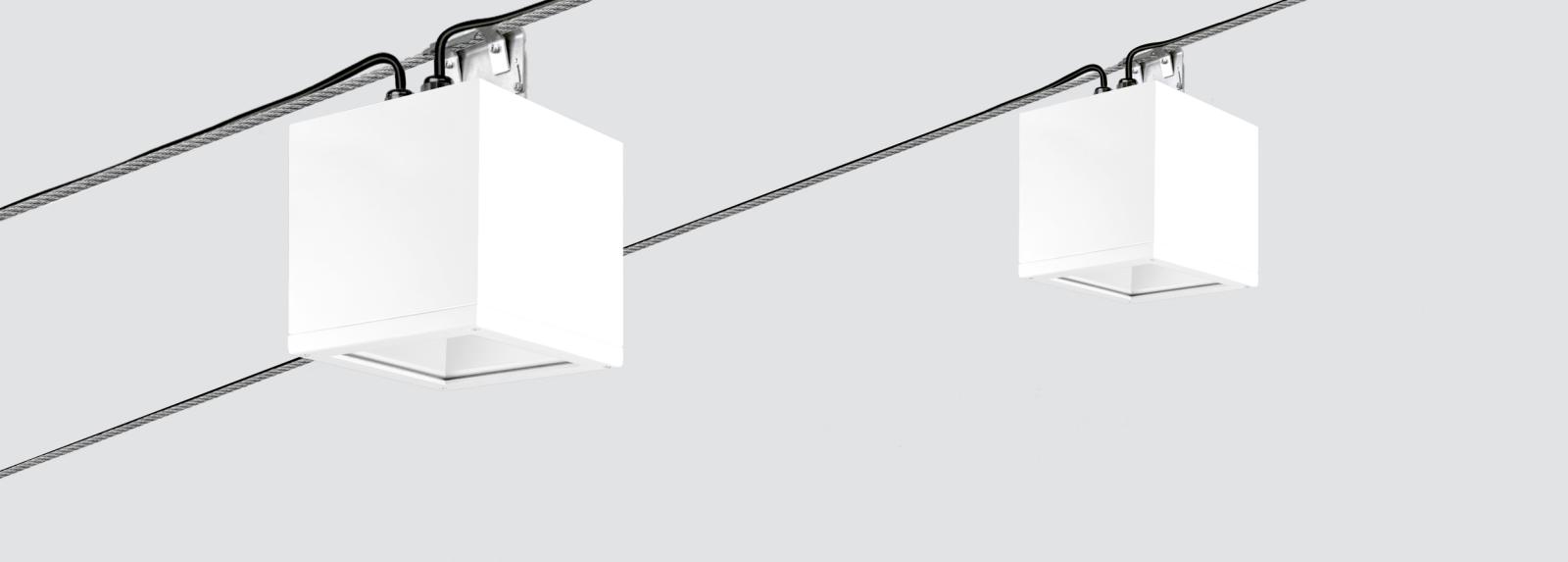

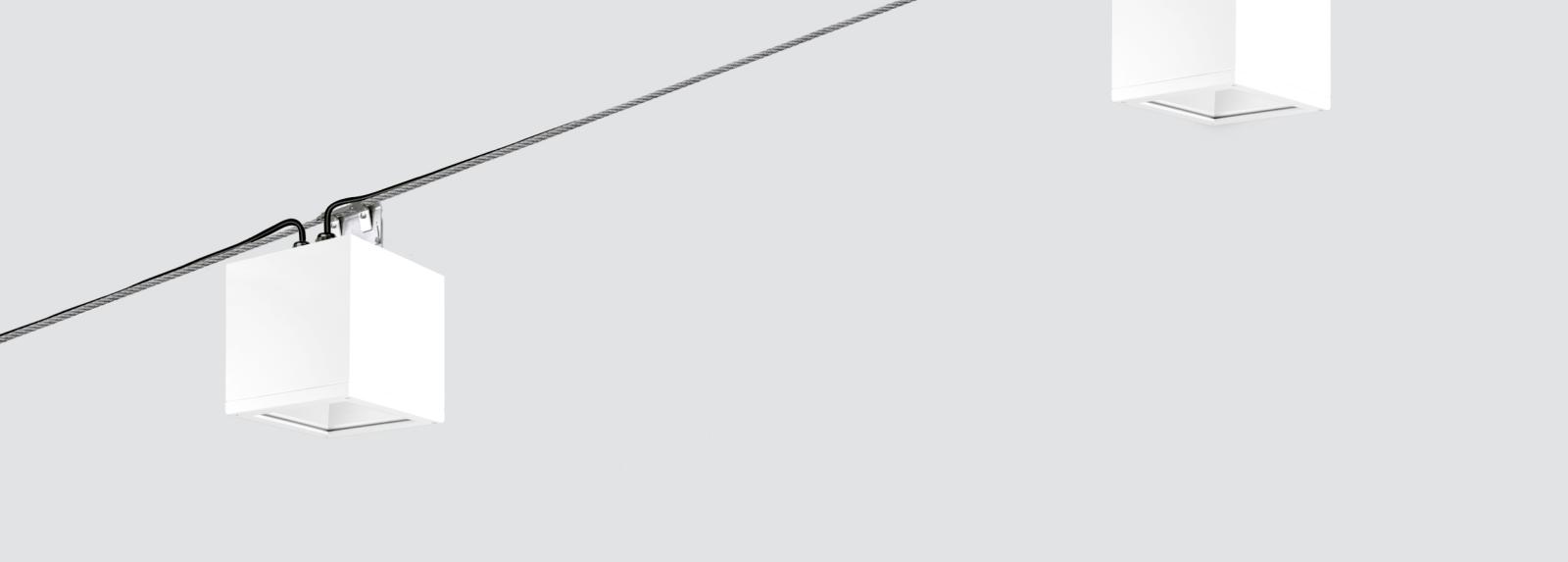

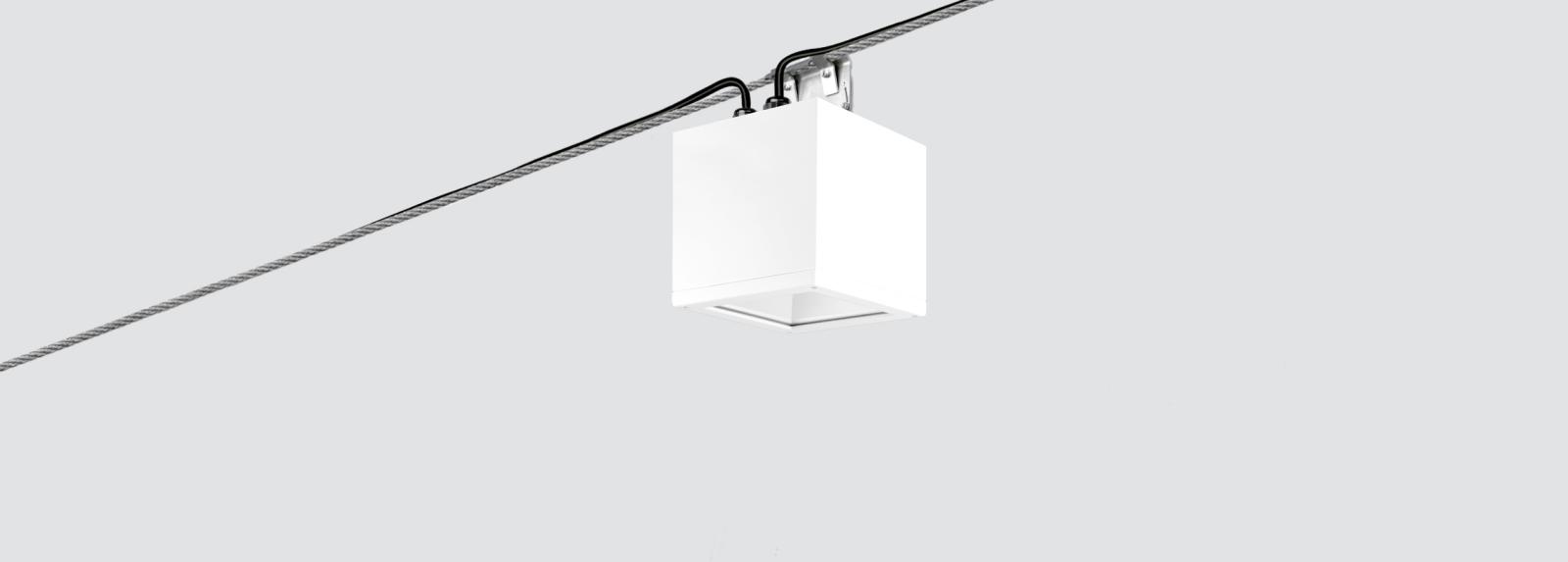

Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Cable entry from the top of the fixture. Double cable gland entry for installation in series.

Suggested applications : arcades, galleries, passageways, streets.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101ASQ
50
12.61W
1235lm
>80
2700K
212x212
199mm
101ASQ.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
50
12.61W
1285lm
>80
3000K
212x212
199mm
101ASQ.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
50
12.61W
1339lm
>80
4000K
212x212
199mm
101ASQ.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
12.61W
1450lm
>80
2700K
212x212
199mm
103ASQ.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
12.61W
1510lm
>80
3000K
212x212
199mm
103ASQ.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
12.61W
1573lm
>80
4000K
212x212
199mm
103ASQ.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
50
18.33W
1736lm
>80
2700K
212x212
199mm
101ASQ.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
50
18.33W
1808lm
>80
3000K
212x212
199mm
101ASQ.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
50
18.33W
1884lm
>80
4000K
212x212
199mm
101ASQ.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
18.33W
2039lm
>80
2700K
212x212
199mm
103ASQ.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
18.33W
2124lm
>80
3000K
212x212
199mm
103ASQ.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
72
18.33W
2213lm
>80
4000K
212x212
199mm
103ASQ.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
51
25.33W
2145lm
>80
2700K
212x212
199mm
101ASQ.1.01-I881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
51
25.33W
2233lm
>80
3000K
212x212
199mm
101ASQ.1.01-I882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ASQ
51
25.33W
2329lm
>80
4000K
212x212
199mm
101ASQ.1.01-I883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
