BAFFLE EVOLUTION SQ

BAFFLE EVOLUTION SQ

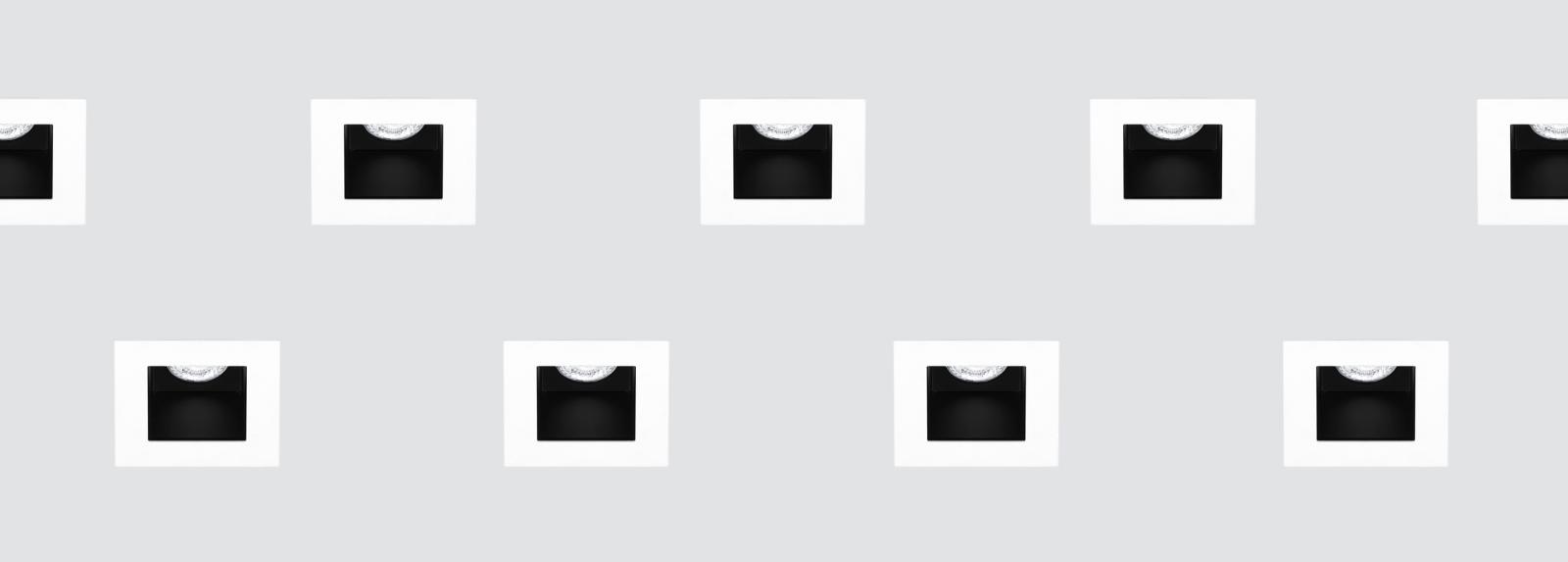

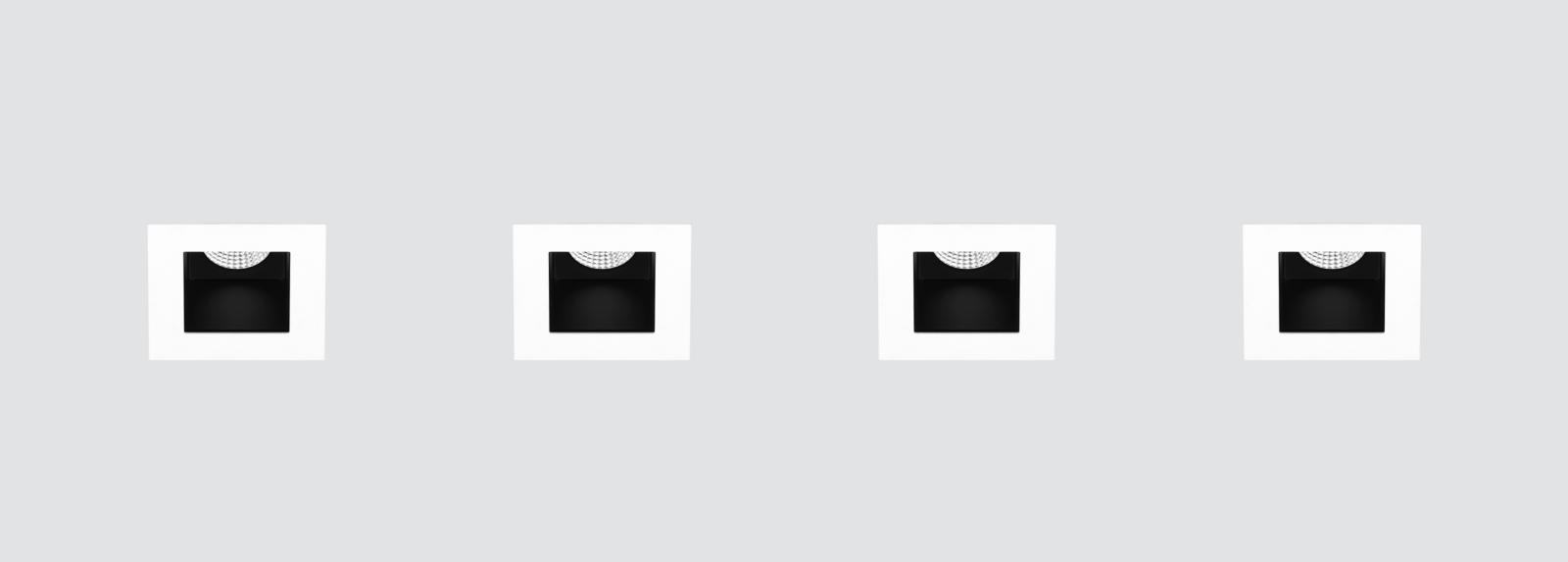

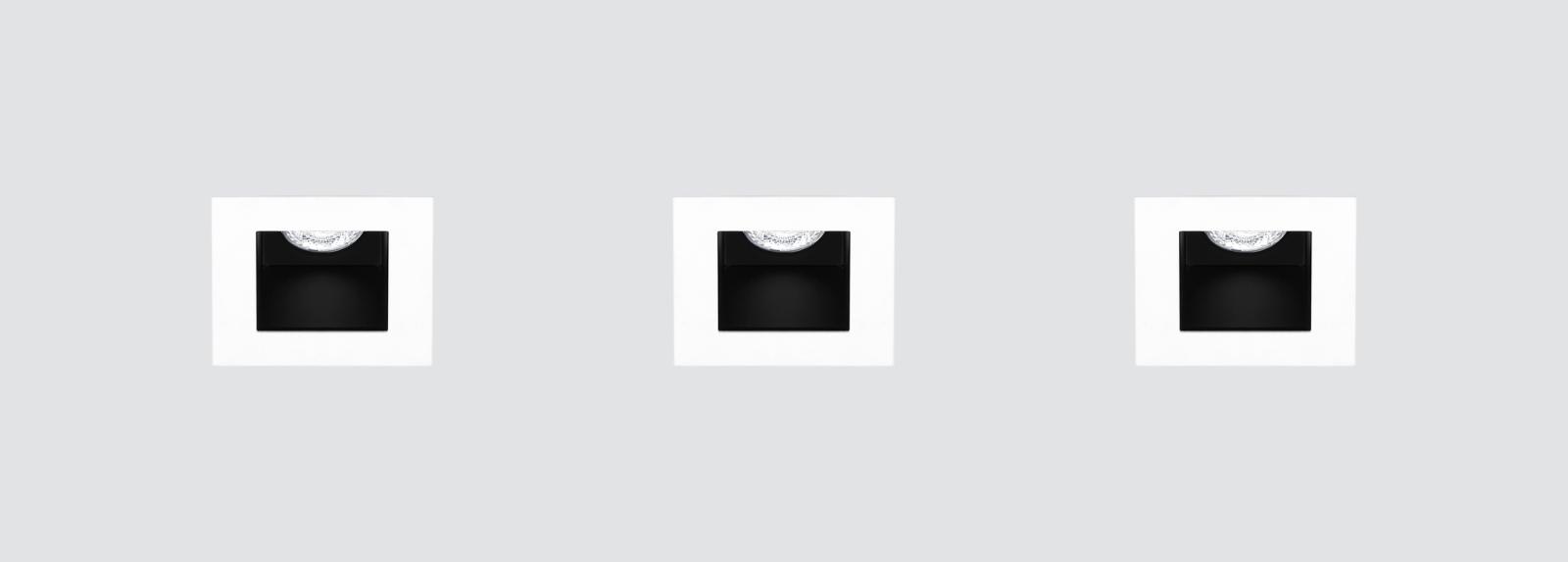

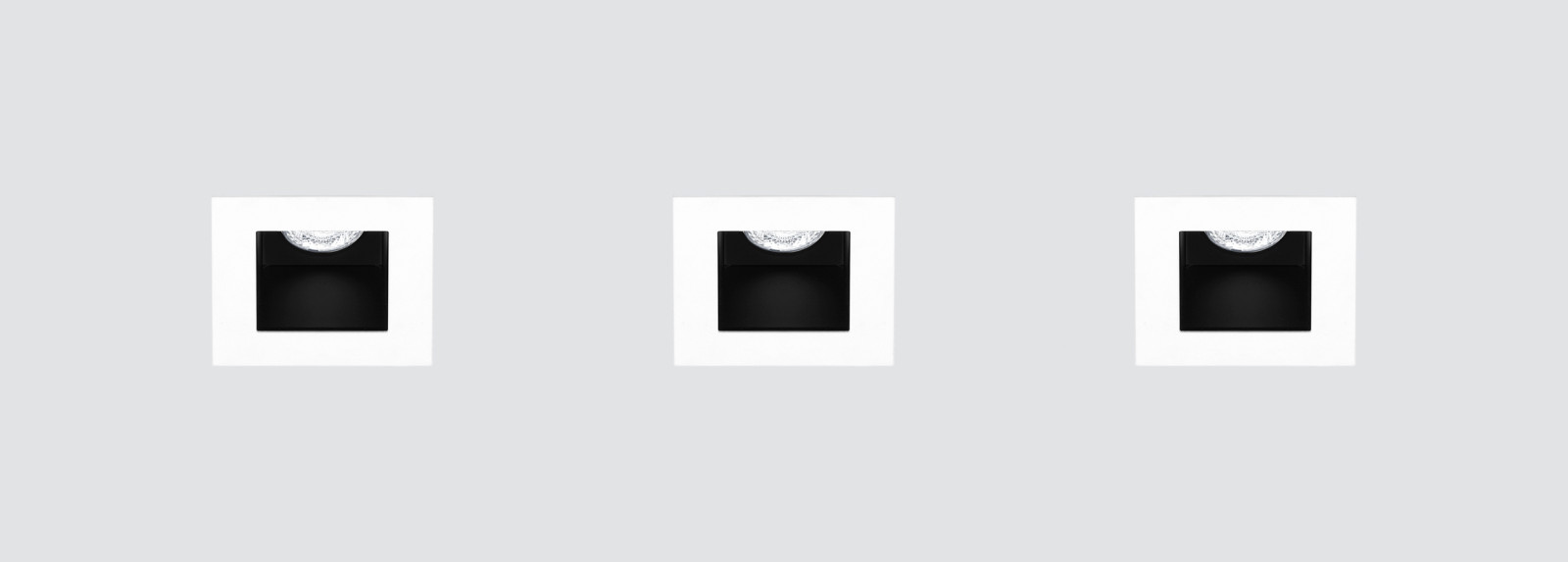

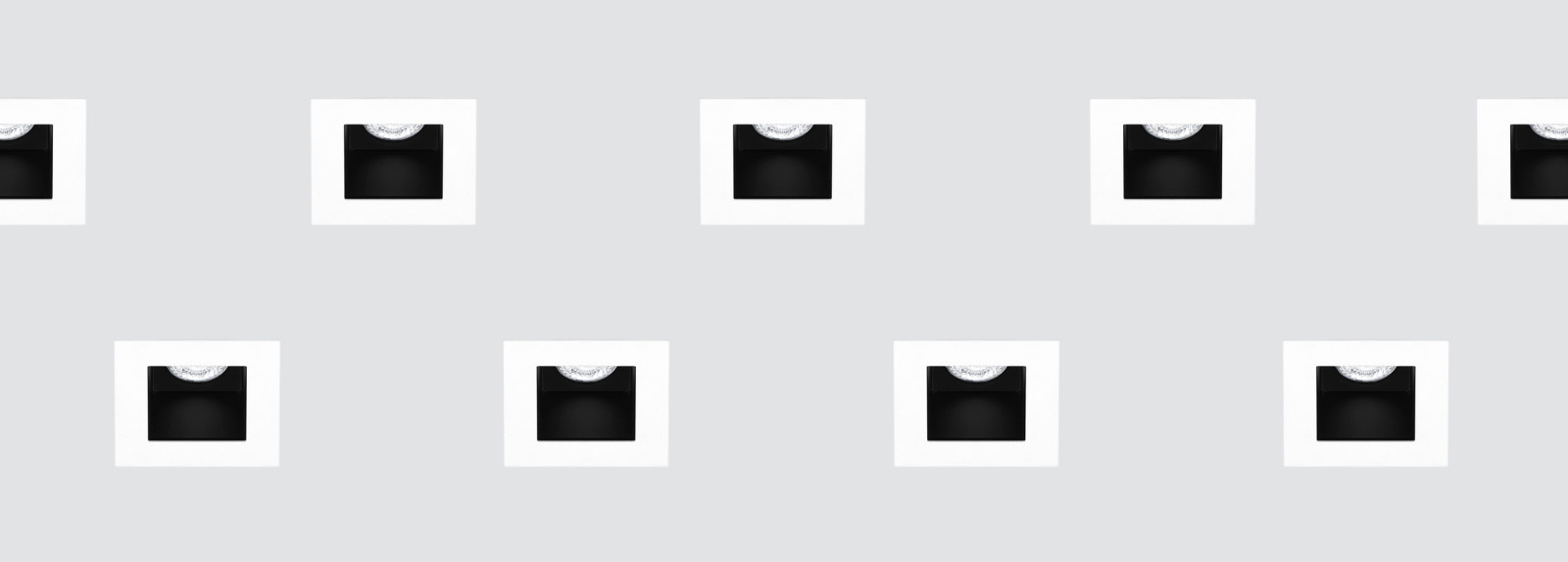

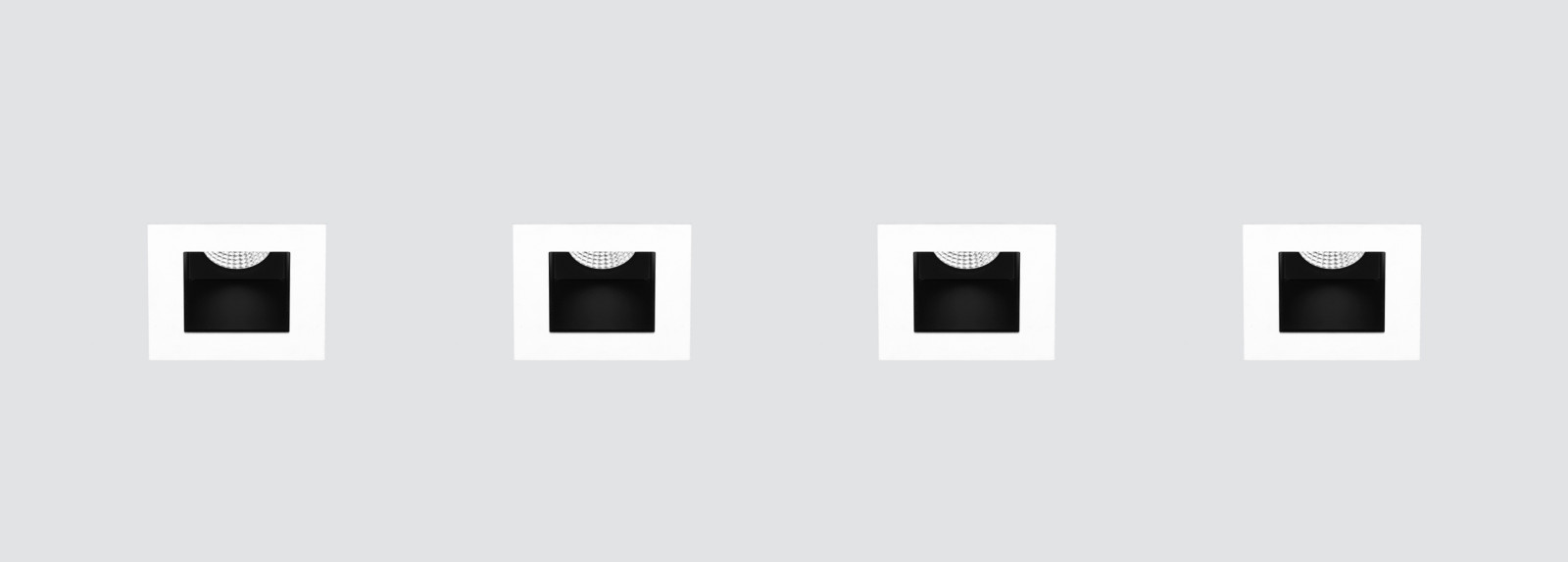

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective accent lighting.
Square design.

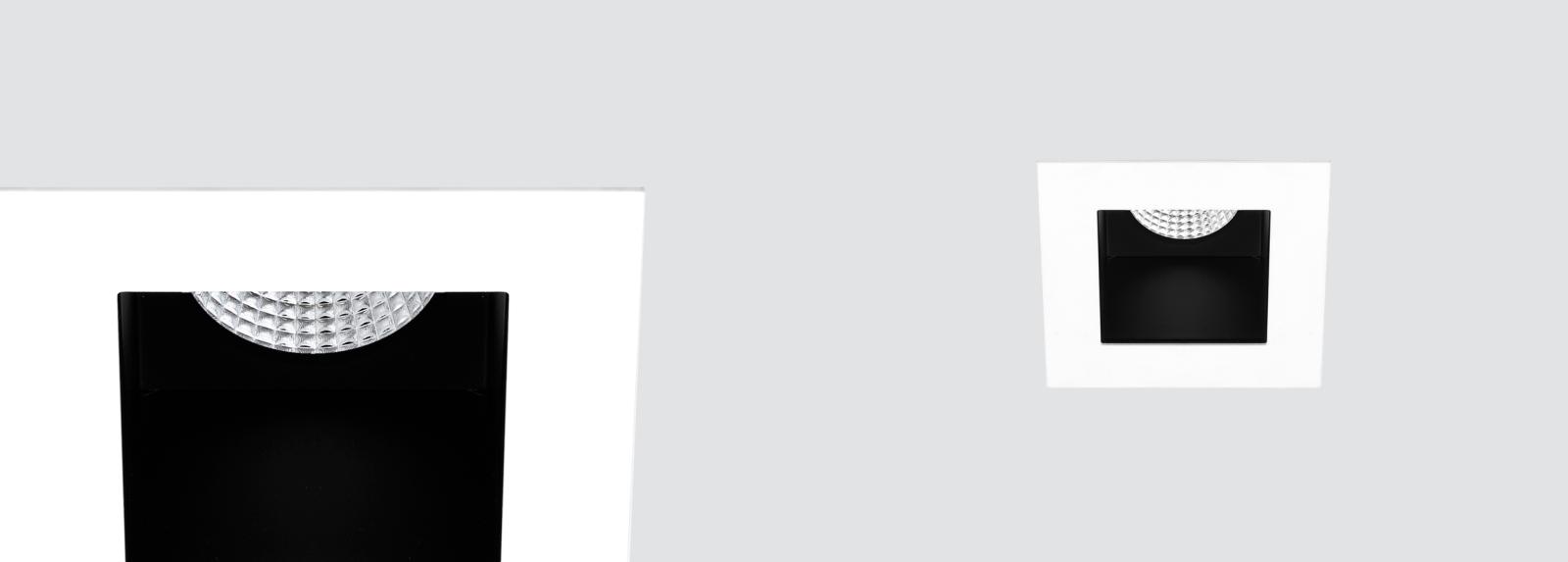

Internal screen aluminium black baffle for minimal glare. Deep regressed light source to ensure visual comfort.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted using galvanised steel support with spring clamps.

Suggested applications: apartements, bars, hotels, restaurants and similar installations.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F103BES_104BES
20
17.05W
1333lm
>90
2700K
90mm x 90mm
100mm x 100mm
148mm
103BES.1-R1096
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
5.66W
480lm
>90
2700K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R522
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
5.66W
520lm
>90
3000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R523
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F103BES_104BES
20
17.05W
1387lm
>90
3000K
90mm x 90mm
100mm x 100mm
148mm
103BES.1-R1097
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
5.66W
560lm
>90
4000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R524
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F103BES_104BES
20
17.05W
1513lm
>90
4000K
90mm x 90mm
100mm x 100mm
148mm
103BES.1-R1098
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
7.69W
600lm
>90
2700K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R618
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
7.69W
670lm
>90
3000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R619
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
7.69W
720lm
>90
4000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R620
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
9.77W
770lm
>90
2700K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R639
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
9.77W
840lm
>90
3000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R640
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
9.77W
890lm
>90
4000K
90mm x 90mm
100mm x 100mm
111mm
101BES.1-R641
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
11.27W
910lm
>90
2700K
90mm x 90mm
100mm x 100mm
121mm
102BES.1-R648
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
11.27W
940lm
>90
3000K
90mm x 90mm
100mm x 100mm
121mm
102BES.1-R649
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BES
24
11.27W
1010lm
>90
4000K
90mm x 90mm
100mm x 100mm
121mm
102BES.1-R650
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
