BARIS 600

BARIS 600

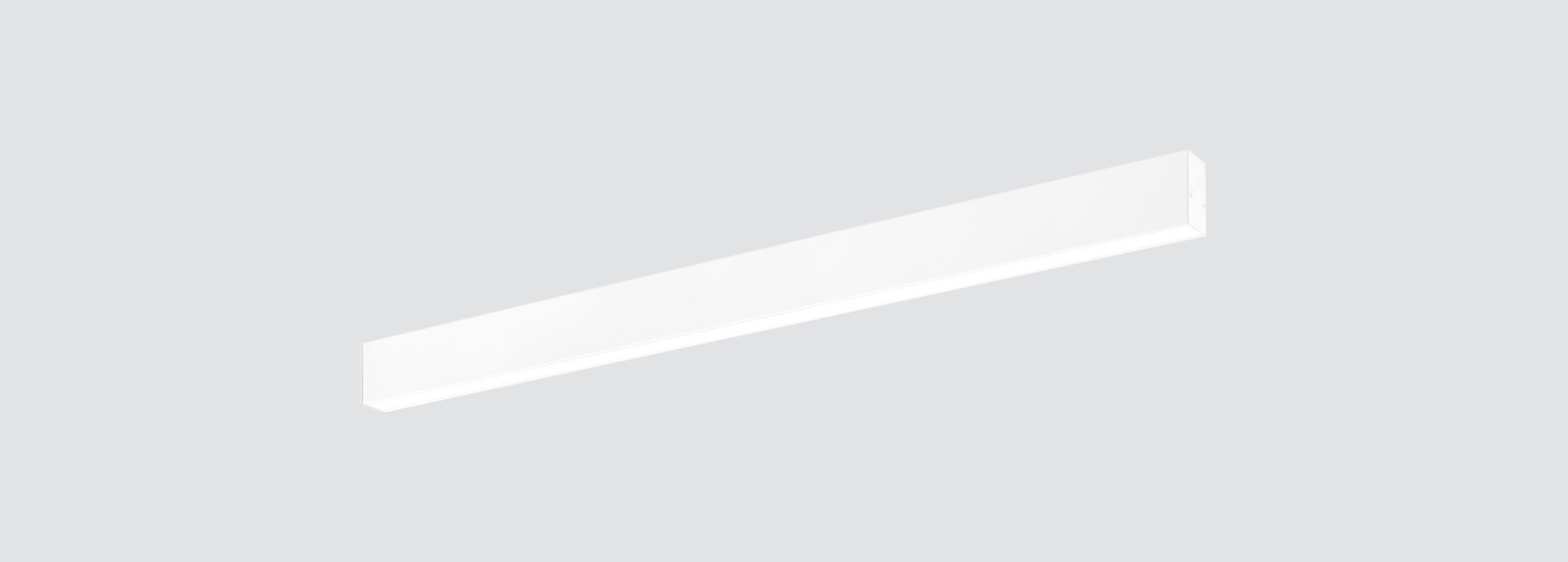

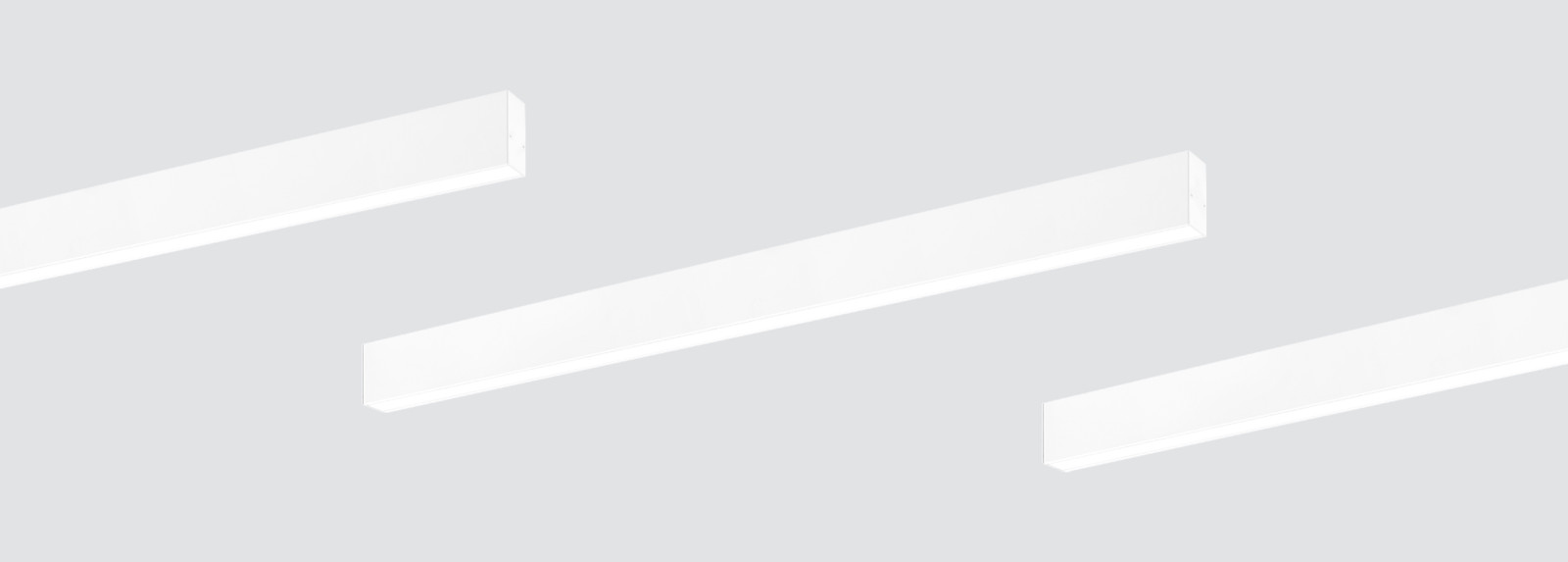

Wall mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.

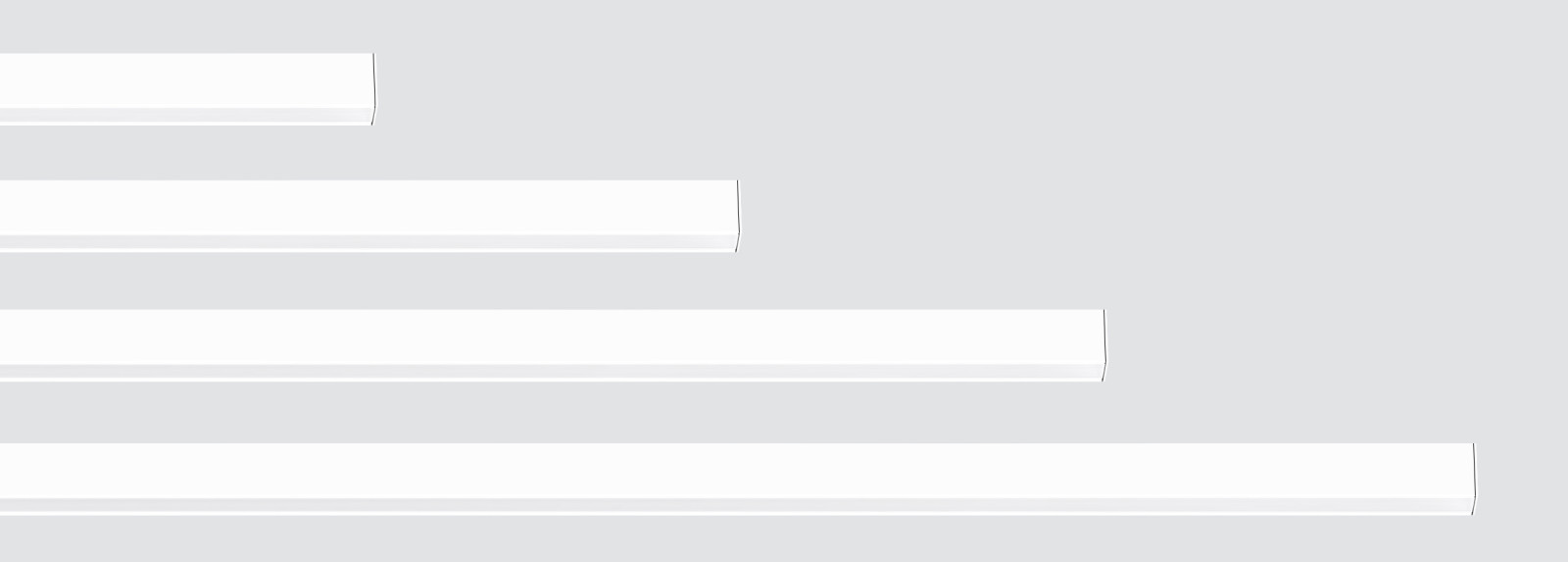

Frameless linear fixtures available in 5 lengths 568mm, 848mm, 1128mm, 1408mm and 2808mm in a width of 44mm and height of 78mm.
Protection rating against dust and moisture: complete IP54.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal or microprismatic polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Wall-mounted by mounting brackets.

Suggested applications: private residences, offices, schools and universities, retail, showrooms, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Diffuser

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101ACS
96
7.1W
618lm
80
2700K
568x44
78mm
651BRS.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
793lm
80
2700K
568x44
78mm
661BRS.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
7.1W
637lm
80
3000K
568x44
78mm
651BRS.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
817lm
80
3000K
568x44
78mm
661BRS.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
7.1W
667lm
80
4000K
568x44
78mm
651BRS.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
855lm
80
4000K
568x44
78mm
661BRS.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
7.1W
667lm
80
5000K
568x44
78mm
651BRS.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
855lm
80
5000K
568x44
78mm
661BRS.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
7.1W
549lm
90
3000K
568x44
78mm
651BRS.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
704lm
90
3000K
568x44
78mm
661BRS.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
7.1W
573lm
90
4000K
568x44
78mm
651BRS.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
7.1W
735lm
90
4000K
568x44
78mm
661BRS.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
12.08W
1007lm
80
2700K
568x44
78mm
651BRS.1-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LCT
98
12.08W
1292lm
80
2700K
568x44
78mm
661BRS.1-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ACS
96
12.08W
1038lm
80
3000K
568x44
78mm
651BRS.1-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
