BSM

BSM

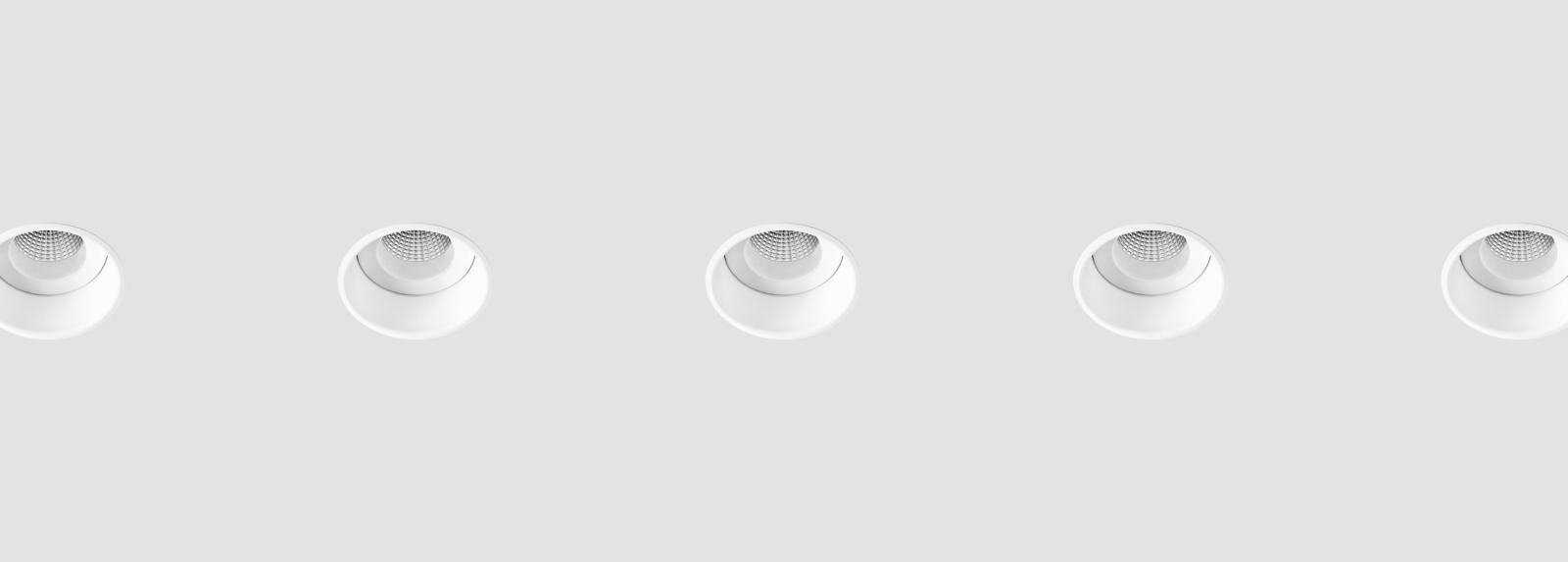

Recessed ceiling-mounted downlights with symmetrical light distribution for task, accent or general lighting.
Round design with trimless appearance available in several diameters: 88mm, 97mm, 141mm, 158mm and 172mm.
Aluminium body and interior circle powder painted in various finishes, customized RAL under request.
To complete the effect of this luminaire, it is suggested that the circle be painted the same RAL colour as the ceiling.

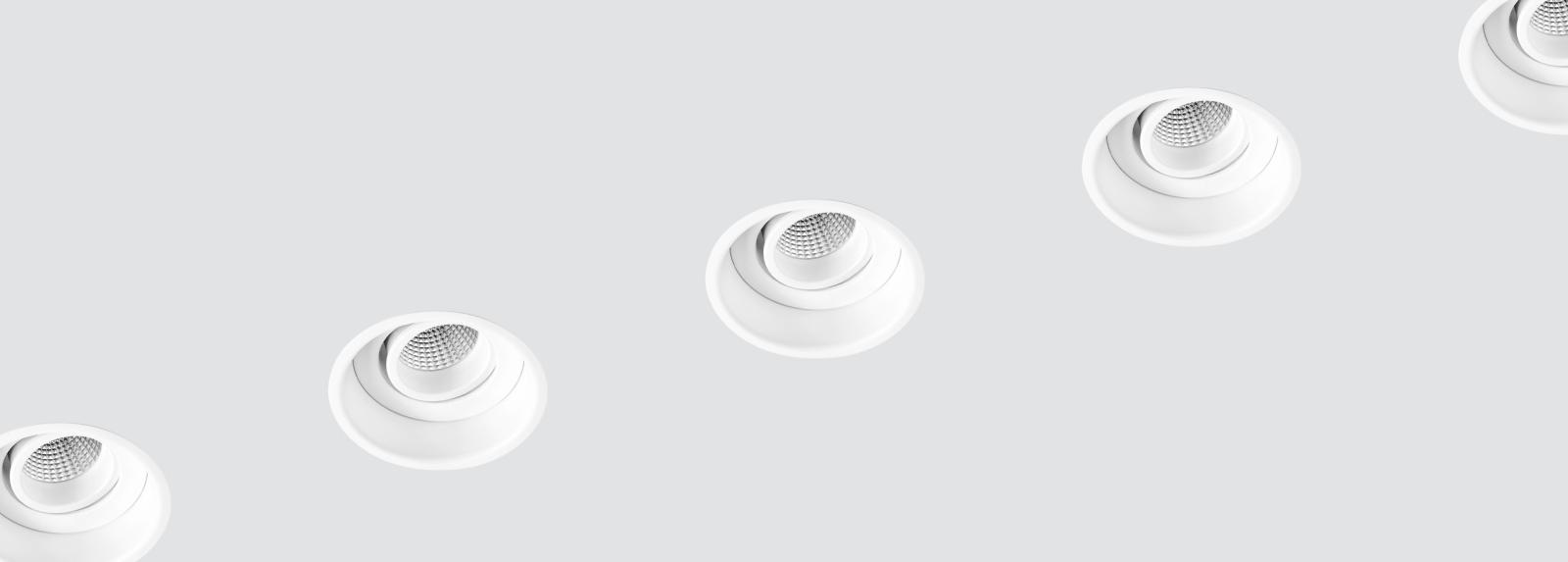

Fixed and tilt versions, adjustable to 30º.
Total lighting control: high performance and high efficiency.
Large range of reflectors to obtain the best photometric results.
High-purity aluminium interior reflector in various finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
This line includes luminaires with an aluminium anti-glare reflector. Deep regressed lamp with black baffle for minimal glare.
Accessory available to increase the protection rating to IP44 from underneath (depending on the reference).
Remote driver supplied depending on the reference. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps or screws.

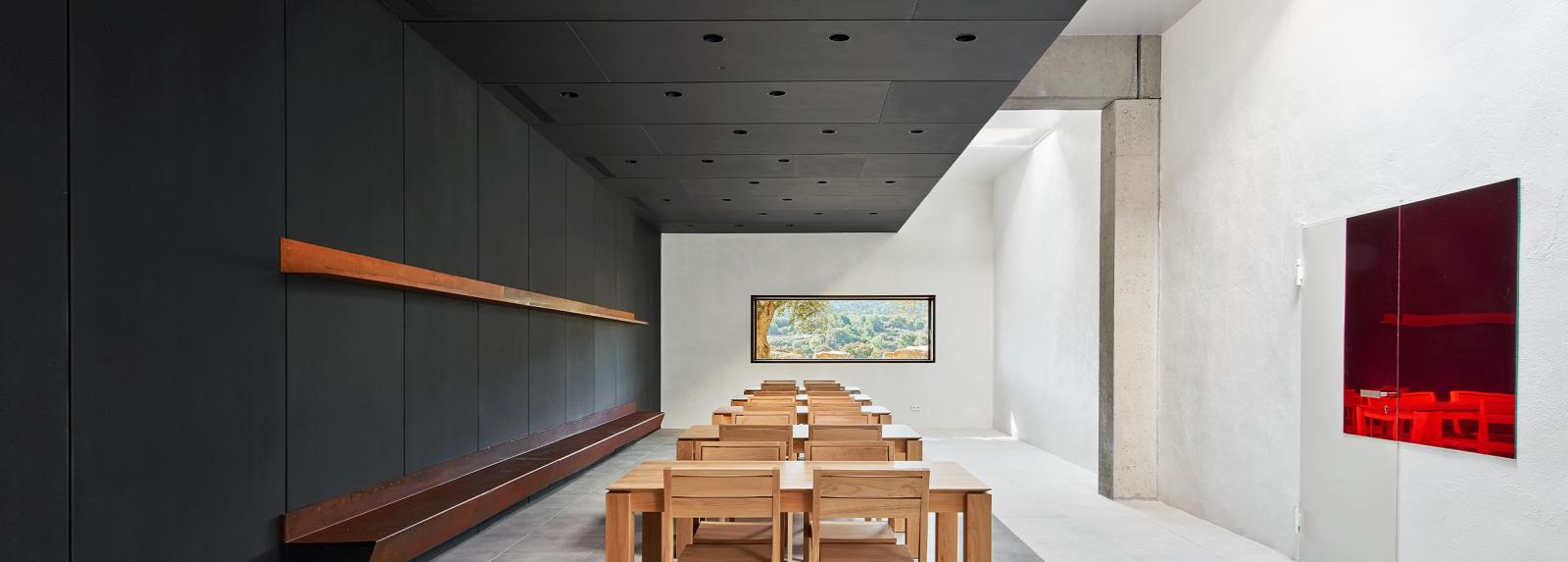

Suggested applications: shops, hotels, apartments, restaurants and similar installations. Designed to create exclusive lighting. The favorite choice for architects and interior designers.

Product configurator

Recessed diameter

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101BSM_SLA
24
5.66W
480lm
>90
2700K
82mm
88mm
98mm
101BSM.1-R522
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
5.66W
520lm
>90
3000K
82mm
88mm
98mm
101BSM.1-R523
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
5.66W
560lm
>90
4000K
82mm
88mm
98mm
101BSM.1-R524
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
5.66W
480lm
>90
2700K
82mm
88mm
98mm
101BSM.1-R525
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
5.66W
520lm
>90
3000K
82mm
88mm
98mm
101BSM.1-R526
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
5.66W
560lm
>90
4000K
82mm
88mm
98mm
101BSM.1-R527
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
7.69W
600lm
>90
2700K
82mm
88mm
98mm
101BSM.1-R618
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
7.69W
670lm
>90
3000K
82mm
88mm
98mm
101BSM.1-R619
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
7.69W
720lm
>90
4000K
82mm
88mm
98mm
101BSM.1-R620
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
7.69W
600lm
>90
2700K
82mm
88mm
98mm
101BSM.1-R633
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
7.69W
670lm
>90
3000K
82mm
88mm
98mm
101BSM.1-R634
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
36
7.69W
720lm
>90
4000K
82mm
88mm
98mm
101BSM.1-R635
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
9.77W
770lm
>90
2700K
82mm
88mm
98mm
101BSM.1-R639
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
9.77W
840lm
>90
3000K
82mm
88mm
98mm
101BSM.1-R640
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101BSM_SLA
24
9.77W
890lm
>90
4000K
82mm
88mm
98mm
101BSM.1-R641
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
