CELL

CELL

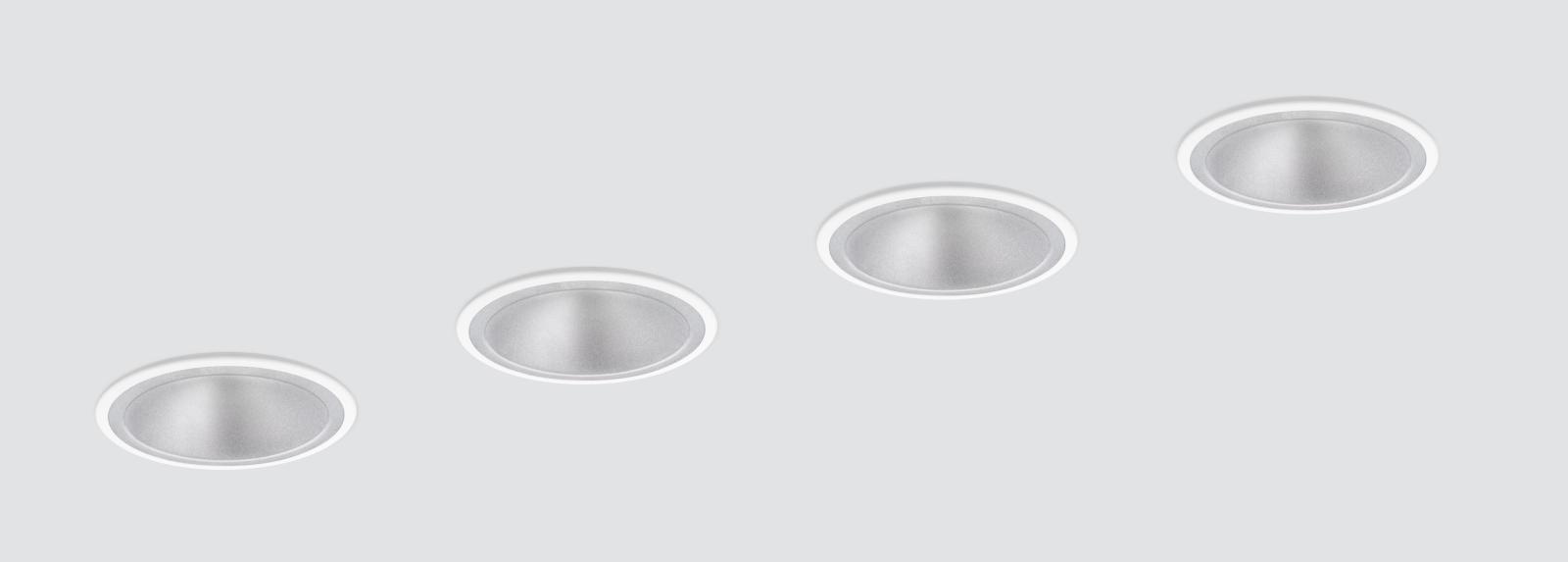

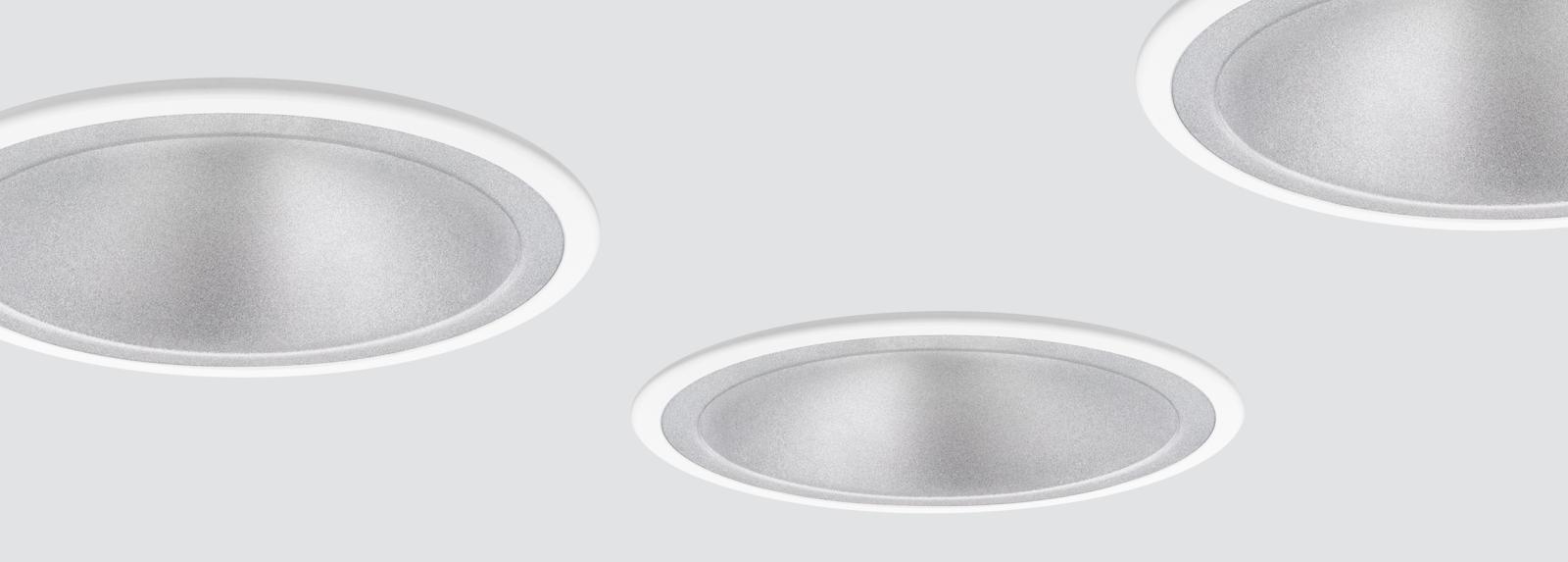

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.

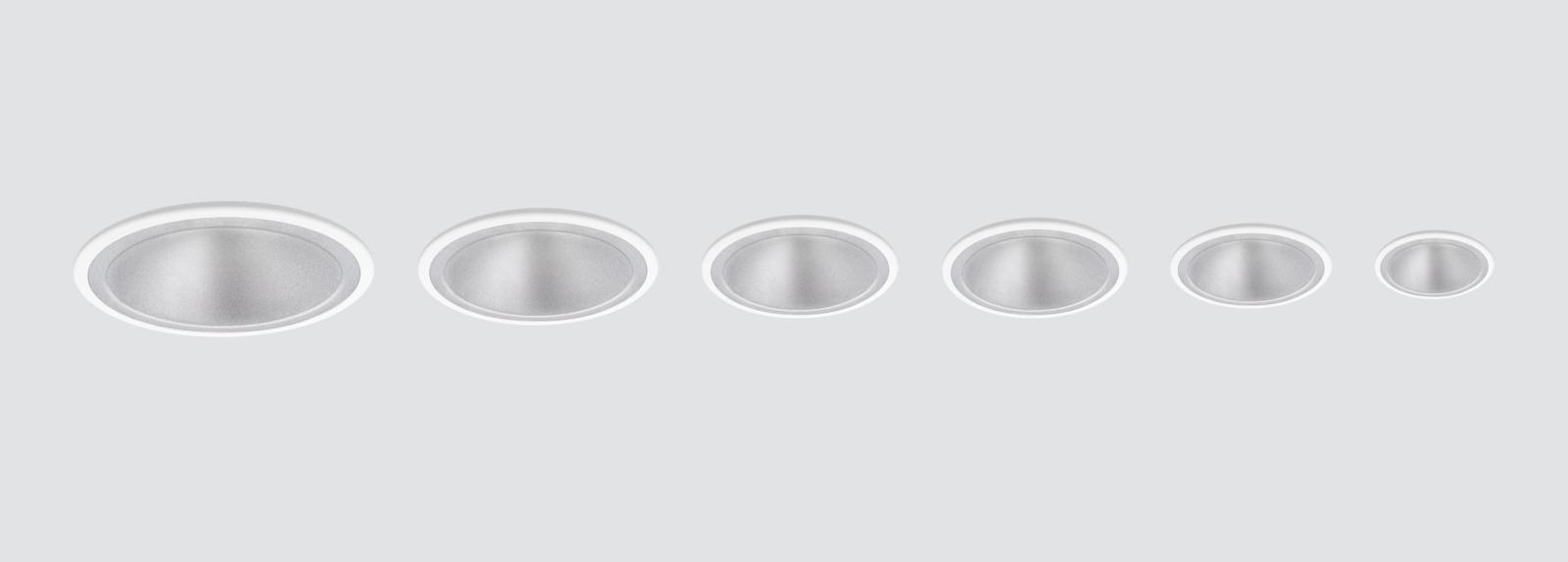

Circular design available in 6 diameters: 140mm, 170mm, 200mm, 225mm, 255mm and 300mm.
Total lighting control: high performance and high efficiency.
High-purity sandblasted anodised aluminium reflector to obtain the best photometric results.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Range of decorative and optical accessories.

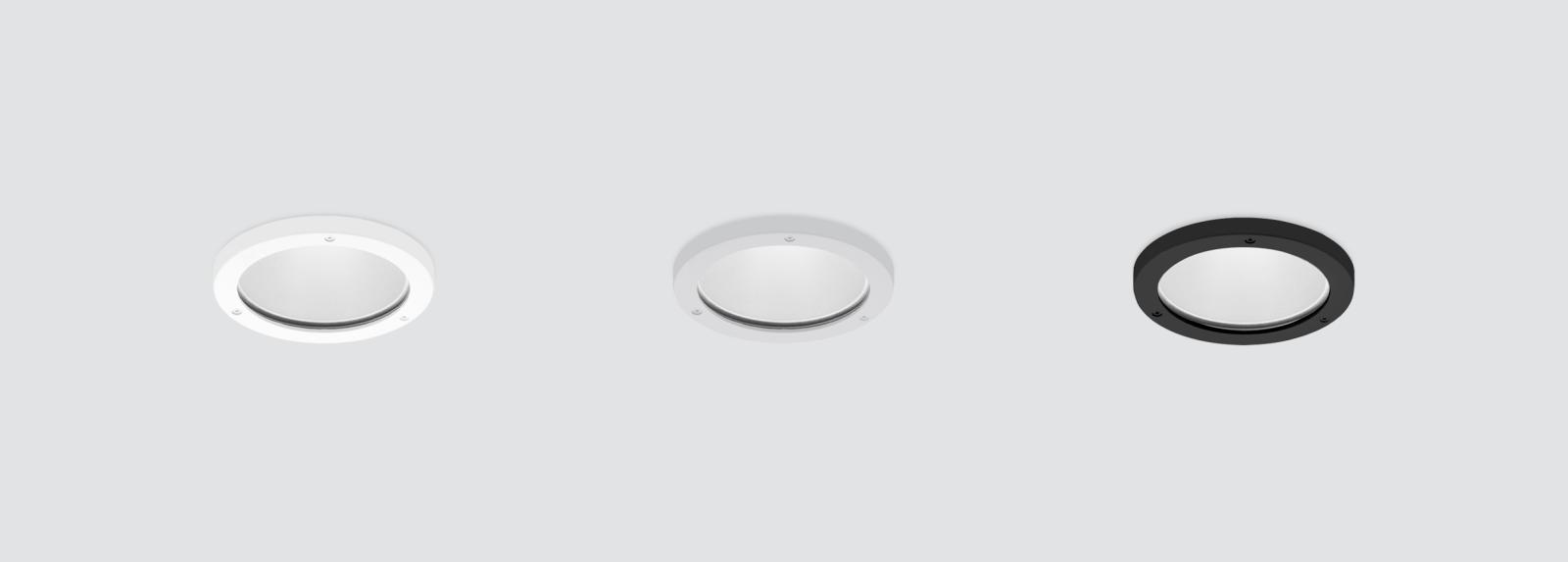

Die-cast aluminium trim accessory with flush glass and silicon rubber gasket to increase the protection rating to IP65 from underneath.
Remote driver supplied. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation via aluminium heatsink.
Ceiling-mounted using galvanised steel support with screws.

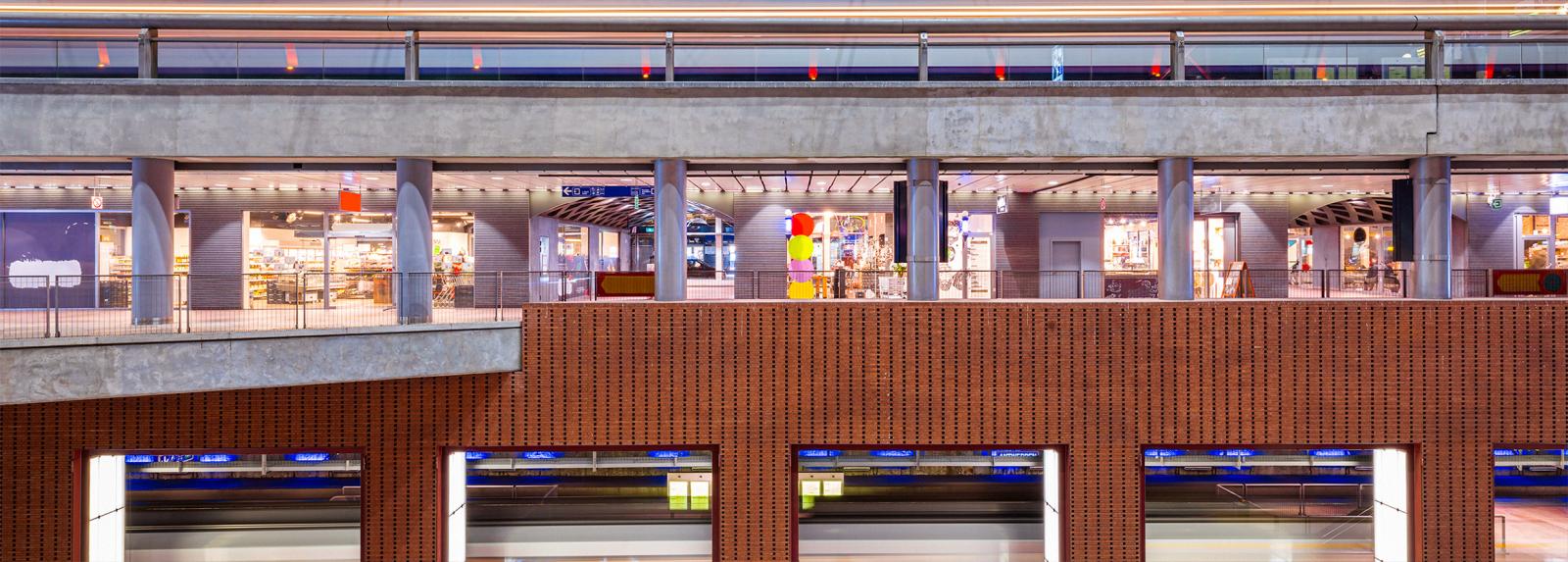

Suggested applications:shopping centers, hotels, offices, airports, service stations, restaurants, shops, galleries, museums, workplaces, apartments, hospitals, universities, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101CLL
54
12.61W
1294lm
>80
2700K
130mm
140mm
117mm
101CLL.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
12.61W
1346lm
>80
3000K
130mm
140mm
117mm
101CLL.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
12.61W
1403lm
>80
4000K
130mm
140mm
117mm
101CLL.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
12.61W
1069lm
>90
2700K
130mm
140mm
117mm
101CLL.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
12.61W
1142lm
>90
3000K
130mm
140mm
117mm
101CLL.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
12.61W
1198lm
>90
4000K
130mm
140mm
117mm
101CLL.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1818lm
>80
2700K
130mm
140mm
117mm
101CLL.1-R869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1894lm
>80
3000K
130mm
140mm
117mm
101CLL.1-R870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1973lm
>80
4000K
130mm
140mm
117mm
101CLL.1-R871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1505lm
>90
2700K
130mm
140mm
117mm
101CLL.1-R872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1604lm
>90
3000K
130mm
140mm
117mm
101CLL.1-R873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
18.33W
1683lm
>90
4000K
130mm
140mm
117mm
101CLL.1-R874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
25.33W
2925lm
>80
2700K
130mm
140mm
117mm
102CLL.1-R881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
25.33W
3045lm
>80
3000K
130mm
140mm
117mm
102CLL.1-R882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CLL
54
25.33W
3176lm
>80
4000K
130mm
140mm
117mm
102CLL.1-R883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
