CONICAL XS

CONICAL XS

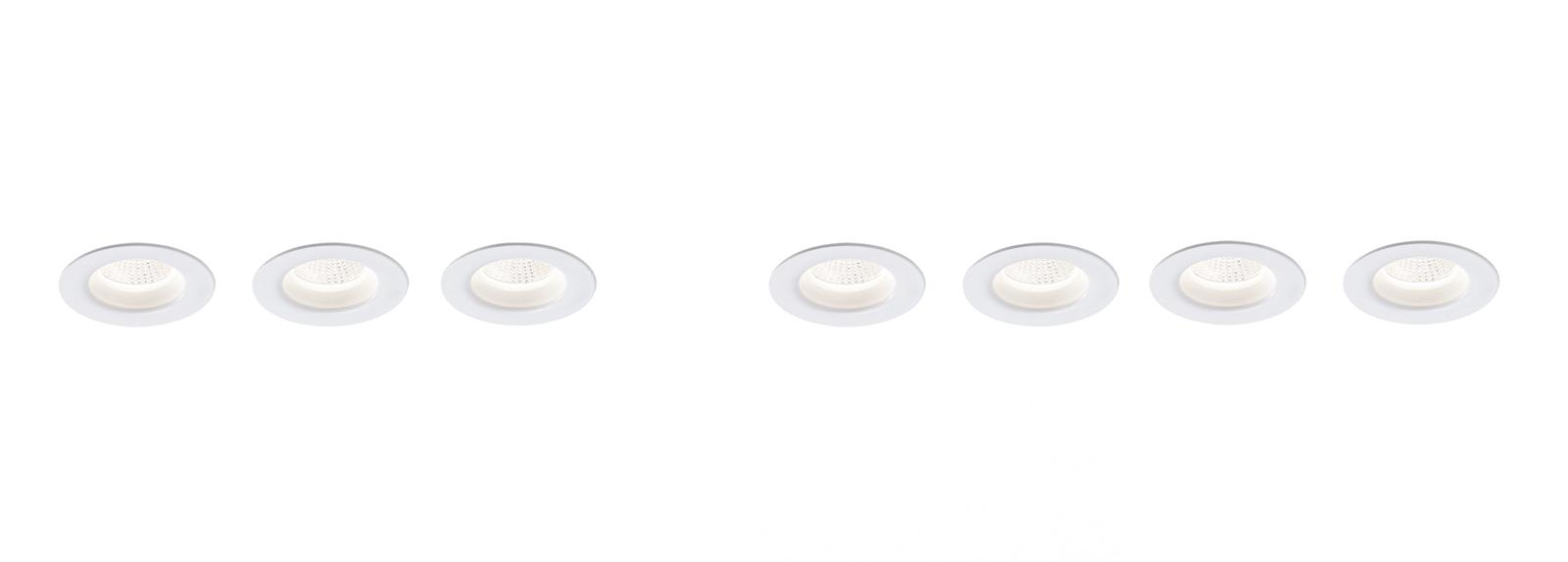

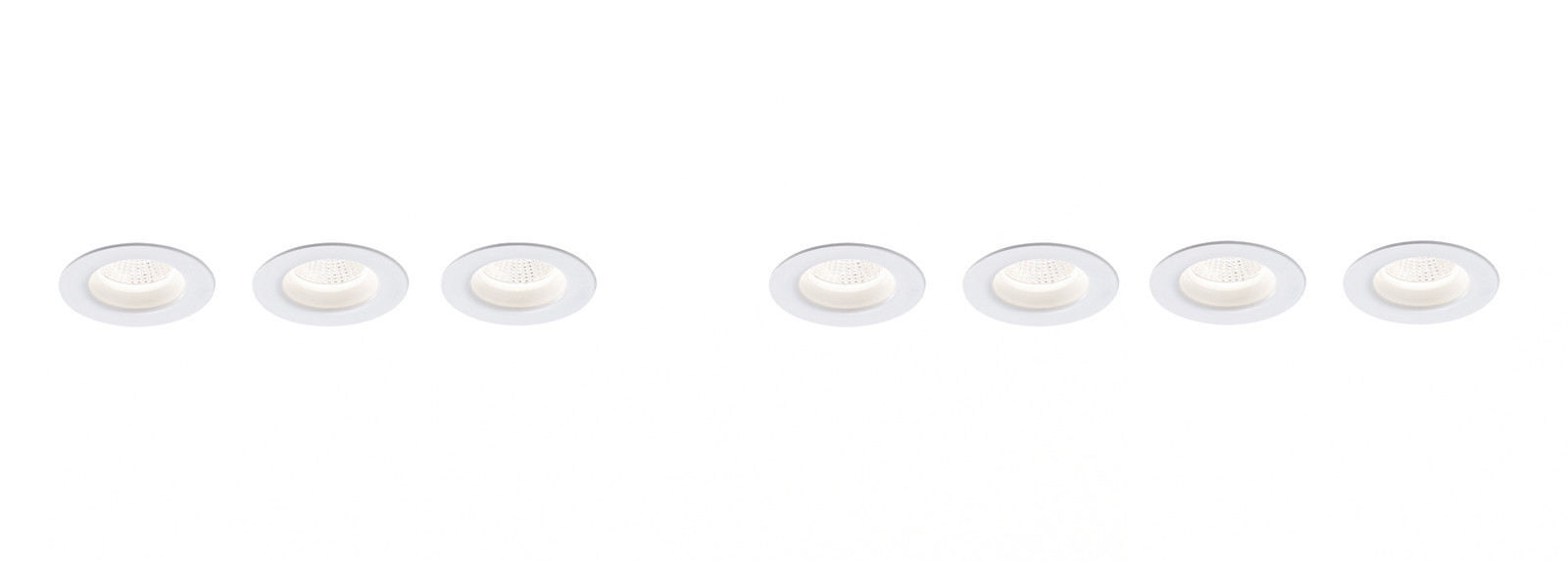

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or ambient lighting.
Circular design with conical trim in diameter 70mm.
Powder painted aluminium trim available in assorted finishes, customized RAL under request.
Remote driver included.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted using galvanised steel support with spring clamps.

Suggested applications: apartments, shops, bars, restaurants, hotels and similar installations.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101CXS
17
4.9W
449lm
>90
2700K
60mm
70mm
68mm
101CNS.1-R937
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
17
4.9W
469lm
>90
3000K
60mm
70mm
68mm
101CNS.1-R938
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
17
4.9W
500lm
>90
4000K
60mm
70mm
68mm
101CNS.1-R939
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
4.9W
462lm
>90
2700K
60mm
70mm
68mm
102CNS.1-R937
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
4.9W
483lm
>90
3000K
60mm
70mm
68mm
102CNS.1-R938
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
4.9W
515lm
>90
4000K
60mm
70mm
68mm
102CNS.1-R939
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
42
4.9W
416lm
>90
2700K
60mm
70mm
68mm
103CNS.1-R937
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
42
4.9W
435lm
>90
3000K
60mm
70mm
68mm
103CNS.1-R938
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
42
4.9W
463lm
>90
4000K
60mm
70mm
68mm
103CNS.1-R939
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
17
6.7W
588lm
>90
2700K
60mm
70mm
68mm
101CNS.1-R942
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
17
6.7W
612lm
>90
3000K
60mm
70mm
68mm
101CNS.1-R943
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
17
6.7W
656lm
>90
4000K
60mm
70mm
68mm
101CNS.1-R944
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
6.7W
606lm
>90
2700K
60mm
70mm
68mm
102CNS.1-R942
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
6.7W
630lm
>90
3000K
60mm
70mm
68mm
102CNS.1-R943
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CXS
28
6.7W
676lm
>90
4000K
60mm
70mm
68mm
102CNS.1-R944
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
