CUMULUS

CUMULUS

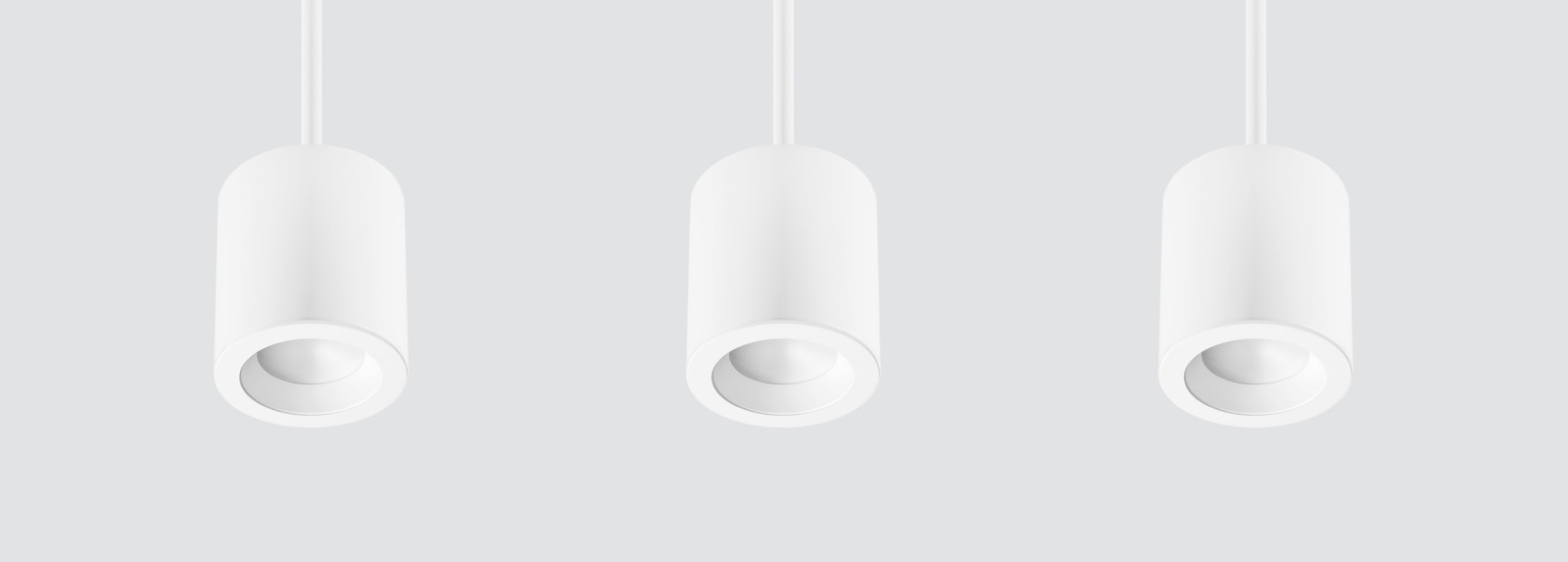

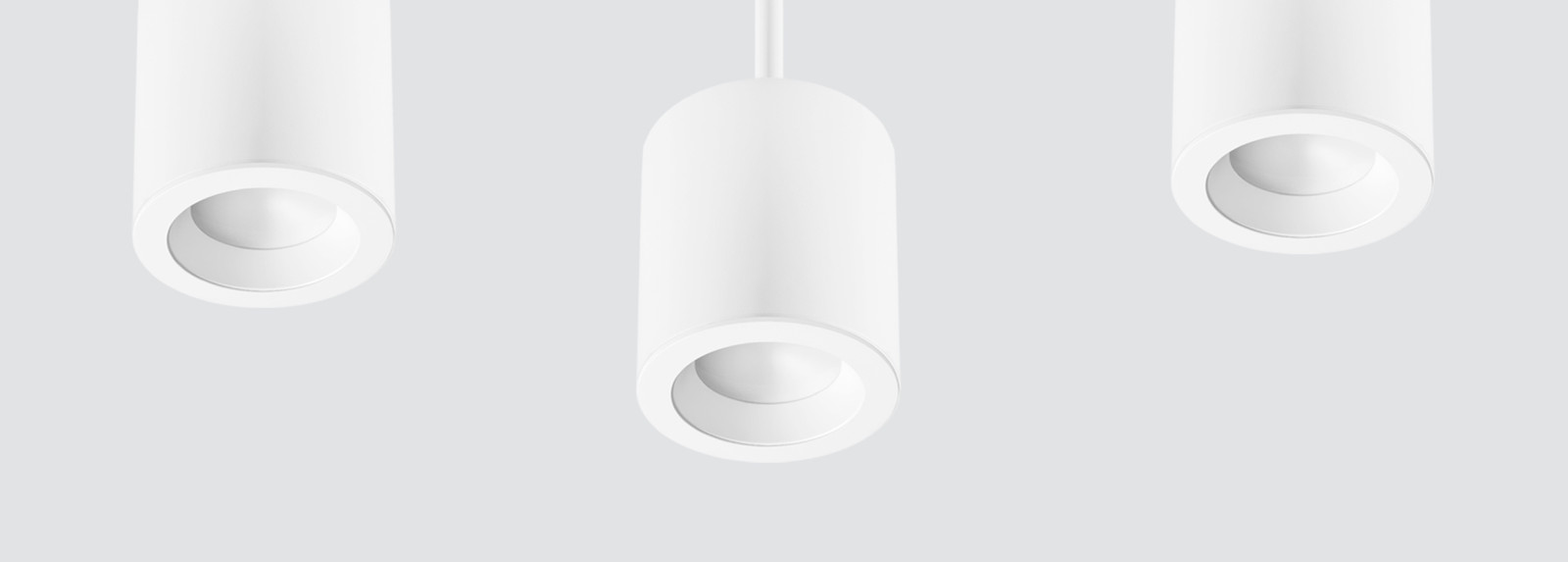

Pendant downlights with symmetrical light distribution to achieve an effective task or ambient lighting.
Neutral cylindrical body available in diameter 150mm, 190mm, 220mm, 235mm, 240mm and 260mm.
Protection rating against dust and moisture: complete IP54.
White painted aluminium reflector. Sandblasted anodised aluminium reflector available as option.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Intermediate tempered frosted glass as standard.
Integral driver supplied.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser and the fixture body itself.
Delivered with 1 meter powder painted metal rod as standard. Mounted to the ceiling by cylindrical ceiling rose.

Matching products:

    • BASE surface-mounted downlights with cylindrical body.
    • CUMULUS EVOLUTION pendant downlights with cylindrical body and intermediate frosted glass.
    • FLOCCUS surface mounted downlight with intermediate frosted glass.
    • GRAVITY and GRAVITY EVOLUTION pendant downlights with cylindrical body.
    • SATELLITE and GIROBAS surface-mounted adjustable downlights.
    •


Suggested applications:
    restaurants, shops, apartments, halls, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations. Solid ceilings, where there is not enough space for recessed mounting. A very good solution for high ceilings because it enables the lighting point to be brought near to the work plane.

Product configurator

Tilt

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101CML
63
12.61W
1156lm
>80
2700K
150mm
210mm
101CML.1.02-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
12.61W
1204lm
>80
3000K
150mm
210mm
101CML.1.02-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
12.61W
1254lm
>80
4000K
150mm
210mm
101CML.1.02-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
12.61W
956lm
>90
2700K
150mm
210mm
101CML.1.02-I866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
12.61W
1021lm
>90
3000K
150mm
210mm
101CML.1.02-I867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
12.61W
1071lm
>90
4000K
150mm
210mm
101CML.1.02-I868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1625lm
>80
2700K
150mm
210mm
101CML.1.02-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1693lm
>80
3000K
150mm
210mm
101CML.1.02-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1764lm
>80
4000K
150mm
210mm
101CML.1.02-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1345lm
>90
2700K
150mm
210mm
101CML.1.02-I872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1434lm
>90
3000K
150mm
210mm
101CML.1.02-I873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CML
63
18.33W
1505lm
>90
4000K
150mm
210mm
101CML.1.02-I874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102CML
80
12.61W
1411lm
>80
2700K
190mm
240mm
102CML.1.02-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102CML
80
12.61W
1469lm
>80
3000K
190mm
240mm
102CML.1.02-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102CML
80
12.61W
1530lm
>80
4000K
190mm
240mm
102CML.1.02-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
