DISTRICT 400

DISTRICT 400

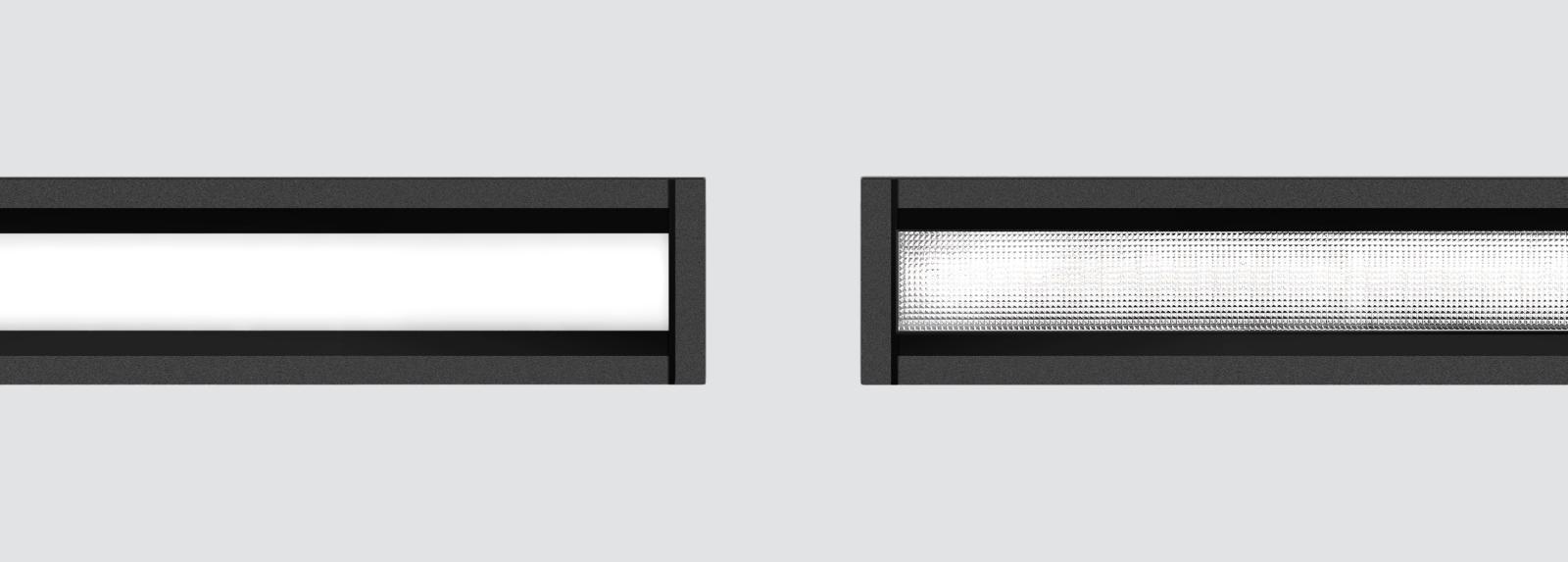

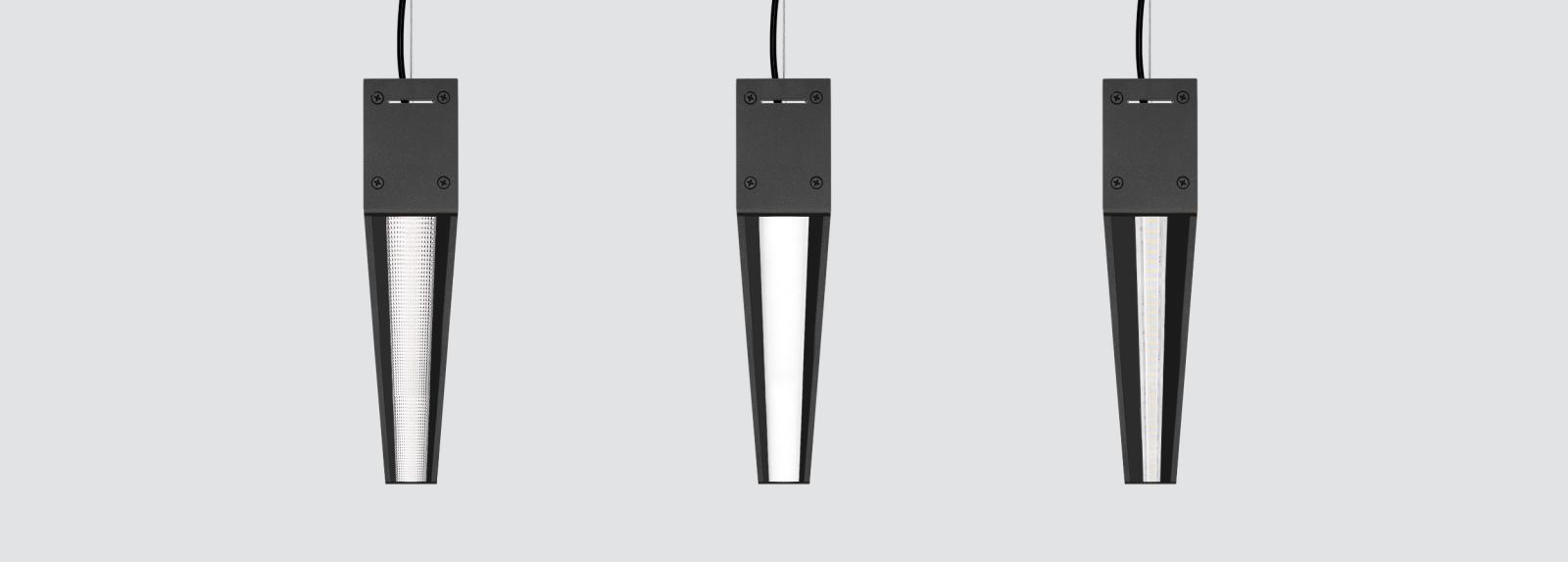

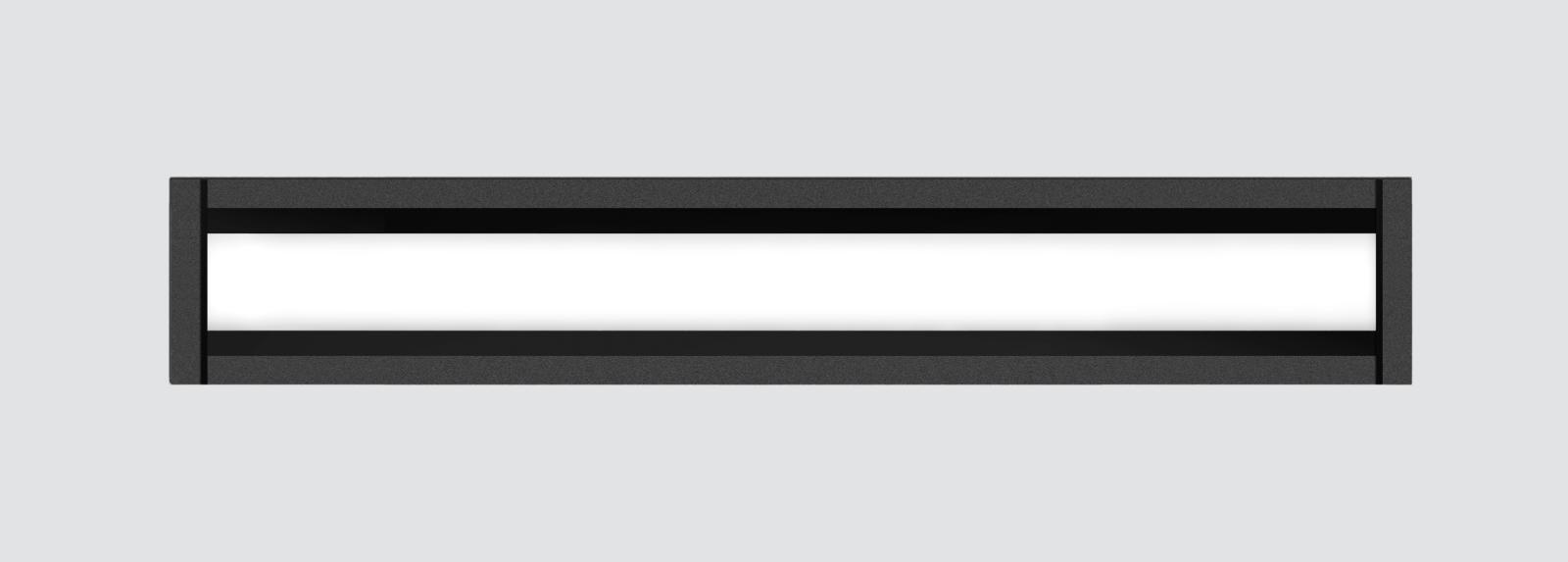

Pendant linear downlights with symmetrical and asymmetrical light distribution.

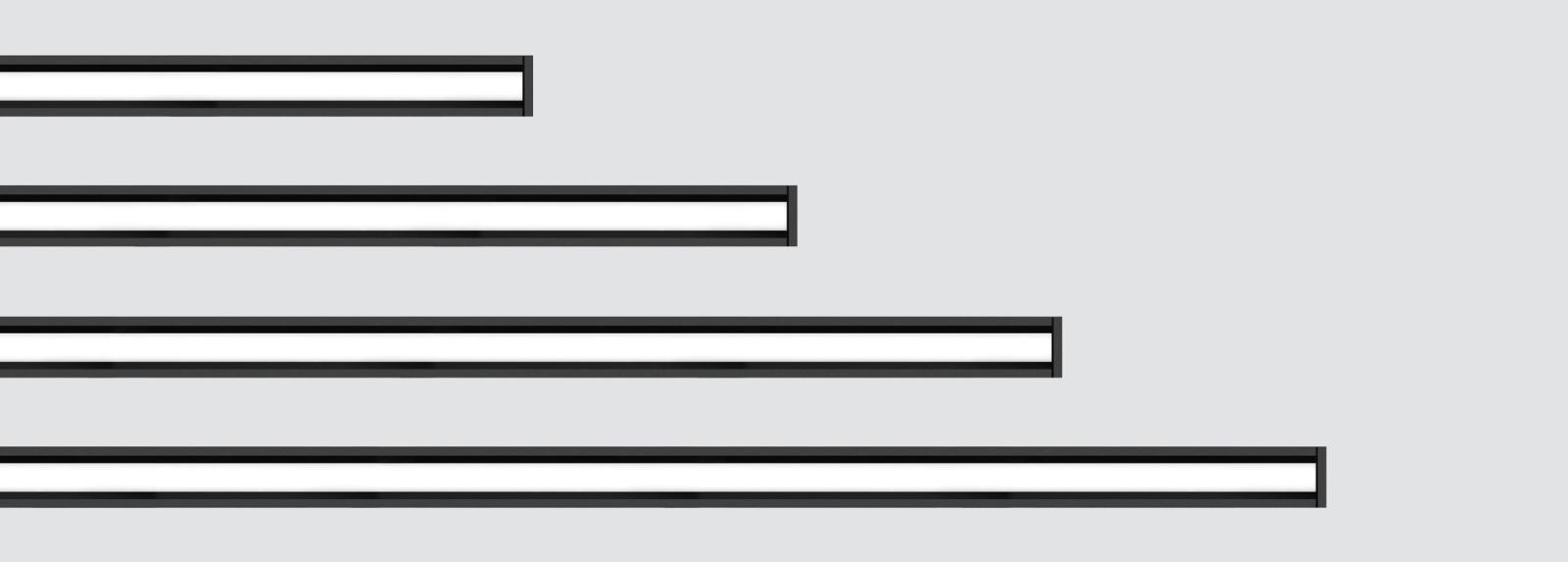

Linear fixtures available in 4 lengths 575mm, 855mm, 1135mm and 1415mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Ceiling-mounted with adjustable steel wire suspension (1m) and electrical wire. Different suspension length on request.
The electric cable inlet is on one end of the luminaire. Luminaires can also be supplied with two cable inlets, one on each side, for serial installation, reference F3.L4.DST.
Passive temperature management.

Matching products:

  • Recessed: DISTRICT 100.
  • Surface mounted: DISTRICT 300.
  • Wall-mounted: DISTRICT 600.
  • Projector: DISTRICT 800.
Suggested applications: porches, leisure areas, car parks, service stations, outdoor ceilings in high humidity areas.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F43DST
43
6W
991lm
80
2700K
575x62
85mm
431DST.4.01-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
6W
1022lm
80
3000K
575x62
85mm
431DST.4.01-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
6W
1069lm
80
4000K
575x62
85mm
431DST.4.01-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
6W
1069lm
80
5000K
575x62
85mm
431DST.4.01-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
11W
1615lm
80
2700K
575x62
85mm
431DST.4.01-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
11W
1664lm
80
3000K
575x62
85mm
431DST.4.01-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
11W
1741lm
80
4000K
575x62
85mm
431DST.4.01-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
11W
1741lm
80
5000K
575x62
85mm
431DST.4.01-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
16W
2188lm
80
2700K
575x62
85mm
431DST.4.01-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
16W
2254lm
80
3000K
575x62
85mm
431DST.4.01-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
16W
2360lm
80
4000K
575x62
85mm
431DST.4.01-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
16W
2360lm
80
5000K
575x62
85mm
431DST.4.01-I740
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
20W
2795lm
80
2700K
575x62
85mm
431DST.4.01-I744
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
20W
2882lm
80
3000K
575x62
85mm
431DST.4.01-I745
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43DST
43
20W
3014lm
80
4000K
575x62
85mm
431DST.4.01-I746
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
