DISTRICT 600

DISTRICT 600

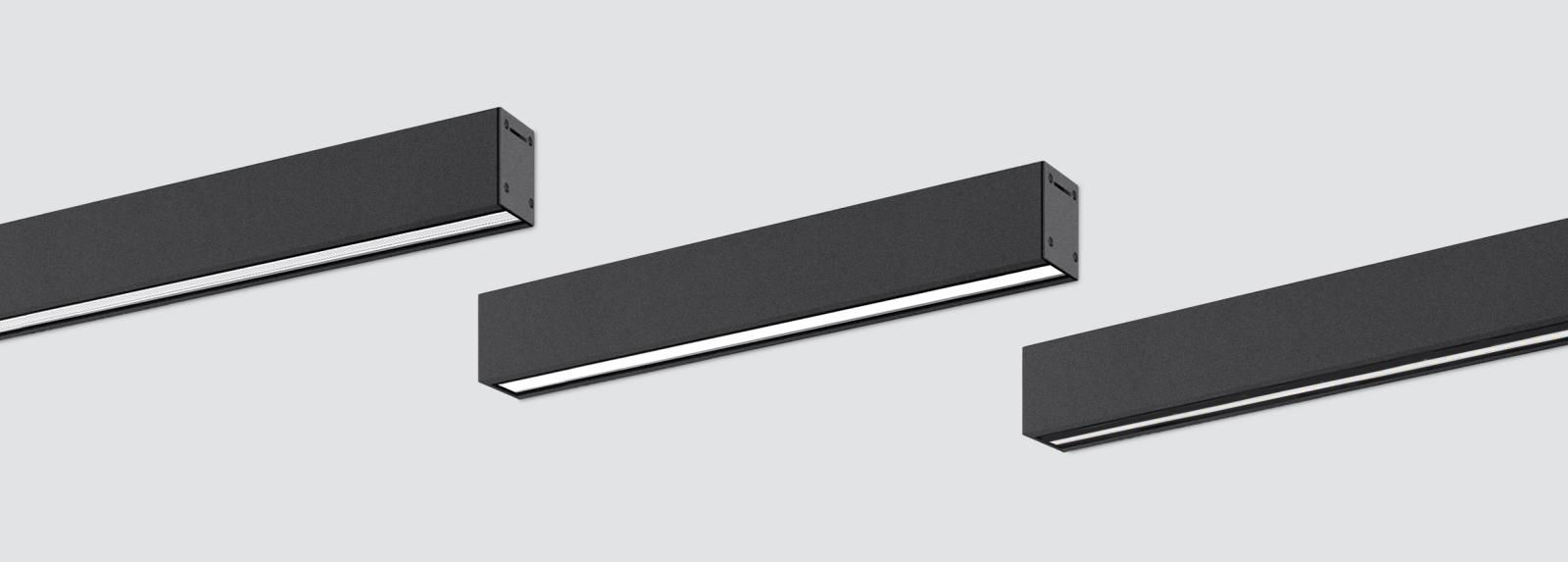

Wall mounted linear fixtures with symmetrical and asymmetrical light distribution.
Linear fixtures available in 4 lengths 575mm, 855mm, 1135mm and 1415mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Wall-mounted by mounting brackets. Stainless steel 316L mounting brackets.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

Matching products:

  • Recessed: DISTRICT 100.
  • Surface mounted: DISTRICT 300.
  • Pendant: DISTRICT 400.
  • Projector: DISTRICT 800.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F63DST
43
7.1W
991lm
80
2700K
575x62
85mm
631DST.4.01-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
7.1W
1022lm
80
3000K
575x62
85mm
631DST.4.01-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
7.1W
1069lm
80
4000K
575x62
85mm
631DST.4.01-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
7.1W
1069lm
80
5000K
575x62
85mm
631DST.4.01-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
12.08W
1615lm
80
2700K
575x62
85mm
631DST.4.01-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
12.08W
1664lm
80
3000K
575x62
85mm
631DST.4.01-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
12.08W
1741lm
80
4000K
575x62
85mm
631DST.4.01-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
12.08W
1741lm
80
5000K
575x62
85mm
631DST.4.01-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
17.21W
2188lm
80
2700K
575x62
85mm
631DST.4.01-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
17.21W
2254lm
80
3000K
575x62
85mm
631DST.4.01-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
17.21W
2360lm
80
4000K
575x62
85mm
631DST.4.01-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
17.21W
2360lm
80
5000K
575x62
85mm
631DST.4.01-I740
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
22.48W
2795lm
80
2700K
575x62
85mm
631DST.4.01-I744
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
22.48W
2882lm
80
3000K
575x62
85mm
631DST.4.01-I745
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DST
43
22.48W
3014lm
80
4000K
575x62
85mm
631DST.4.01-I746
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
