DISTRICT XS 600

DISTRICT XS 600

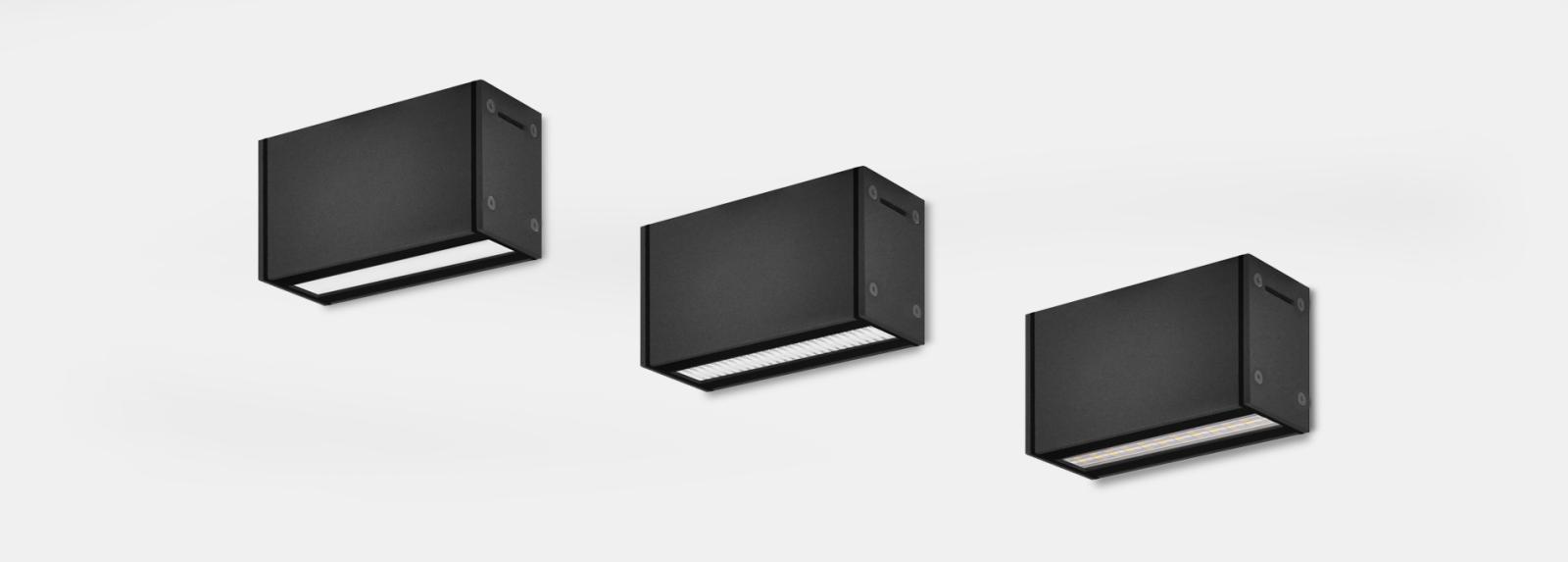

Wall mounted linear fixtures with symmetrical and asymmetrical light distribution.
Linear fixtures available in 2 lengths 155mm and 295mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Wall-mounted by mounting brackets. Stainless steel 316L mounting brackets.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.
Matching products:

  • Recessed: DISTRICT XS 100.
  • Surface mounted: DISTRICT XS 300.
  • Two-sided emission wall-mounted: DISTRICT XS 700.
  • Projector: DISTRICT XS 800.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

mA

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F63DSX
43
3.21W
264lm
>80
3000K
155x62
85mm
634DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DSX
43
3.21W
281lm
>80
4000K
155x62
85mm
634DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DSX
43
4.43W
434lm
>80
3000K
155x62
85mm
634DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DSX
43
4.43W
455lm
>80
4000K
155x62
85mm
634DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DSX
43
6.09W
587lm
>80
3000K
155x62
85mm
634DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F63DSX
43
6.09W
616lm
>80
4000K
155x62
85mm
634DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
3.21W
140lm
>80
3000K
155x62
85mm
654DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
3.21W
149lm
>80
4000K
155x62
85mm
654DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
4.43W
230lm
>80
3000K
155x62
85mm
654DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
4.43W
241lm
>80
4000K
155x62
85mm
654DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
6.09W
311lm
>80
3000K
155x62
85mm
654DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F65DSX
100
6.09W
326lm
>80
4000K
155x62
85mm
654DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F66DSX
69
3.21W
167lm
>80
3000K
155x62
85mm
664DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F66DSX
69
3.21W
178lm
>80
4000K
155x62
85mm
664DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F66DSX
69
4.43W
275lm
>80
3000K
155x62
85mm
664DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
