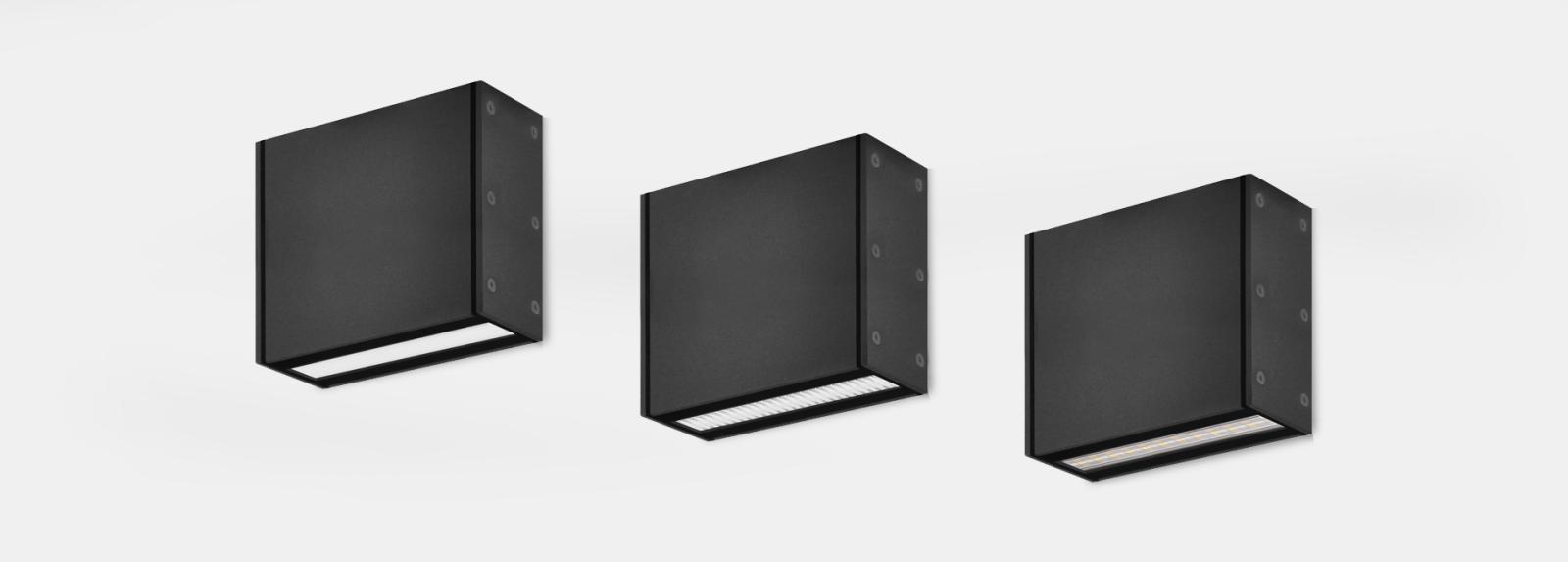

DISTRICT XS 700

DISTRICT XS 700


Wall mounted linear fixtures with symmetrical light distribution. Double light emission: up and down.
Linear fixtures available in 2 lengths 155mm and 295mm in a width of 62mm and height of 128mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Wall-mounted by mounting brackets. 316L stainless steel 316L mounting brackets.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

It is possible to specify individual luminous flux, beam angle and colour temperature for each luminaire side, downlight and uplight side.

Matching products:

  • Recessed: DISTRICT XS 100.
  • Surface mounted: DISTRICT XS 300.
  • Wall-mounted : DISTRICT XS 700.
  • Projector: DISTRICT XS 800.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

mA

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F73DSX
43
6.42W
264lm
>80
3000K
155x62
128mm
734DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F73DSX
43
6.42W
281lm
>80
4000K
155x62
128mm
734DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F73DSX
43
8.86W
434lm
>80
3000K
155x62
128mm
734DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F73DSX
43
8.86W
455lm
>80
4000K
155x62
128mm
734DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F73DSX
43
12.18W
587lm
>80
3000K
155x62
128mm
734DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F73DSX
43
12.18W
616lm
>80
4000K
155x62
128mm
734DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
6.42W
140lm
>80
3000K
155x62
128mm
754DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
6.42W
149lm
>80
4000K
155x62
128mm
754DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
8.86W
230lm
>80
3000K
155x62
128mm
754DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
8.86W
241lm
>80
4000K
155x62
128mm
754DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
12.18W
311lm
>80
3000K
155x62
128mm
754DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F75DSX
100
12.18W
326lm
>80
4000K
155x62
128mm
754DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F76DSX
69
6.42W
167lm
>80
3000K
155x62
128mm
764DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F76DSX
69
6.42W
178lm
>80
4000K
155x62
128mm
764DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F76DSX
69
8.86W
275lm
>80
3000K
155x62
128mm
764DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
