EFFECT

EFFECT

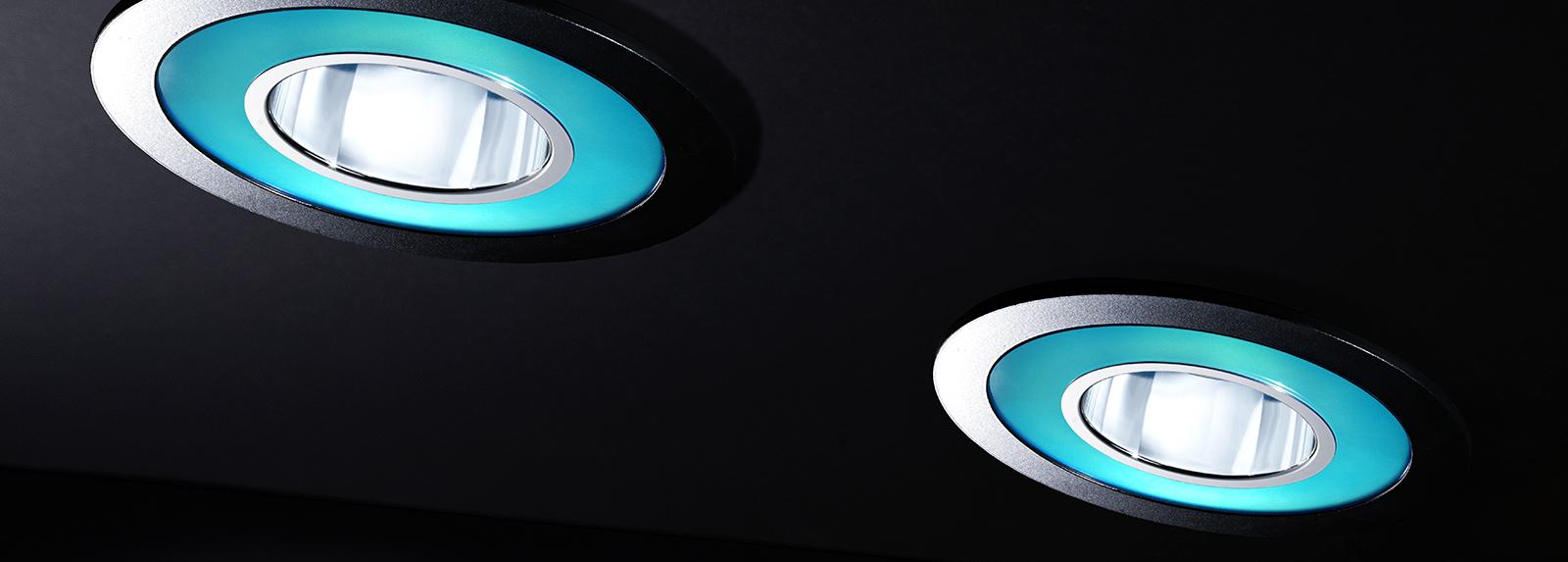

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective general lighting.
Circular design available in a diameter of 240mm.
Total lighting control: high performance and high efficiency.
High-purity anodised aluminium reflectors.
Double die-cast aluminium trim and glass diffuser with internal reflector to direct the light.
Powder painted exterior trim available in various finishes, customized RAL under request.
Flush painted glass diffuser attached to the downlight.
Remote driver supplied. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation via aluminium heatsink.
Ceiling-mounted using galvanised steel support with screws, ceiling thicknesses up to 30mm.

Suggested applications: Shopping centers, hotels, restaurants, shops, showrooms, religious buildings, banks and similar installations. To create a special lighting effect in any space. Really recommended in order to keep chains and franchisees corporate image helping in their brand recognition.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101EFF
19
12.61W
1235lm
>80
2700K
220mm
240mm
156mm
101EFF.1.04-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
12.61W
1285lm
>80
3000K
220mm
240mm
156mm
101EFF.1.04-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
12.61W
1339lm
>80
4000K
220mm
240mm
156mm
101EFF.1.04-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
12.61W
1021lm
>90
2700K
220mm
240mm
156mm
101EFF.1.04-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
12.61W
1090lm
>90
3000K
220mm
240mm
156mm
101EFF.1.04-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
12.61W
1143lm
>90
4000K
220mm
240mm
156mm
101EFF.1.04-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1736lm
>80
2700K
220mm
240mm
156mm
101EFF.1.04-R869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1808lm
>80
3000K
220mm
240mm
156mm
101EFF.1.04-R870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1884lm
>80
4000K
220mm
240mm
156mm
101EFF.1.04-R871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1436lm
>90
2700K
220mm
240mm
156mm
101EFF.1.04-R872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1531lm
>90
3000K
220mm
240mm
156mm
101EFF.1.04-R873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
19
18.33W
1607lm
>90
4000K
220mm
240mm
156mm
101EFF.1.04-R874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
24
25.33W
2262lm
>80
2700K
220mm
240mm
156mm
102EFF.1.04-R881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
24
25.33W
2355lm
>80
3000K
220mm
240mm
156mm
102EFF.1.04-R882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101EFF
24
25.33W
2456lm
>80
4000K
220mm
240mm
156mm
102EFF.1.04-R883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
