GOWEL 800

GOWEL 800


Linear projectors with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

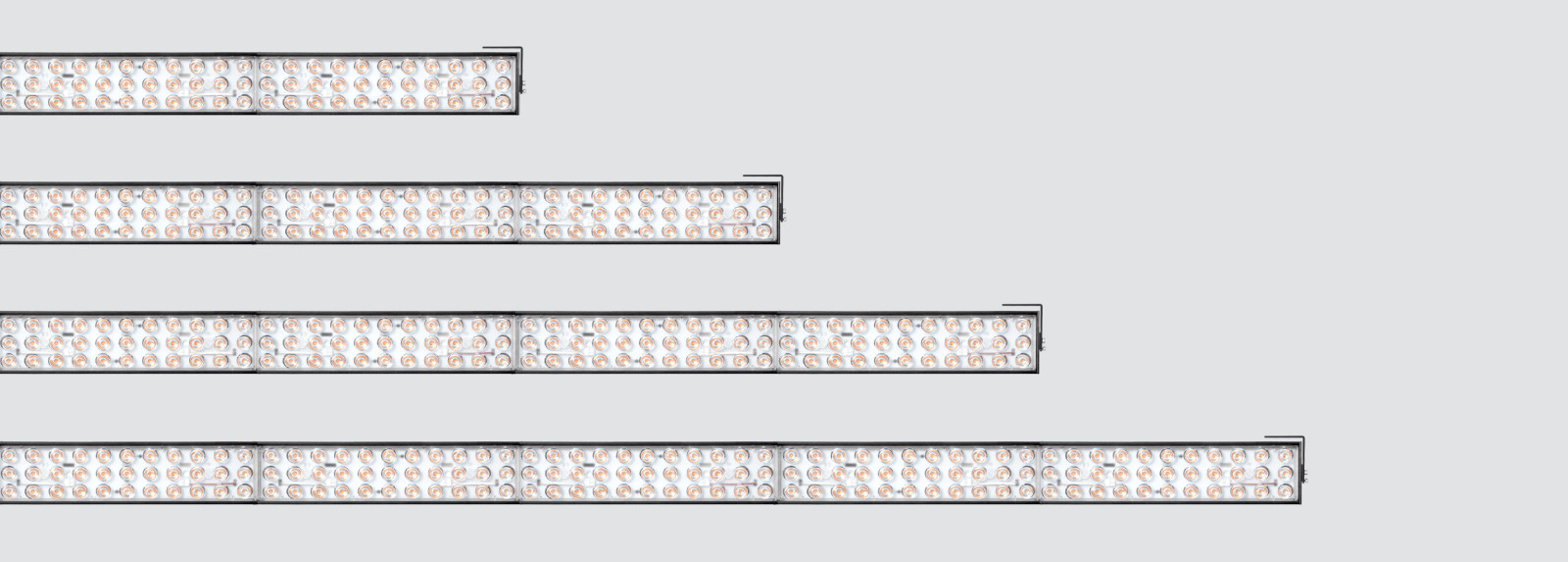

Linear fixtures available in 4 lengths 581mm, 868mm, 1154mm and 1441mm and in a width of 70mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.

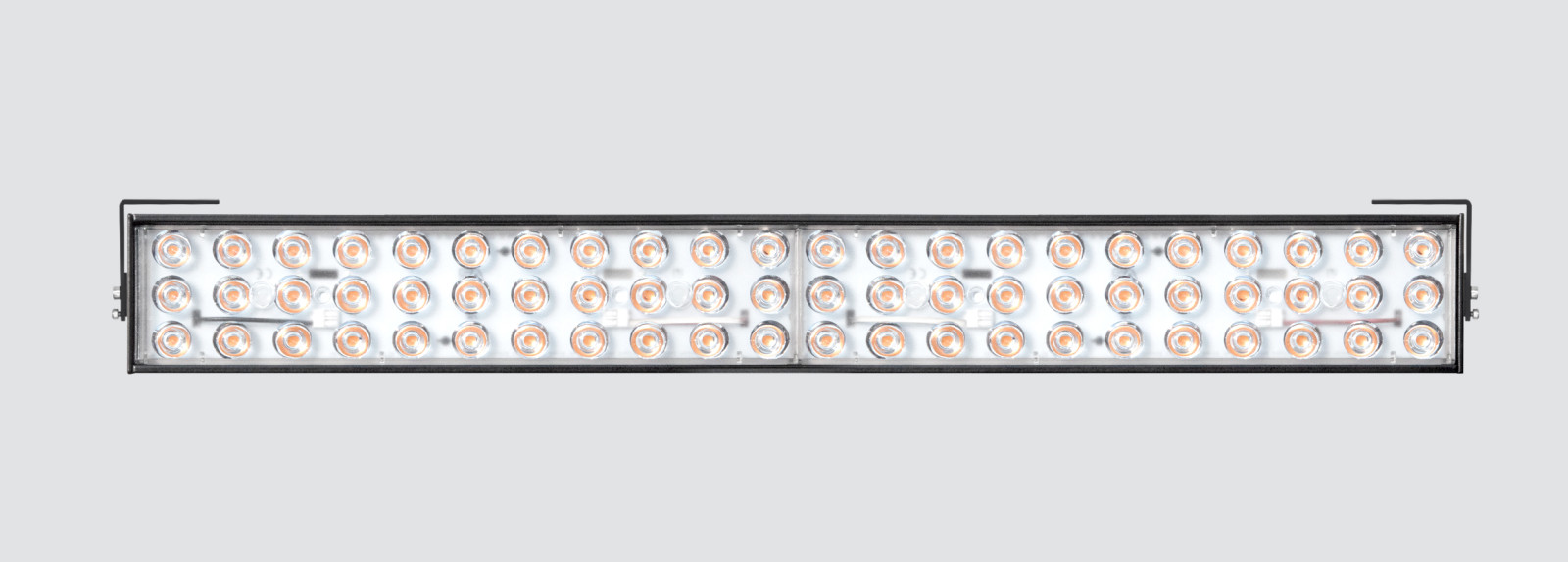

Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.

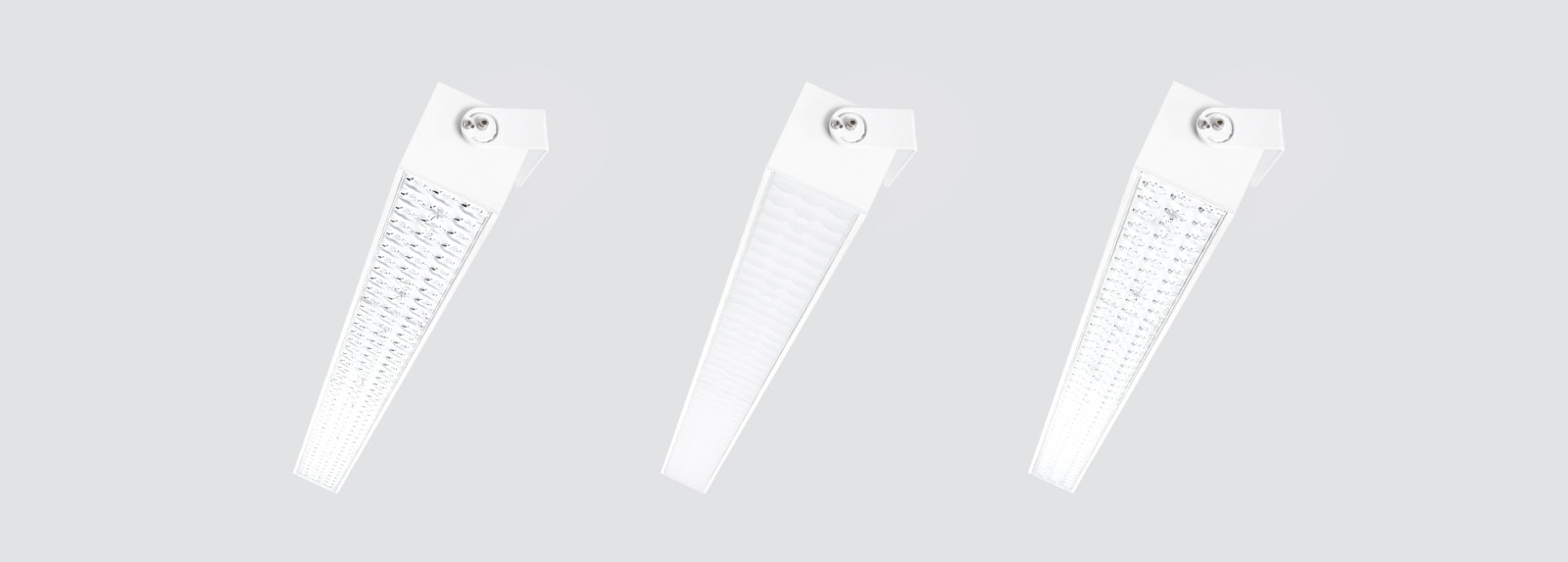

Ceiling-mounted using adjustable supports.
Matching products:

  • GOWEL 100 recessed with frame.
  • GOWEL 200 recessed without frame.
  • GOWEL 300 surface mounted.
  • GOWEL 400 pendant.
Suggested applications: shopping malls, hospitals, laboratories, warehouses, industrial facilities, schools and universities, offices, retail, showrooms, leisure facilities, gyms and similar installations. Solid ceilings, where it is not possible a recessed installation.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Diffuser

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F800GWL
17
11.84W
1447lm
80
3000K
581x70
65mm
801GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
11.84W
1556lm
80
4000K
581x70
65mm
801GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
11.84W
1583lm
80
5000K
581x70
65mm
801GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
22.35W
2776lm
80
3000K
581x70
65mm
801GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
22.35W
2985lm
80
4000K
581x70
65mm
801GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
22.35W
3030lm
80
5000K
581x70
65mm
801GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
36.36W
4450lm
80
3000K
581x70
65mm
801GWL.1-I769
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
36.36W
4787lm
80
4000K
581x70
65mm
801GWL.1-I776
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
17
36.36W
4850lm
80
5000K
581x70
65mm
801GWL.1-I783
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
11.84W
1479lm
80
3000K
581x70
65mm
831GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
11.84W
1590lm
80
4000K
581x70
65mm
831GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
11.84W
1618lm
80
5000K
581x70
65mm
831GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
22.35W
2837lm
80
3000K
581x70
65mm
831GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
22.35W
3050lm
80
4000K
581x70
65mm
831GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F800GWL
65
22.35W
3097lm
80
5000K
581x70
65mm
831GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
