GRAVITY EVOLUTION

GRAVITY EVOLUTION

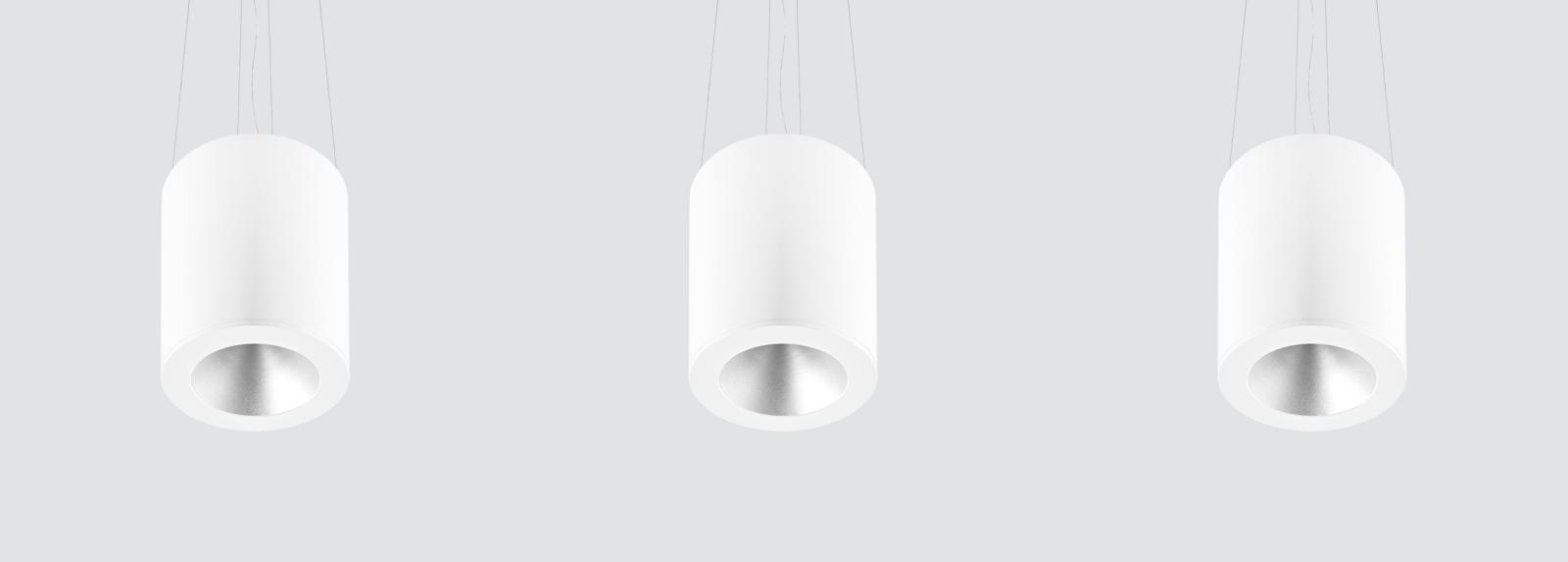

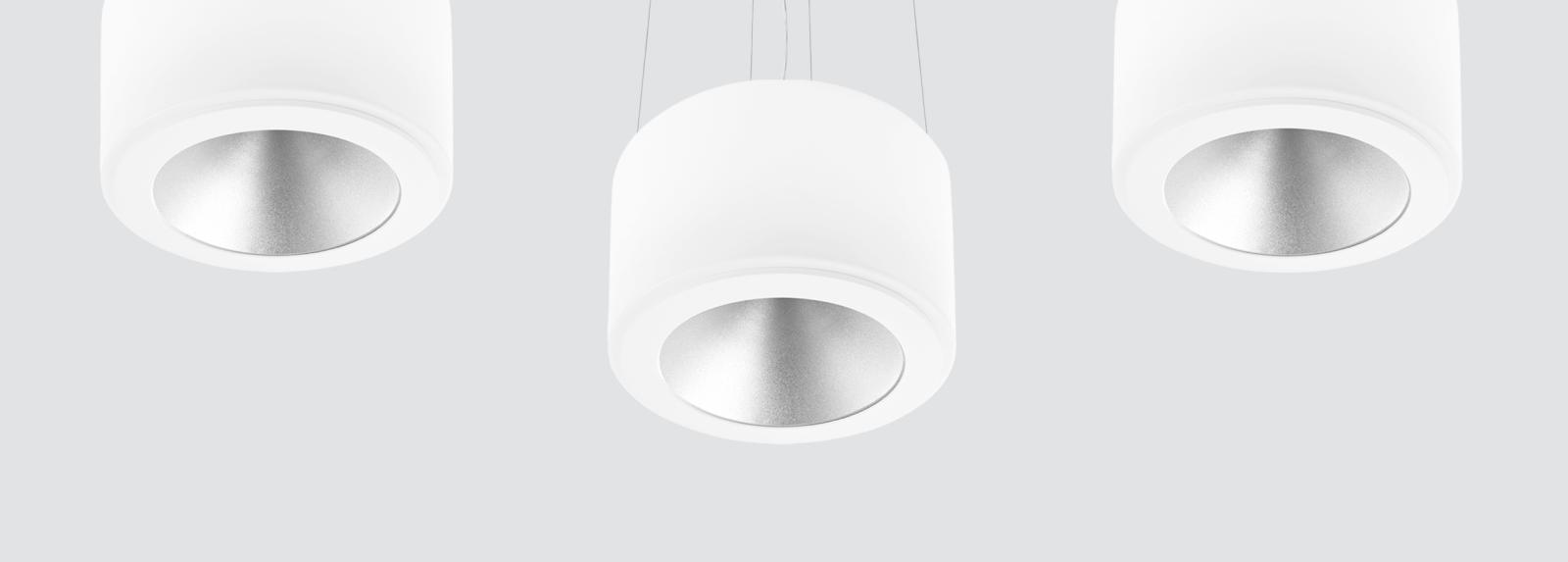

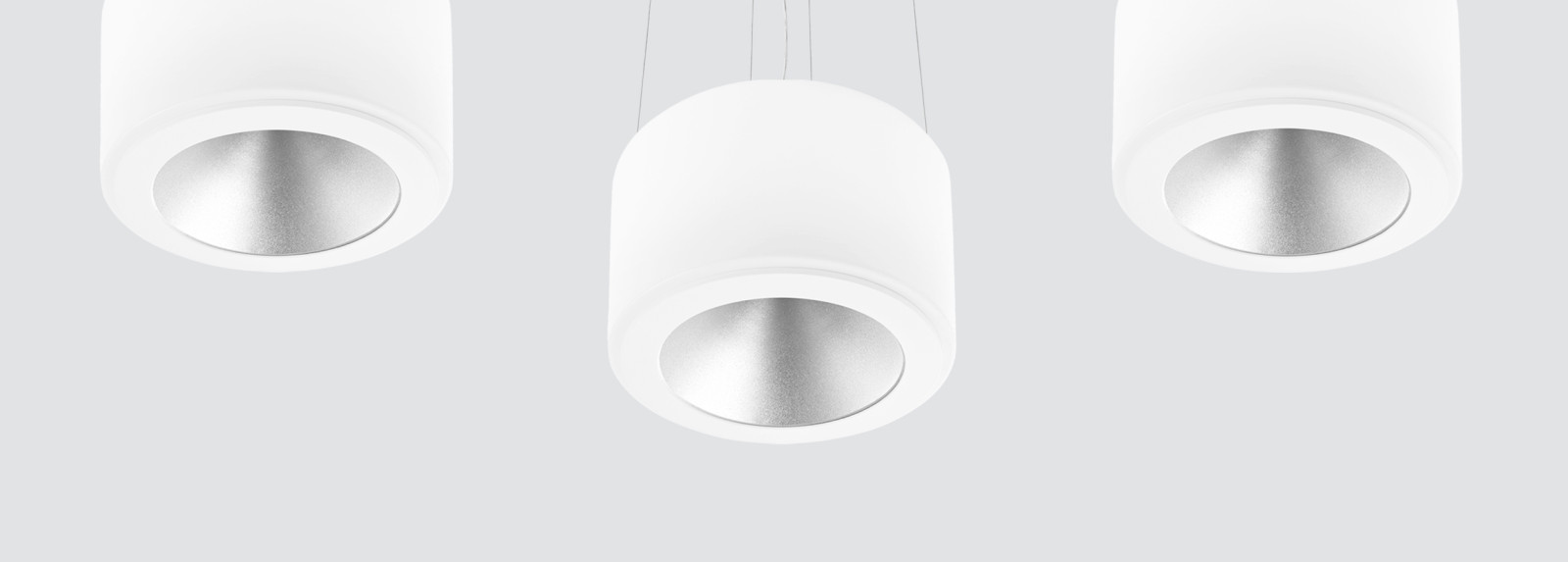

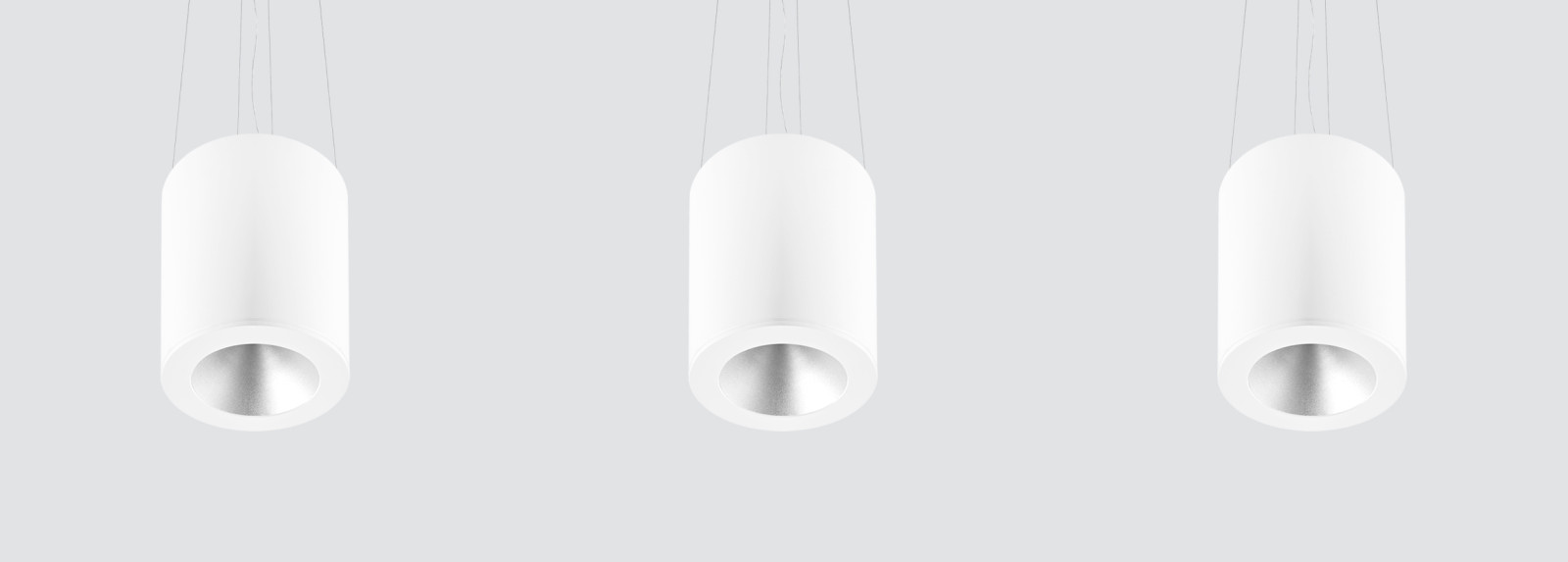

Pendant downlights with symmetrical light distribution to achieve an effective task, accent or general lighting.
Neutral cylindrical body available in 6 diameters: 150mm, 190mm, 220mm, 235mm, 240mm and 260mm.
High-purity aluminium reflectors in assorted finishes: facetted metalized or sandblasted anodised.
Powder painted aluminium profile available in various finishes, customized RAL under request.
Built-in driver.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Ceiling-mounted using ceiling rose. Suspended 1 meter by three steel cords. Transparent electrical wire.
Matching products:

  • BASE surface-mounted downlights with cylindrical body.
  • GRAVITY downlight with cylindrical design suspended with metal rod.
  • CUMULUS and CUMULUS EVOLUTION pendant downlights with cylindrical body and intermediate frosted glass.
  • FLOCCUS surface mounted downlight with intermediate frosted glass.
  • SATELLITE and GIROBAS surface-mounted adjustable downlights.

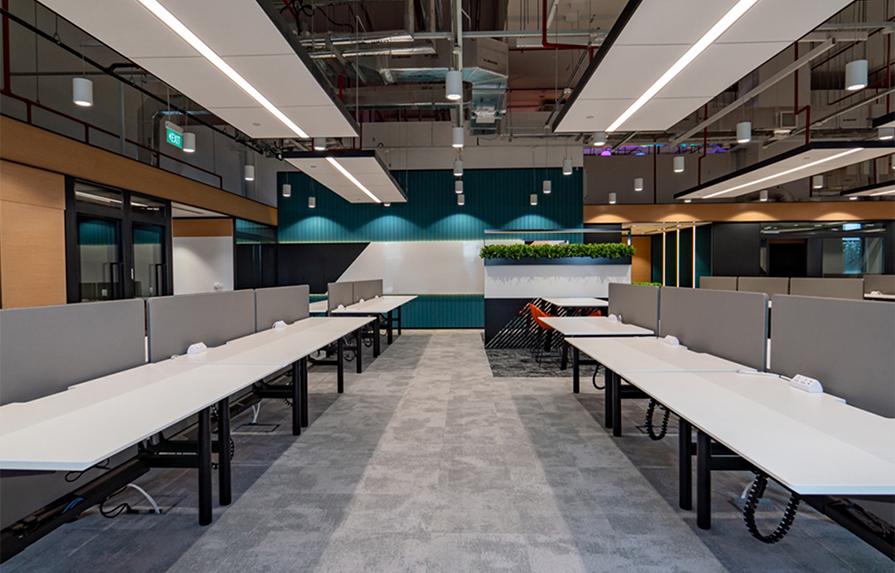

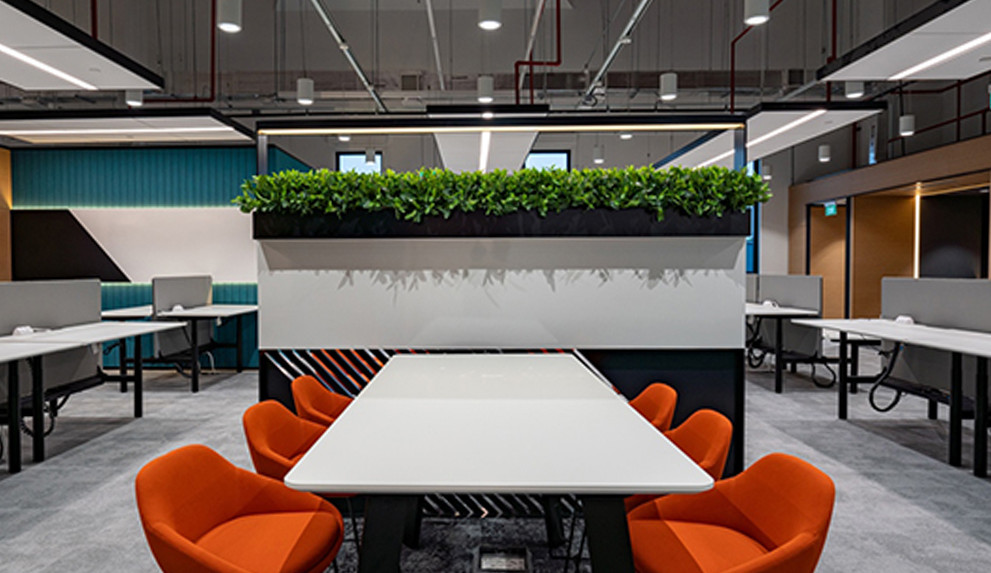

Suggested applications: restaurants, shops, apartments, halls, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations. Solid ceilings, where there is  not enough space for recessed mounting. A very good solution for high ceilings because it enables the lighting point to be brought near to the work plane.

Product configurator

Tilt

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101GVE
12
12.61W
1784lm
>80
2700K
150mm
210mm+ 1000mm
101GVE.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
12.61W
1856lm
>80
3000K
150mm
210mm+ 1000mm
101GVE.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
12.61W
1934lm
>80
4000K
150mm
210mm+ 1000mm
101GVE.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
12.61W
1474lm
>90
2700K
150mm
210mm+ 1000mm
101GVE.1-I866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
12.61W
1574lm
>90
3000K
150mm
210mm+ 1000mm
101GVE.1-I867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
12.61W
1652lm
>90
4000K
150mm
210mm+ 1000mm
101GVE.1-I868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2507lm
>80
2700K
150mm
210mm+ 1000mm
101GVE.1-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2612lm
>80
3000K
150mm
210mm+ 1000mm
101GVE.1-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2721lm
>80
4000K
150mm
210mm+ 1000mm
101GVE.1-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2075lm
>90
2700K
150mm
210mm+ 1000mm
101GVE.1-I872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2211lm
>90
3000K
150mm
210mm+ 1000mm
101GVE.1-I873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
12
18.33W
2321lm
>90
4000K
150mm
210mm+ 1000mm
101GVE.1-I874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
24
12.61W
1784lm
>80
2700K
150mm
210mm+ 1000mm
102GVE.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
24
12.61W
1856lm
>80
3000K
150mm
210mm+ 1000mm
102GVE.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GVE
24
12.61W
1934lm
>80
4000K
150mm
210mm+ 1000mm
102GVE.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
