HADRON

HADRON

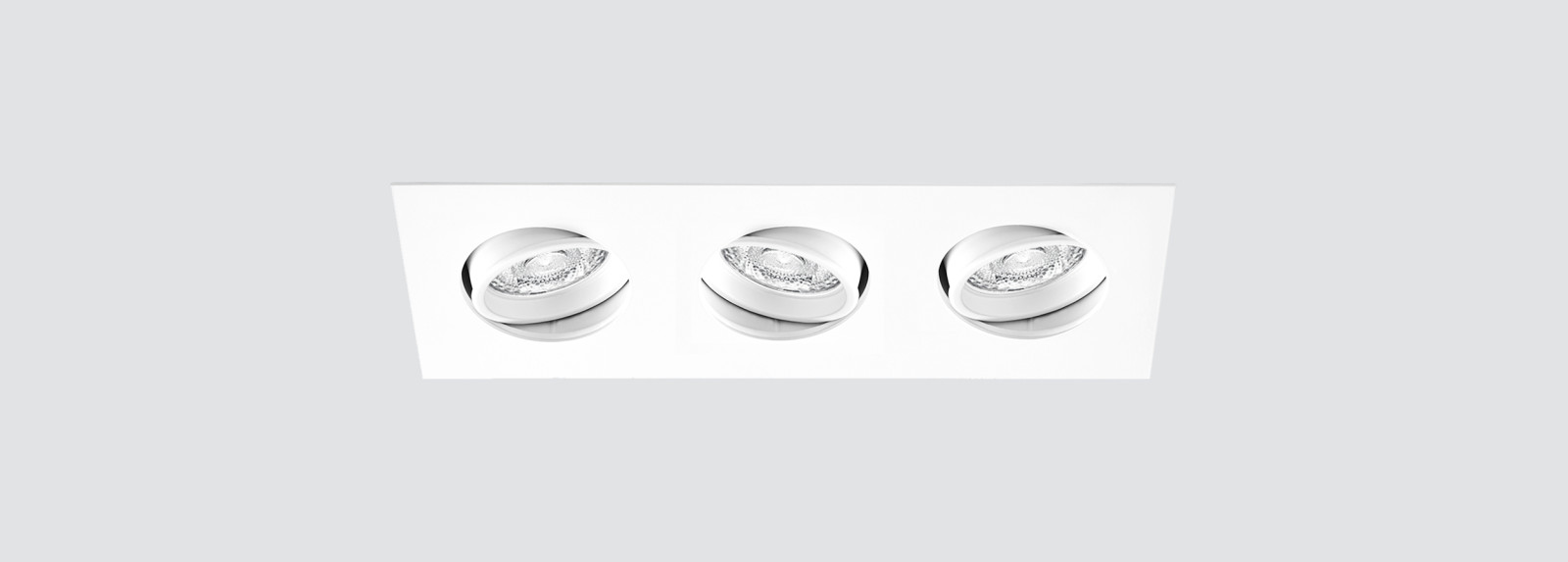

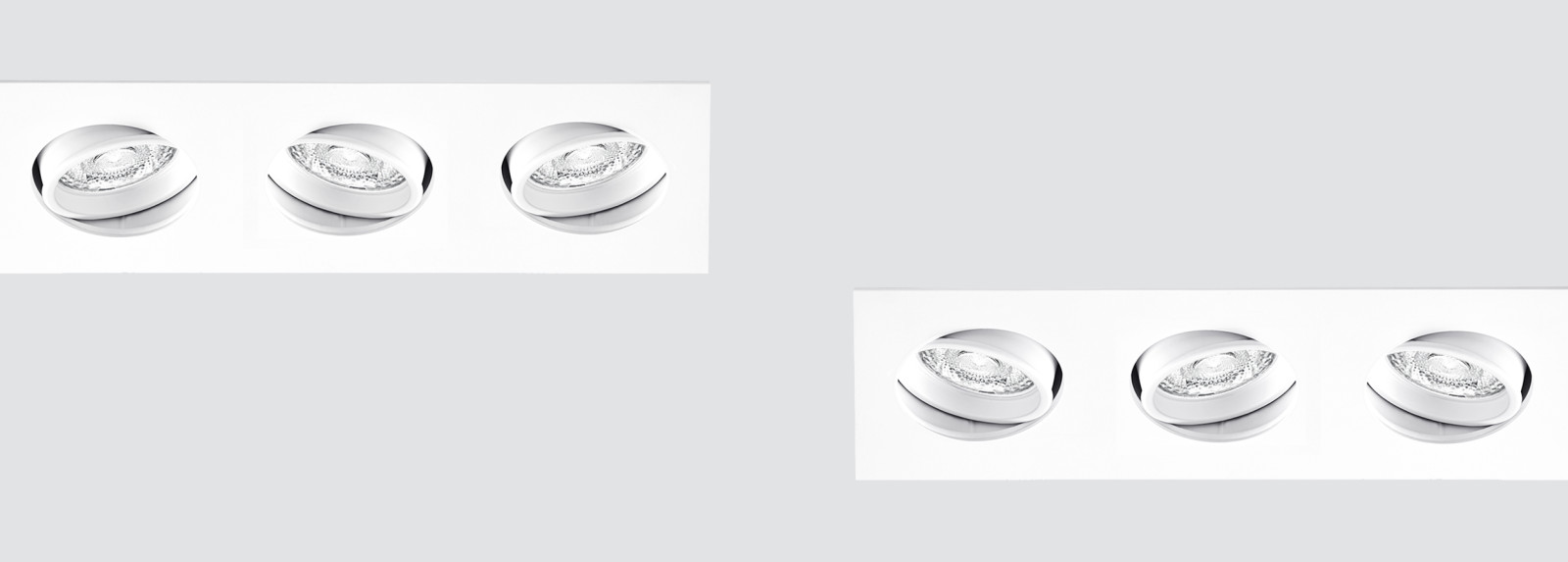

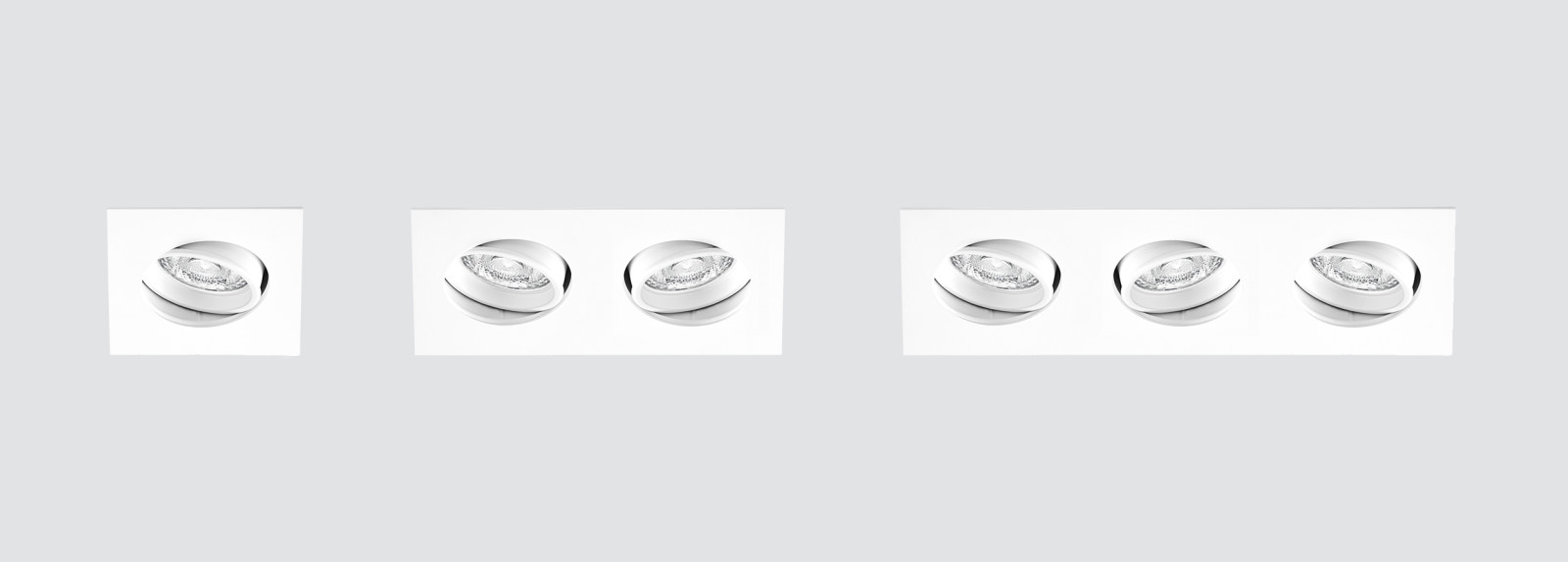

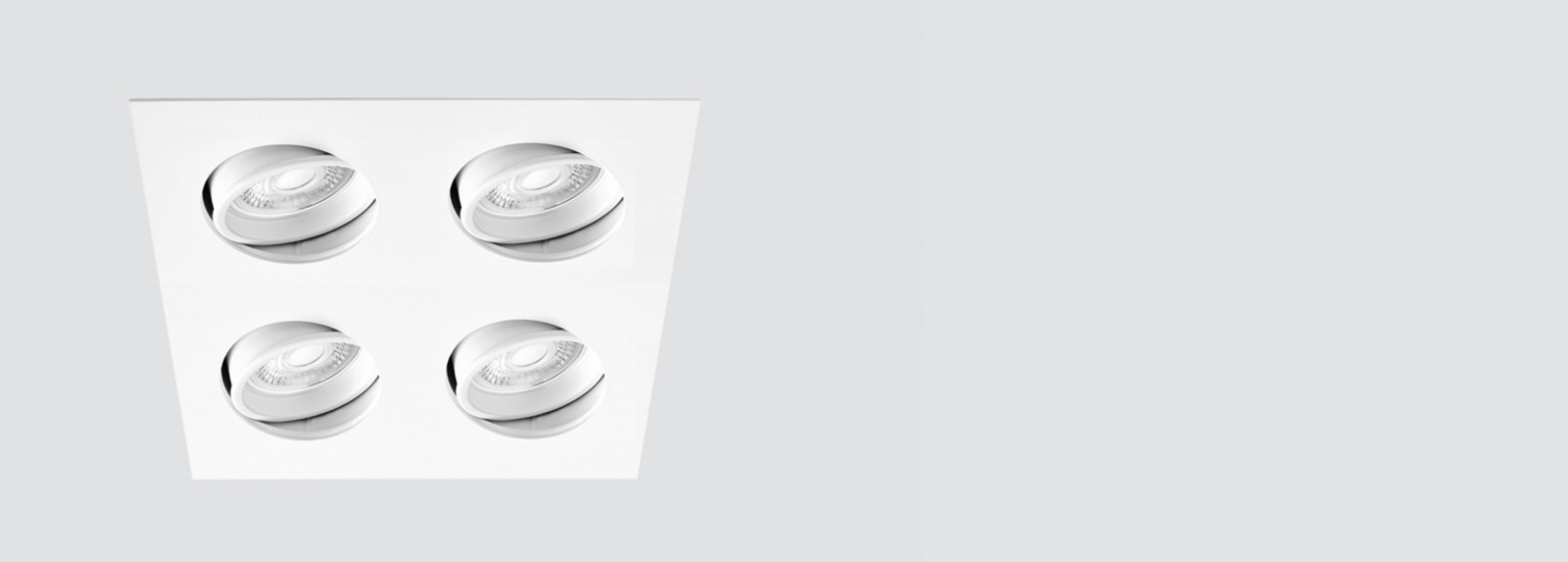

Recessed ceiling-mounted multidirectional downlights with symmetrical light distribution to achieve an effective task, accent or general lighting.
Swivel mounted downlights, adjustable up to 25º and with 180º rotation.
Die-cast aluminium trim and recessing surface powder painted in assorted finishes, customized RAL under request.
Remote driver included.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.

Suggested applications: apartments, shops, restaurants, hotels and similar installations.

Product configurator

Tilt

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101HDN_102HDN
24
5W
480lm
>90
2700K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R522
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
5W
520lm
>90
3000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R523
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
5W
560lm
>90
4000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R524
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
5W
480lm
>90
2700K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R525
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
5W
520lm
>90
3000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R526
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
5W
560lm
>90
4000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R527
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
6.6W
600lm
>90
2700K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R618
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
6.6W
670lm
>90
3000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R619
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
6.6W
720lm
>90
4000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R620
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
6.6W
600lm
>90
2700K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R633
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
6.6W
670lm
>90
3000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R634
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
36
6.6W
720lm
>90
4000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R635
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
8.8W
770lm
>90
2700K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R639
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
8.8W
840lm
>90
3000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R640
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HDN_102HDN
24
8.8W
890lm
>90
4000K
98mm x 98mm
110mm x 110mm
75mm
101HDN.1-R641
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
