HELIX

HELIX

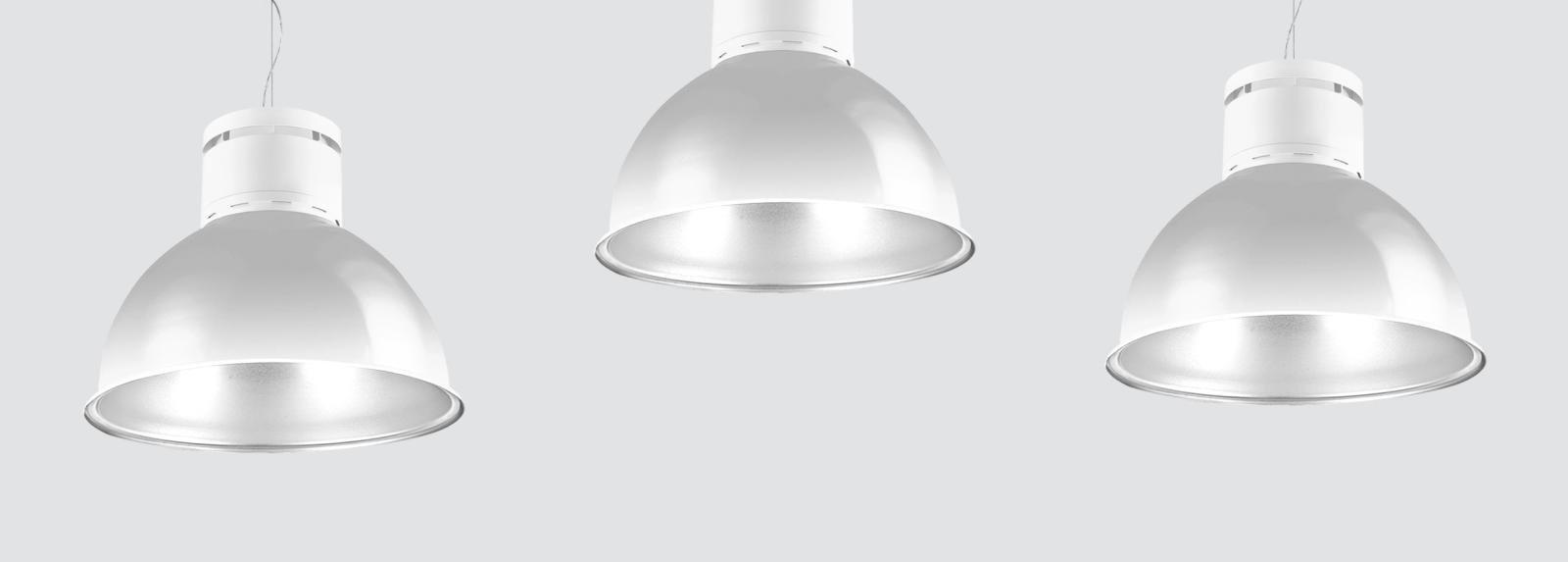

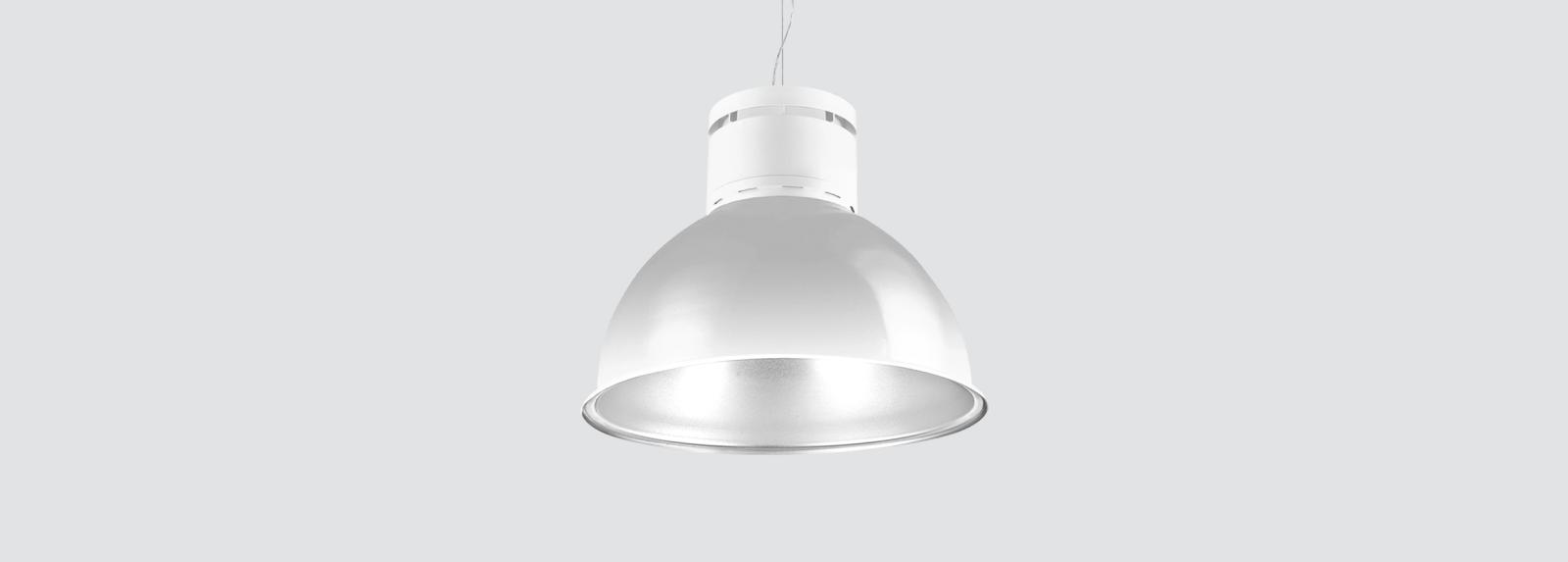

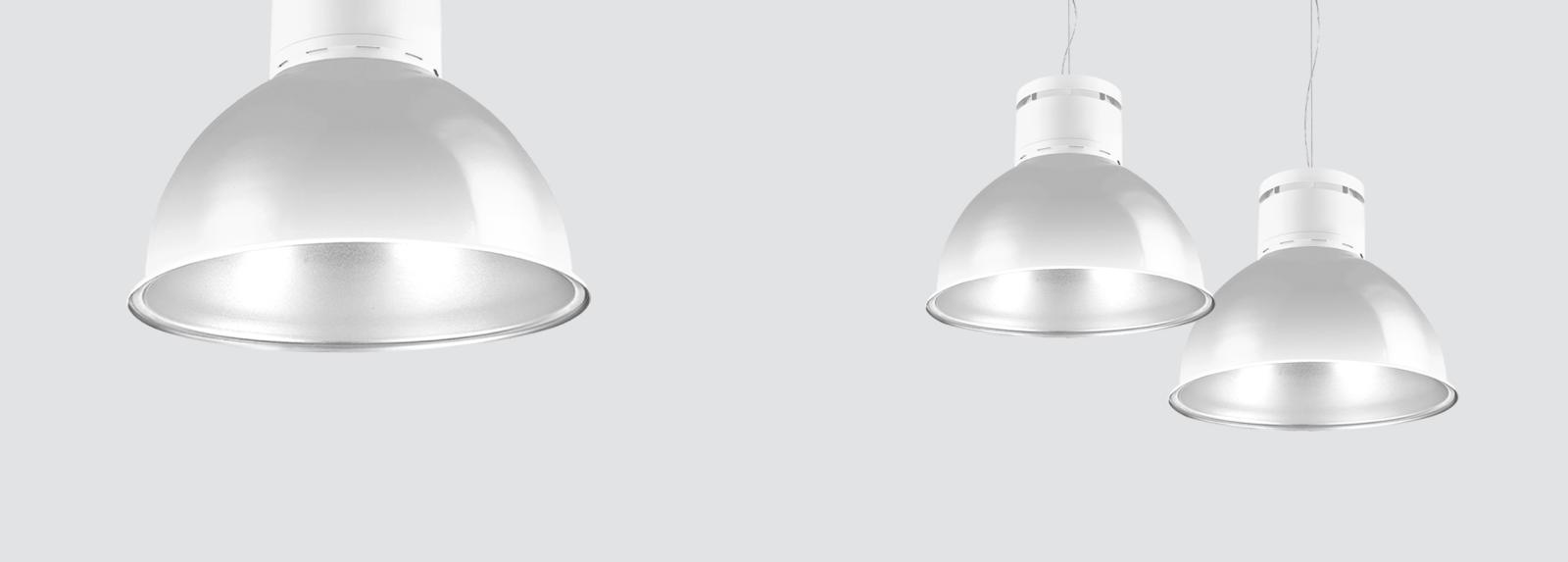

Pendant downlights with symmetrical light distribution to achieve an effective task or general lighting.
High purity sandblasted anodised aluminium reflector available in 2 diameters: 350mm and 450mm. Painted aluminium reflector under request.
Total lighting control: high performance and high efficiency.
Interior high purity aluminium reflector to control and direct the light. Powder painted aluminium body available in various finishes, customized RAL under request.
Decorative drop glass accessory to be attached to the reflector.
Integral driver included. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter steel cord suspension as standard.
Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track.

Suggested applications: shopping centers, leisure areas, showrooms, sport centers, cafeterias, industrial facilities and similar installations. Solid ceilings, where there is not enough space for recessed mounting. A very good solution for high ceilings because it enables the lighting point to be brought near to the work plane.

Product configurator

Tilt

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101HEX
49
12.61W
1686lm
>80
2700K
350mm
380mm+ 1000mm
101HEX.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
12.61W
1754lm
>80
3000K
350mm
380mm+ 1000mm
101HEX.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
12.61W
1828lm
>80
4000K
350mm
380mm+ 1000mm
101HEX.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
12.61W
1393lm
>90
2700K
350mm
380mm+ 1000mm
101HEX.1-I866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
12.61W
1488lm
>90
3000K
350mm
380mm+ 1000mm
101HEX.1-I867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
12.61W
1561lm
>90
4000K
350mm
380mm+ 1000mm
101HEX.1-I868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
2369lm
>80
2700K
350mm
380mm+ 1000mm
101HEX.1-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
2468lm
>80
3000K
350mm
380mm+ 1000mm
101HEX.1-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
2571lm
>80
4000K
350mm
380mm+ 1000mm
101HEX.1-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
1961lm
>90
2700K
350mm
380mm+ 1000mm
101HEX.1-I872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
2090lm
>90
3000K
350mm
380mm+ 1000mm
101HEX.1-I873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
49
18.33W
2193lm
>90
4000K
350mm
380mm+ 1000mm
101HEX.1-I874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
53
25.33W
2964lm
>80
2700K
350mm
380mm+ 1000mm
101HEX.1-I881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
53
25.33W
3086lm
>80
3000K
350mm
380mm+ 1000mm
101HEX.1-I882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101HEX
53
25.33W
3219lm
>80
4000K
350mm
380mm+ 1000mm
101HEX.1-I883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
