HORIZON 100

HORIZON 100

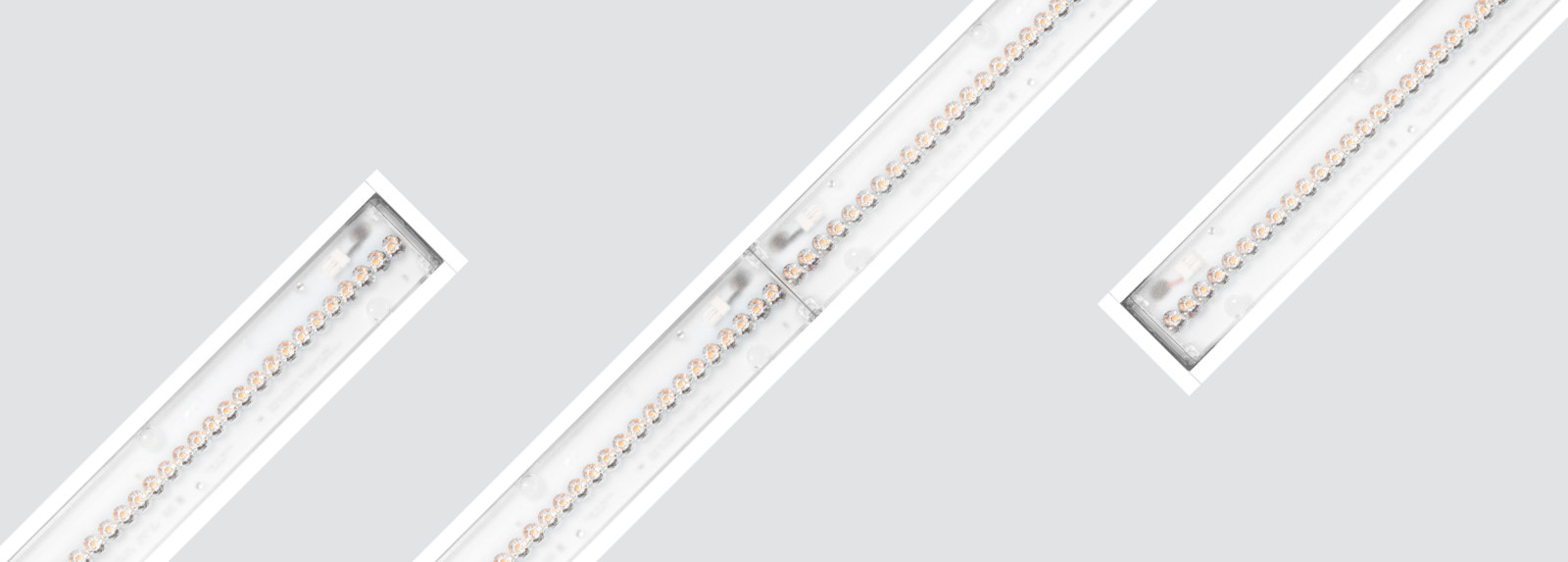

Recessed ceiling mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

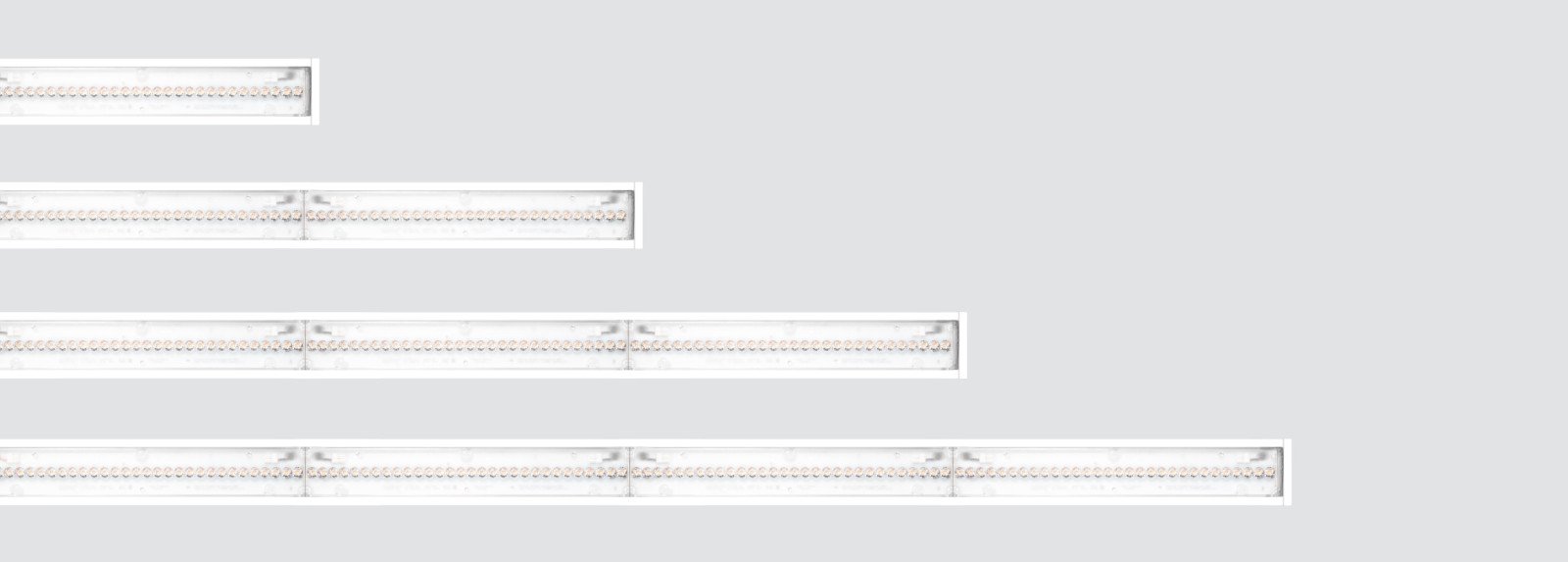

Linear fixtures available in 5 lengths 576mm, 857mm, 1138mm, 1419mm and 2824mm and in a width of 64mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.

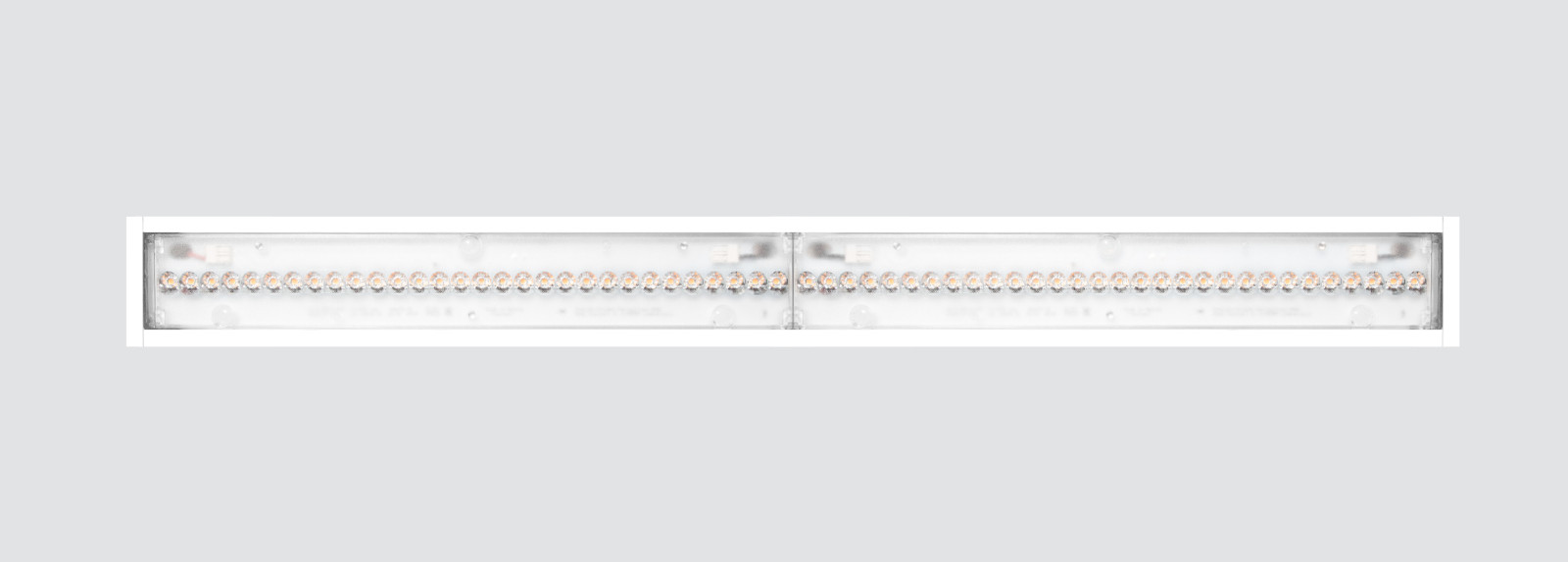

Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Matching products:

  • HORIZON 200 frameless recessed.
  • HORIZON 300 surface mounted.
  • HORIZON 400 and HORIZON 500 pendant.
  • HORIZON 600 and HORIZON 700 wall-mounted.
  • HORIZON 800 projectors.

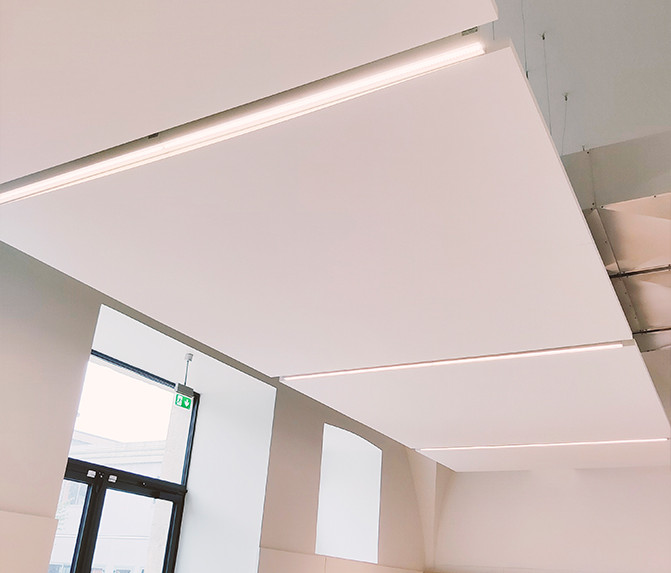

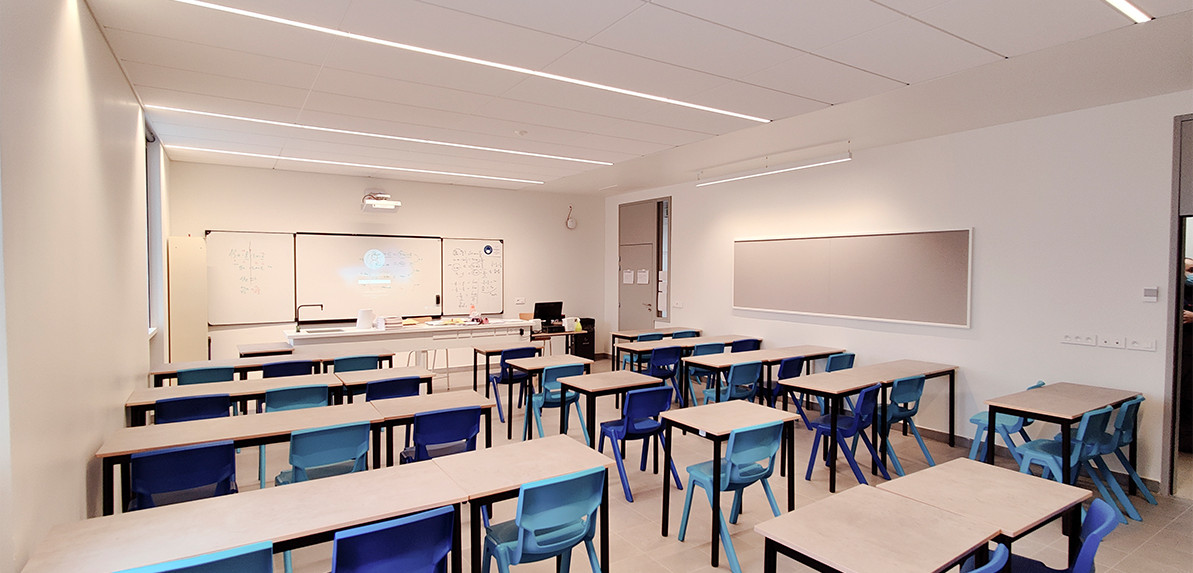

Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101GRH
31
13.88W
1630lm
80
3000K
577x53
592x64
65mm
121HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
13.88W
1394lm
80
3000K
577x53
592x64
65mm
181HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
13.88W
1746lm
80
4000K
577x53
592x64
65mm
121HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
13.88W
1494lm
80
4000K
577x53
592x64
65mm
181HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
13.88W
1775lm
80
5000K
577x53
592x64
65mm
121HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
13.88W
1519lm
80
5000K
577x53
592x64
65mm
181HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
13.88W
1445lm
90
3000K
577x53
592x64
65mm
121HRN.1-I979
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
13.88W
1237lm
90
3000K
577x53
592x64
65mm
181HRN.1-I979
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
13.88W
1504lm
90
4000K
577x53
592x64
65mm
121HRN.1-I980
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
13.88W
1287lm
90
4000K
577x53
592x64
65mm
181HRN.1-I980
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
17.07W
2270lm
80
3000K
577x53
592x64
65mm
121HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
17.07W
1942lm
80
3000K
577x53
592x64
65mm
181HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
17.07W
2444lm
80
4000K
577x53
592x64
65mm
121HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRW
ASY
17.07W
2092lm
80
4000K
577x53
592x64
65mm
181HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRH
31
17.07W
2474lm
80
5000K
577x53
592x64
65mm
121HRN.1-I983
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
