HORIZON 600

HORIZON 600

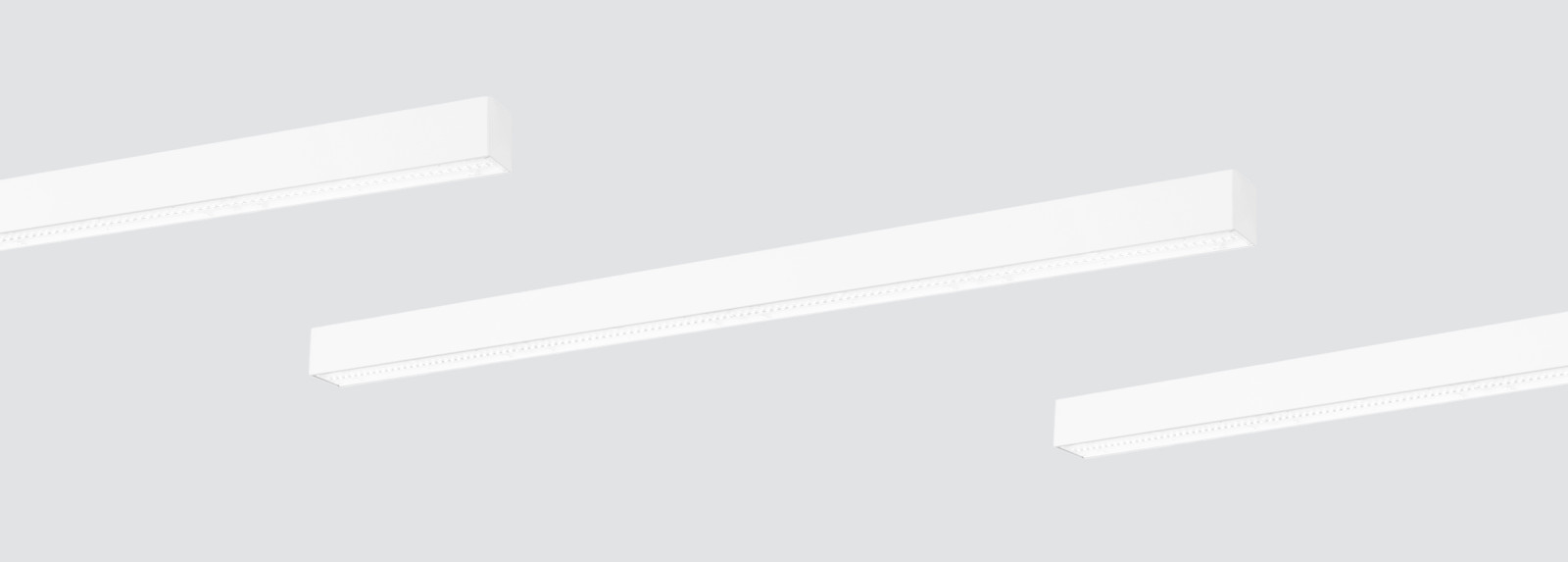

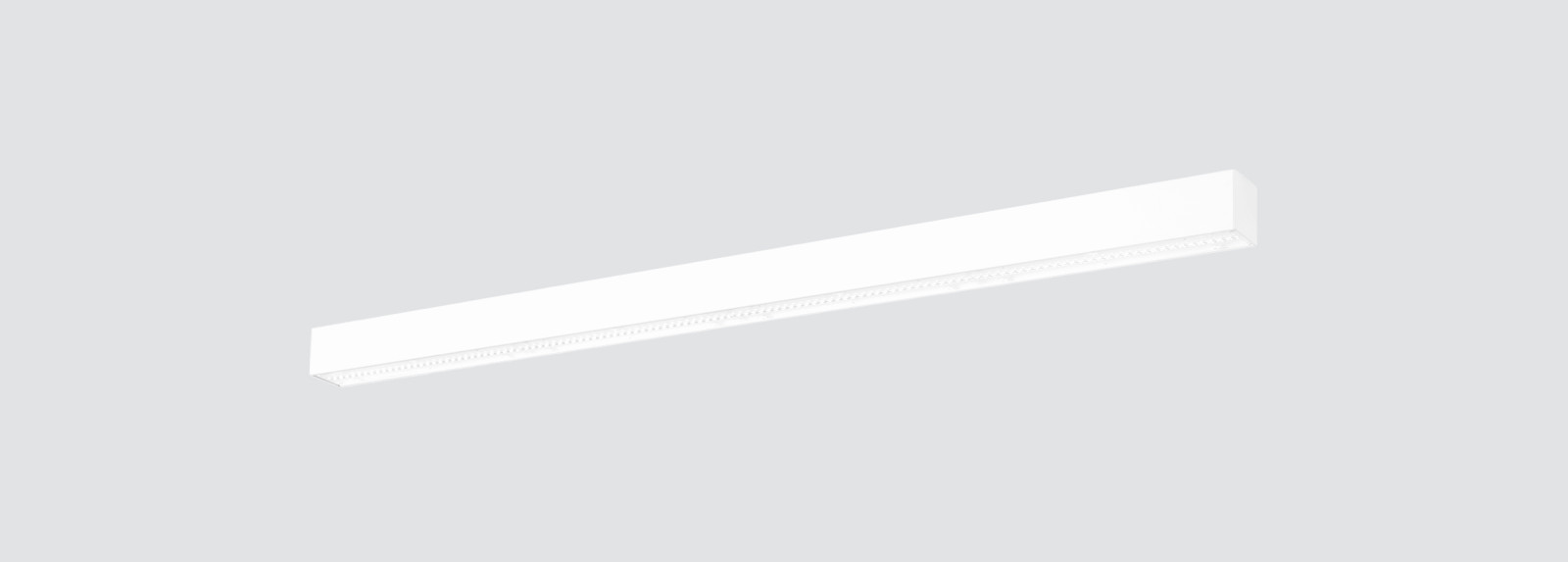

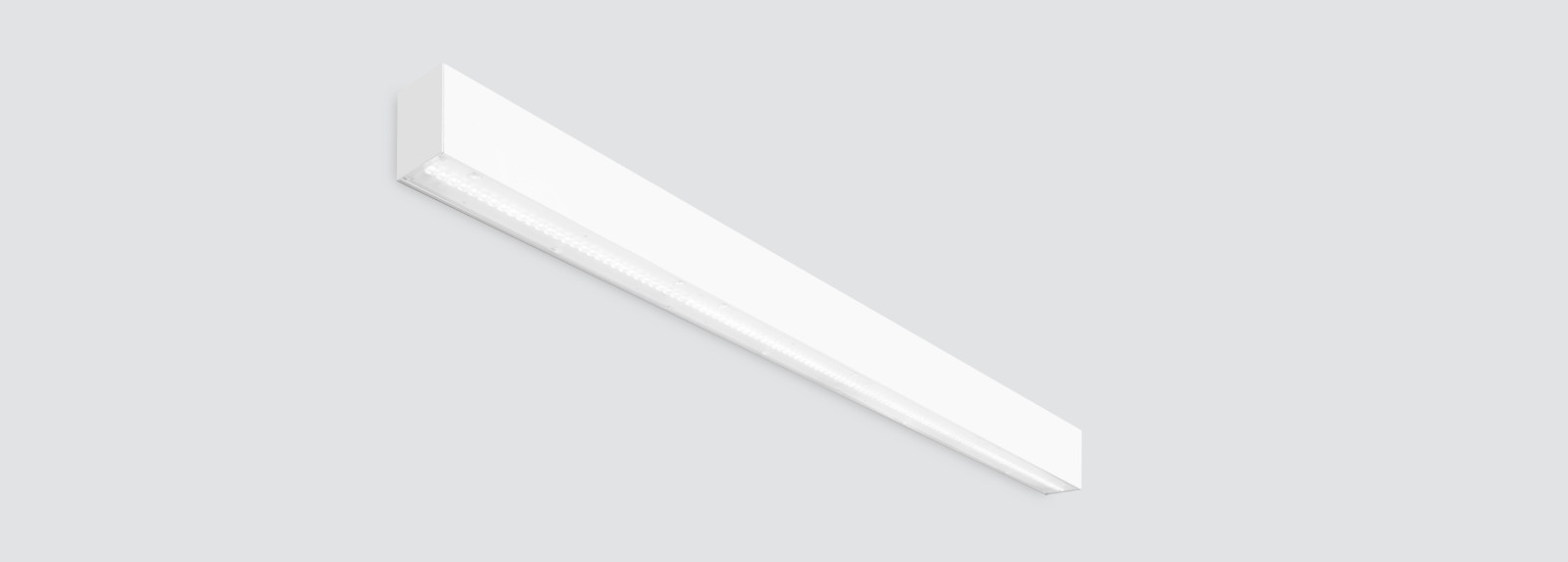

Wall-mounted linear downlights or uplights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

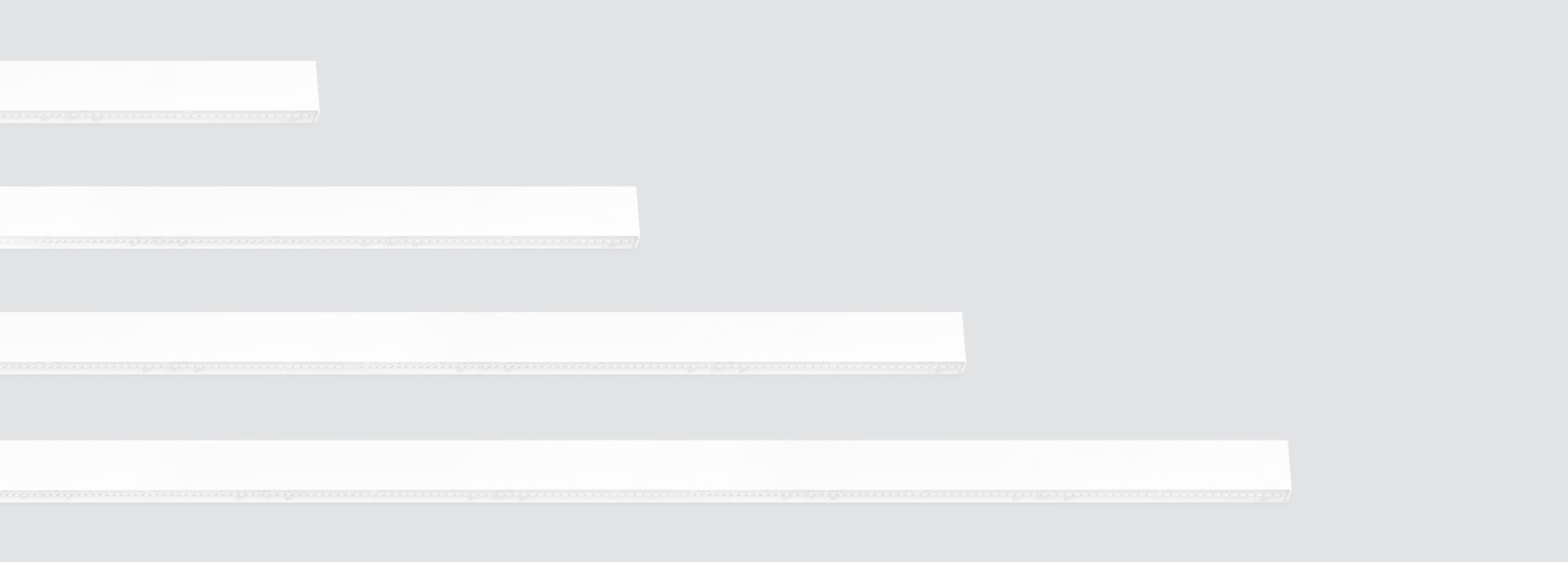

Linear fixtures available in 5 lengths 576mm, 857mm, 1138mm, 1419mm and 2824mm and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Wall mounted by mounting brackets.
Matching products:

  • HORIZON 100 recessed.
  • HORIZON 200 frameless recessed.
  • HORIZON 400 and HORIZON 500 pendant.
  • HORIZON 300 surface-mounted.
  • HORIZON 800 projectors.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101AXM
31
13.88W
1630lm
80
3000K
576x50
65mm
621HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
13.88W
1394lm
80
3000K
576x50
65mm
681HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
13.88W
1746lm
80
4000K
576x50
65mm
621HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
13.88W
1494lm
80
4000K
576x50
65mm
681HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
13.88W
1775lm
80
5000K
576x50
65mm
621HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
13.88W
1519lm
80
5000K
576x50
65mm
681HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
13.88W
1445lm
90
3000K
576x50
65mm
621HRN.1-I979
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
13.88W
1237lm
90
3000K
576x50
65mm
681HRN.1-I979
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
13.88W
1504lm
90
4000K
576x50
65mm
621HRN.1-I980
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
13.88W
1287lm
90
4000K
576x50
65mm
681HRN.1-I980
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
17.07W
2270lm
80
3000K
576x50
65mm
621HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
17.07W
1942lm
80
3000K
576x50
65mm
681HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
17.07W
2444lm
80
4000K
576x50
65mm
621HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXW
ASY
17.07W
2092lm
80
4000K
576x50
65mm
681HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101AXM
31
17.07W
2474lm
80
5000K
576x50
65mm
621HRN.1-I983
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
