KAUTTA 400

KAUTTA 400

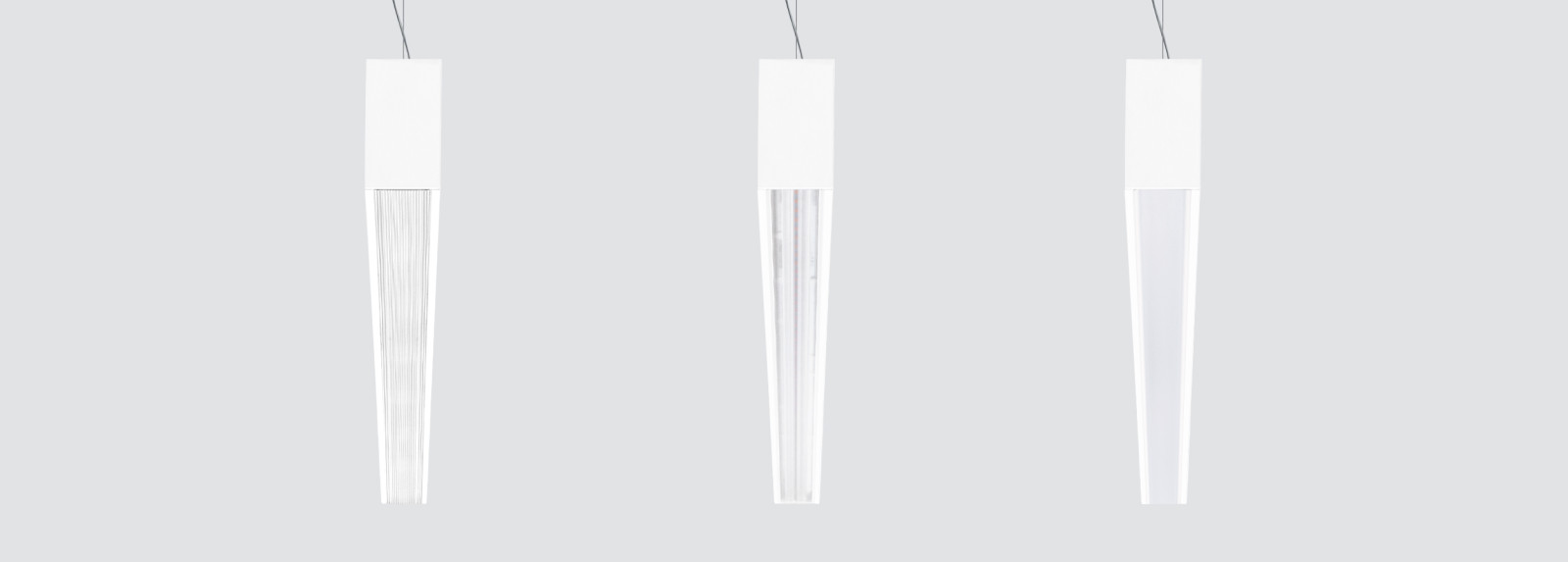

Pendant linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

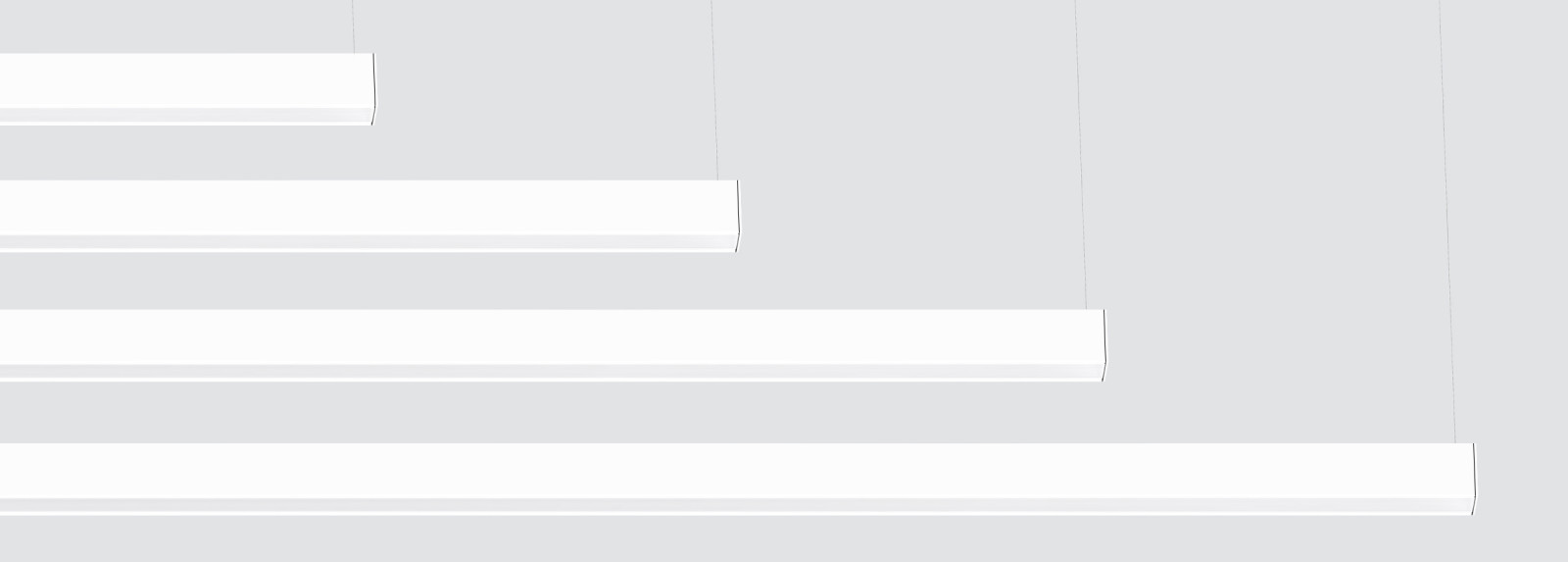

Linear fixtures available in 5 lengths 568mm, 848mm, 1128mm, 1408mm and 2808mm and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

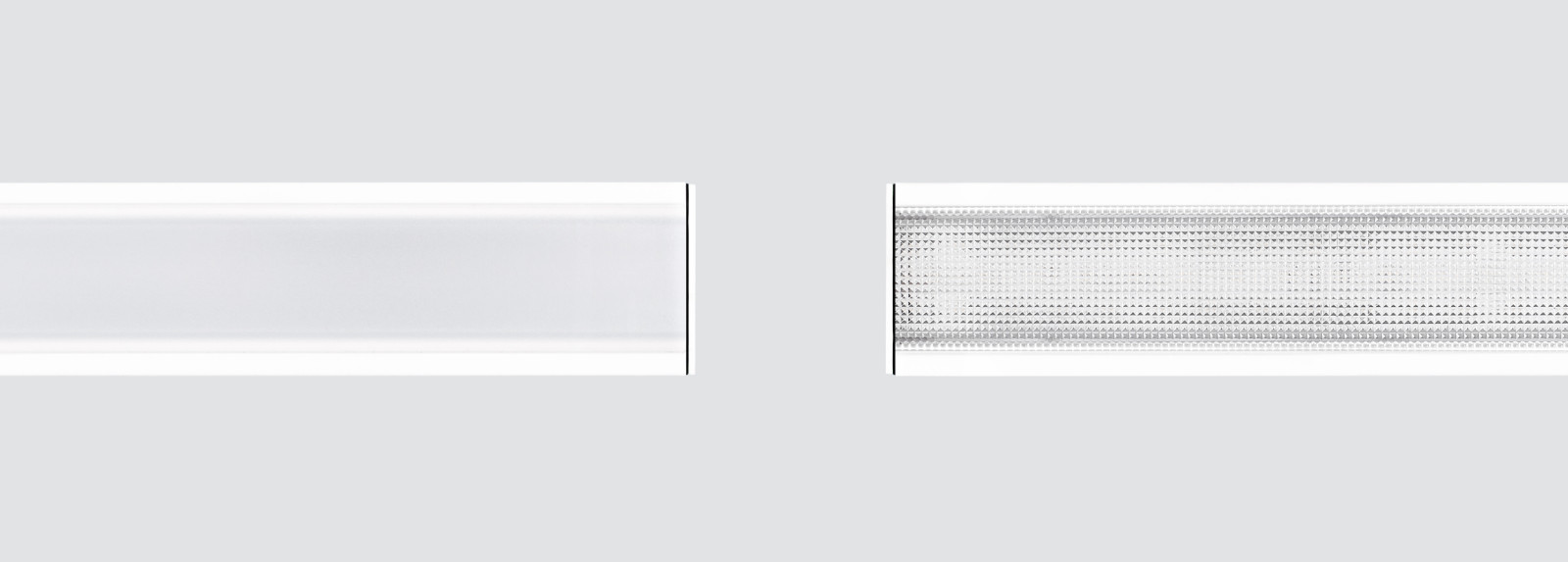

Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request.
Matching products:

  • recessed.
  • frameless recessed.
  • surface mounted.
  • pendant double emission.
  • wall-mounted.
  • projector.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations. A good solution for high ceilings because it enables the lighting fixture to be brought near where there needs to be.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F43KTA
43
7.1W
1084lm
80
2700K
568x44
78mm+1000mm
431KTA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
10.66W
1627lm
80
2700K
848x44
78mm+1000mm
433KTA.1-I751
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
14.21W
2169lm
80
2700K
1128x44
78mm+1000mm
435KTA.1-I779
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
17.76W
2711lm
80
2700K
1408x44
78mm+1000mm
436KTA.1-I807
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
35.52W
5422lm
80
2700K
2808x44
78mm+1000mm
439KTA.1-I835
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
7.1W
1118lm
80
3000K
568x44
78mm+1000mm
431KTA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
10.66W
1677lm
80
3000K
848x44
78mm+1000mm
433KTA.1-I752
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
14.21W
2236lm
80
3000K
1128x44
78mm+1000mm
435KTA.1-I780
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
17.76W
2795lm
80
3000K
1408x44
78mm+1000mm
436KTA.1-I808
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
35.52W
5589lm
80
3000K
2808x44
78mm+1000mm
439KTA.1-I836
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
7.1W
1170lm
80
4000K
568x44
78mm+1000mm
431KTA.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
10.66W
1755lm
80
4000K
848x44
78mm+1000mm
433KTA.1-I753
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
14.21W
2340lm
80
4000K
1128x44
78mm+1000mm
435KTA.1-I781
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
17.76W
2925lm
80
4000K
1408x44
78mm+1000mm
436KTA.1-I809
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F43KTA
43
35.52W
5850lm
80
4000K
2808x44
78mm+1000mm
439KTA.1-I837
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
