KERI

KERI


Pendant downlights with symmetrical light distribution to achieve an effective task, accent or general lighting.
Neutral cylindrical body available in 4 diameters: 60mm, 80mm, 90mm and 120mm.
Extensive range of reflectors to achieve the best photometric results.
Aluminium reflectors in various finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.

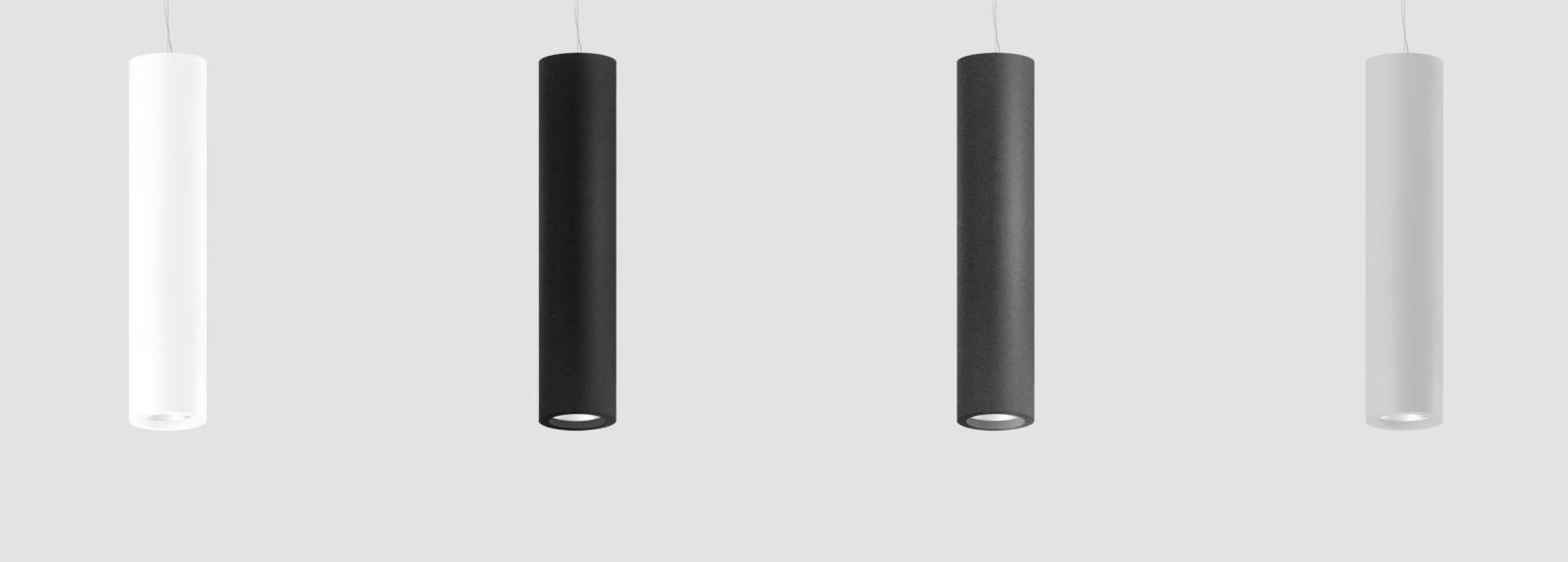

Powder painted aluminium profile available in various finishes, customized RAL under request.
Built-in driver, included.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter steel cord as standard. Transparent electrical wire. Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track.
KERI can be combined with the GOTA surface mounted fixture and the ROCKET wall mounted line to get an harmonious finish.

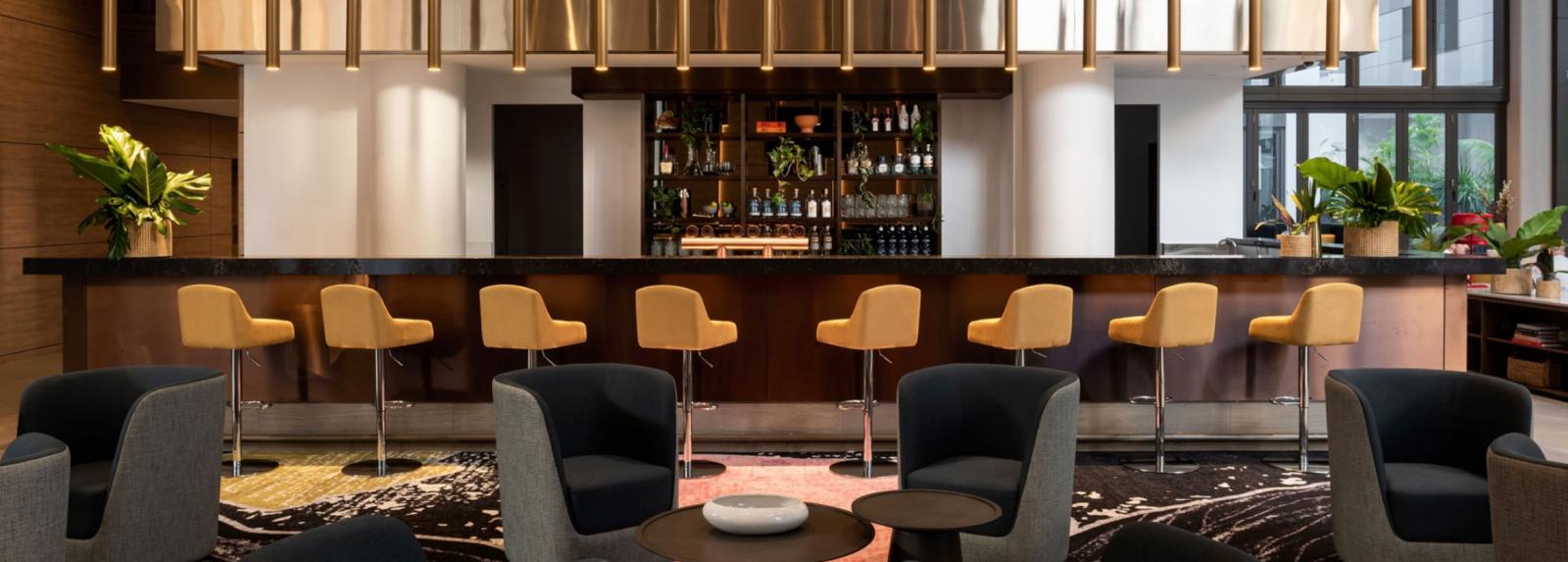

Suggested applications: retail, residences, hotels, bars, restaurants and similar installations.

Product configurator

Tilt

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101KER
22
5.32W
499lm
>80
2700K
60mm
300mm+ 1000mm
137KER.1-I905
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101KER
22
5.32W
519lm
>80
3000K
60mm
300mm+ 1000mm
137KER.1-I906
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
22
5.32W
534lm
>80
4000K
60mm
300mm+ 1000mm
137KER.1-I907
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
22
5.32W
407lm
>90
2700K
60mm
300mm+ 1000mm
137KER.1-I908
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
22
5.32W
425lm
>90
3000K
60mm
300mm+ 1000mm
137KER.1-I909
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
22
5.32W
463lm
>90
4000K
60mm
300mm+ 1000mm
137KER.1-I910
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
634lm
>80
2700K
60mm
300mm+ 1000mm
140KER.1-I905
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
660lm
>80
3000K
60mm
300mm+ 1000mm
140KER.1-I906
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
679lm
>80
4000K
60mm
300mm+ 1000mm
140KER.1-I907
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
518lm
>90
2700K
60mm
300mm+ 1000mm
140KER.1-I908
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
540lm
>90
3000K
60mm
300mm+ 1000mm
140KER.1-I909
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
35
5.32W
589lm
>90
4000K
60mm
300mm+ 1000mm
140KER.1-I910
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
41
5.32W
592lm
>80
2700K
60mm
300mm+ 1000mm
143KER.1-I905
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
41
5.32W
616lm
>80
3000K
60mm
300mm+ 1000mm
143KER.1-I906
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101KER
41
5.32W
634lm
>80
4000K
60mm
300mm+ 1000mm
143KER.1-I907
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
