LENTIE

LENTIE

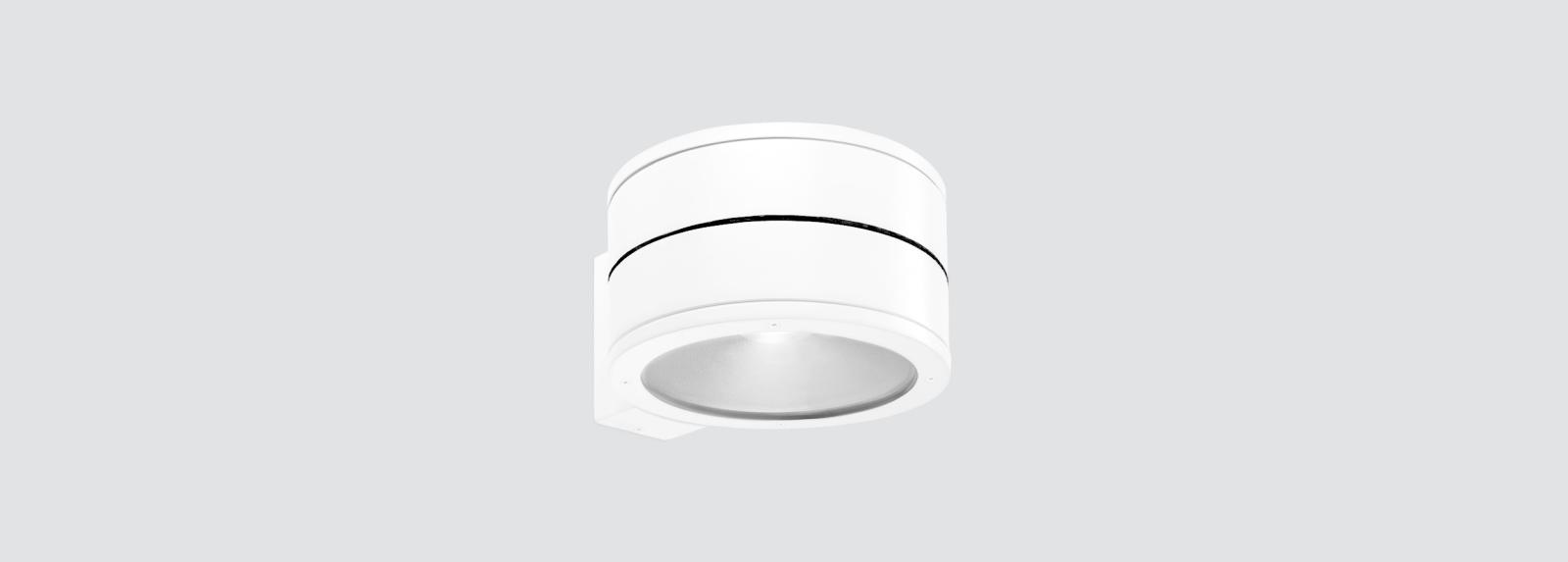

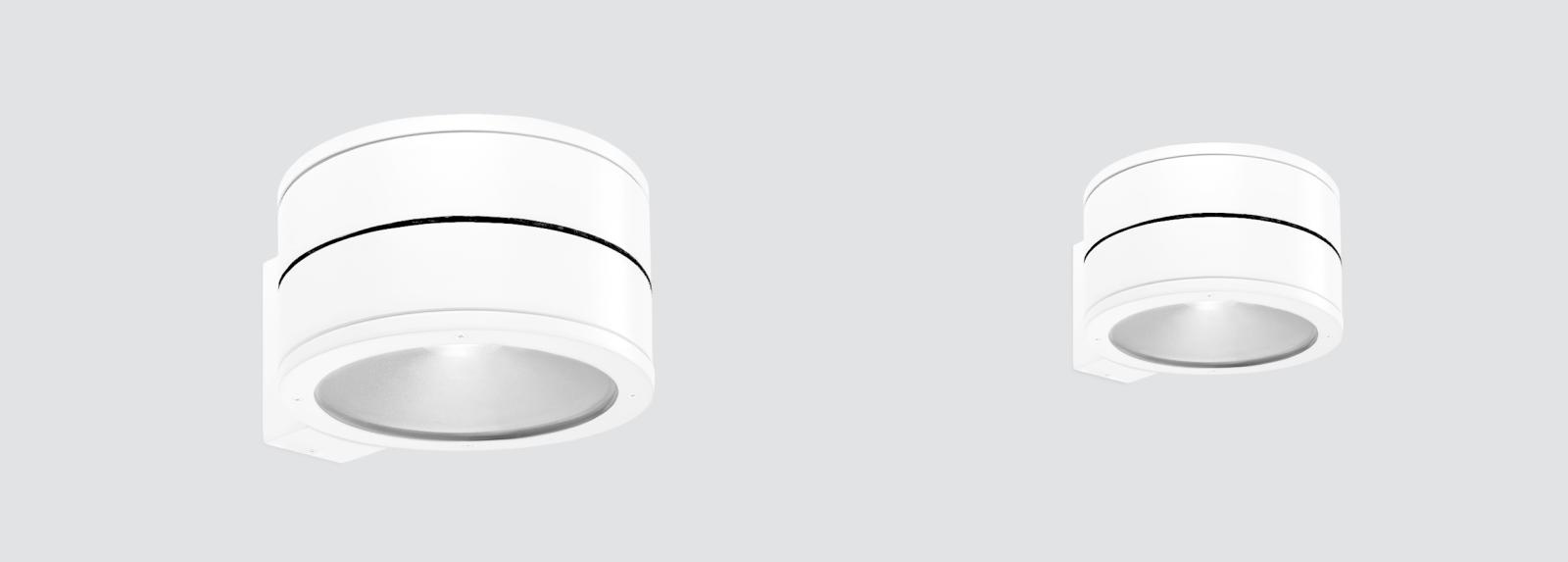

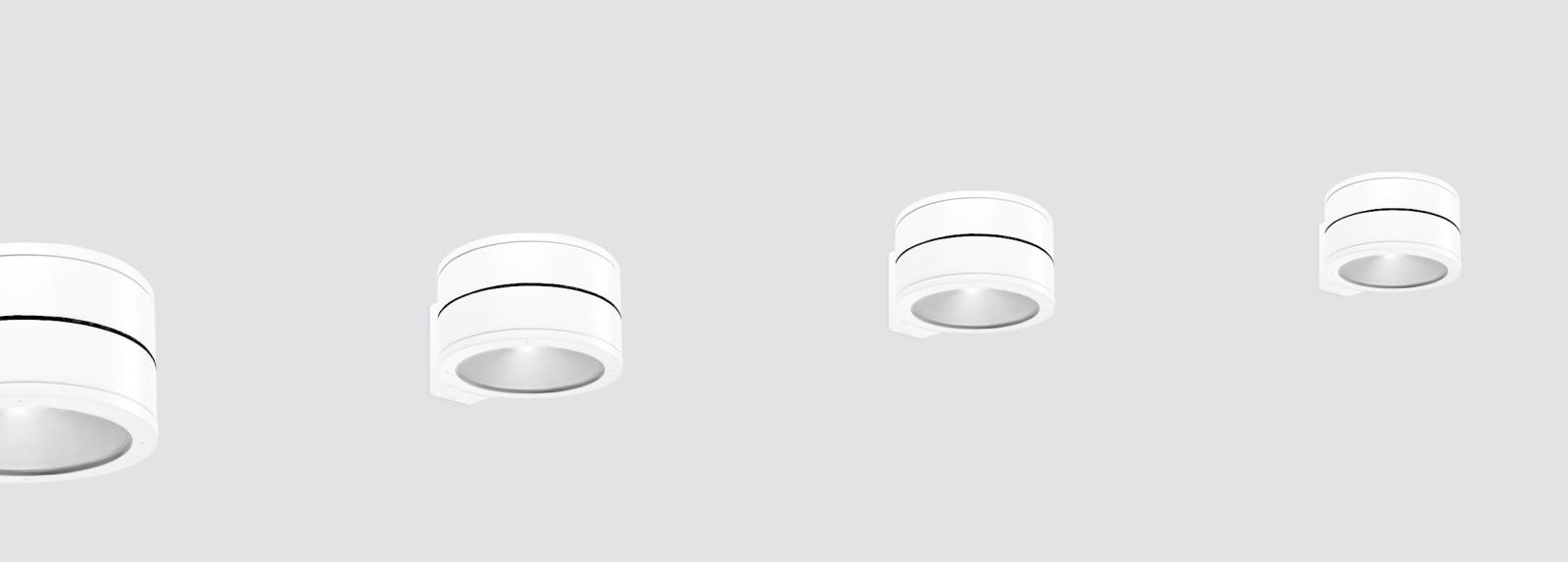

Surface mounted fixtures with symmetrical light distribution. Wall fixtures with light emission on two sides.
Cylindrical design in 265mm diameter.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust body made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request. Total lighting control: high performance and high efficiency.
High-purity aluminium reflector sandblasted anodised
Impact resistant cover made of clear polycarbonate (IK10).
Optional clear glass diffuser (IK05). Frosted or painted diffuser finishes under request.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included. Electronic standard options for the driver: DALI/DSI.
Passive temperature management: heat dissipation via the fixture body itself.
Mounting to the wall through mounting plate with two fixing holes.
Two cable entry from the fixation plate.

Suggested applications: façades, patios, porches and similar installations.

Product configurator

One side/Two sides

Fixture diameter

Height

Colour Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Total luminaire Power

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101LNT
102
25.22W
1235lm
>80
2700K
265mm
160mm
101LNT.1.01-I863
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LNT
102
25.22W
1285lm
>80
3000K
265mm
160mm
101LNT.1.01-I864
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LNT
102
25.22W
1339lm
>80
4000K
265mm
160mm
101LNT.1.01-I865
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LNT
102
36.66W
1736lm
>80
2700K
265mm
160mm
101LNT.1.01-I869
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LNT
102
36.66W
1808lm
>80
3000K
265mm
160mm
101LNT.1.01-I870
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LNT
102
36.66W
1884lm
>80
4000K
265mm
160mm
101LNT.1.01-I871
DATA SHEET
Description .txt
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
