LOTUS

LOTUS

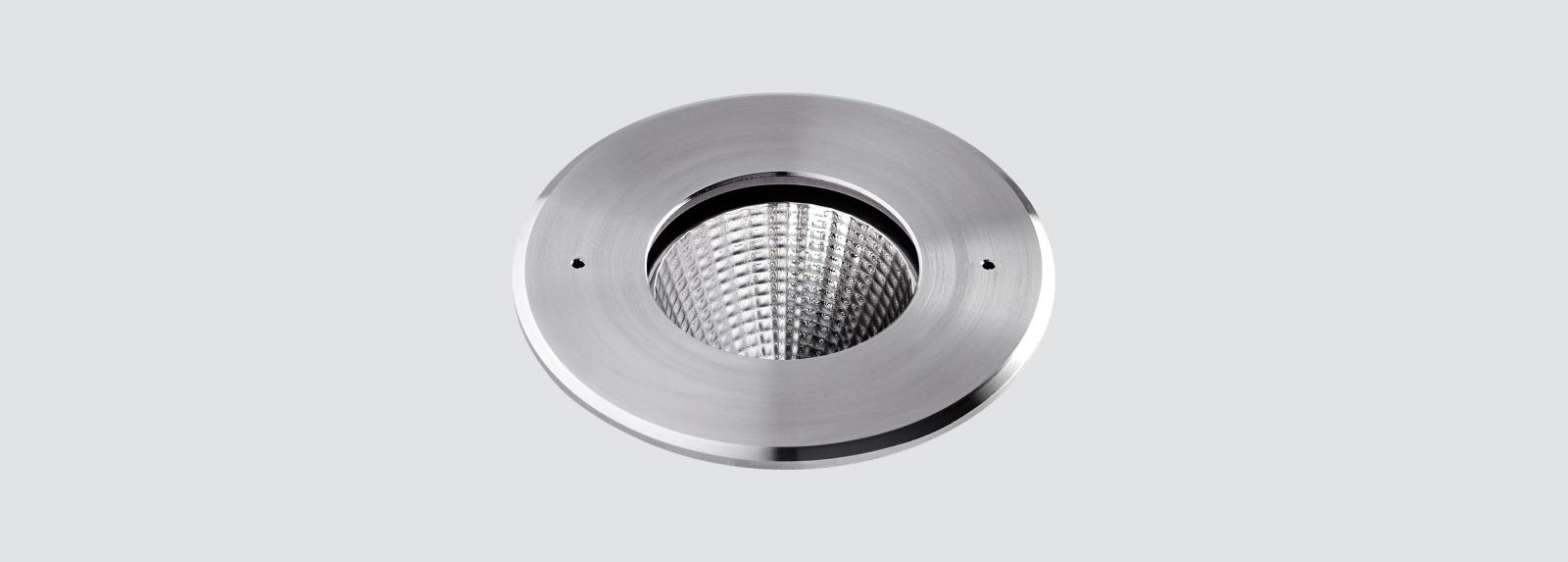

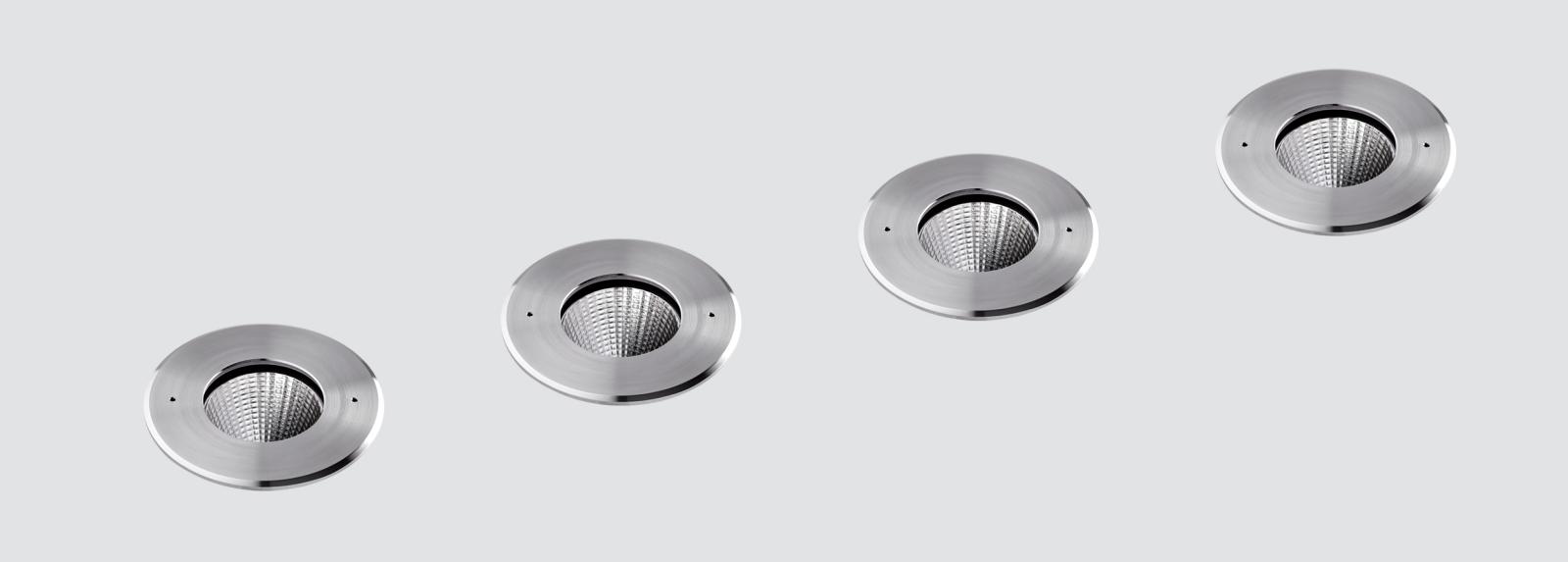

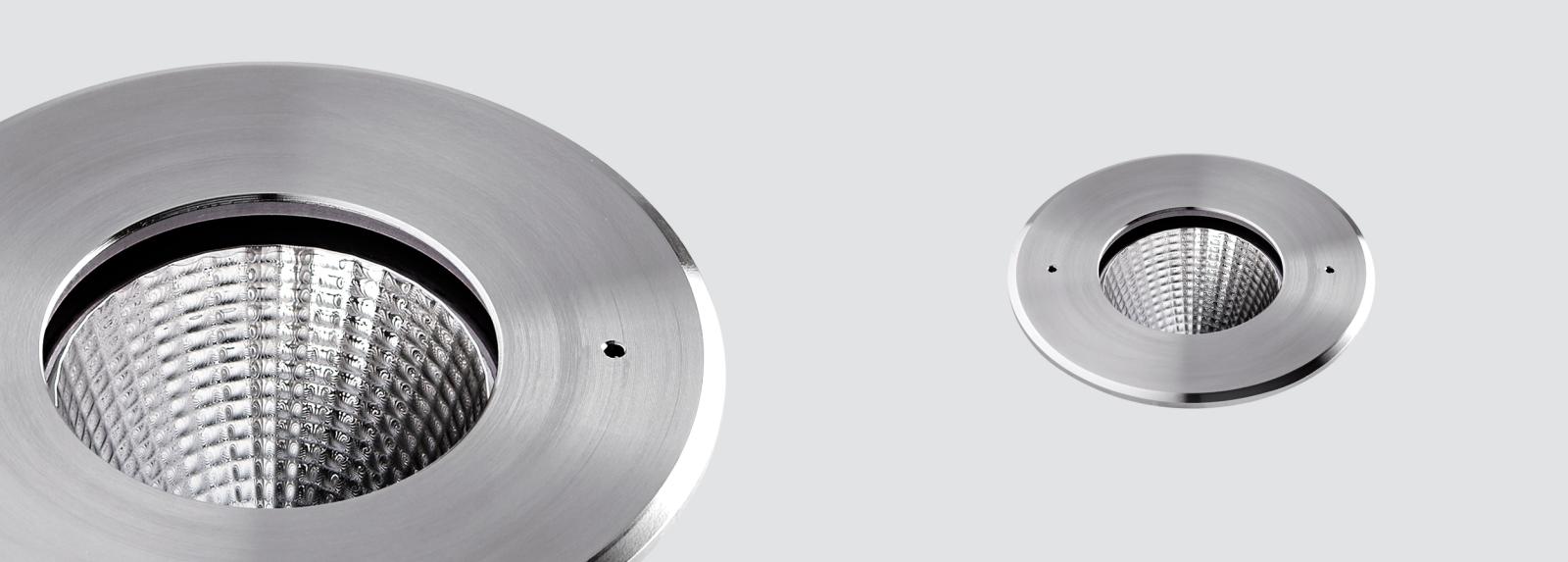

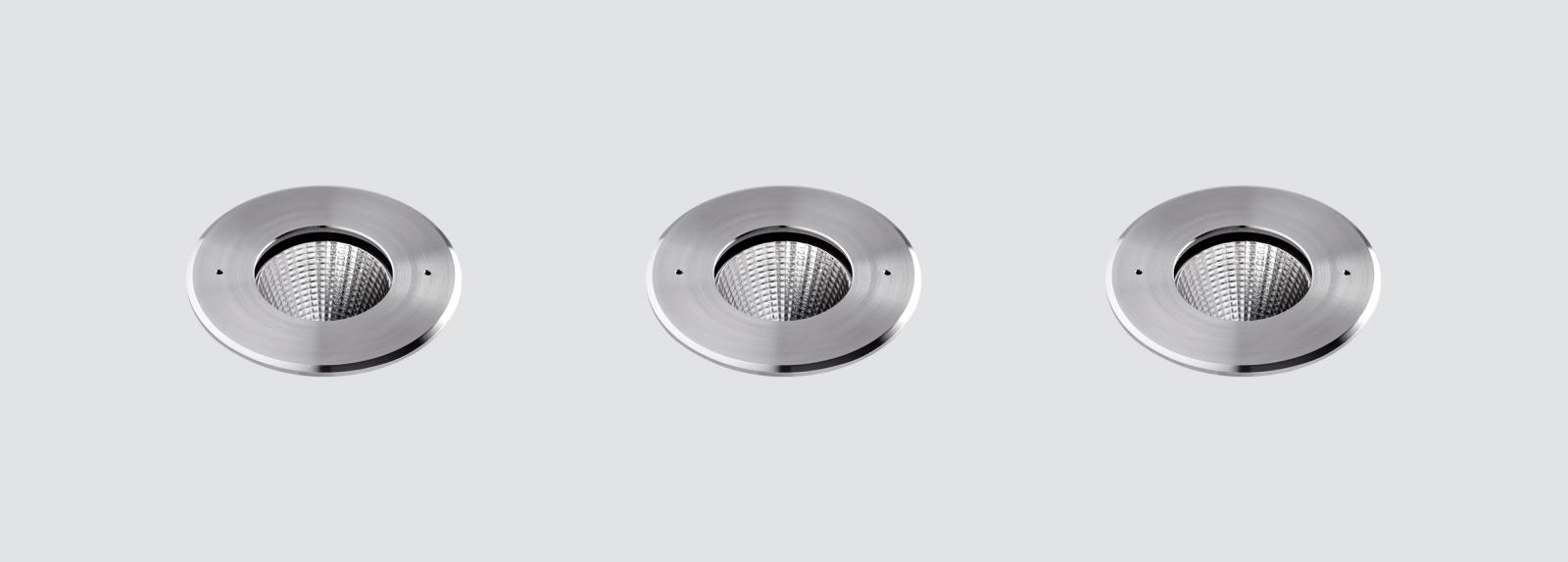

Inground buried uplights with symmetrical light distribution.
Circular design available in 90mm or 120mm diameter.
Protection rating against dust and moisture: entire IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Load supported: 6600Kg
Robust and corrosion-resistant because of its 18μ anodised aluminium housing and 316L stainless steel marine grade trim.

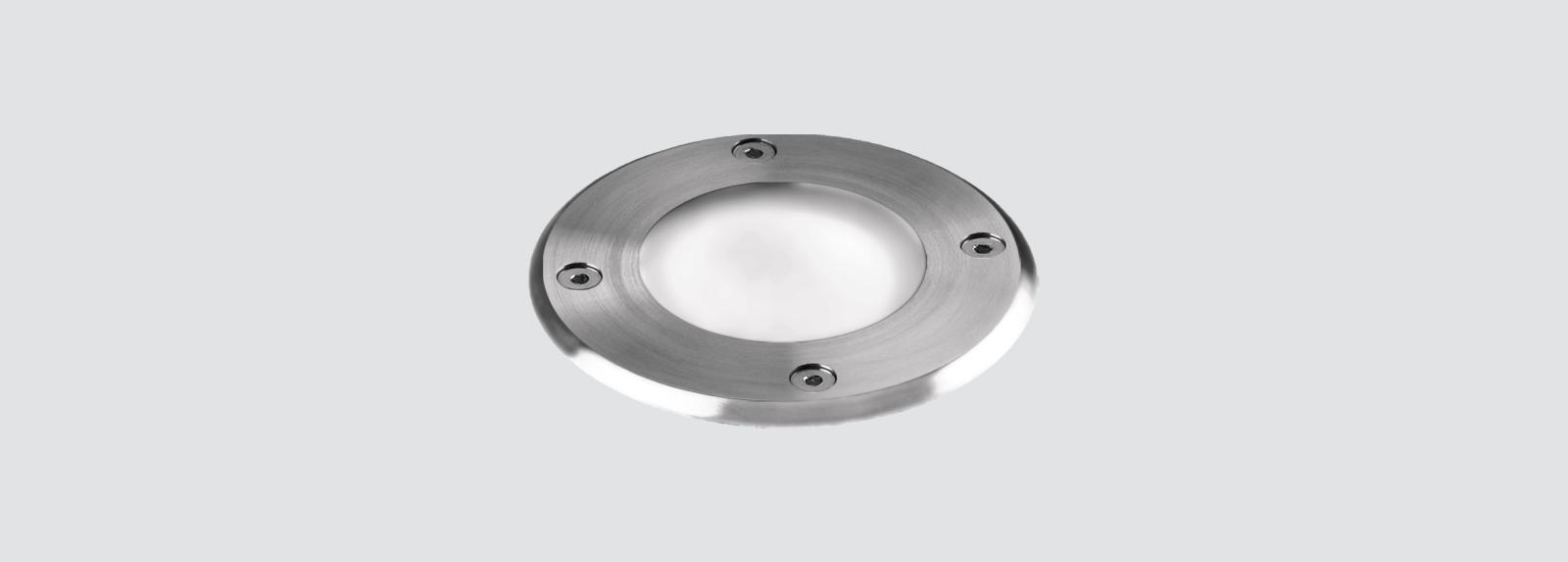

10mm tempered protection glass clear as standard.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Remote driver included.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing points.
IP68 connector to be ordered separately.

Suggested applications: white rooms, laboratories, warehouses, leisure areas, service stations, industrial facilities, high humidity outdoor spaces or spaces that require low-maintenance.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Depth

Colour Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Total luminaire Power

Accessories

Electronic equipment

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Depth

F101LTS
22
6.1W
588lm
>80
2700K
85mm
90mm
160mm
101LTS.8.01-R1107
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
22
6.1W
611lm
>80
3000K
85mm
90mm
160mm
101LTS.8.01-R1108
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
22
6.1W
632lm
>80
4000K
85mm
90mm
160mm
101LTS.8.01-R1109
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
35
6.1W
455lm
>80
2700K
85mm
90mm
160mm
102LTS.8.01-R1107
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
35
6.1W
472lm
>80
3000K
85mm
90mm
160mm
102LTS.8.01-R1108
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
35
6.1W
488lm
>80
4000K
85mm
90mm
160mm
102LTS.8.01-R1109
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
41
6.1W
549lm
>80
2700K
85mm
90mm
160mm
103LTS.8.01-R1107
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
41
6.1W
570lm
>80
3000K
85mm
90mm
160mm
103LTS.8.01-R1108
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101LTS
41
6.1W
589lm
>80
4000K
85mm
90mm
160mm
103LTS.8.01-R1109
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104LTS
76
4.5W
277lm
>80
3000K
110mm
120mm
201mm
104LTS.8.02-R231
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104LTS
76
4.5W
293lm
>80
4000K
110mm
120mm
201mm
104LTS.8.02-R232
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
