NUCLEONS

NUCLEONS


Recessed ceiling-mounted downlights with symmetrical or asymmetrical light distribution to achieve an effective task, accent or general lighting.
Circular design in diameters 110mm and 130mm.
Total lighting control: high performance and high efficiency.
Large range of reflectors to obtain specific photometric results.

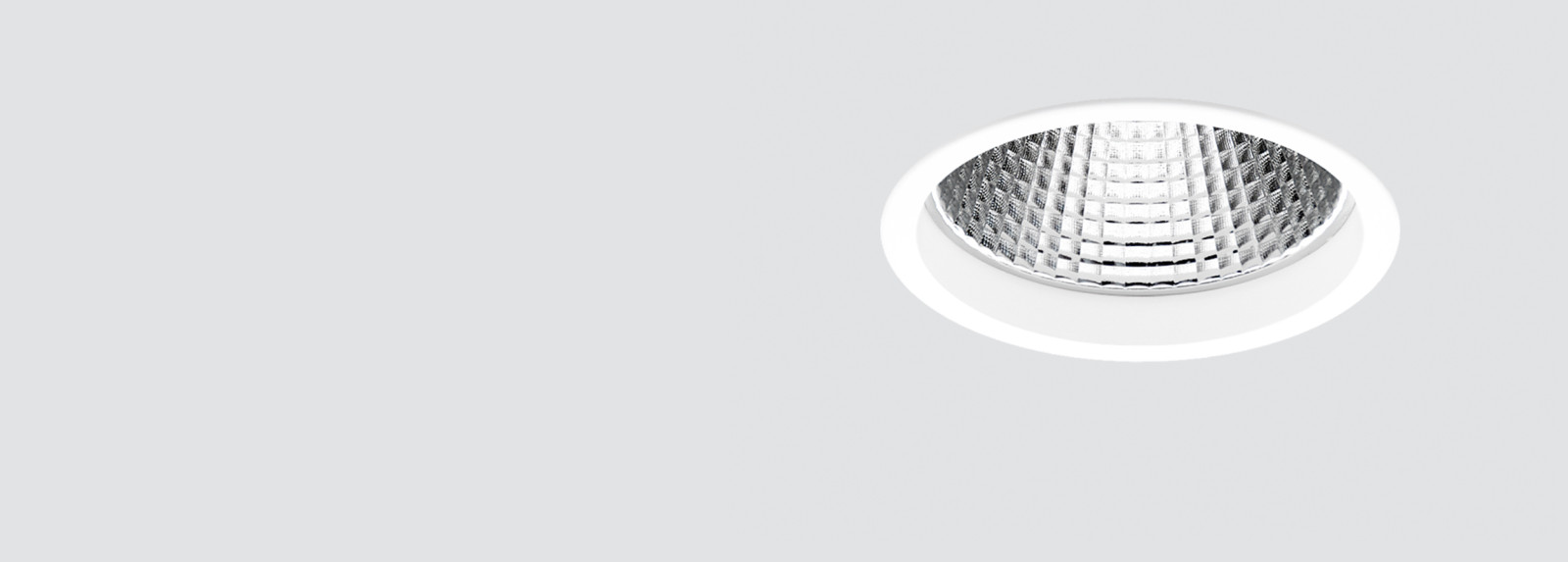

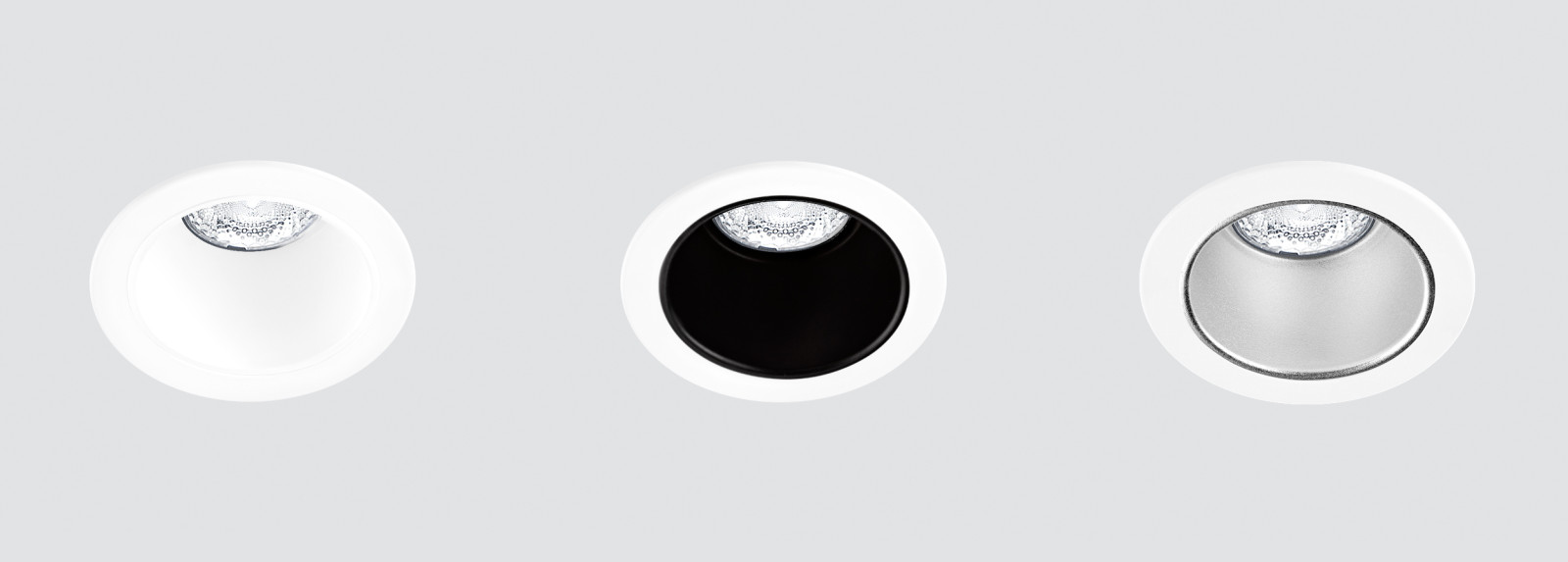

High-purity aluminium reflector in various finishes: painted, specular anodised, facetted metalized or sandblasted anodised depending on the beam angle outcome.

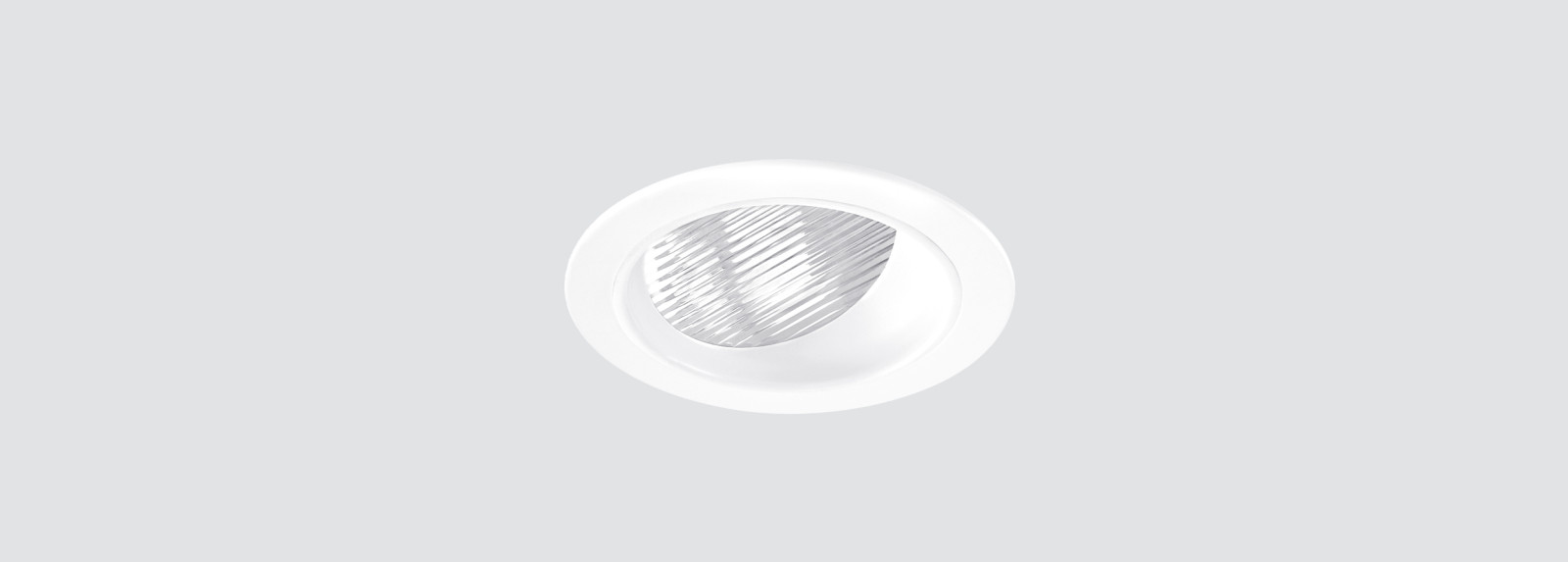

Fixed and tilt versions, adjustable to 20º.

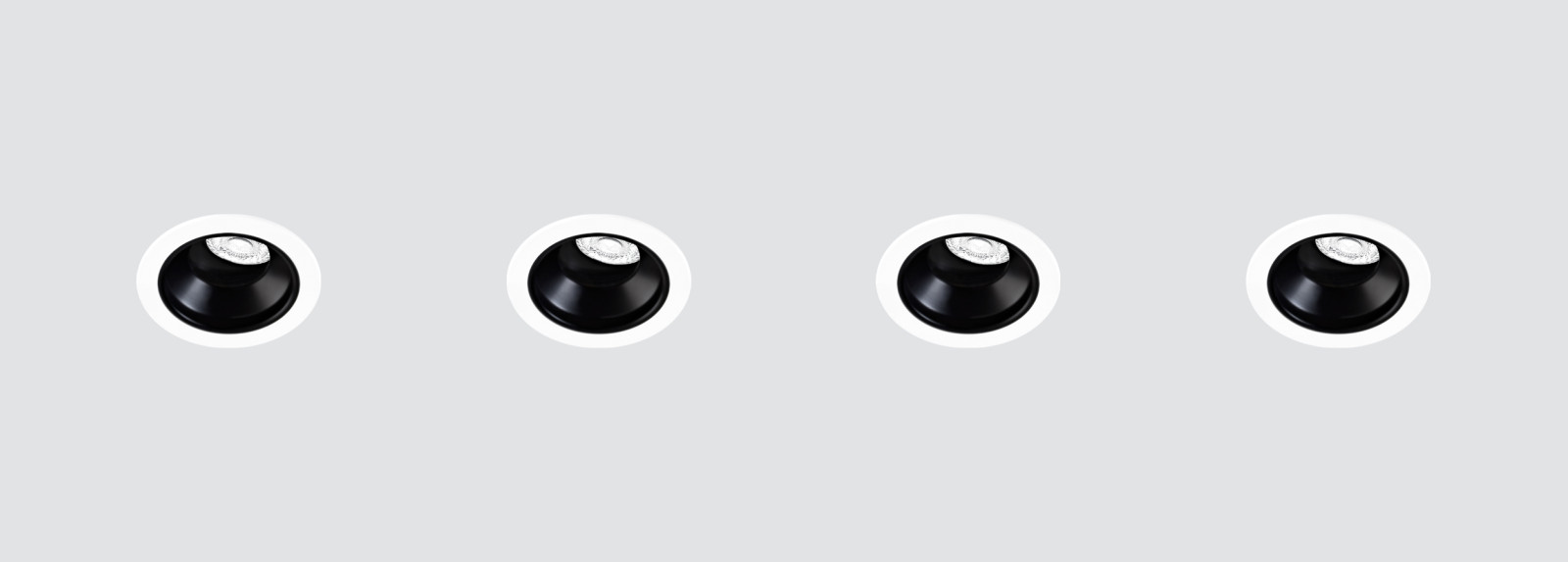

This line includes luminaires with an aluminium anti-glare reflector, black internal baffle for minimal glare.
Powder painted die-cast aluminium trim available in various finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath (depending on the reference).
Remote driver supplied. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation via aluminium heat sink .
Ceiling-mounted using galvanised steel support with spring clamps or screws.

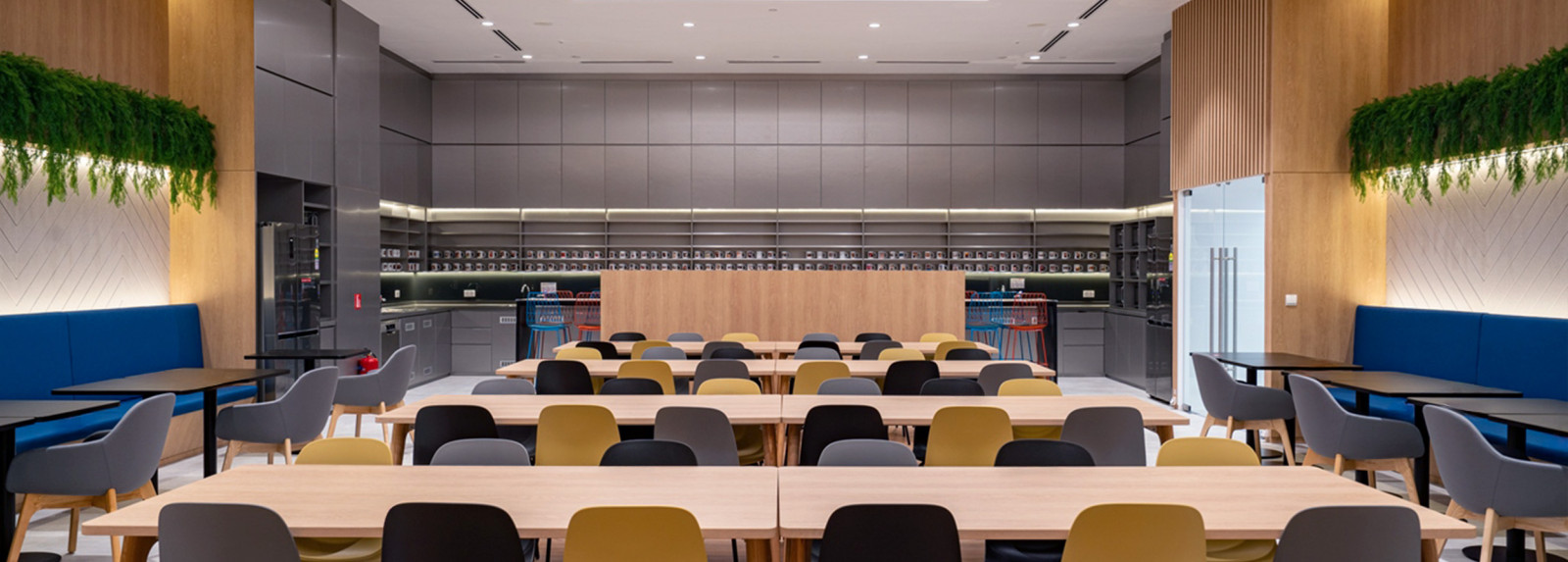

Suggested applications: shops, hotels, restaurants, apartments and similar installations.

Product configurator

Recessed diameter

Fixture diameter

Colour Temperature

CRI

Beam angle

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101NCL_SLA
21
5.66W
415lm
>90
2700K
100mm
110mm
103mm
101NCL.1-R522
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
22
17.05W
1274lm
>90
2700K
100mm
110mm
143mm
141NCL.1-R1096
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F101NCL_SLA
21
5.66W
449lm
>90
3000K
100mm
110mm
103mm
101NCL.1-R523
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
22
17.05W
1326lm
>90
3000K
100mm
110mm
143mm
141NCL.1-R1097
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F101NCL_SLA
21
5.66W
484lm
>90
4000K
100mm
110mm
103mm
101NCL.1-R524
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
22
17.05W
1446lm
>90
4000K
100mm
110mm
143mm
141NCL.1-R1098
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F101NCL_SLA
21
7.69W
518lm
>90
2700K
100mm
110mm
103mm
101NCL.1-R618
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
7.69W
579lm
>90
3000K
100mm
110mm
103mm
101NCL.1-R619
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
7.69W
622lm
>90
4000K
100mm
110mm
103mm
101NCL.1-R620
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
9.77W
665lm
>90
2700K
100mm
110mm
103mm
101NCL.1-R639
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
9.77W
726lm
>90
3000K
100mm
110mm
103mm
101NCL.1-R640
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
9.77W
769lm
>90
4000K
100mm
110mm
103mm
101NCL.1-R641
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
11.27W
786lm
>90
2700K
100mm
110mm
113mm
131NCL.1-R648
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
11.27W
812lm
>90
3000K
100mm
110mm
113mm
131NCL.1-R649
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NCL_SLA
21
11.27W
873lm
>90
4000K
100mm
110mm
113mm
131NCL.1-R650
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
