OYSTER

OYSTER

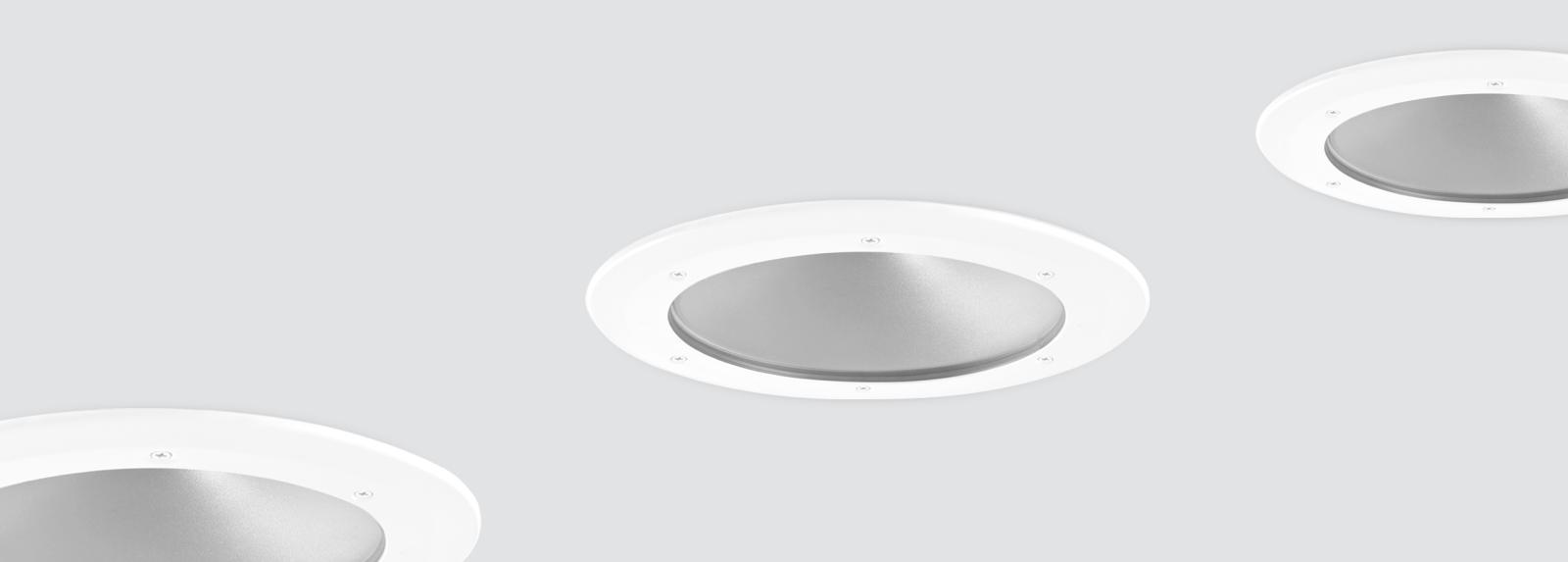

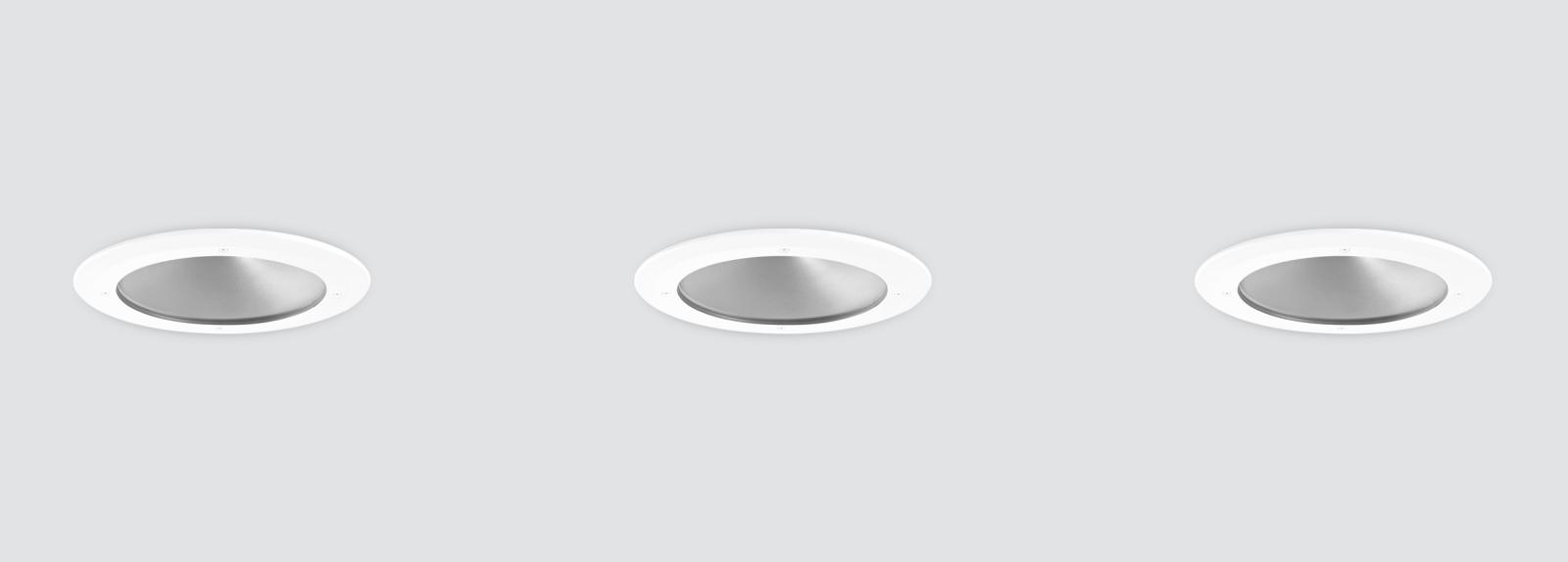

Vandal-resistant recessed mounted fixture for wall or ceiling with symmetrical light distribution.

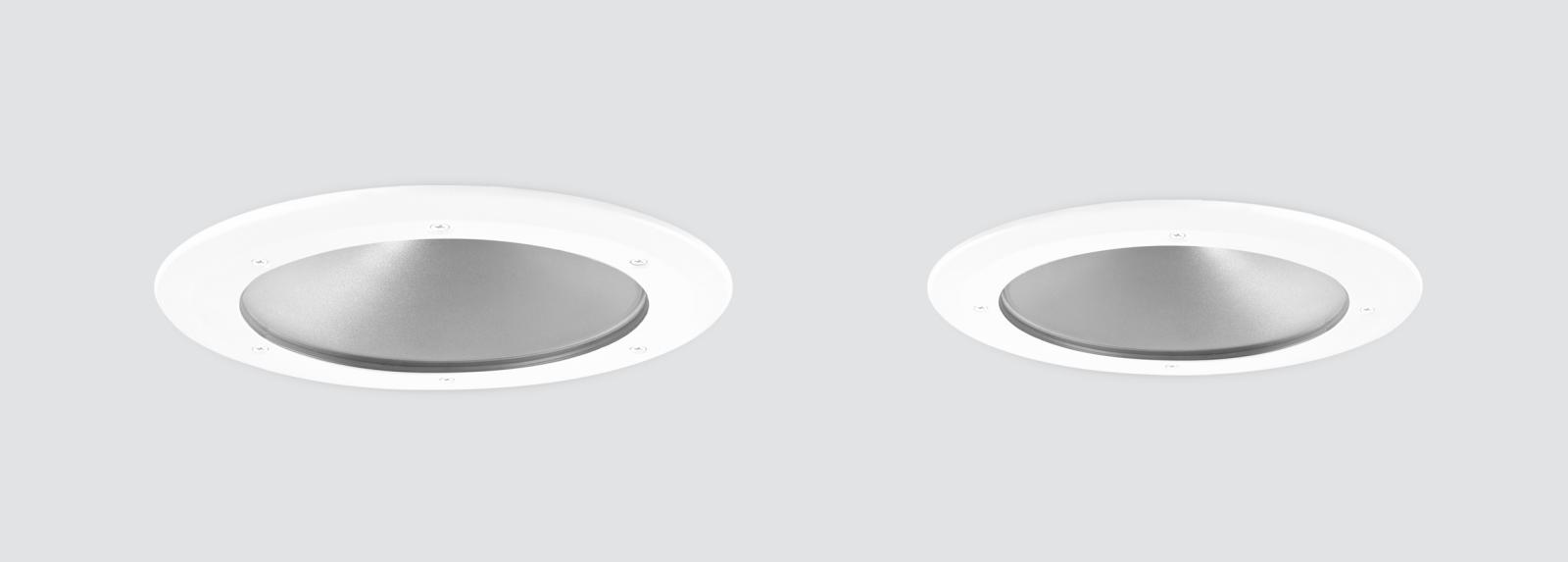

Circular design available in 2 diameters: 300mm and 380mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust body made of die-cast aluminium, treated against corrosion and coated with polyester powder available in assorted colour finishes, customized RAL under request.
Total lighting control: high performance and high efficiency.
High purity sandblasted anodised aluminium reflector.
Impact resistant cover made of clear polycarbonate (IK10).
Optional clear glass diffuser (IK05). Frosted or painted diffuser finishes under request.
Temperature resistant silicon rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included. Electronic standard options for lighting control: DALI/ DSI.
Passive temperature management: heat dissipation via the fixture body itself.
Mounting to the ceiling by three securing holes. Recessing case included.
Cable entry from the top of the fixture.

Suggested applications: indoor and outdoor spaces in schools, sport areas, healthcare centers, car parks and similar installations.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101OYT
102
12.61W
1235lm
>80
2700K
270mm
300mm
70mm
101OYT.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
12.61W
1548lm
>80
2700K
350mm
380mm
80mm
102OYT.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101OYT
102
12.61W
1285lm
>80
3000K
270mm
300mm
70mm
101OYT.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
12.61W
1612lm
>80
3000K
350mm
380mm
80mm
102OYT.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101OYT
102
12.61W
1339lm
>80
4000K
270mm
300mm
70mm
101OYT.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
12.61W
1679lm
>80
4000K
350mm
380mm
80mm
102OYT.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
18.33W
2176lm
>80
2700K
350mm
380mm
80mm
102OYT.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
18.33W
2267lm
>80
3000K
350mm
380mm
80mm
102OYT.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
85
18.33W
2362lm
>80
4000K
350mm
380mm
80mm
102OYT.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101OYT
102
18.33W
1736lm
>80
2700K
270mm
300mm
70mm
101OYT.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101OYT
102
18.33W
1808lm
>80
3000K
270mm
300mm
70mm
101OYT.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101OYT
102
18.33W
1884lm
>80
4000K
270mm
300mm
70mm
101OYT.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
84
25.33W
2923lm
>80
3000K
350mm
380mm
80mm
102OYT.1.01-I882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
84
25.33W
2808lm
>80
2700K
350mm
380mm
80mm
102OYT.1.01-I881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102OYT
84
25.33W
3049lm
>80
4000K
350mm
380mm
80mm
102OYT.1.01-I883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
