PINHOLE SEAL

PINHOLE SEAL

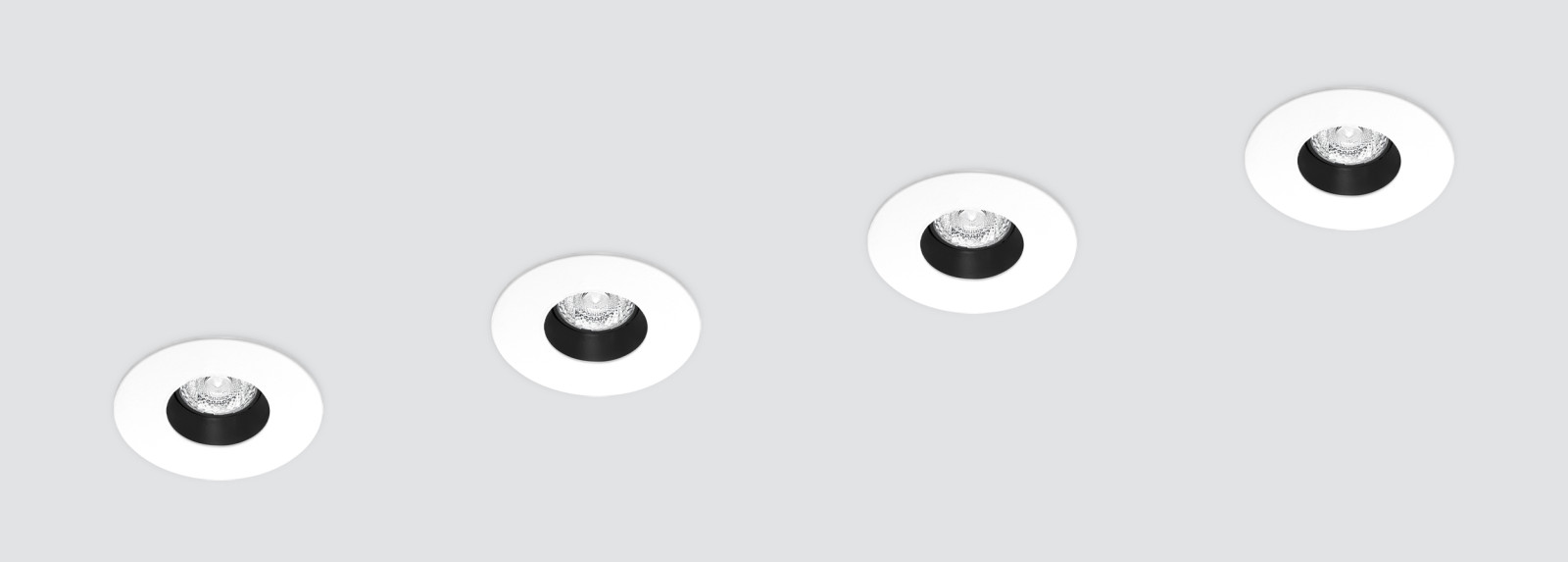

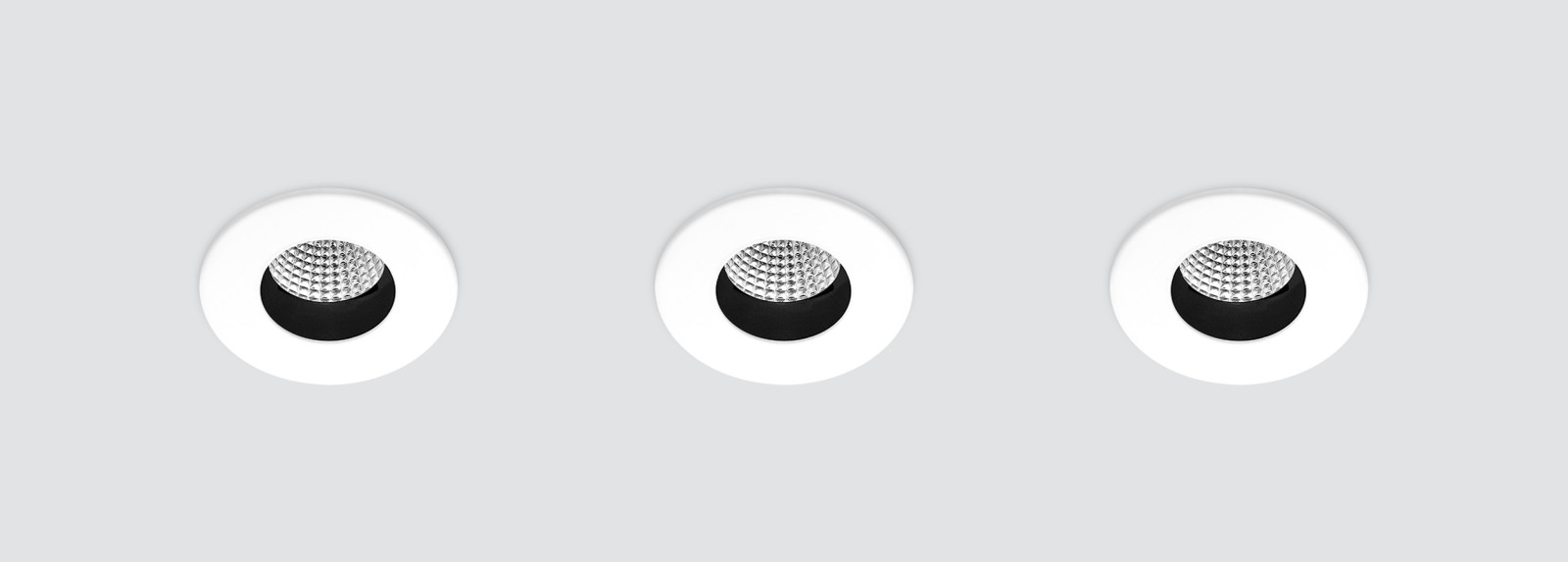

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective accent lighting.
Protection rating against dust and moisture: IP65 from underneath.
Circular design available in 85mm diameter.
Total lighting control: best performance and high efficiency.
High-purity sandblasted anodised aluminium reflector.
Internal cylindrical aluminium black baffle for minimal glare. Deep regressed module to ensure visual comfort.

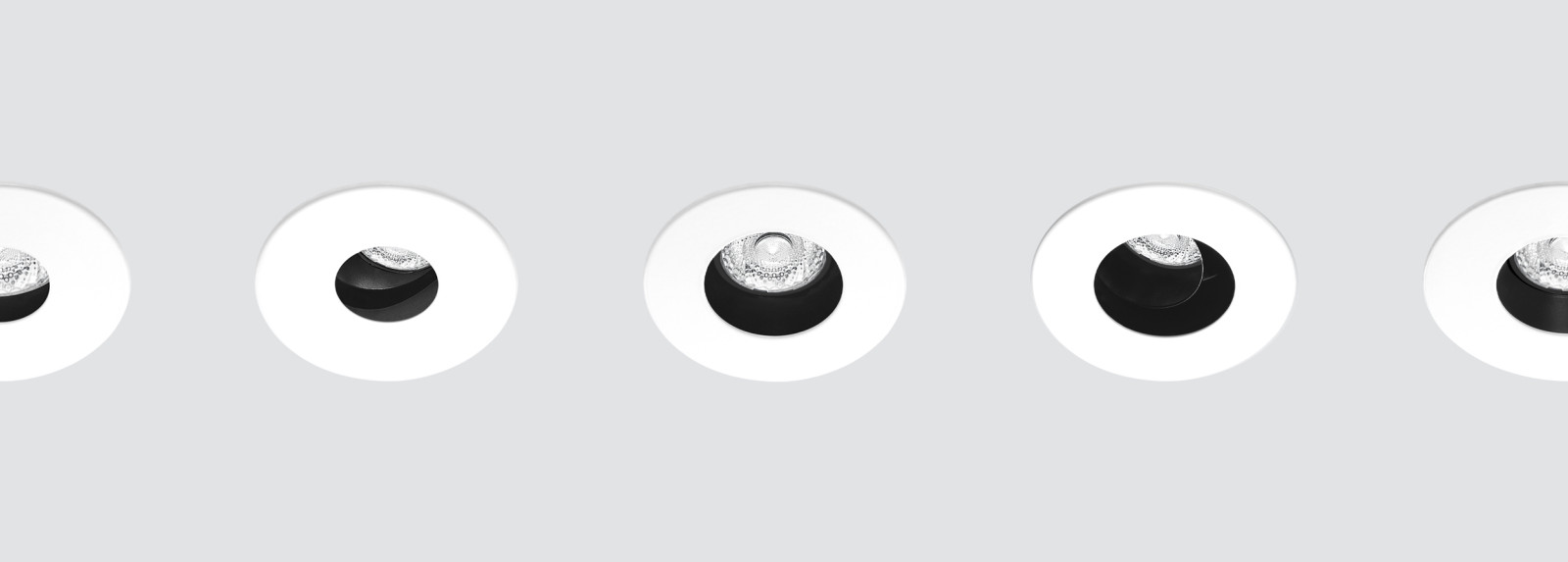

Fixed and tilt versions, adjustable to 20º.

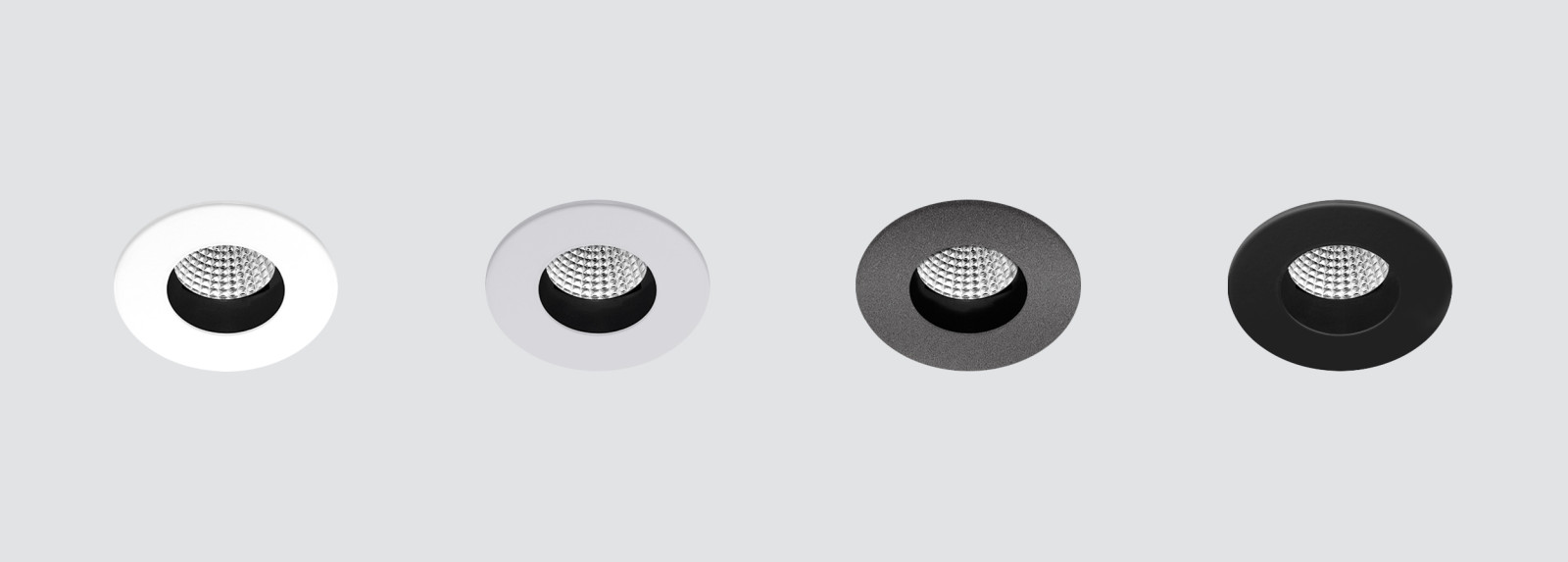

Powder painted trim available in assorted finishes, customized RAL under request.
Glass and silicone rubber gasket to ensure IP65 protection from underneath.
Remote driver to be ordered separately. Electronic options for lighting control: DALI, DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted using galvanised steel support with spring clamps.

Suggested applications:kitchens, bathrooms, spas, porches, balconies and similar high humidity environments.

Product configurator

Recessed diameter

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F107PNH_SLA
25
5.66W
355lm
>90
2700K
78mm
85mm
82mm
107PNS.1.01-R522
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
5.66W
385lm
>90
3000K
78mm
85mm
82mm
107PNS.1.01-R523
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
5.66W
414lm
>90
4000K
78mm
85mm
82mm
107PNS.1.01-R524
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
7.69W
444lm
>90
2700K
78mm
85mm
82mm
107PNS.1.01-R618
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
7.69W
496lm
>90
3000K
78mm
85mm
82mm
107PNS.1.01-R619
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
7.69W
533lm
>90
4000K
78mm
85mm
82mm
107PNS.1.01-R620
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
9.77W
570lm
>90
2700K
78mm
85mm
82mm
107PNS.1.01-R639
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
9.77W
622lm
>90
3000K
78mm
85mm
82mm
107PNS.1.01-R640
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
9.77W
659lm
>90
4000K
78mm
85mm
82mm
107PNS.1.01-R641
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F119PNS
17.05W
>90
2700K
78mm
85mm
118mm
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F119PNS
17.05W
>90
3000K
78mm
85mm
118mm
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F119PNS
17.05W
>90
4000K
78mm
85mm
118mm
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
11.27W
673lm
>90
2700K
78mm
85mm
92mm
108PNS.1.01-R648
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
11.27W
696lm
>90
3000K
78mm
85mm
92mm
108PNS.1.01-R649
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE


F107PNH_SLA
25
11.27W
747lm
>90
4000K
78mm
85mm
92mm
108PNS.1.01-R650
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Declaration conformity CE
