QUADRATIC

QUADRATIC

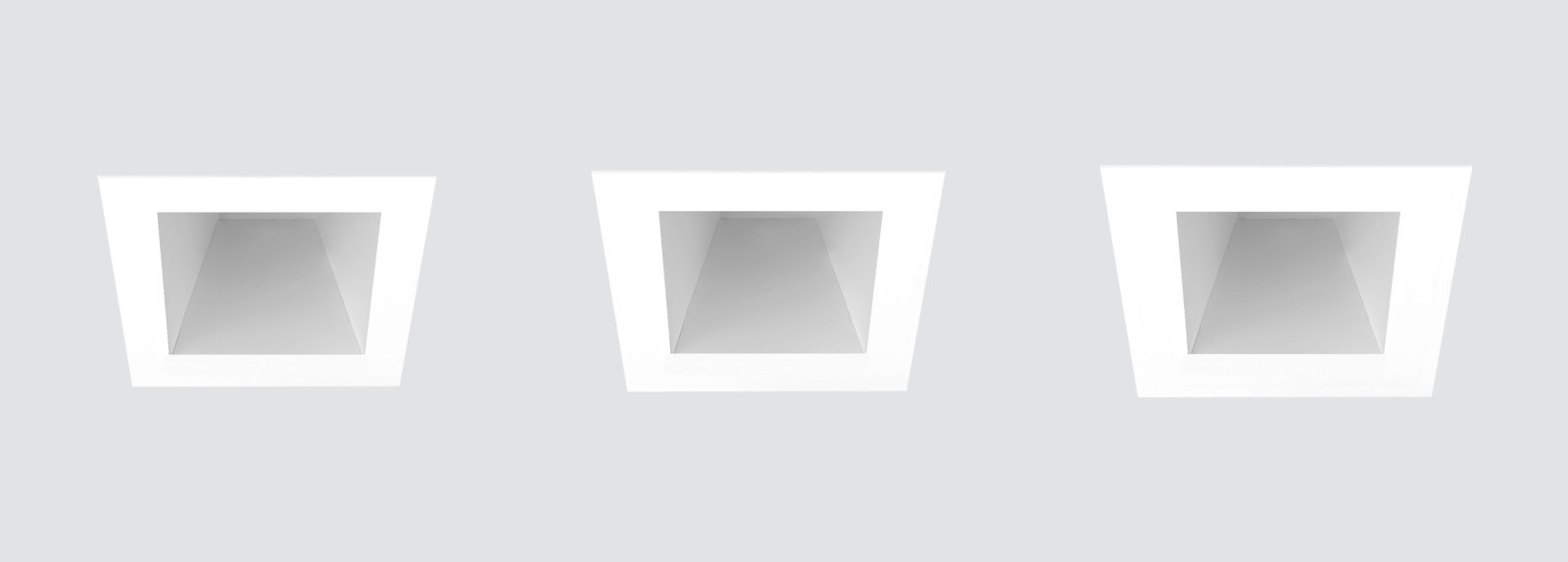

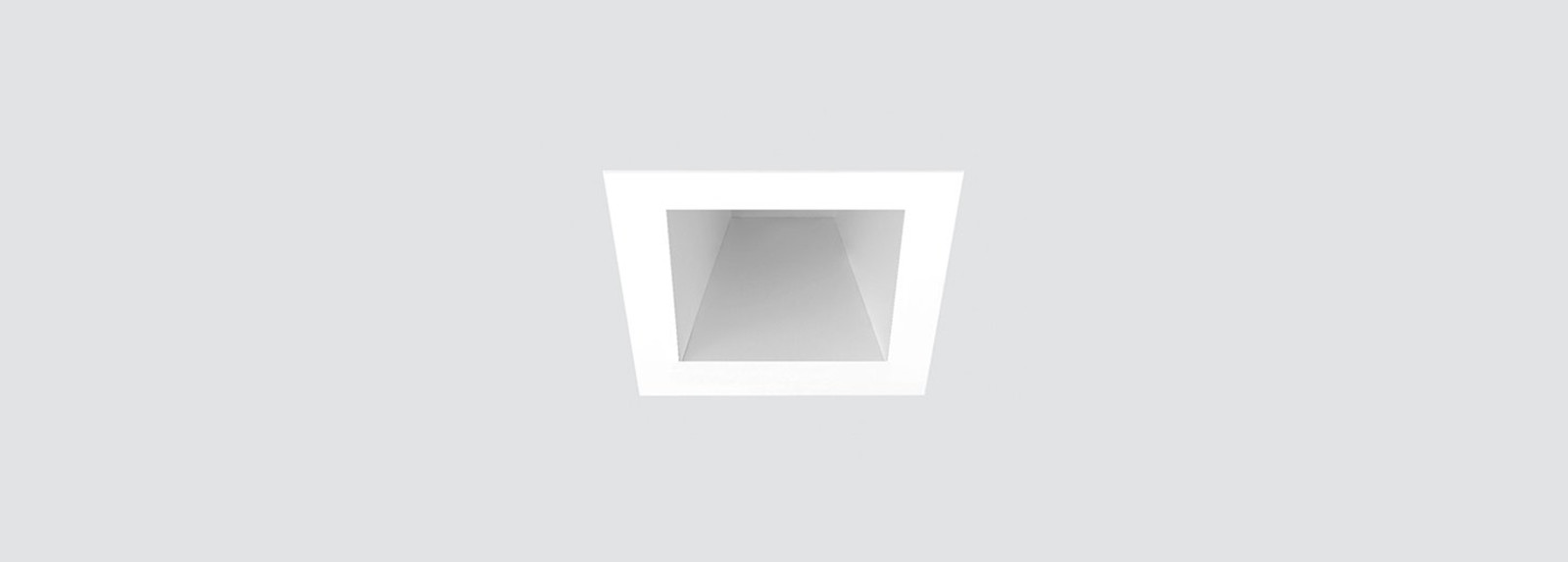

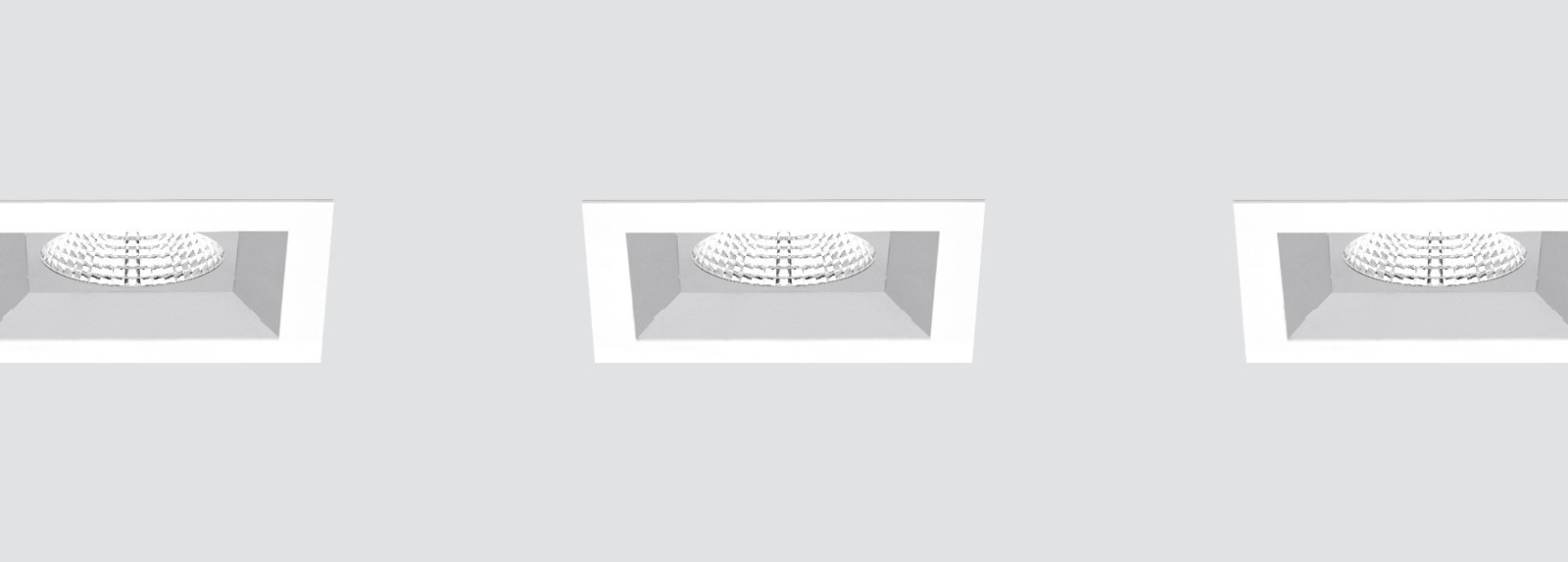

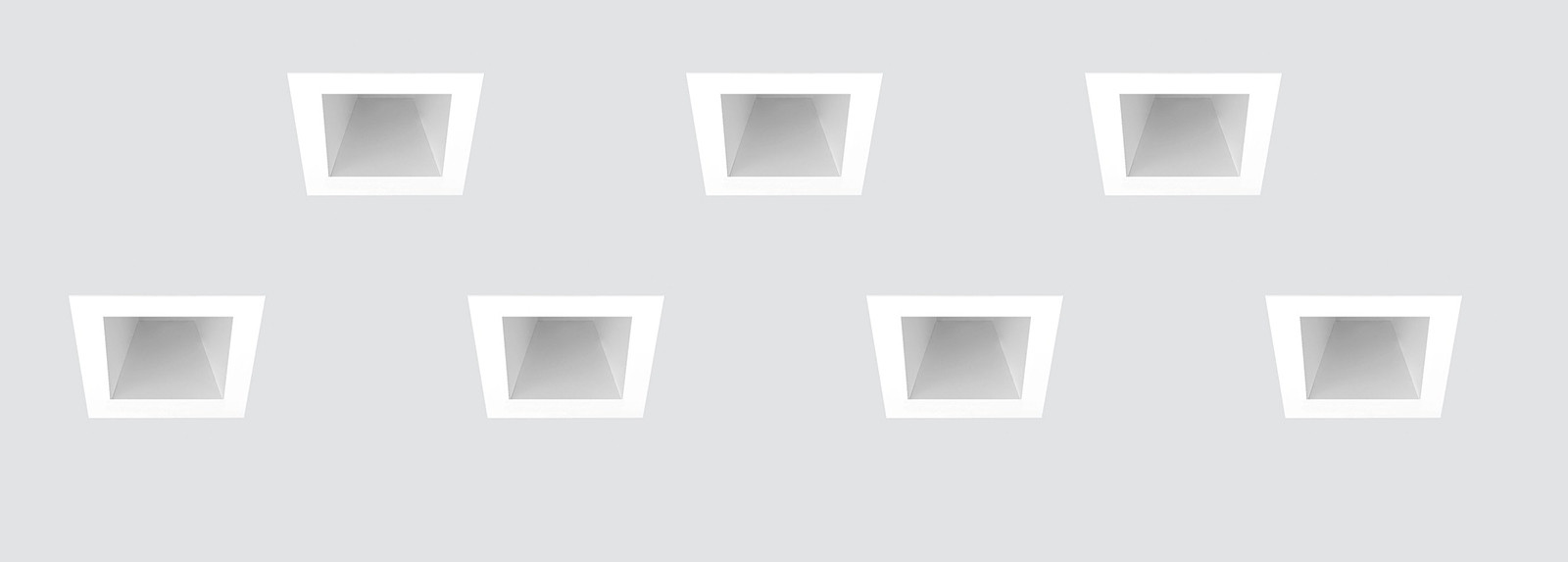

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.
Square design available in 225mm x 225mm.
Total lighting control: high performance and high efficiency.
High-purity matt anodised aluminium reflector.
Powder painted die-cast aluminium frame available in assorted finishes, customized RAL under request.
Range of decorative and optical accessories.
Glass accessory available to increase the protection rating to IP54 from underneath.
Remote driver supplied. Electronic standard options for lighting control: DALI/ DSI, phase cut or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thicknesses up to 30mm.

Suggested applications: shopping centers, hotels, offices, airports, service stations, restaurants, shops, galleries, museums, workplaces, apartments, hospitals, universities, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101QTC
72
12.61W
1627lm
>80
2700K
210x210
225x225
109mm
101QTC.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
12.61W
1693lm
>80
3000K
210x210
225x225
109mm
101QTC.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
12.61W
1764lm
>80
4000K
210x210
225x225
109mm
101QTC.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
12.61W
1345lm
>90
2700K
210x210
225x225
109mm
101QTC.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
12.61W
1436lm
>90
3000K
210x210
225x225
109mm
101QTC.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
12.61W
1506lm
>90
4000K
210x210
225x225
109mm
101QTC.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1274lm
>80
2700K
210x210
225x225
169mm
102QTC.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1326lm
>80
3000K
210x210
225x225
169mm
102QTC.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1381lm
>80
4000K
210x210
225x225
169mm
102QTC.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1053lm
>90
2700K
210x210
225x225
169mm
102QTC.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1125lm
>90
3000K
210x210
225x225
169mm
102QTC.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
58
12.61W
1180lm
>90
4000K
210x210
225x225
169mm
102QTC.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
18.33W
2287lm
>80
2700K
210x210
225x225
109mm
101QTC.1-R869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
18.33W
2382lm
>80
3000K
210x210
225x225
109mm
101QTC.1-R870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101QTC
72
18.33W
2482lm
>80
4000K
210x210
225x225
109mm
101QTC.1-R871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
