TERRA

TERRA

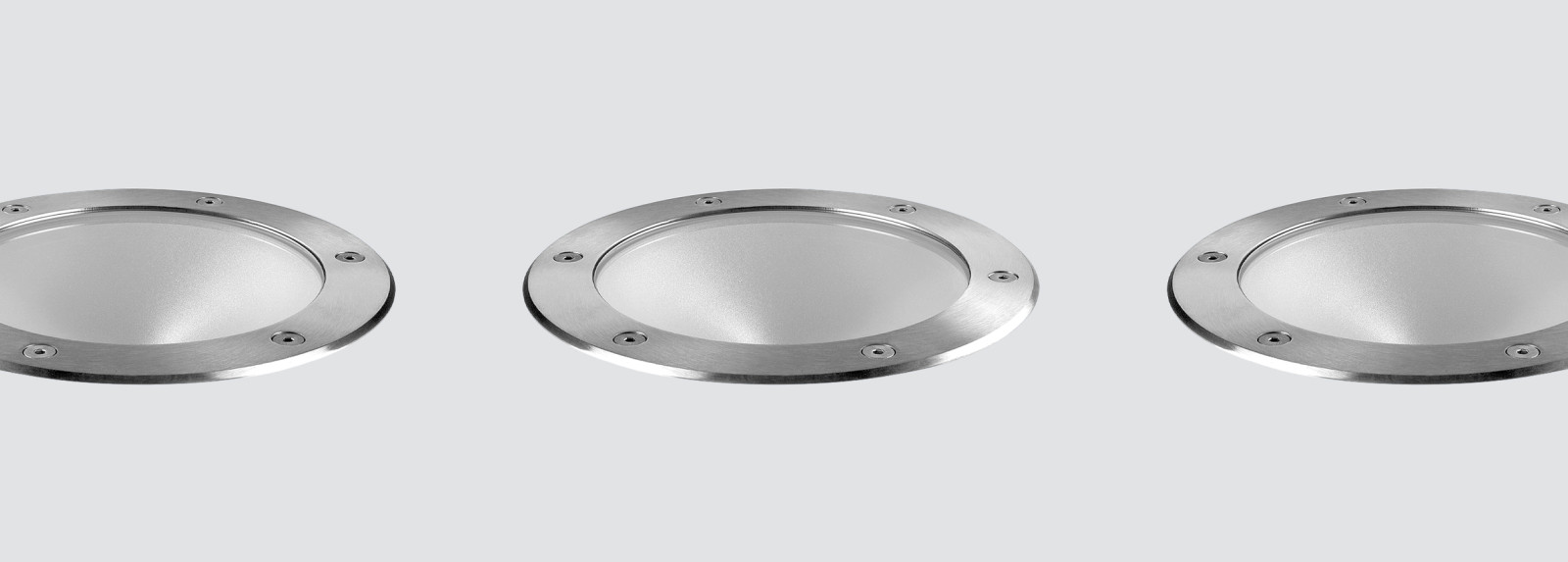

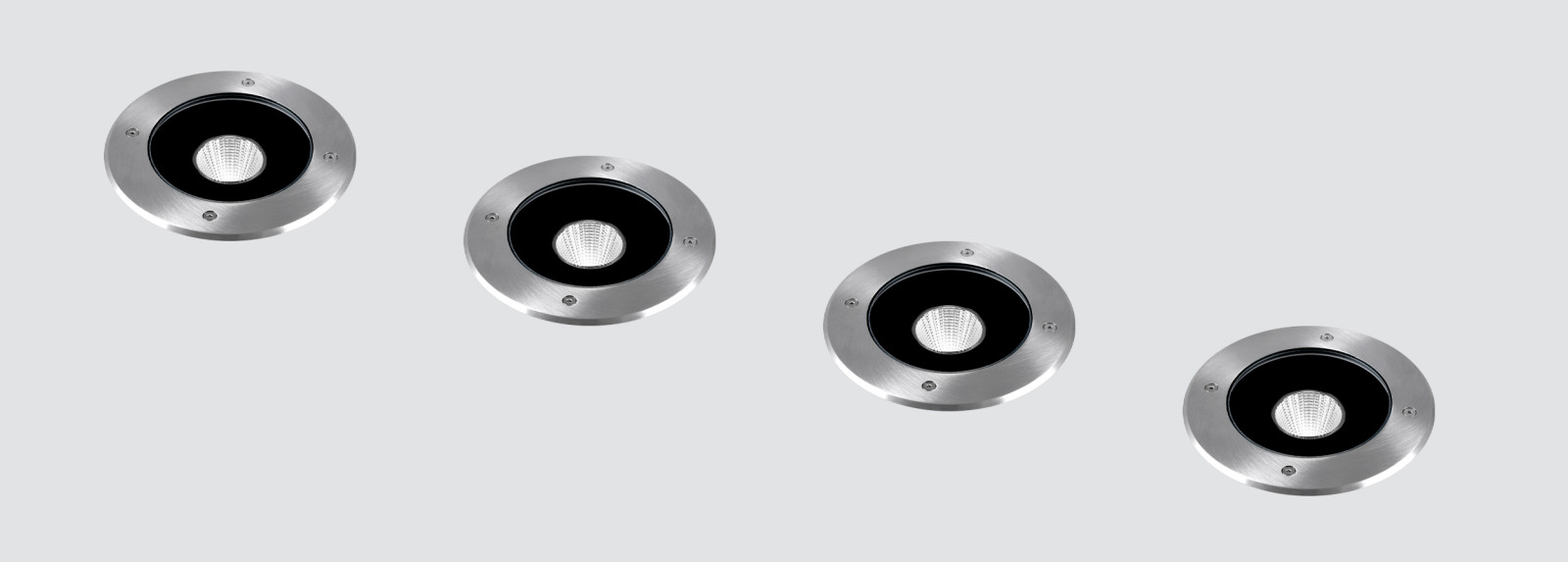

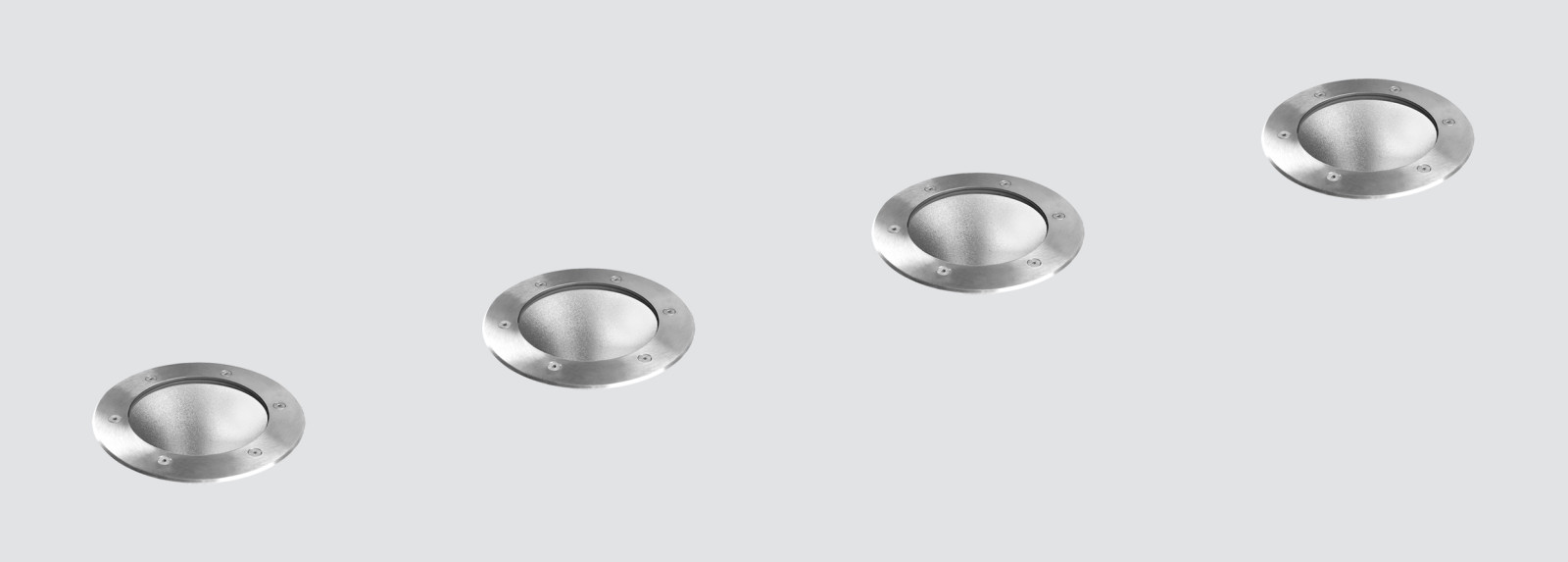

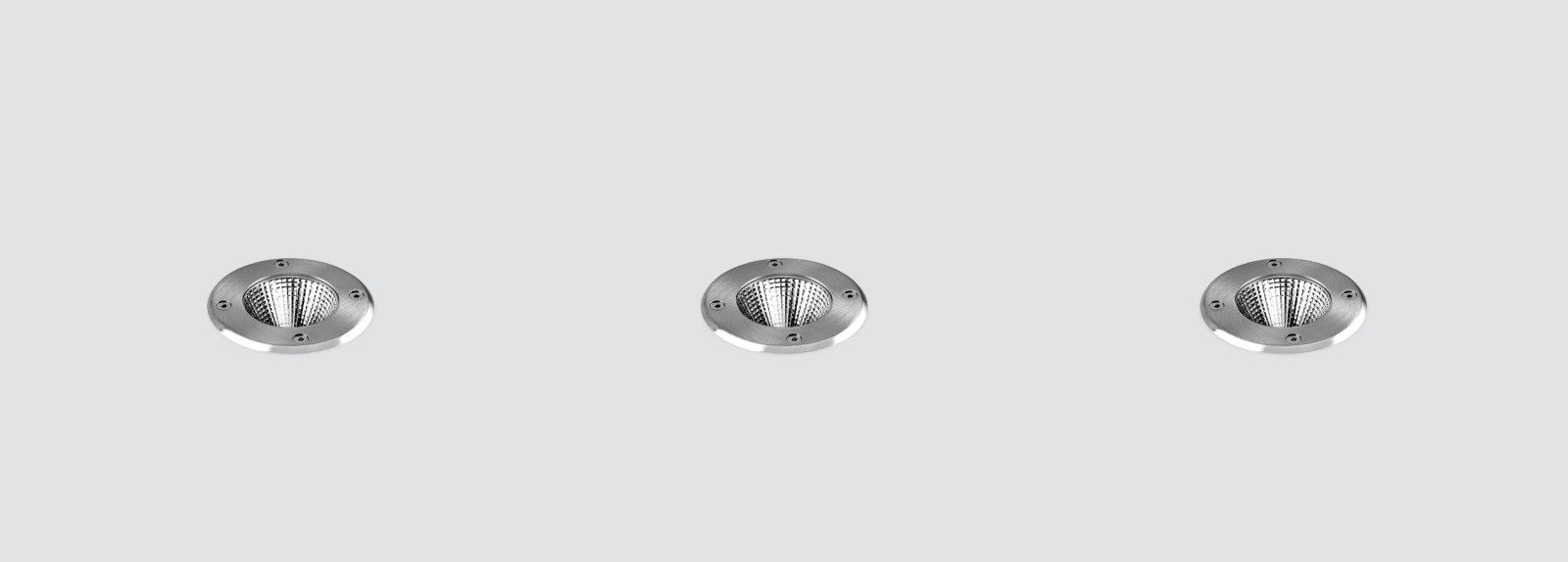

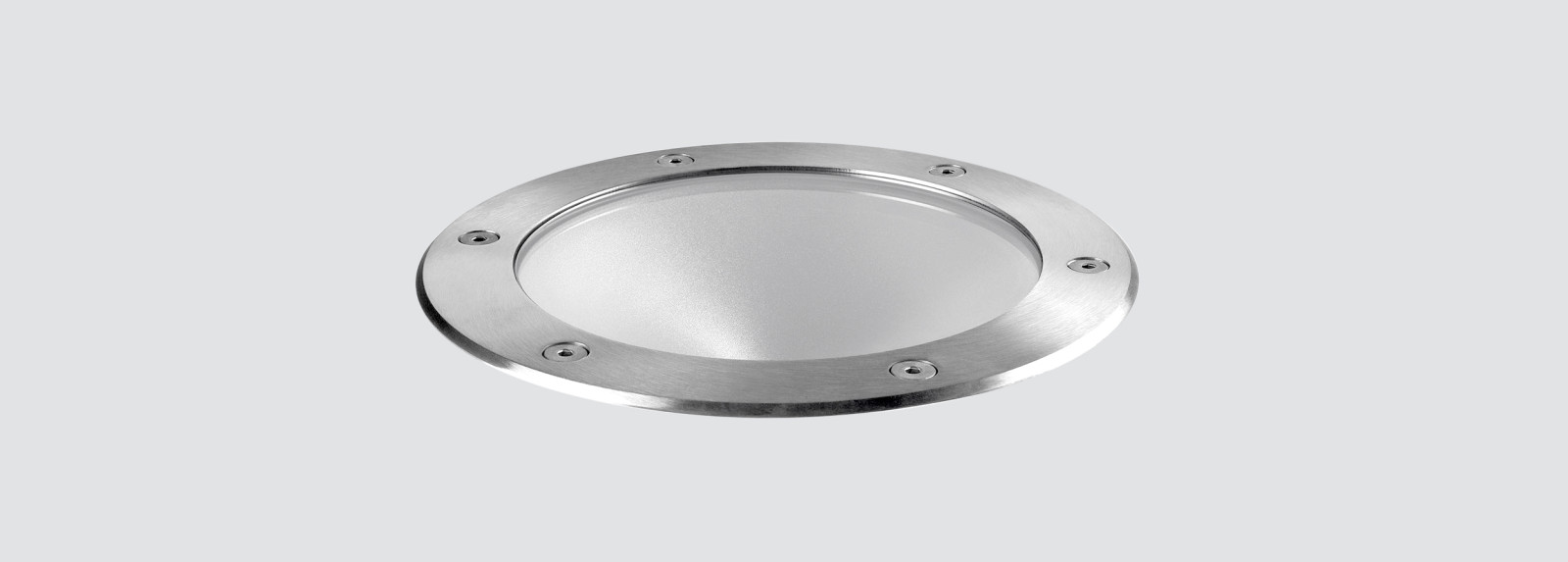

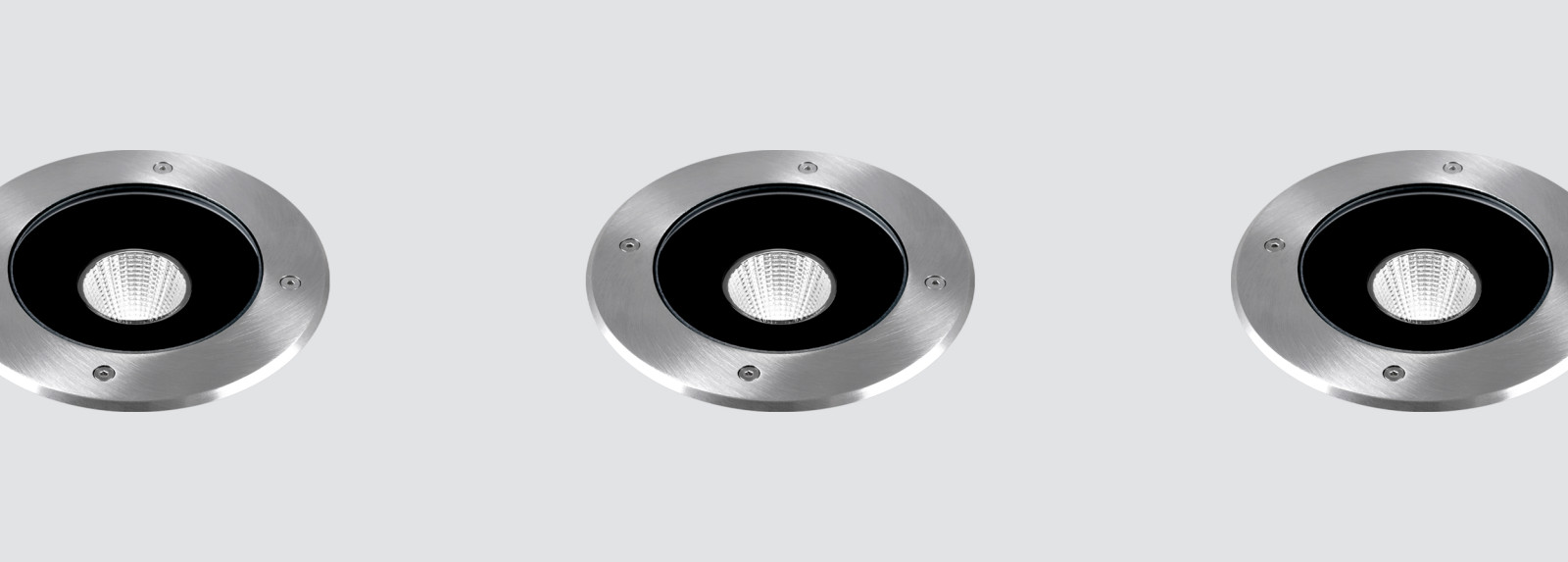

Recessed buried uplight with symmetrical light distribution.
Circular design available in 4 diameters: 155mm, 180mm, 280mm and 340mm.
IP68 protection rating that enables it to resist immersion to a depth of 1m.
Protection rating for resistance to harmful mechanical impacts: IK10.
Load supported: 5600Kg, 6600Kg or 7100Kg, depending on the fixture diameter.
Can be driven over by vehicles with pneumatic tyres. Robust and corrosion-resistant because of its 18μ anodised aluminium housing and 316L stainless steel marine grade trim and screws.
Total lighting control: high performance and efficiency.
Large range of reflectors to obtain the best photometric results.
High-purity aluminium reflector in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
A tilt version adjustable to 15º is available in this range.
Tempered protection glass in 10mm or 15 mm depending on the reference.
Clear glass as standard, other finishes under request. Skid-blocking safety glass finishing for public areas walked by pedestrians can be supplied under request. Temperature resistant silicone rubber gasket.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included (depending on the reference). Electronic standard options for lighting control: DALI/ DSI.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing holes.
Passive temperature management: heat dissipation flows through the fixture body itself or through an aluminium heat sink.
Double cable gland entry for installation in series (depending on the reference).
Pre-wiring of 1.5 metres cable 3x1,5mm2.
IP68 connector to be ordered separately.

Suggested applications: outdoor spaces: gardens, parks, pathways that may be affected by temporary flooding. Interior spaces in shopping malls, hotel and building entrances, cinemas, car parks, mechanical workshops, showrooms and similar installations. Suitable for installation in concrete, pavement and lawn.

Product configurator

Recessed diameter

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Depth

F120TER_121TER_122TER
22
4,8W
452lm
>80
2700K
140mm
155mm
166mm
120TER.8.01-I1182
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
22
4,8W
470lm
>80
3000K
140mm
155mm
166mm
120TER.8.01-I1183
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
22
4,8W
486lm
>80
4000K
140mm
155mm
166mm
120TER.8.01-I1184
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
35
4,8W
587lm
>80
2700K
140mm
155mm
166mm
121TER.8.01-I1182
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
35
4,8W
610lm
>80
3000K
140mm
155mm
166mm
121TER.8.01-I1183
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
35
4,8W
630lm
>80
4000K
140mm
155mm
166mm
121TER.8.01-I1184
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
41
4,8W
628lm
>80
2700K
140mm
155mm
166mm
122TER.8.01-I1182
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
41
4,8W
653lm
>80
3000K
140mm
155mm
166mm
122TER.8.01-I1183
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F120TER_121TER_122TER
41
4,8W
675lm
>80
4000K
140mm
155mm
166mm
122TER.8.01-I1184
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F123TER
89
11W
1294lm
>80
2700K
140mm
155mm
166mm
123TER.8.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F123TER
89
11W
1346lm
>80
3000K
140mm
155mm
166mm
123TER.8.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F123TER
89
11W
1414lm
>80
4000K
140mm
155mm
166mm
123TER.8.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F102TER
12
11W
1607lm
>80
2700K
160mm
180mm
275mm
102TER.8.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102TER
12
11W
1673lm
>80
3000K
160mm
180mm
275mm
102TER.8.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102TER
12
11W
1743lm
>80
4000K
160mm
180mm
275mm
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
