TIMBAL SQ

TIMBAL SQ

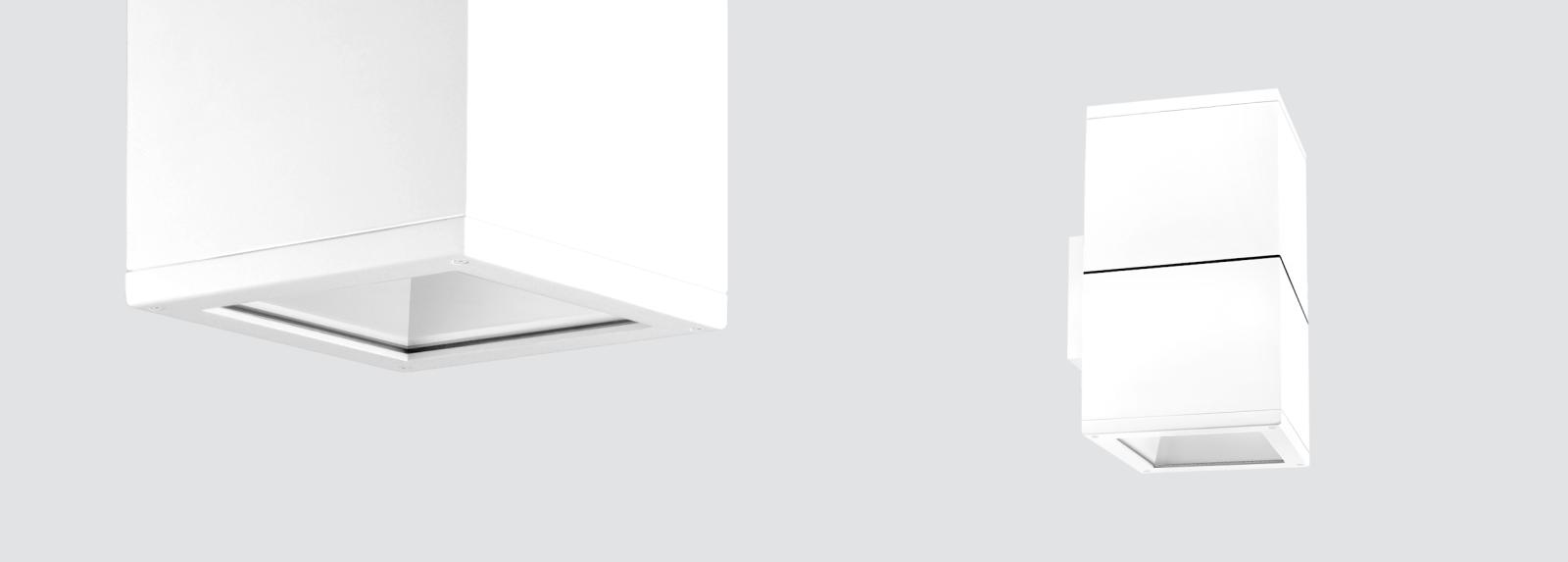

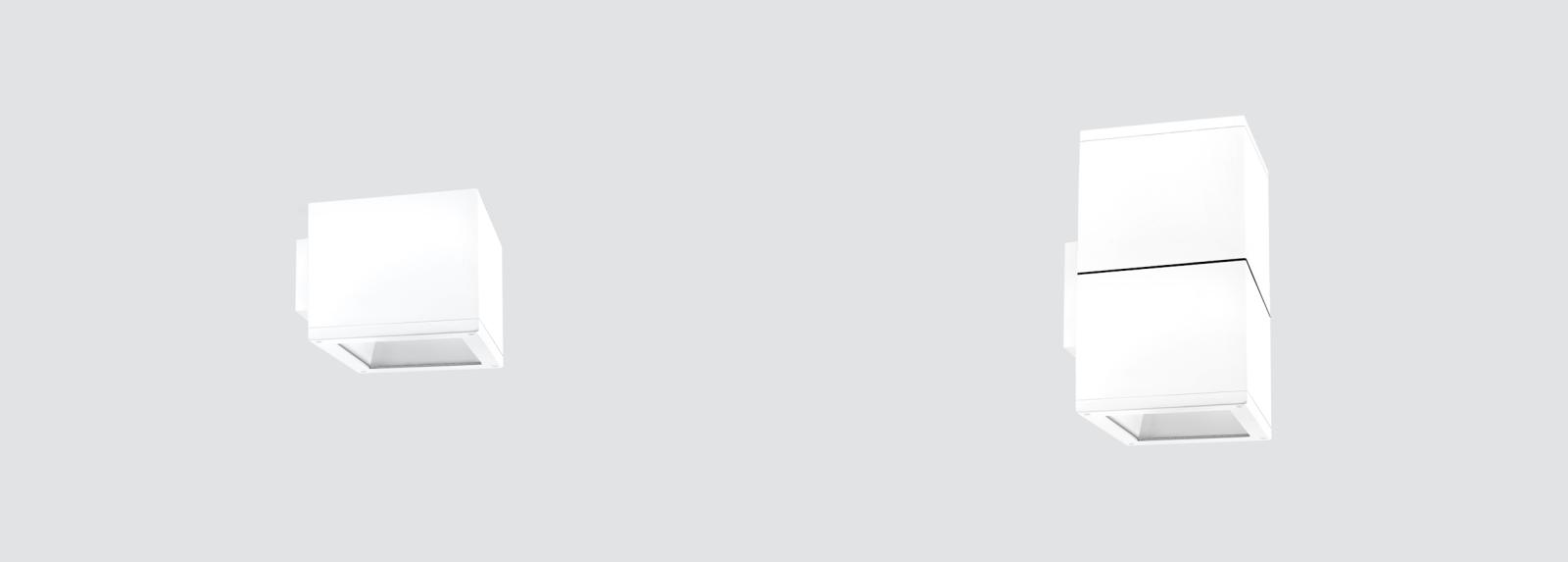

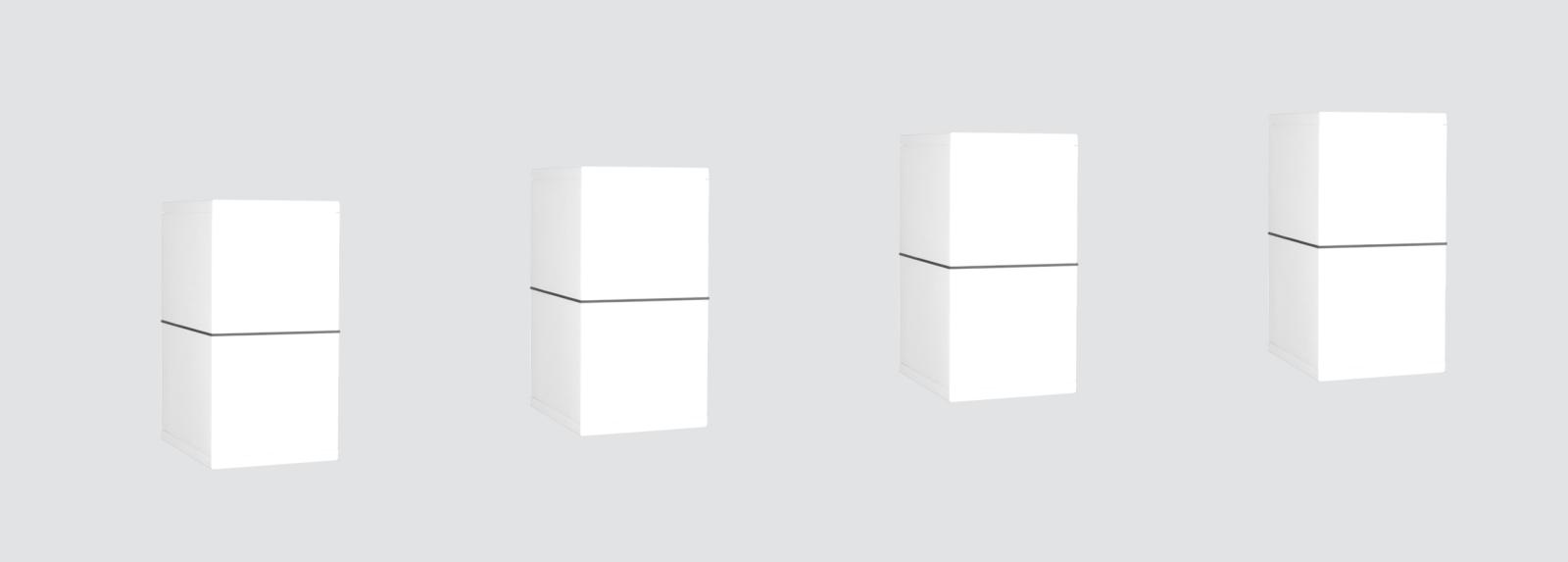

Surface mounted fixtures with symmetrical light distribution. Wall fixtures with light emission on two sides.
Cubic design available in 2 sizes: 212mm x 212mm and 277mm x 277mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK07.
Robust body and frame made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Total lighting control: high performance and high efficiency.
High-purity matt anodised aluminium reflector.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to get IK10 protection degree.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included. Electronic standard options for the driver: DALI/ DSI.
Passive temperature management: heat dissipation via the fixture body itself.
Mounting to the wall through mounting plate with two fixing holes.
Cable entry from the mounting plate.

It is possible to specify individual luminous flux, beam angle and colour temperature for each luminaire side, downlight and uplight side.

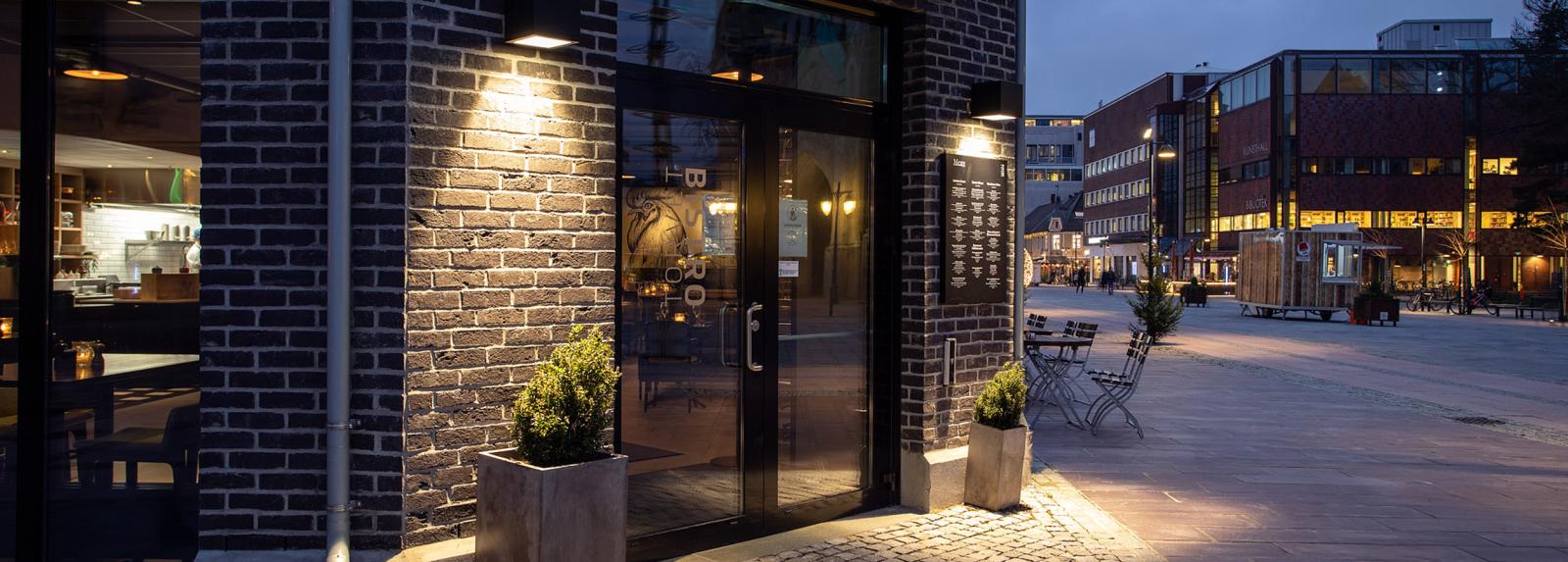

Suggested applications: façades, patios, porches and similar installations.

Product configurator

One side/Two sides

Outer dimensions

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101TMS
50
12.61W
1235lm
>80
2700K
212x212
201mm
101TMS.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
50
12.61W
1285lm
>80
3000K
212x212
201mm
101TMS.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
50
12.61W
1339lm
>80
4000K
212x212
201mm
101TMS.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
12.61W
1450lm
>80
2700K
212x212
201mm
103TMS.1.01-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
12.61W
1510lm
>80
3000K
212x212
201mm
103TMS.1.01-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
12.61W
1573lm
>80
4000K
212x212
201mm
103TMS.1.01-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
50
18.33W
1736lm
>80
2700K
212x212
201mm
101TMS.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
50
18.33W
1808lm
>80
3000K
212x212
201mm
101TMS.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
50
18.33W
1884lm
>80
4000K
212x212
201mm
101TMS.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
18.33W
2039lm
>80
2700K
212x212
201mm
103TMS.1.01-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
18.33W
2124lm
>80
3000K
212x212
201mm
103TMS.1.01-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
72
18.33W
2213lm
>80
4000K
212x212
201mm
103TMS.1.01-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
51
25.33W
2145lm
>80
2700K
212x212
201mm
101TMS.1.01-I881
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
51
25.33W
2233lm
>80
3000K
212x212
201mm
101TMS.1.01-I882
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TMS
51
25.33W
2329lm
>80
4000K
212x212
201mm
101TMS.1.01-I883
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
