VARALI

VARALI

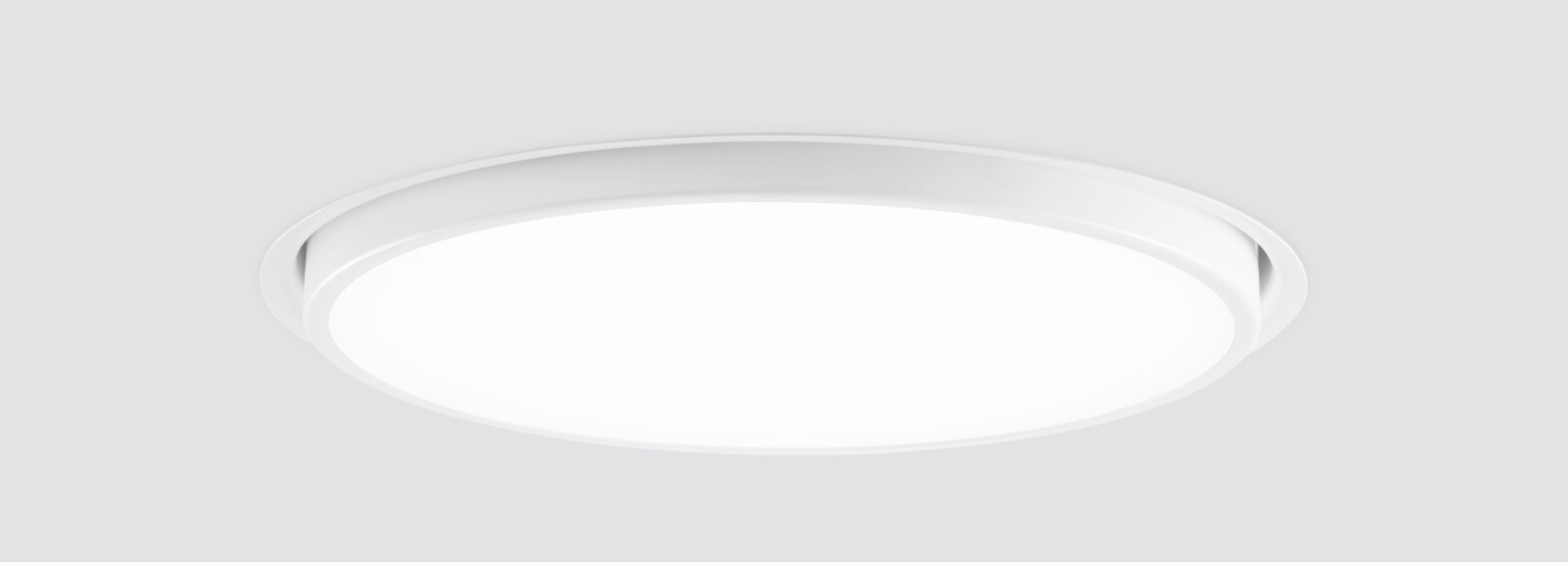

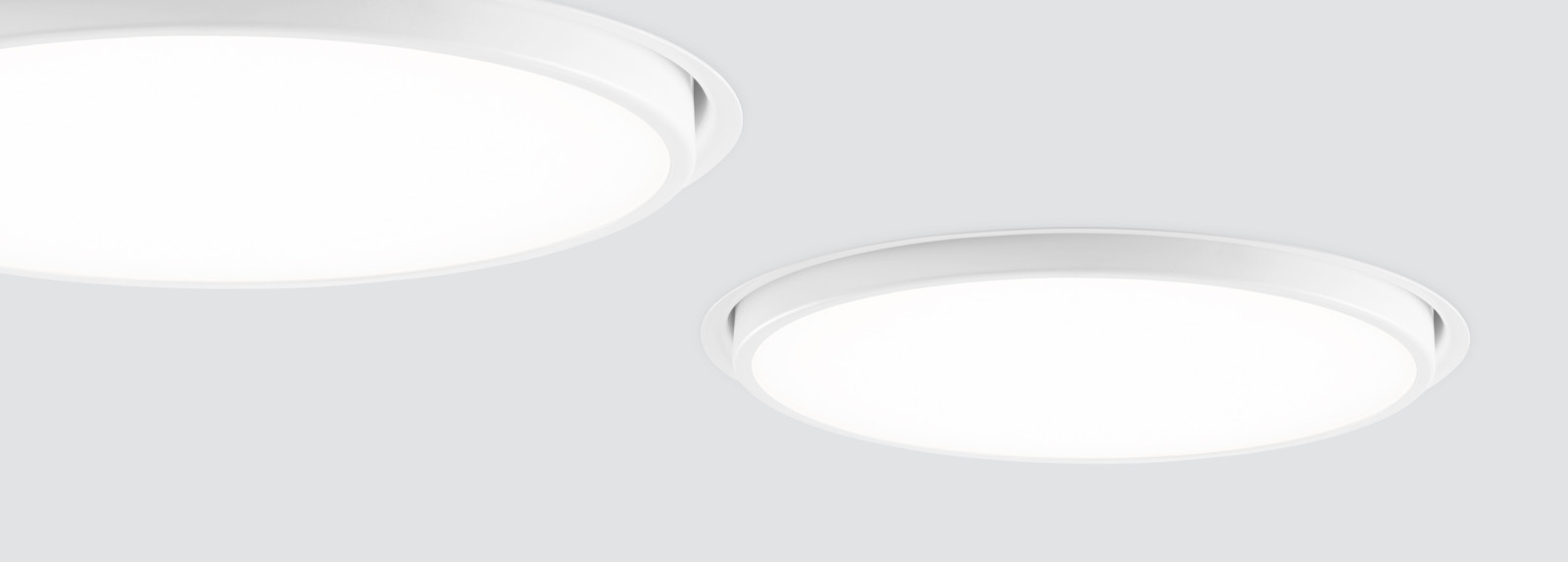

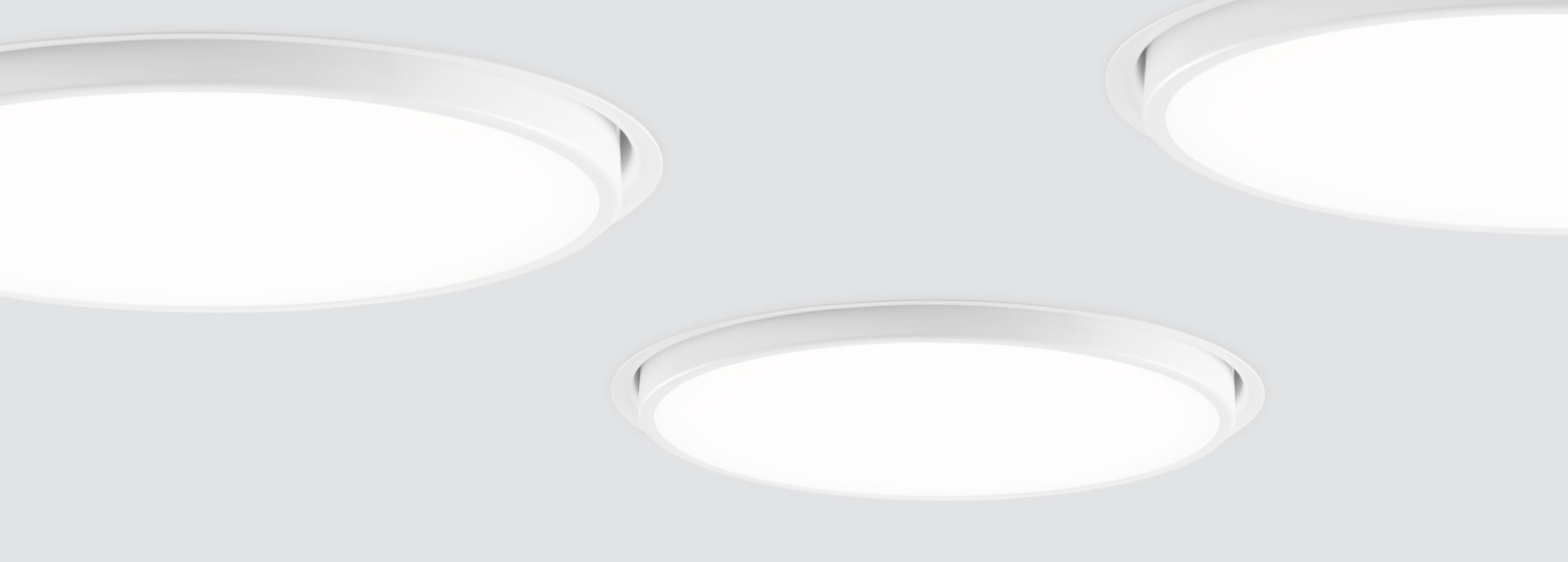

Semi-recessed downlights with symmetrical light distribution to achieve an effective ambient lighting.
Circular design available in 4 diameters: 395mm, 595mm, 880mm and 1155mm.
Powder painted aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser.
High energy efficiency printed circuit board.
Built-in driver, included.
Passive temperature management: heat dissipation flows through the fixture body itself.
Mounting to the ceiling plate with four securing points.
VARALI can be combined with the PLACE pendant downlights, LEDA surface mounted and KUU or CANDRA recessed mounted to get an harmonious finish.

Suggested applications: restaurants, shops, apartments, halls, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101VRL
114
17W
2262lm
>80
3000K
366mm
395mm
80mm
108VRL.1.02-I637
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
114
17W
2507lm
>80
4000K
366mm
395mm
80mm
108VRL.1.02-I638
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
114
23W
2903lm
>80
3000K
366mm
395mm
80mm
108VRL.1.02-I645
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
114
23W
3208lm
>80
4000K
366mm
395mm
80mm
108VRL.1.02-I646
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
17W
2984lm
>80
3000K
569mm
595mm
80mm
109VRL.1.02-I1051
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
17W
3028lm
>80
4000K
569mm
595mm
80mm
109VRL.1.02-I1052
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
24W
3909lm
>80
3000K
569mm
595mm
80mm
109VRL.1.02-I1053
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
24W
3937lm
>80
4000K
569mm
595mm
80mm
109VRL.1.02-I1054
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
30W
4816lm
>80
3000K
569mm
595mm
80mm
109VRL.1.02-I1055
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
106
30W
4837lm
>80
4000K
569mm
595mm
80mm
109VRL.1.02-I1056
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VRL
108
47W
8064lm
>80
3000K
851mm
880mm
80mm
110VRL.1.02-I1057
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101VRL
108
47W
8506lm
>80
4000K
851mm
880mm
80mm
110VRL.1.02-I1058
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101VRL
108
59W
9940lm
>80
3000K
851mm
880mm
80mm
110VRL.1.02-I1059
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101VRL
108
59W
10483lm
>80
4000K
851mm
880mm
80mm
110VRL.1.02-I1060
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101VRL
108
96W
15985lm
>80
3000K
1126mm
1155mm
80mm
111VRL.1.02-I1061
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
