VICTORIA

VICTORIA

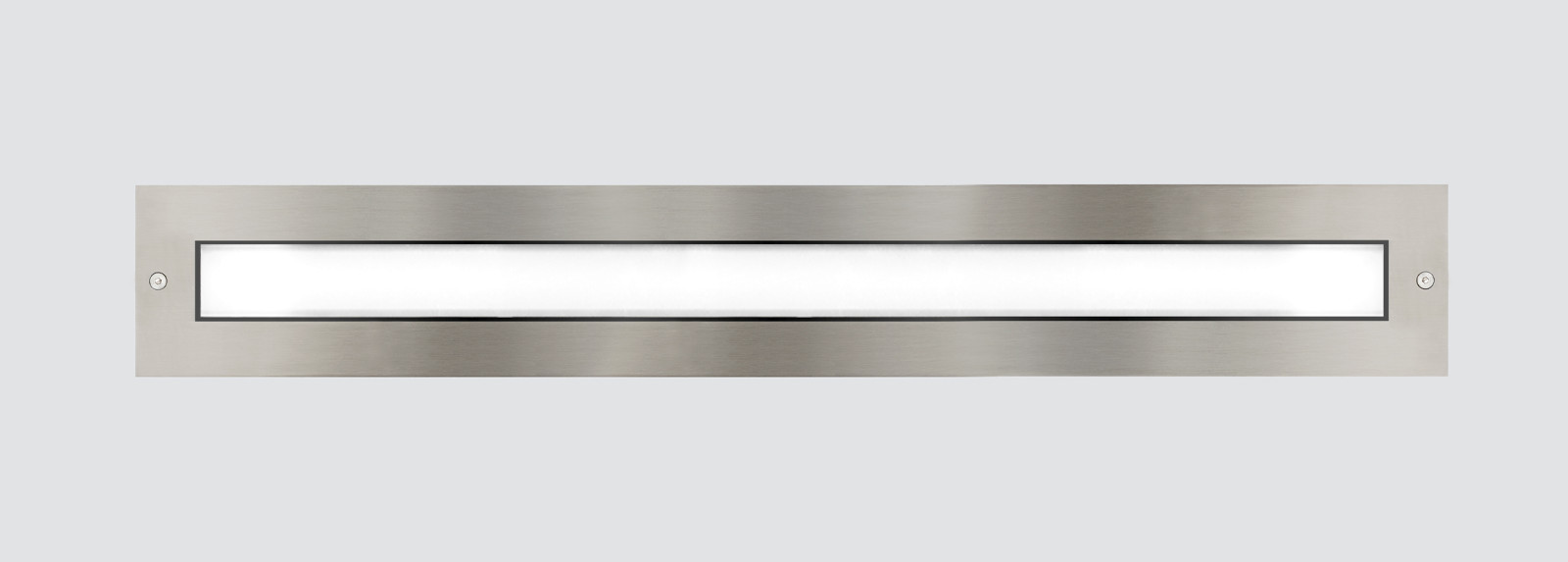

Buried linear uplights with symmetrical and asymmetrical light distribution.

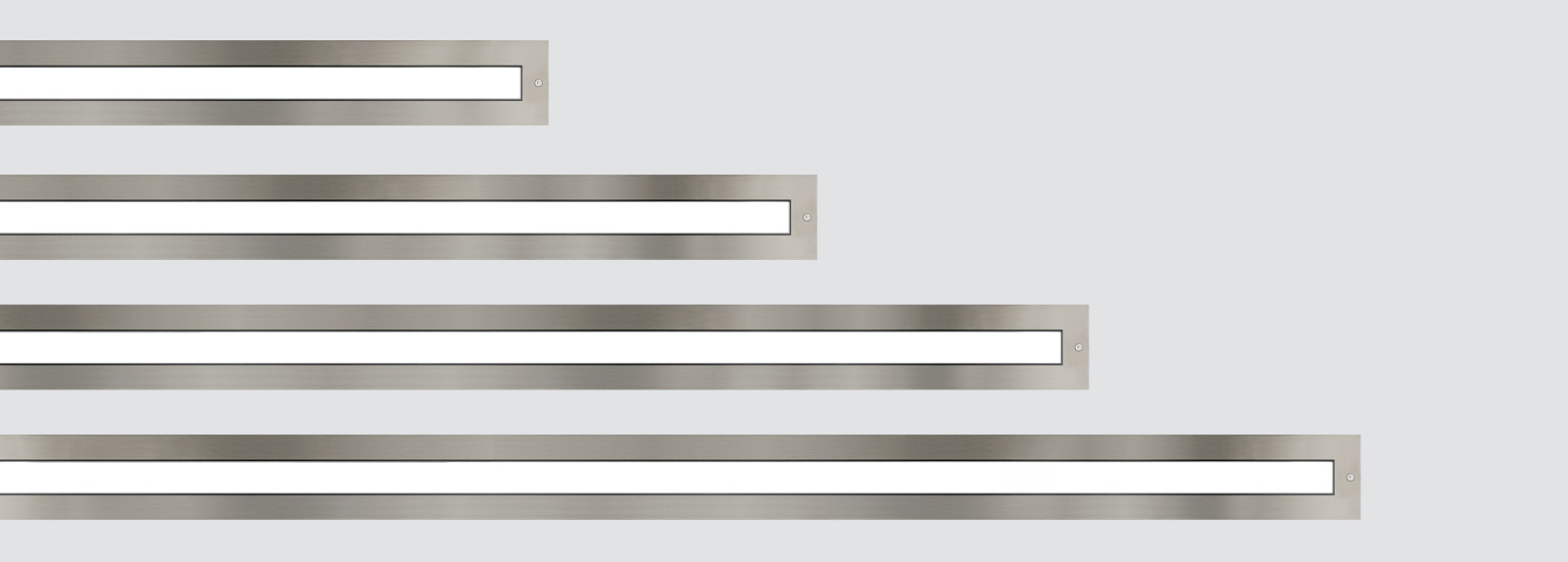

Linear fixtures available in 4 lengths 620mm, 900mm, 1180mm and 1460mm in a width of 95mm and in a depth of 123mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant black painted extruded aluminium profile with C5-M special coating for environments with very high corrosivity.

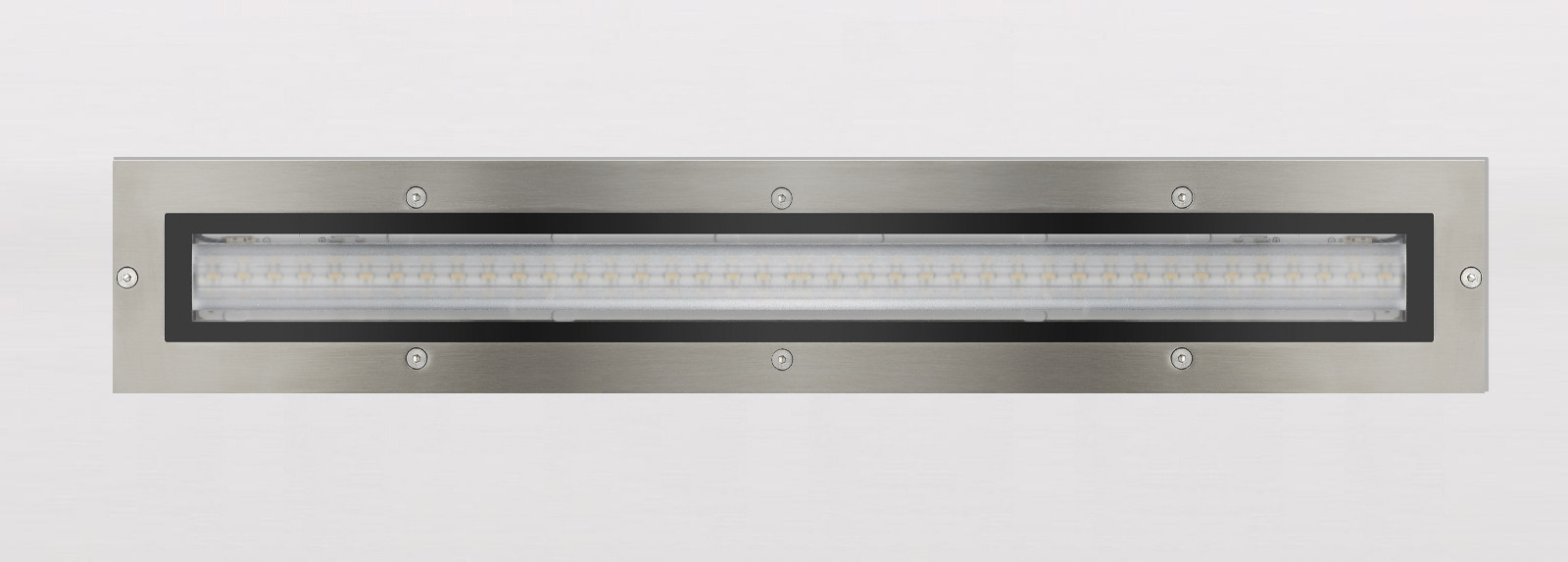

316L stainless steel marine grade frame.

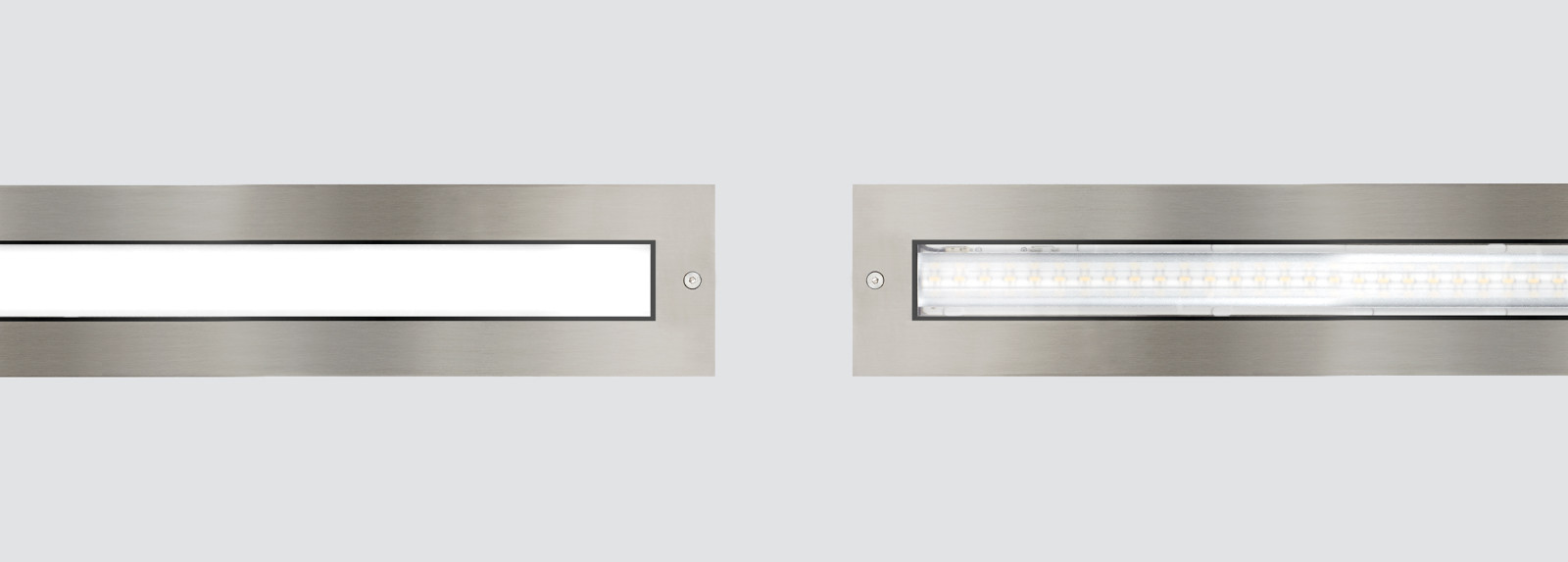

10 mm protection clear glass as standard, frosted glass unde request.
Highly efficient linear printed circuit board.
Built-in driver.
Floor installation with two fixing points. Insertion box supplied with the lighting fixture.
Cable inlet hole on one side of the back of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

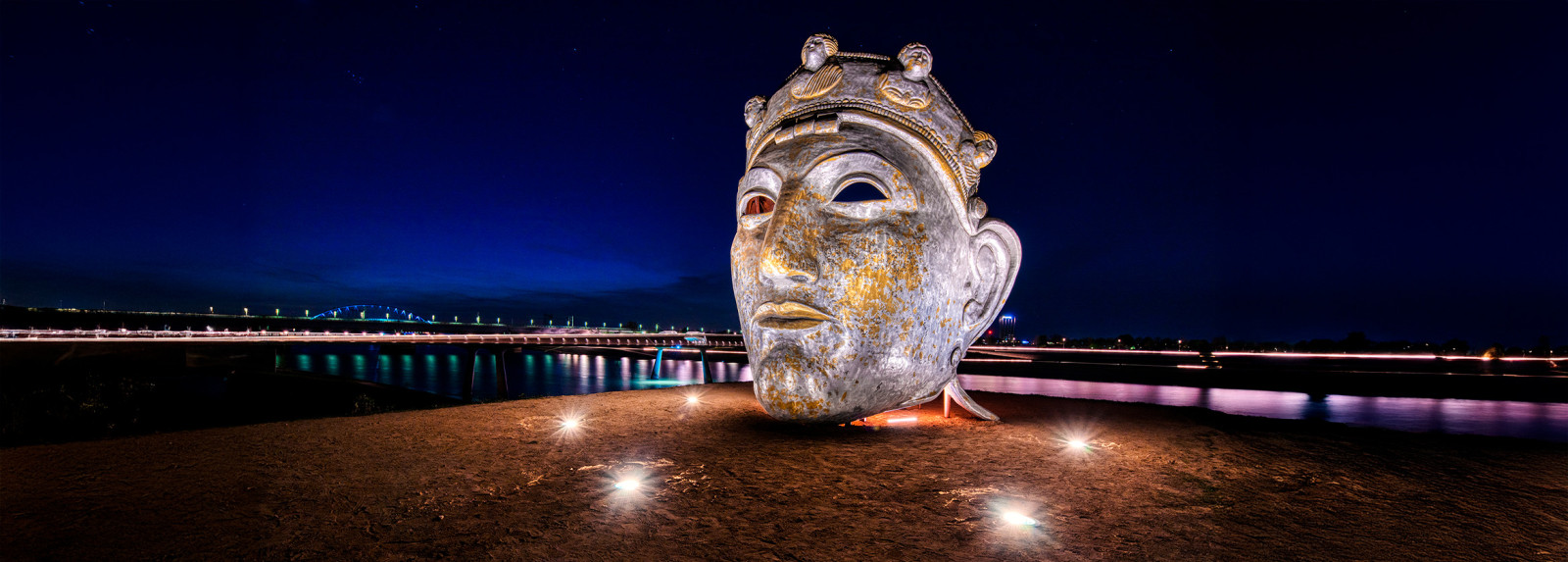

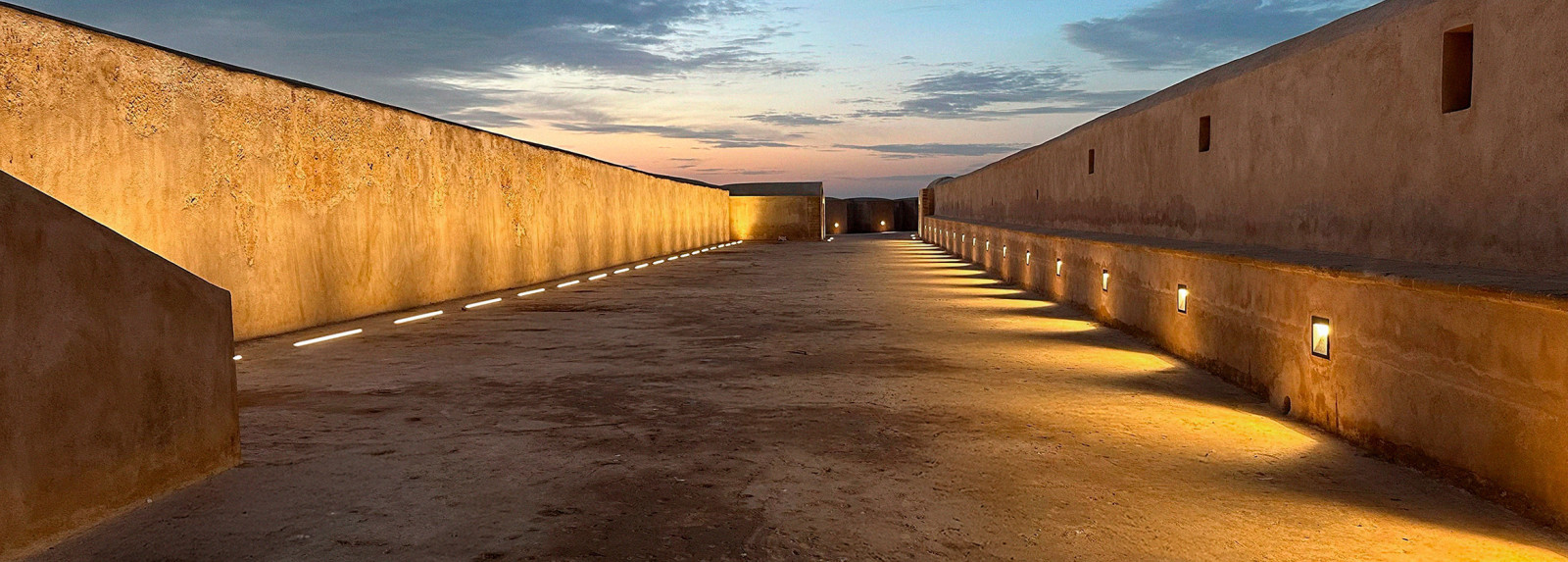

Suggested applications: outdoor spaces: gardens, parks, pathways that may be affected by temporary flooding. Interior spaces in shopping malls, hotel and building entrances, cinemas, car parks, mechanical workshops, showrooms and similar installations. Suitable for installation in concrete, pavement and lawn.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Depth

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Depth

F13VCT
43
7.1W
991lm
80
2700K
605x91
620x95
123mm
131VCT.8.01-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
7.1W
1022lm
80
3000K
605x91
620x95
123mm
131VCT.8.01-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
7.1W
1069lm
80
4000K
605x91
620x95
123mm
131VCT.8.01-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
7.1W
1069lm
80
5000K
605x91
620x95
123mm
131VCT.8.01-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
12.08W
1615lm
80
2700K
605x91
620x95
123mm
131VCT.8.01-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
12.08W
1664lm
80
3000K
605x91
620x95
123mm
131VCT.8.01-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
12.08W
1741lm
80
4000K
605x91
620x95
123mm
131VCT.8.01-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
12.08W
1741lm
80
5000K
605x91
620x95
123mm
131VCT.8.01-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
17.21W
2188lm
80
2700K
605x91
620x95
123mm
131VCT.8.01-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
17.21W
2254lm
80
3000K
605x91
620x95
123mm
131VCT.8.01-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
17.21W
2360lm
80
4000K
605x91
620x95
123mm
131VCT.8.01-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
17.21W
2360lm
80
5000K
605x91
620x95
123mm
131VCT.8.01-I740
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
22.48W
2795lm
80
2700K
605x91
620x95
123mm
131VCT.8.01-I744
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
22.48W
2882lm
80
3000K
605x91
620x95
123mm
131VCT.8.01-I745
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13VCT
43
22.48W
3014lm
80
4000K
605x91
620x95
123mm
131VCT.8.01-I746
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
