VARALI



110VRL.1.02-I721

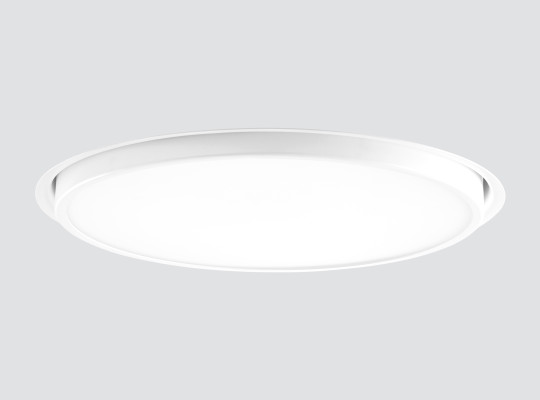

Semi-recessed downlights with symmetrical light distribution to achieve an effective ambient lighting.
Circular design available in 880mm diameter.
Powder painted one piece aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.).
Tridonic high energy efficiency printed circuit board. Tunable White PCB: 2700K - 6500K
Built-in driver, included.
Electronic standard options for lighting control: SwitchDIM/ColourSwitch/DALI/DSI.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 25mm.
LEDA can be combined with PLACE pendant downlights and KUU and CANDRA recessed downlights to get a harmonious finish.

Luminous flux of the light source: 9610lm

Luminous flux of the luminaire:  6605lm

Luminaire efficiency: 110 lm/W

Light source power: 58 W

Luminaire power: 59.9 W

mA: 250 mA

Colour temperature: 2700K-6500K

Chromaticity Tolerance: MacAdam 3

CRI: >90

Beam angle: 102

Photobiological safety group: 1

This product contains a light source of energy efficiency class: D

Rated Median useful life: 50000h L90B50

Class: 1

IP: 20

Incandescent filament: 650°

Recessed diameter: 851mm

Luminaire diameter: 880mm

Weight: 7.34 Kg

Electronic Equipment:
T: DALI-2/DSI/SwitchDIM/ColourSwitch
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
