851RNA.1-I739
851RNA
851RNA
851RNA.1-I739
851RNA.1-I739

RAINA 800



851RNA.1-I739


Linear projectors with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 569mm length and in a width of 55mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI/DSI.
Passive temperature management.
Ceiling or wall installation with adjustable fixing brackets.

Luminous flux of the light source: 2775lm

Luminous flux of the luminaire:  1471lm

Luminaire efficiency: 85 lm/W

Light source power: 16 W

Luminaire power: 17.21 W

mA: 350 mA

Colour temperature: 4000K

Chromaticity Tolerance: MacAdam 3

CRI: 80

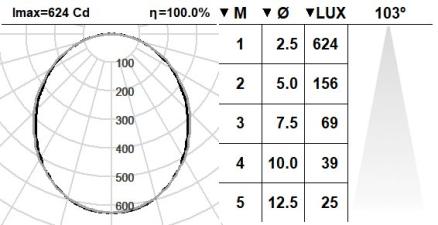

Beam angle: 103

UGR: <19

Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.55m

Photobiological safety group: 1

This product contains a light source of energy efficiency class: C

Rated Median useful life: >60000h L80B10

Class: 1

IP: 40

Incandescent filament: 650°

Luminaire dimensions: 569x55

Electronic Equipment:
S: On/Off
D: DALI-2/DSI/switchDIM
There are accessories available for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available

851RNA
851RNA
851RNA.1-I739

Downloads


DATA SHEET:

Description .txt:

Photometric ies:

Photometric ldt:

Declaration conformity CE:

Installation sheet:

Technical drawing:

Photo:

Download All:

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
