AERIAL

AERIAL

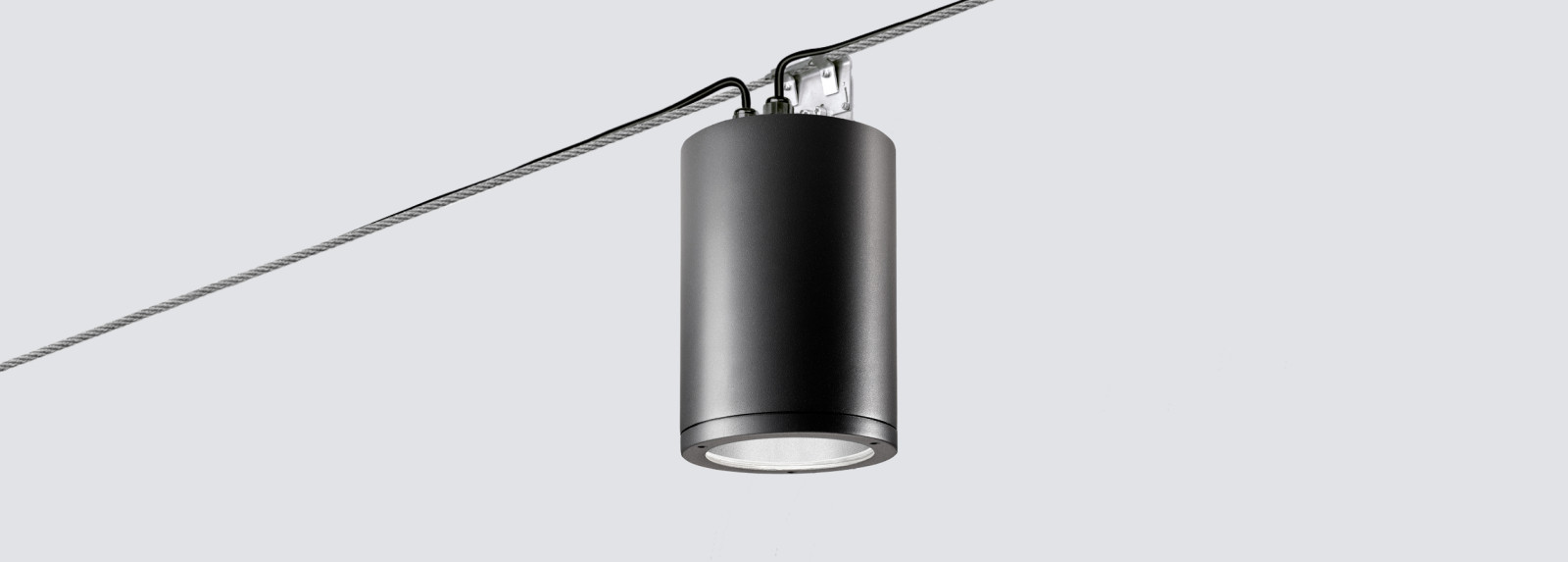

Pendant downlights with symmetrical light distribution.
Cylindrical design available in 2 diameters 180mm and 235mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK07.
Robust body and trim made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Special C5-M coating for environments with very high corrosivity is available under request.
High-purity aluminium reflectors in various finishes depending on the beam angle outcome.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to get IK10 protection degree.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included.
Passive temperature management: heat dissipation via the fixture body itself.

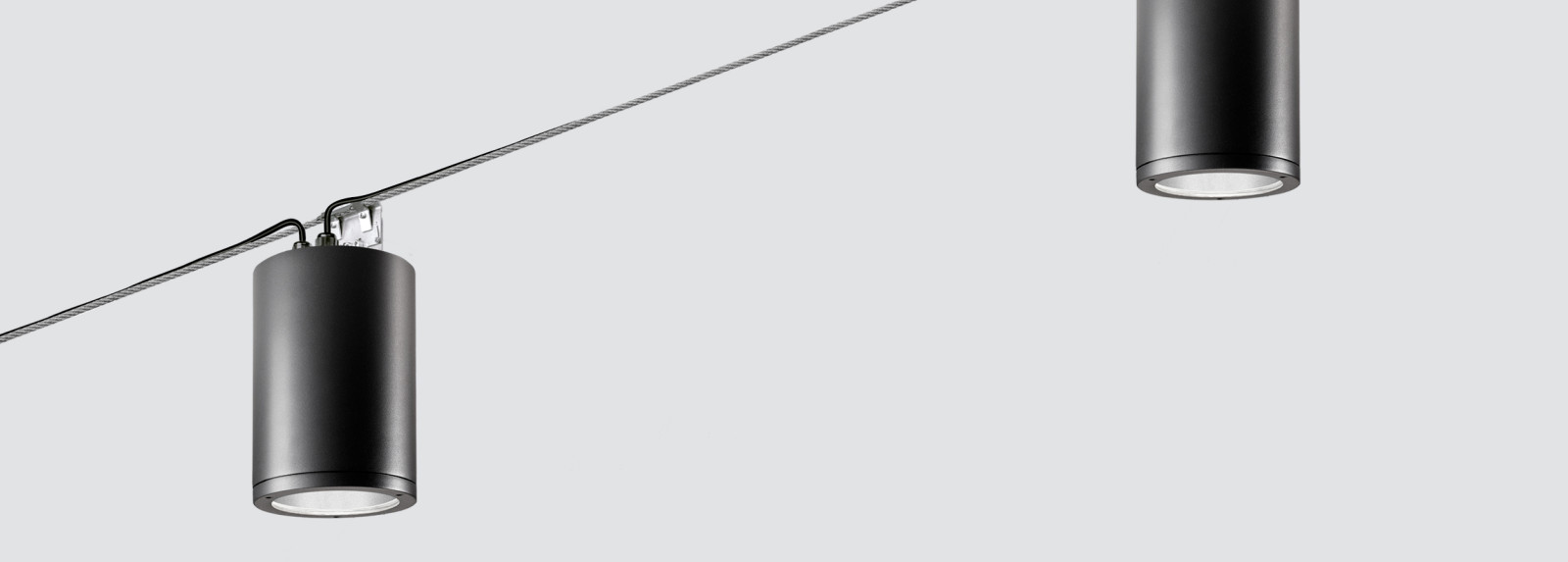

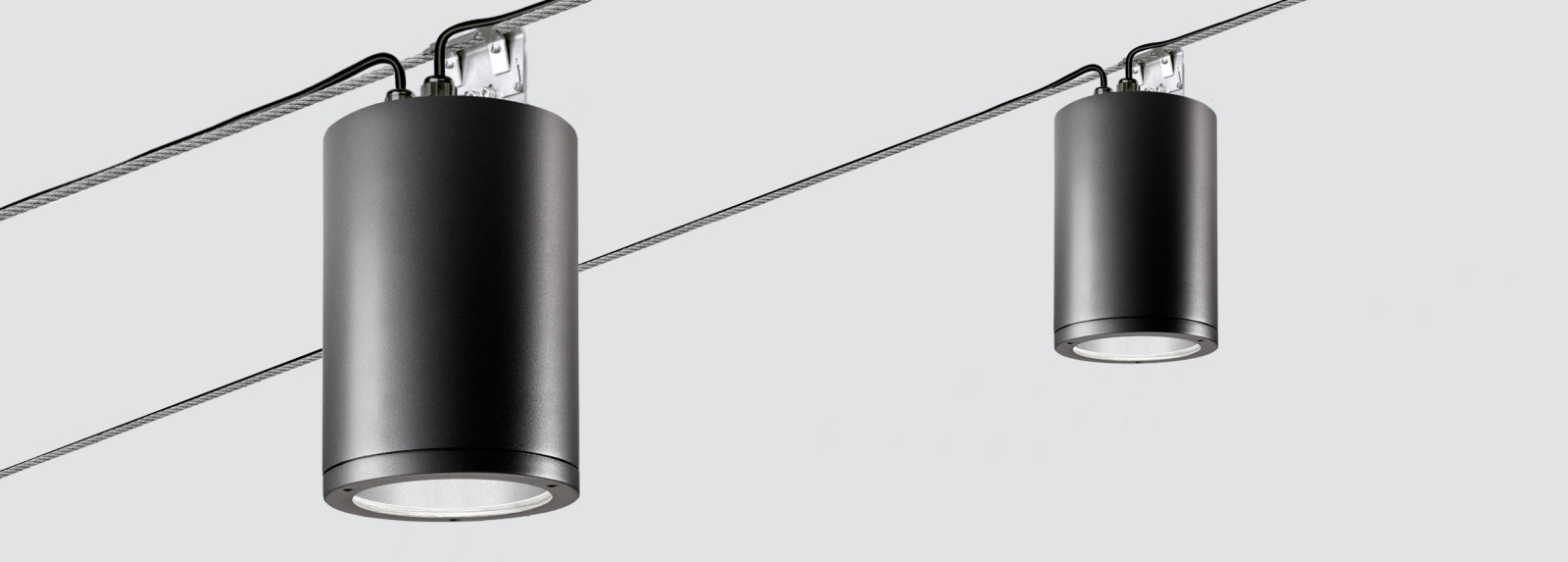

Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Cable entry from the top of the fixture. Double cable gland entry for installation in series.

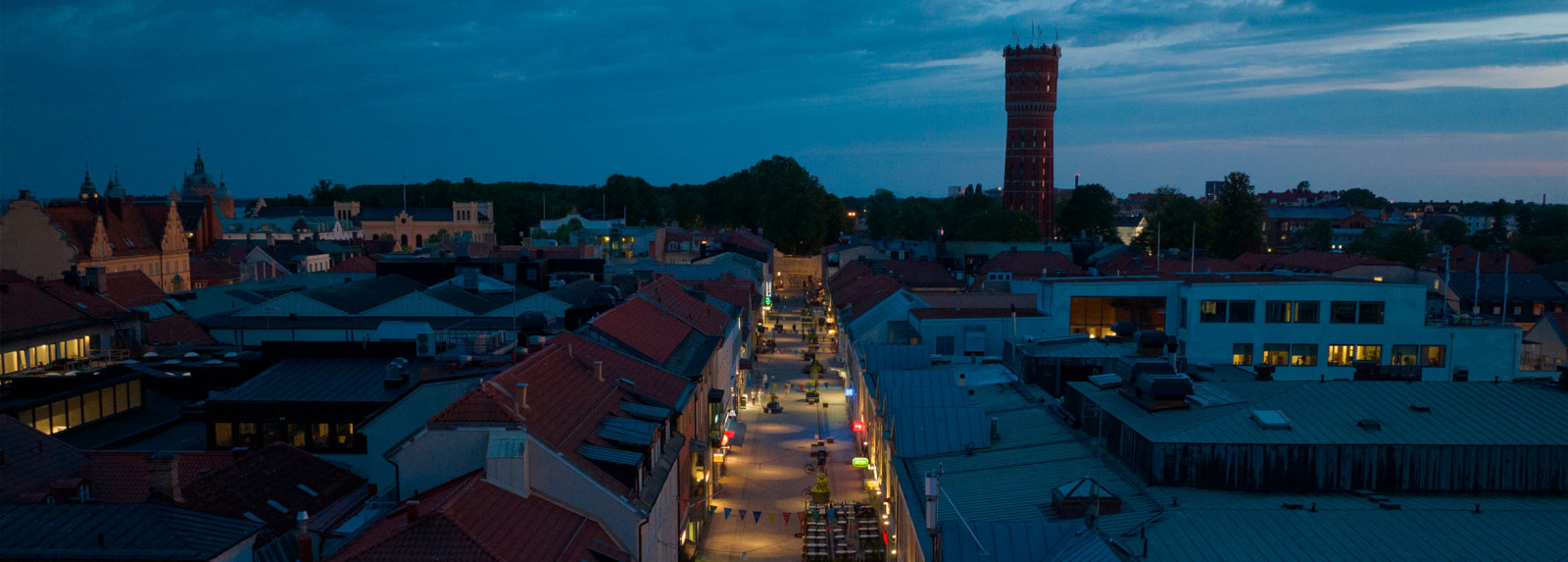

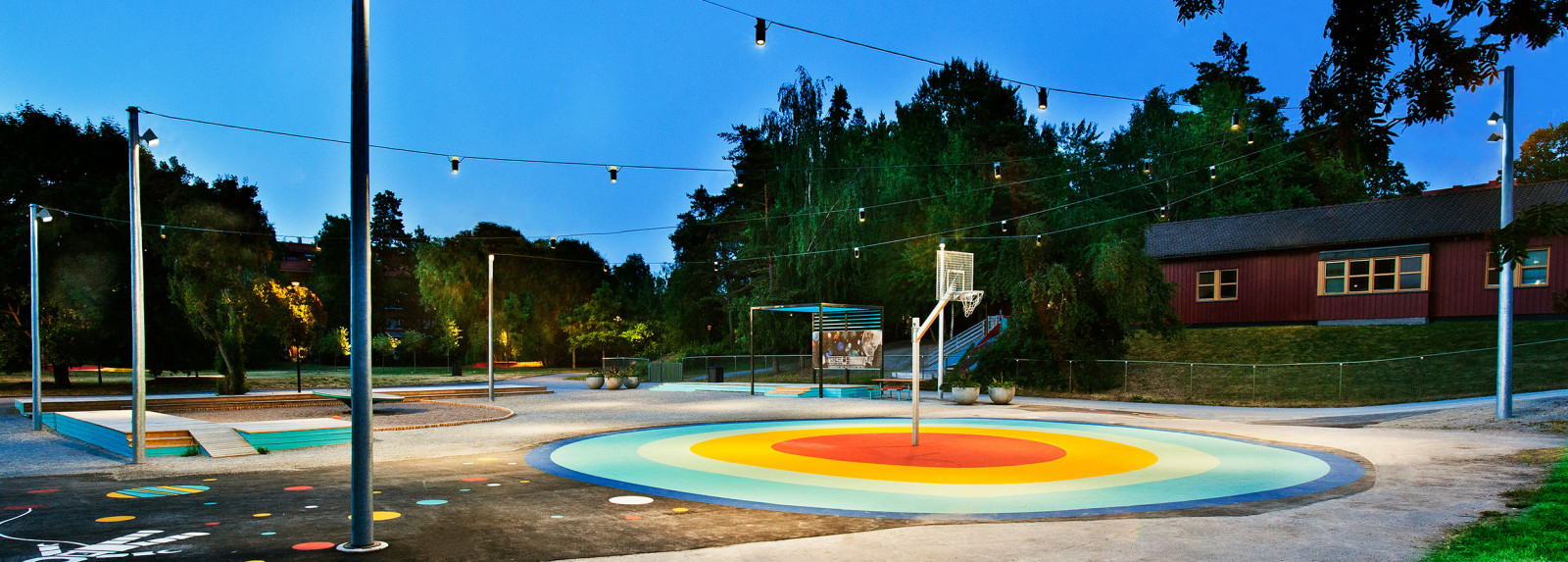

Suggested applications : arcades, galleries, passageways, streets.

Products searcher

Tilt

Fixture diameter

Height

Colour Temperature

CRI

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
F101ARL
26
11W
>
101ARL.1.01-I863
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
26
11W
>
101ARL.1.01-I864
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
26
11W
>
101ARL.1.01-I865
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
39
11W
>
104ARL.1.01-I863
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
39
11W
>
104ARL.1.01-I864
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
39
11W
>
104ARL.1.01-I865
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
77
11W
>
105ARL.1.01-I863
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
77
11W
>
105ARL.1.01-I864
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
77
11W
>
105ARL.1.01-I865
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
112
11W
>
106ARL.1.01-I863
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
112
11W
>
106ARL.1.01-I864
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
112
11W
>
106ARL.1.01-I865
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
26
17W
>
101ARL.1.01-I869
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
26
17W
>
101ARL.1.01-I870
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101ARL
26
17W
>
101ARL.1.01-I871
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
