DISTRICT XS 300

DISTRICT XS 300

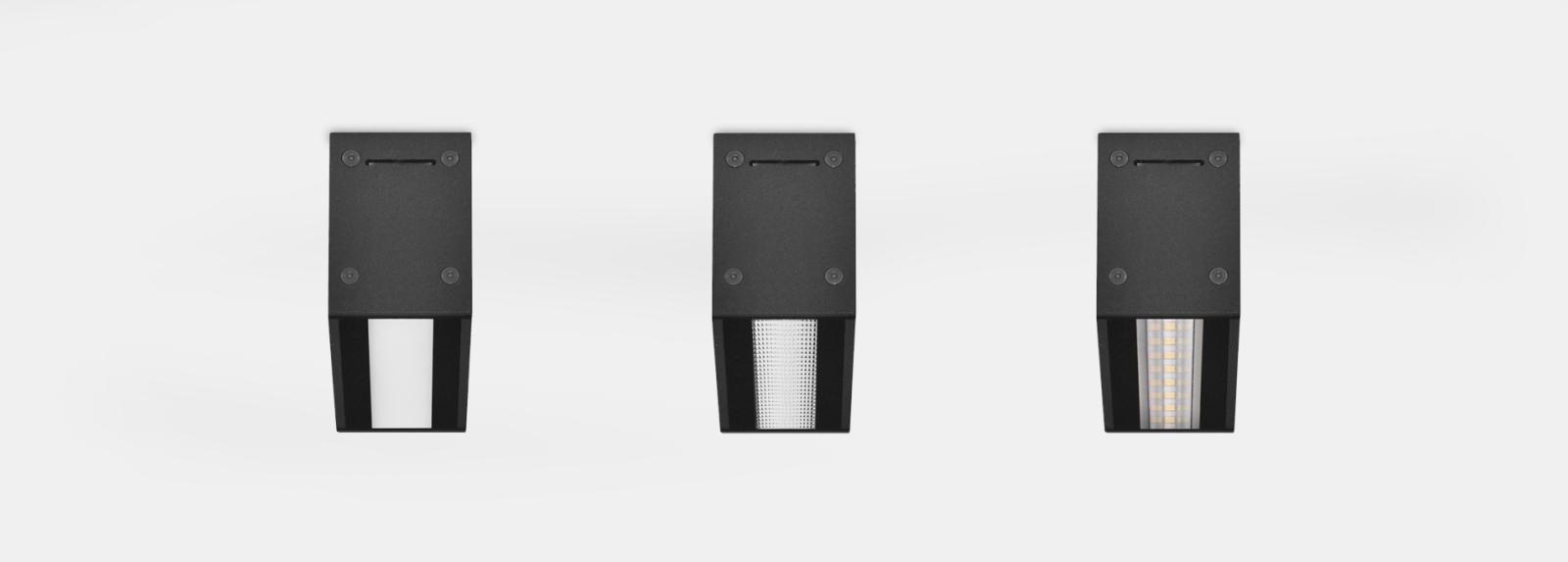

Surface-mounted linear downlights with symmetrical light distribution.
Linear fixtures available in 2 lengths 155mm and 295mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Ceiling installation with two fixing plates.
Passive temperature management.

Matching products:

  • Recessed: DISTRICT XS 100.
  • Wall-mounted: DISTRICT XS 600.
  • Two-sided emission wall-mounted: DISTRICT XS 700.
  • Projector: DISTRICT XS 800.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

Products searcher

Tilt

Outer dimensions

Height

Colour Temperature

CRI

Beam angle

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
F33DSX
43
1.6W
>
334DSX.4.01-I1116
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F33DSX
43
1.6W
>
334DSX.4.01-I1117
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F33DSX
43
2.7W
>
334DSX.4.01-I1118
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F33DSX
43
2.7W
>
334DSX.4.01-I1119
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F33DSX
43
3.9W
>
334DSX.4.01-I1120
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F33DSX
43
3.9W
>
334DSX.4.01-I1121
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
1.6W
>
354DSX.4.01-I1116
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
1.6W
>
354DSX.4.01-I1117
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
2.7W
>
354DSX.4.01-I1118
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
2.7W
>
354DSX.4.01-I1119
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
3.9W
>
354DSX.4.01-I1120
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F35DSX
100
3.9W
>
354DSX.4.01-I1121
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F36DSX
69
1.6W
>
364DSX.4.01-I1116
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F36DSX
69
1.6W
>
364DSX.4.01-I1117
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F36DSX
69
2.7W
>
364DSX.4.01-I1118
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
