KORAMU XS 300

KORAMU XS 300

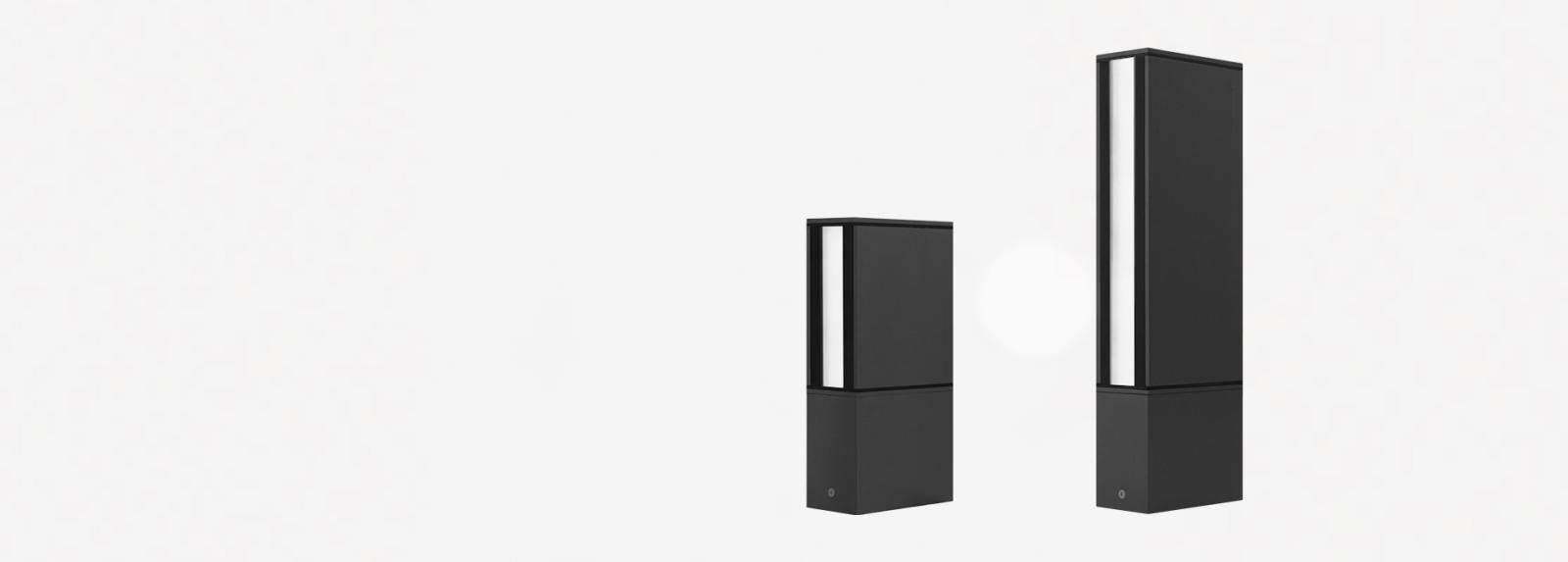

Bollard with two sides light emission, symmetrical distribution.
Available in 2 heights: 295mm and 355mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

Products searcher

Tilt

Outer dimensions

Height

IK

Colour Temperature

CRI

Beam angle

Diffuser

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
F320KXS
100
1.6W
>
320KXS.4-I1116
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F320KXS
100
1.6W
>
320KXS.4-I1117
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F320KXS
100
2.7W
>
320KXS.4-I1118
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F320KXS
100
2.7W
>
320KXS.4-I1119
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F320KXS
100
3.9W
>
320KXS.4-I1120
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F320KXS
100
3.9W
>
320KXS.4-I1121
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 3,2W
>
322KXS.4-I1122
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 5,5W
>
322KXS.4-I1128
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 7,8W
>
322KXS.4-I1134
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 3,2W
>
322KXS.4-I1123
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 5,5W
>
322KXS.4-I1129
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 7,8W
>
322KXS.4-I1135
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 3,2W
>
322KXS.4-I1124
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 5,5W
>
322KXS.4-I1130
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F322KXS
100
2x 7,8W
>
322KXS.4-I1136
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
EU regulation label.
Installation instruction
Technical drawing
