WATERTIGHT SHALLOW



101WSH.8.01-R866


Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or general lighting.
Circular design in diameter 165mm.
Its main feature is its low height: 65mm.
Protection rating against dust and moisture: IP65.
Protection rating of resistance to harmful mechanical impacts: IK07.
Sandblasted metalized aluminium reflector.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to achieve IK10 protection degree.
Aluminium body treated against corrosion and coated with polyester powder.
Trim made of 316L stainless steel marine grade. Polyester powder paint can be applied optionally. Different RAL colour finishes are available under request.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws [reference F2.A0165+F2.A1].
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Remote driver included and supplied inside an aluminium IP65 box.
Electronic options for lighting control: DALI/ DSI.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Mounted to the ceiling by three fixing points.
Pre-wiring of 35cm cable 3x1mm2.

Luminous flux of the light source: 1620lm

Luminous flux of the luminaire:  1231lm

Luminaire efficiency: 98 lm/W

Light source power: 11 W

Luminaire power: 12.61 W

mA: 350 mA

Colour temperature: 2700K

Chromaticity Tolerance: MacAdam 3

CRI: >90

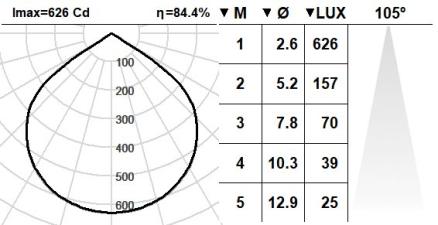

Beam angle: 105

Cd/ Klm: 347

Imax Cd: 562

Photobiological safety group: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50000h L90B10

Class: 1

IP: 65

IK: IK07

Incandescent filament: 850°

Recessed diameter: 140mm

Luminaire diameter: 165mm

Weight: 1.7 Kg

Electronic Equipment:
S: On/Off
D: DALI/DSI/switchDIM
There are accessories available for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 8: Stainless Steel 316L: Marine grade
  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
