CANDRA

CANDRA

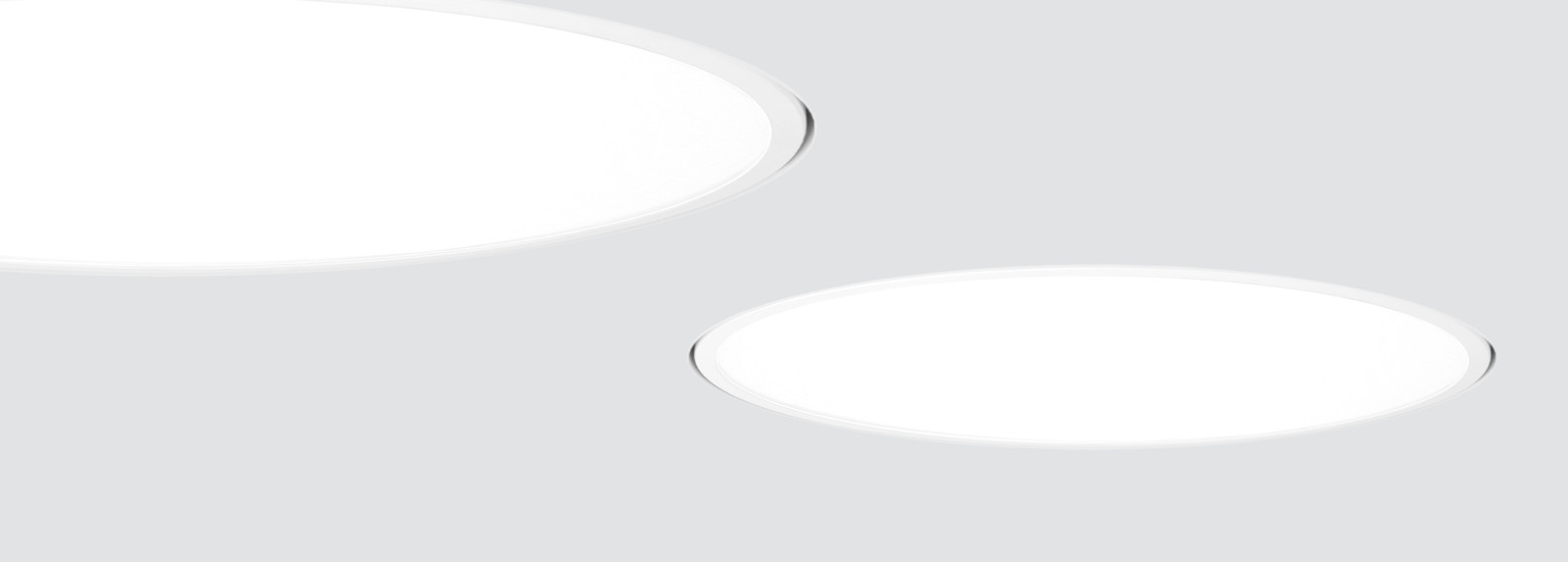

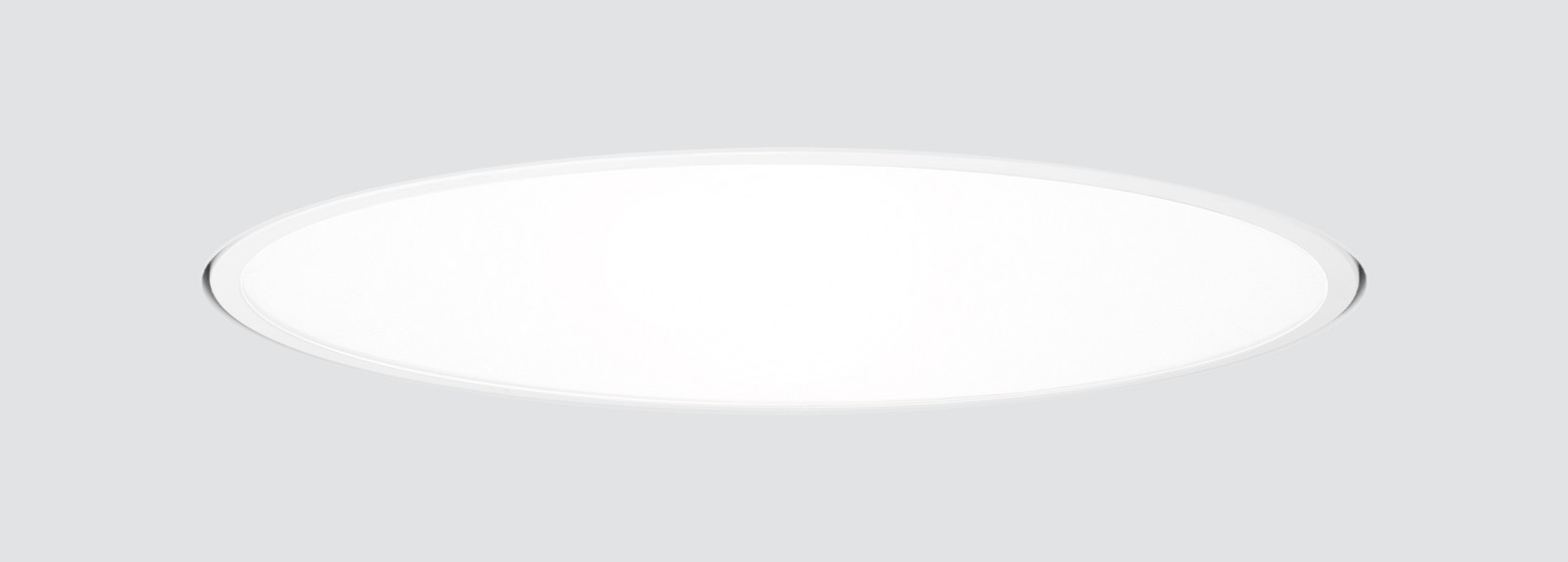

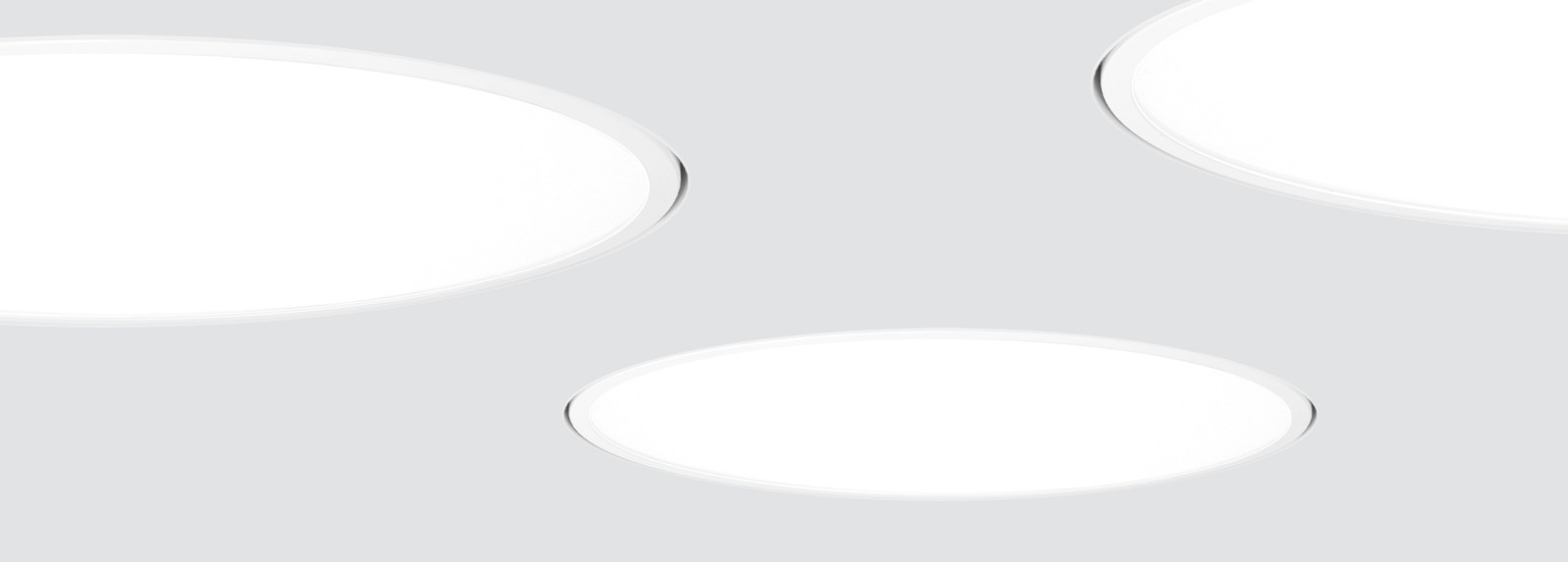

Recessed ceiling mounted downlights with symmetrical light distribution to achieve an effective ambient lighting.
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Circular design available in 4 diameters: 356mm, 559mm, 840mm and 1116mm.
Powder painted aluminium trim available in assorted finishes, customized RAL under request.
Polycarbonate opal diffuser (thickness 3mm.)
Tridonic high energy efficiency printed circuit board.
Tridoinc built-in driver, included.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws.
CANDRA can be combined with PLACE pendant downlights and LEDA surface-mounted downlights to get an harmonious finish.

Suggested applications: shopping malls, hotel lobbies, offices, large atriums, airports, meeting rooms, coffees, showrooms and similar installations.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101CND
114
17W
2262lm
>80
3000K
359mm
356mm
90mm
108CND.1.02-I637
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
114
17W
2507lm
>80
4000K
359mm
356mm
90mm
108CND.1.02-I638
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
114
23W
2903lm
>80
3000K
359mm
356mm
90mm
108CND.1.02-I645
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
114
23W
3208lm
>80
4000K
359mm
356mm
90mm
108CND.1.02-I646
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
17W
2984lm
>80
3000K
562mm
559mm
90mm
109CND.1.02-I1051
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
17W
3028lm
>80
4000K
562mm
559mm
90mm
109CND.1.02-I1052
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
24W
3909lm
>80
3000K
562mm
559mm
90mm
109CND.1.02-I1053
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
24W
3937lm
>80
4000K
562mm
559mm
90mm
109CND.1.02-I1054
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
30W
4816lm
>80
3000K
562mm
559mm
90mm
109CND.1.02-I1055
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
106
30W
4837lm
>80
4000K
562mm
559mm
90mm
109CND.1.02-I1056
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101CND
108
47W
8064lm
>80
3000K
844mm
841mm
90mm
110CND.1.02-I1057
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101CND
108
47W
8506lm
>80
4000K
844mm
841mm
90mm
110CND.1.02-I1058
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101CND
108
59W
9940lm
>80
3000K
844mm
841mm
90mm
110CND.1.02-I1059
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101CND
108
59W
10483lm
>80
4000K
844mm
841mm
90mm
110CND.1.02-I1060
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT
Declaration conformity CE


F101CND
108
96W
15985lm
>80
3000K
1119mm
1116mm
90mm
111CND.1.02-I1061
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
