GOWEL 300

GOWEL 300

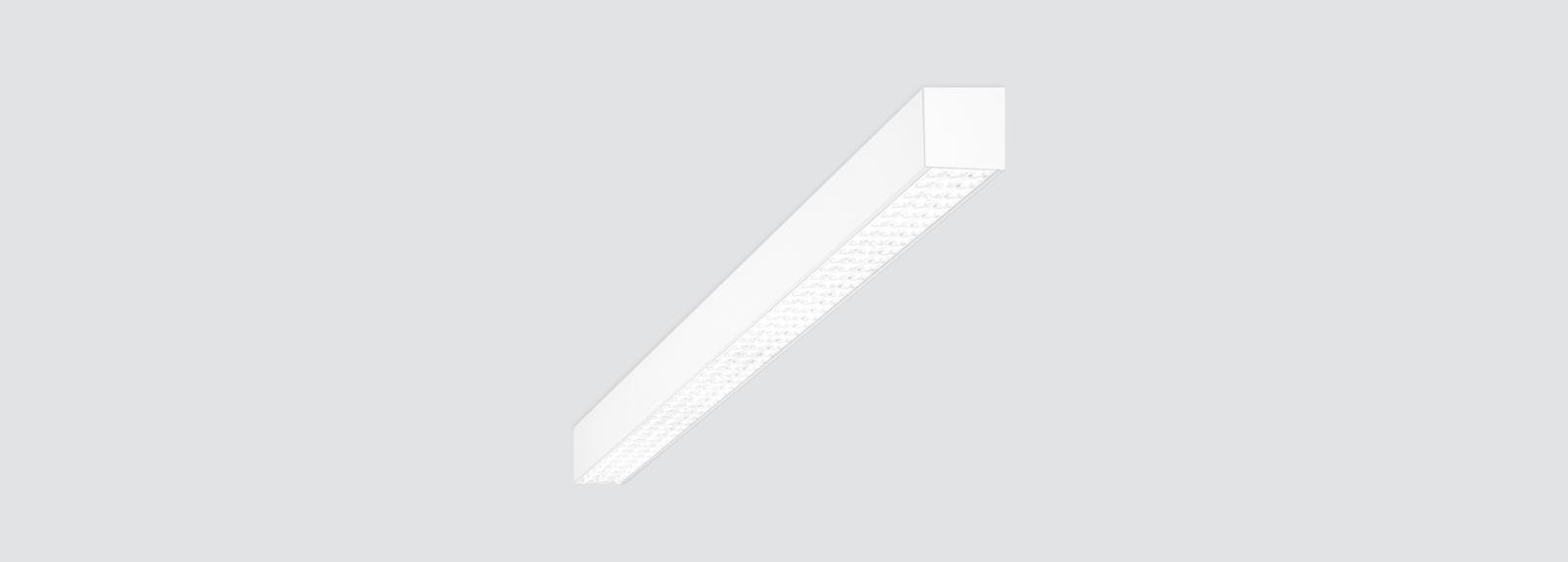

Surface mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

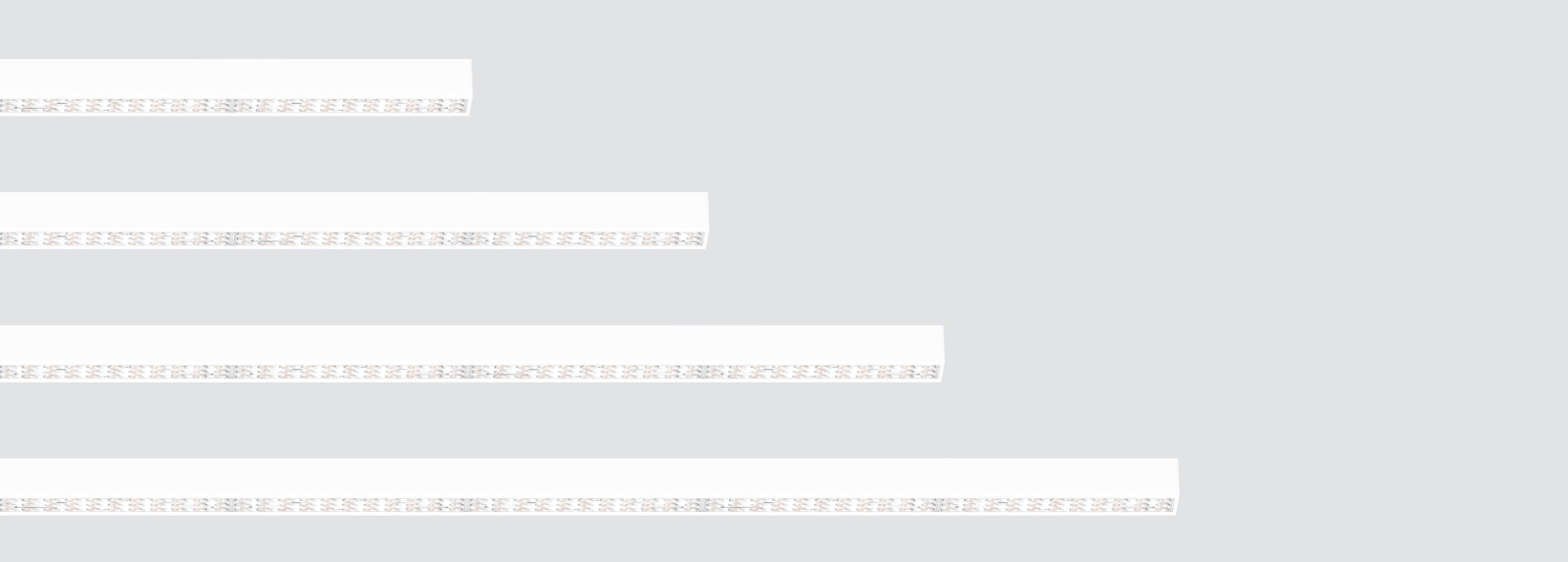

Linear fixtures available in 5 lengths 581mm, 868mm, 1154mm, 1441mm and 2875mm and in a width of 70mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

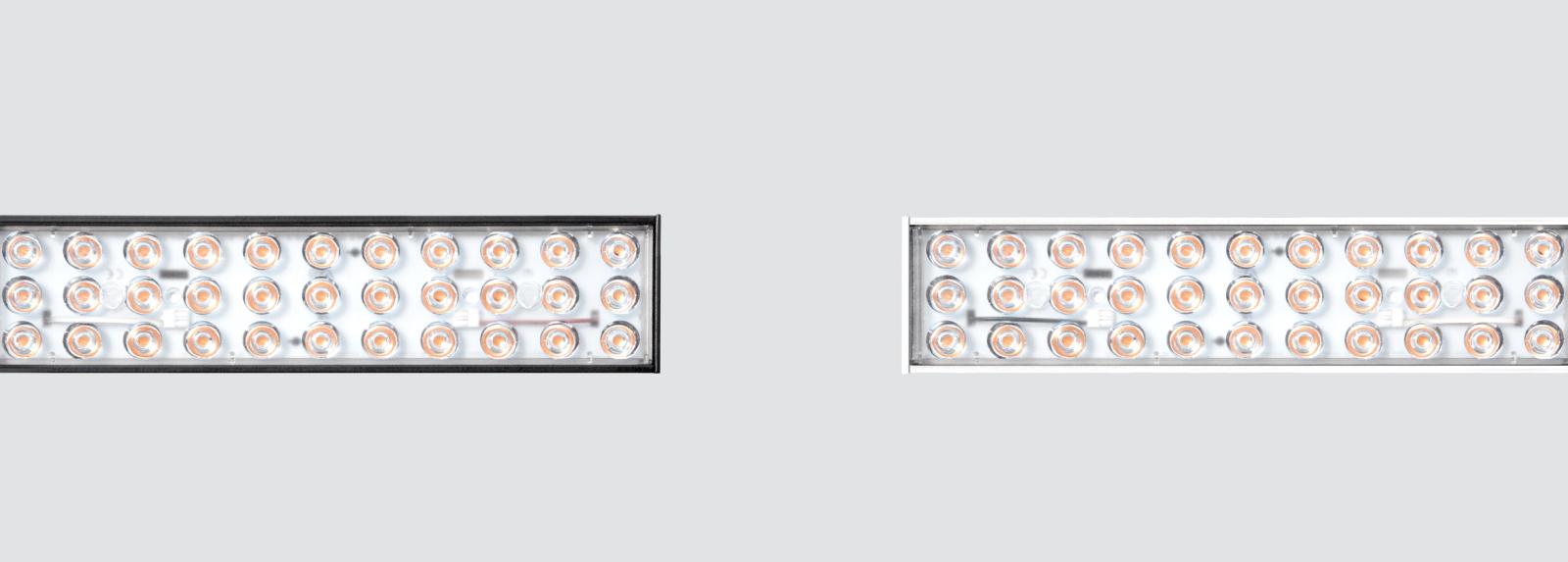

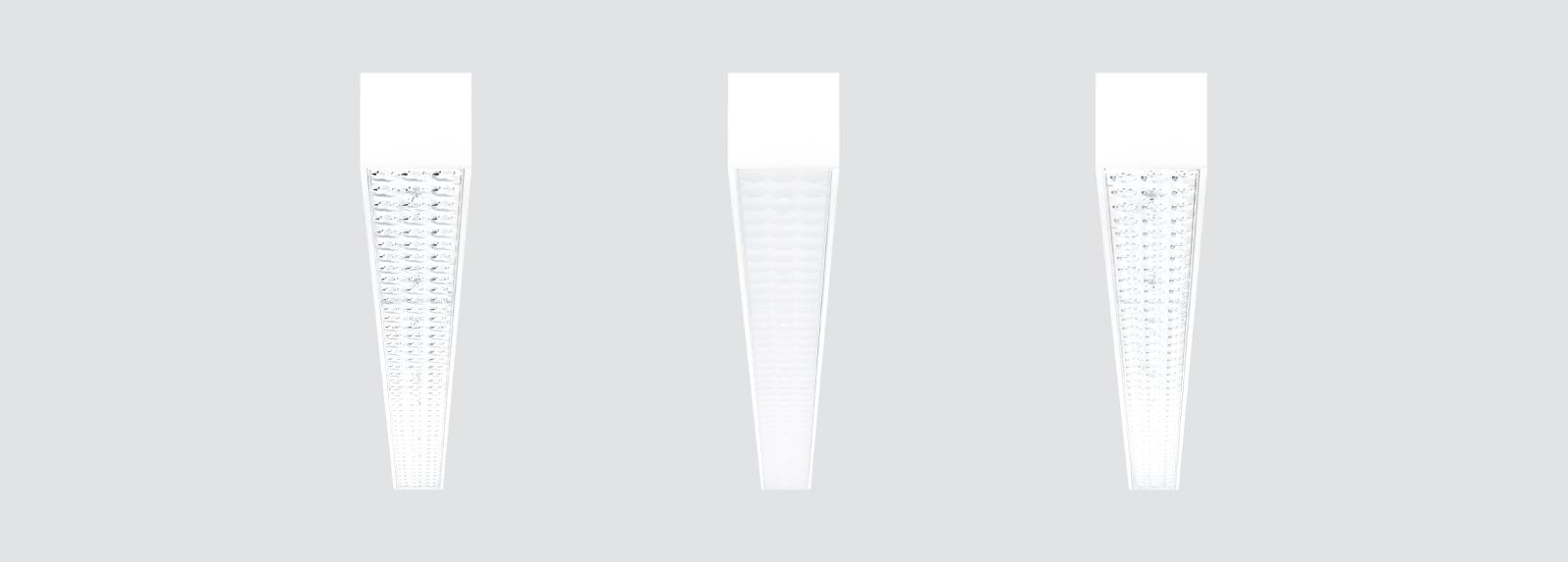

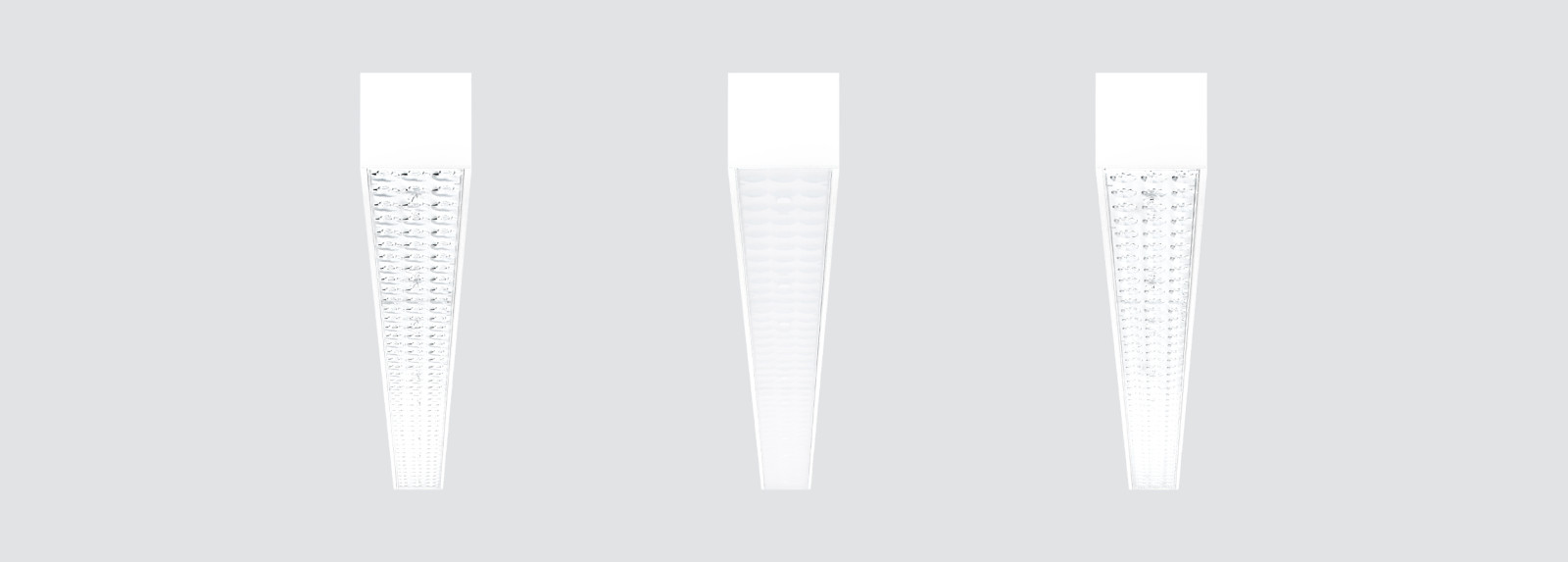

Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using cleats.
Matching products:

  • GOWEL 100 recessed.
  • GOWEL 200 frameless.
  • GOWEL 400 pendant.
  • GOWEL 800 projectors.

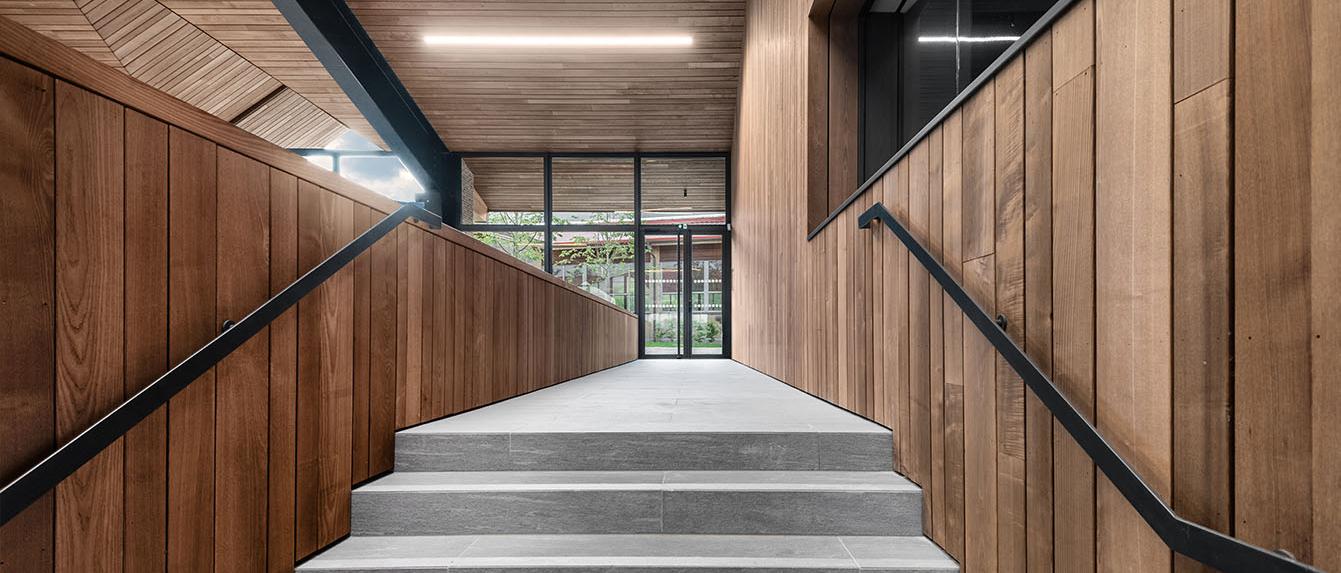

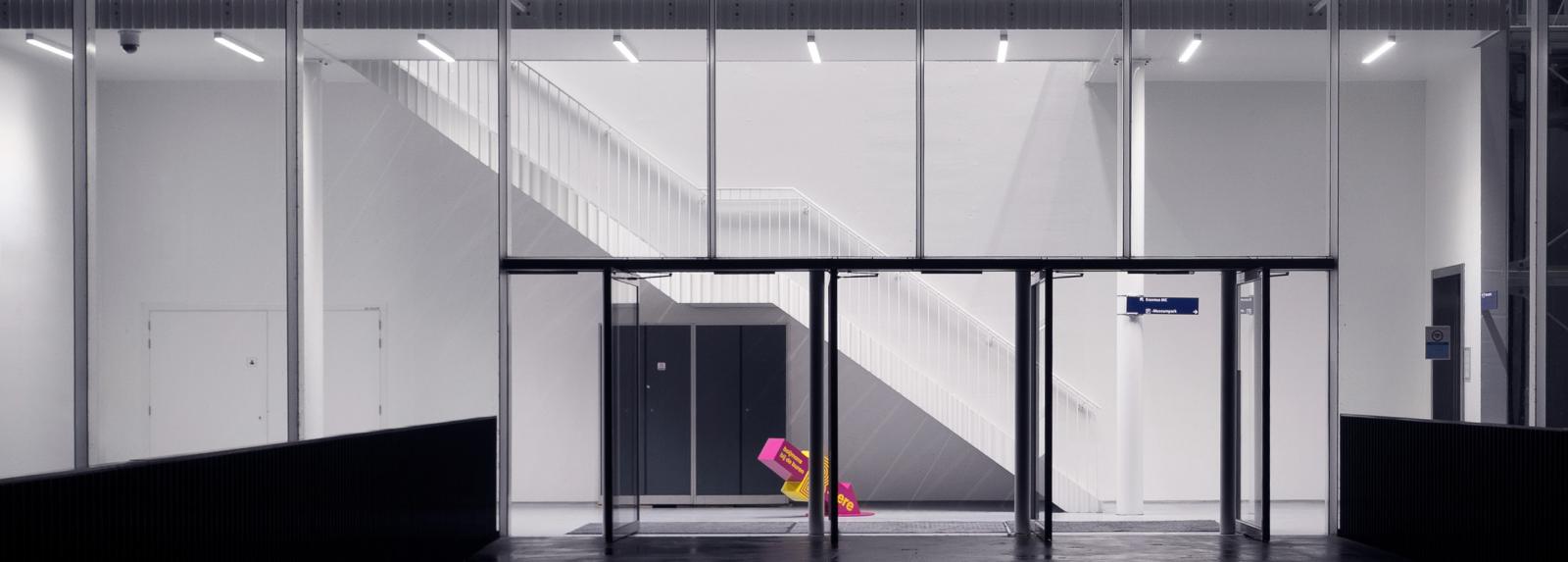

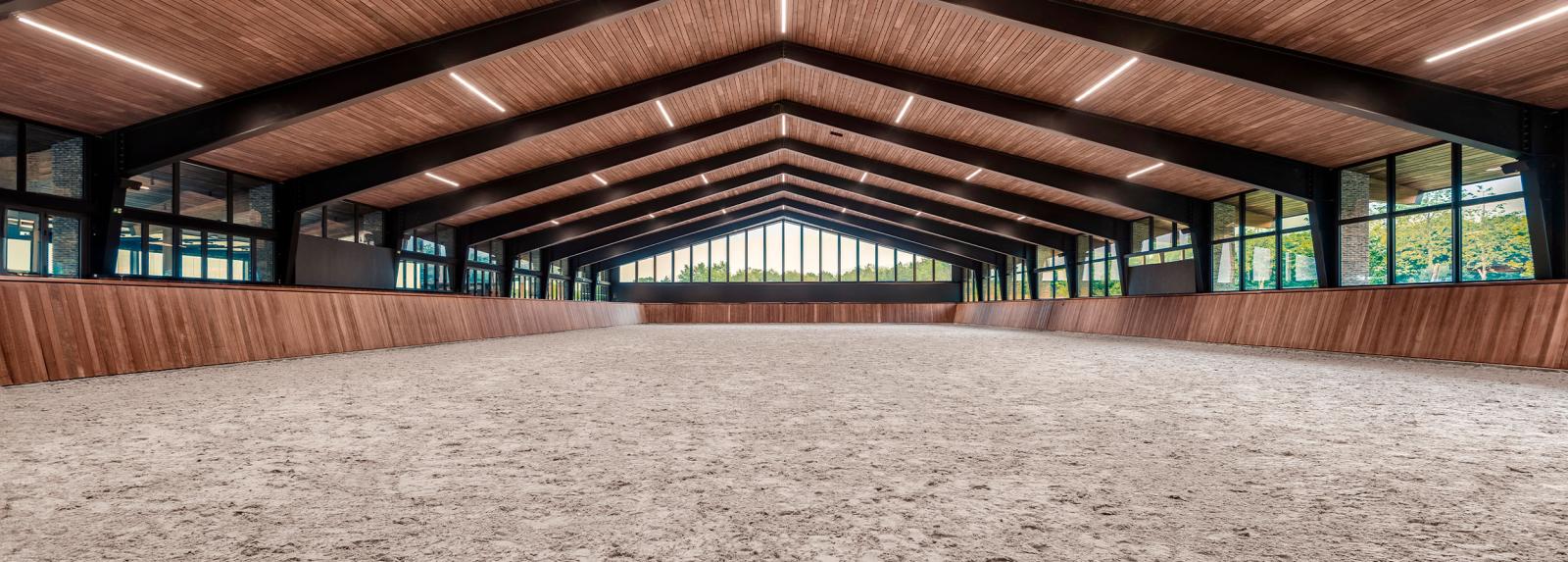

Suggested applications: shopping malls, hospitals, laboratories, warehouses, industrial facilities, schools and universities, offices, retail, showrooms, leisure facilities, gyms and similar installations. Solid ceilings, where it is not possible a recessed installation.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101MRP
17
11.84W
1447lm
80
3000K
581x70
65mm
301GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
11.84W
1556lm
80
4000K
581x70
65mm
301GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
11.84W
1583lm
80
5000K
581x70
65mm
301GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
22.35W
2776lm
80
3000K
581x70
65mm
301GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
22.35W
2985lm
80
4000K
581x70
65mm
301GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
22.35W
3030lm
80
5000K
581x70
65mm
301GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
36.36W
4450lm
80
3000K
581x70
65mm
301GWL.1-I769
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
36.36W
4787lm
80
4000K
581x70
65mm
301GWL.1-I776
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
17
36.36W
4850lm
80
5000K
581x70
65mm
301GWL.1-I783
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
11.84W
1479lm
80
3000K
581x70
65mm
331GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
11.84W
1590lm
80
4000K
581x70
65mm
331GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
11.84W
1618lm
80
5000K
581x70
65mm
331GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
22.35W
2837lm
80
3000K
581x70
65mm
331GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
22.35W
3050lm
80
4000K
581x70
65mm
331GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101MRP
65
22.35W
3097lm
80
5000K
581x70
65mm
331GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
