KAUTTA 600

KAUTTA 600

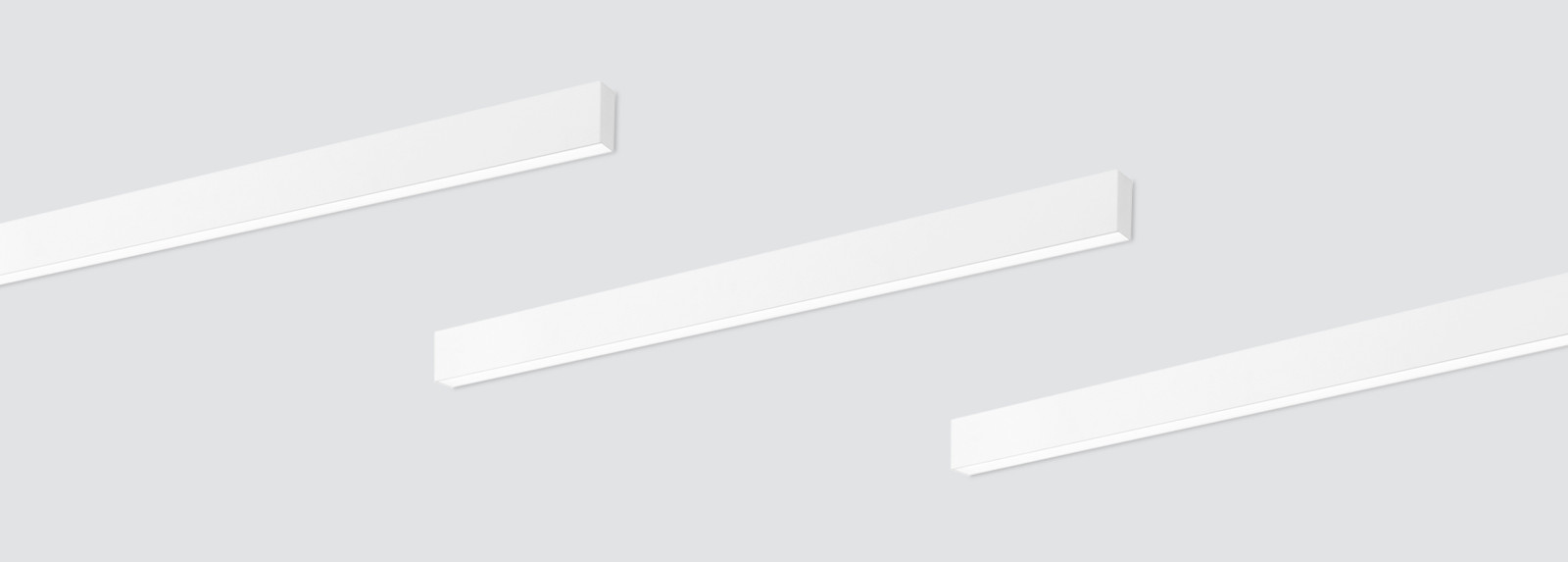

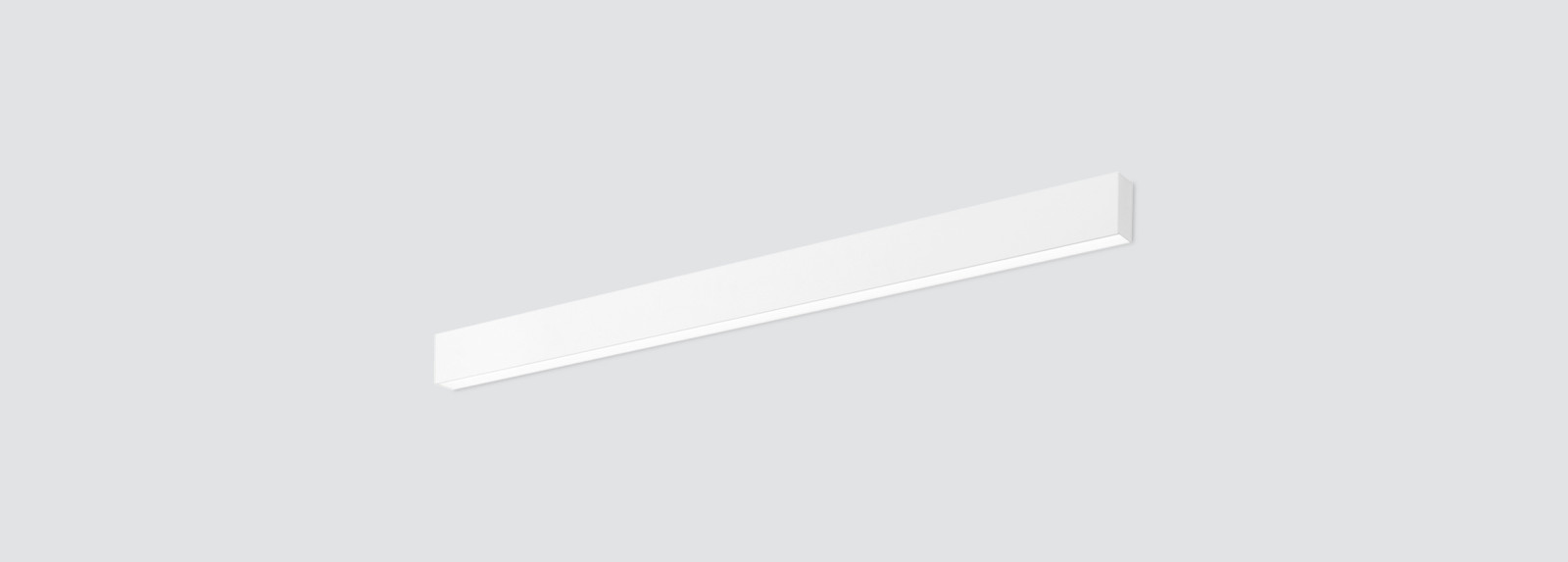

Wall-mounted linear downlights or uplights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

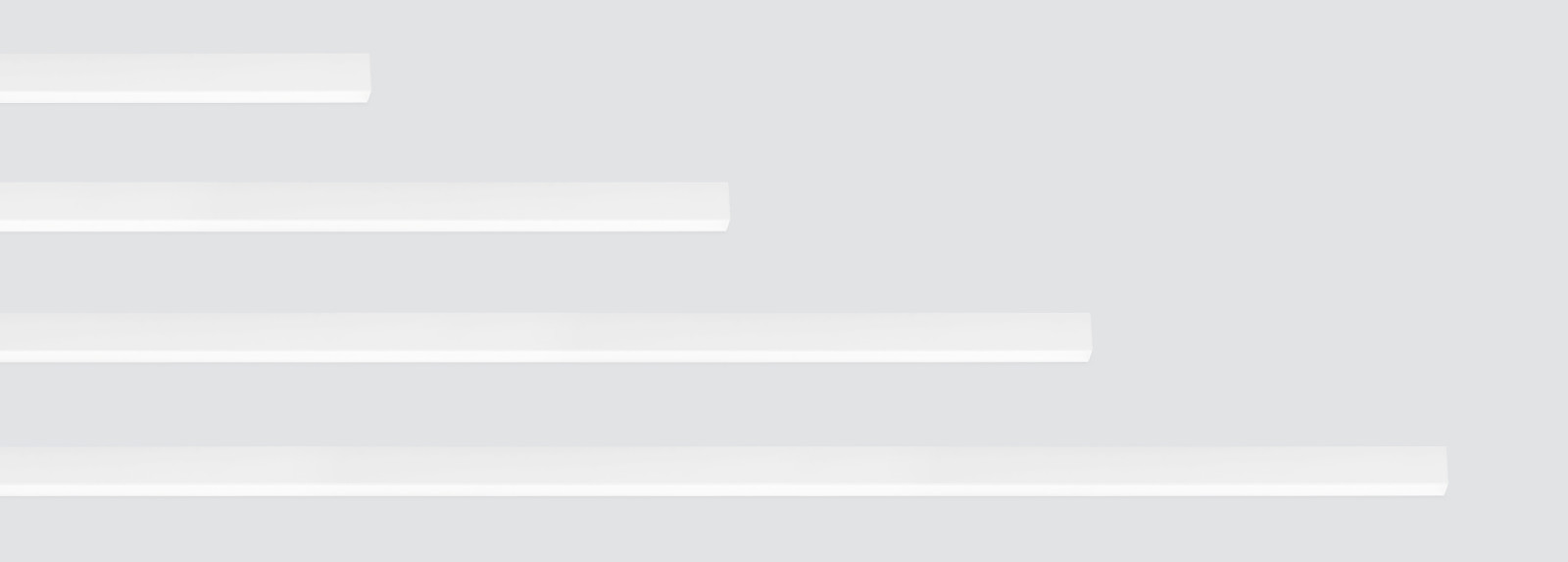

Linear fixtures available in 5 lengths 568mm, 848mm, 1128mm, 1408mm and 2808mm and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Wall mounted by mounting brackets.
Matching products:

  • recessed.
  • frameless recessed.
  • surface mounted.
  • pendant.
  • wall-mounted.
  • projector.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

FKAUTTA600
43
7.1W
1084lm
80
2700K
568x44
78mm
631KTA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
10.66W
1627lm
80
2700K
848x44
78mm
633KTA.1-I751
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
14.21W
2169lm
80
2700K
1128x44
78mm
635KTA.1-I779
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
17.76W
2711lm
80
2700K
1408x44
78mm
636KTA.1-I807
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
35.52W
5422lm
80
2700K
2808x44
78mm
639KTA.1-I835
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
7.1W
1118lm
80
3000K
568x44
78mm
631KTA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
10.66W
1677lm
80
3000K
848x44
78mm
633KTA.1-I752
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
14.21W
2236lm
80
3000K
1128x44
78mm
635KTA.1-I780
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
17.76W
2795lm
80
3000K
1408x44
78mm
636KTA.1-I808
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
35.52W
5589lm
80
3000K
2808x44
78mm
639KTA.1-I836
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
7.1W
1170lm
80
4000K
568x44
78mm
631KTA.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
10.66W
1755lm
80
4000K
848x44
78mm
633KTA.1-I753
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
14.21W
2340lm
80
4000K
1128x44
78mm
635KTA.1-I781
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
17.76W
2925lm
80
4000K
1408x44
78mm
636KTA.1-I809
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


FKAUTTA600
43
35.52W
5850lm
80
4000K
2808x44
78mm
639KTA.1-I837
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
