KORAMU 100

KORAMU 100

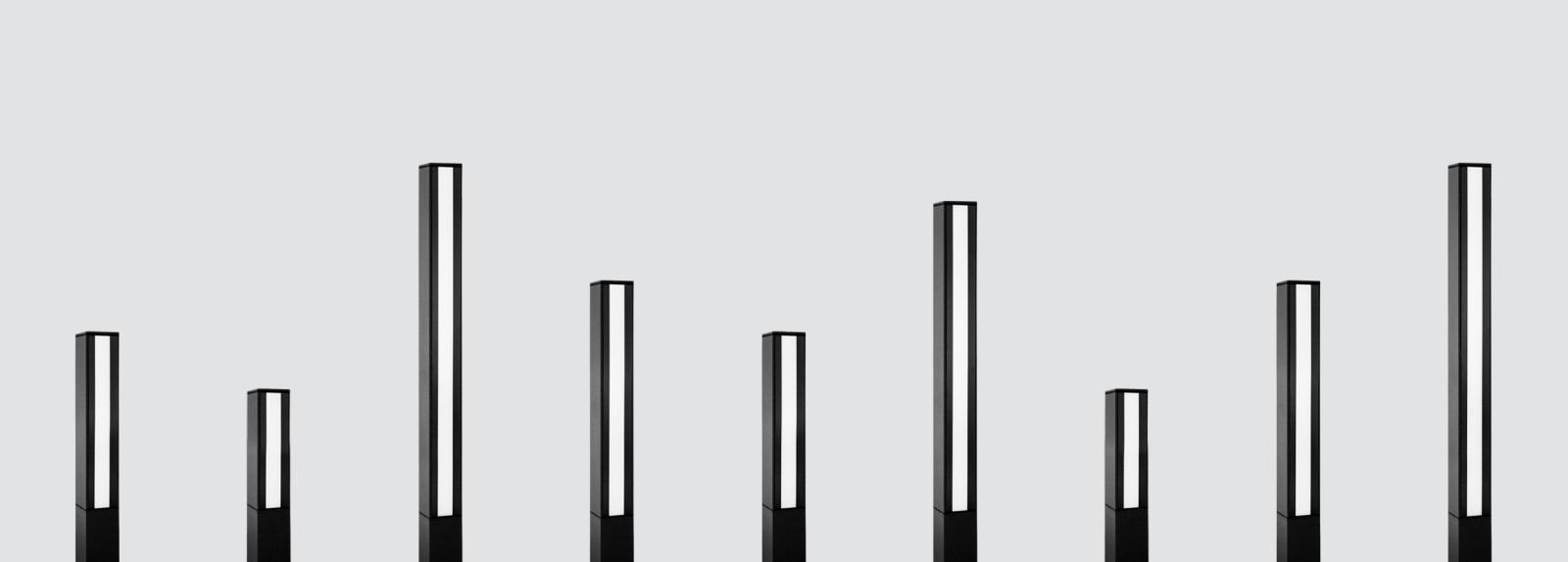

Bollard with frontal light emission, symmetrical distribution.

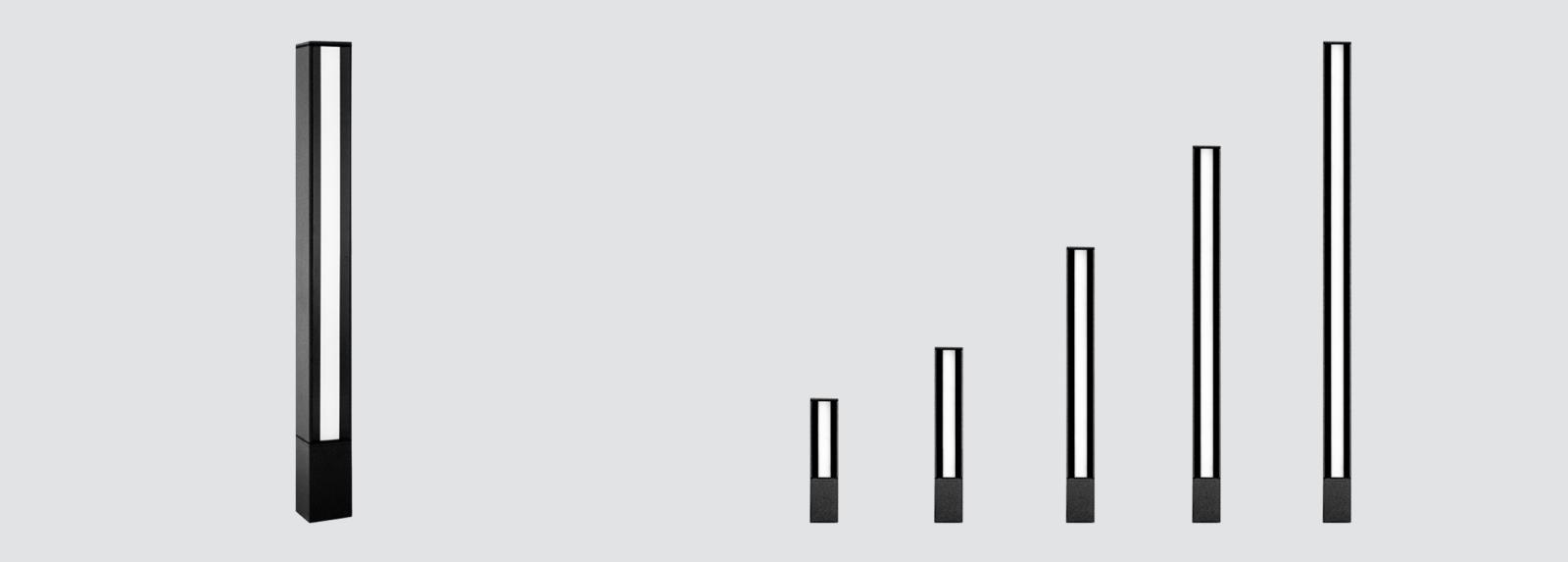

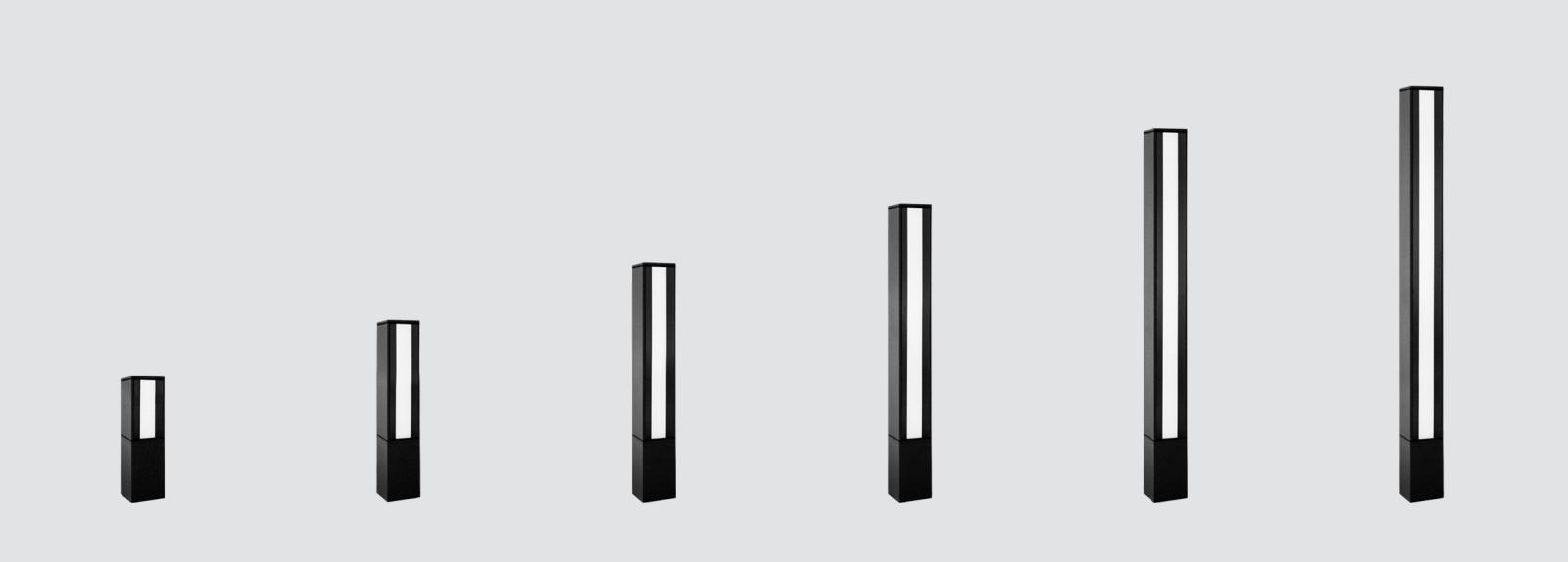

Available in 4 heights: 675mm, 955mm, 1235mm and 1515mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
Electronic options for light control : DALI/DSI/switchDIM/corridor function or 1-10V.
Emergency kit available as option.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

Product configurator

Tilt

Outer dimensions

Height

IK

Colour Temperature

CRI

UGR

Beam angle

Diffuser

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F120KRM
91
7.1W
525lm
80
2700K
62x65
675
120KRM.4-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
7.1W
541lm
80
3000K
62x65
675
120KRM.4-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
7.1W
566lm
80
4000K
62x65
675
120KRM.4-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
7.1W
566lm
80
5000K
62x65
675
120KRM.4-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
12.08W
855lm
80
2700K
62x65
675
120KRM.4-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
12.08W
881lm
80
3000K
62x65
675
120KRM.4-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
12.08W
922lm
80
4000K
62x65
675
120KRM.4-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
12.08W
922lm
80
5000K
62x65
675
120KRM.4-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
17.21W
1158lm
80
2700K
62x65
675
120KRM.4-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
17.21W
1193lm
80
3000K
62x65
675
120KRM.4-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
17.21W
1249lm
80
4000K
62x65
675
120KRM.4-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
17.21W
1249lm
80
5000K
62x65
675
120KRM.4-I740
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
22.48W
1480lm
80
2700K
62x65
675
120KRM.4-I744
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
22.48W
1526lm
80
3000K
62x65
675
120KRM.4-I745
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F120KRM
91
22.48W
1596lm
80
4000K
62x65
675
120KRM.4-I746
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
