GOWEL 100

GOWEL 100

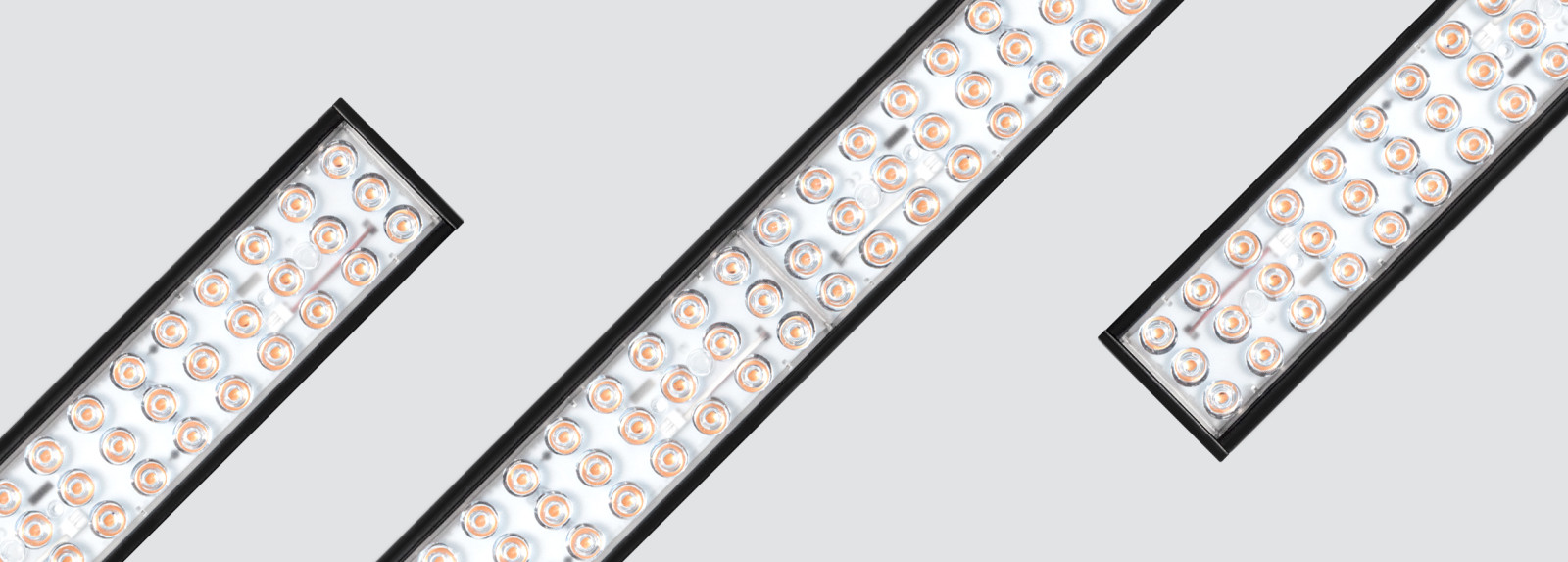

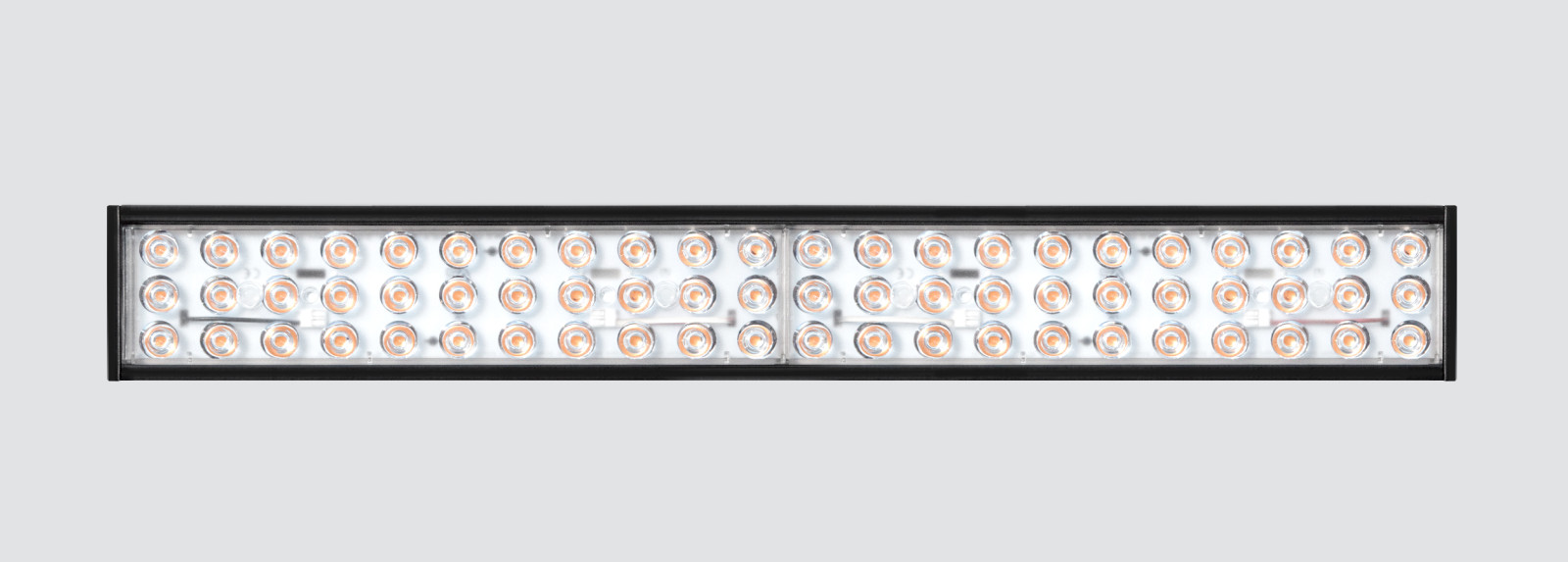

Recessed ceiling mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

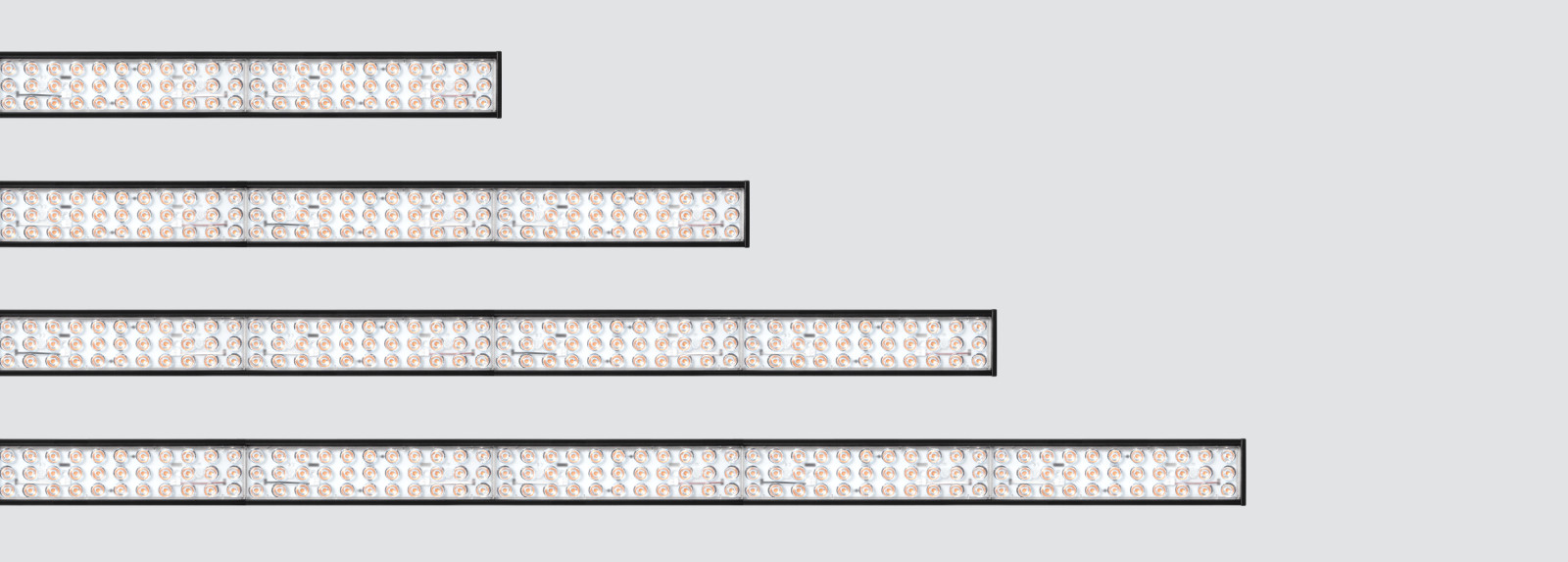

Linear fixtures available in 5 lengths 581mm, 868mm, 1154mm,1441mm and 2875mm and in a width of 84mm.

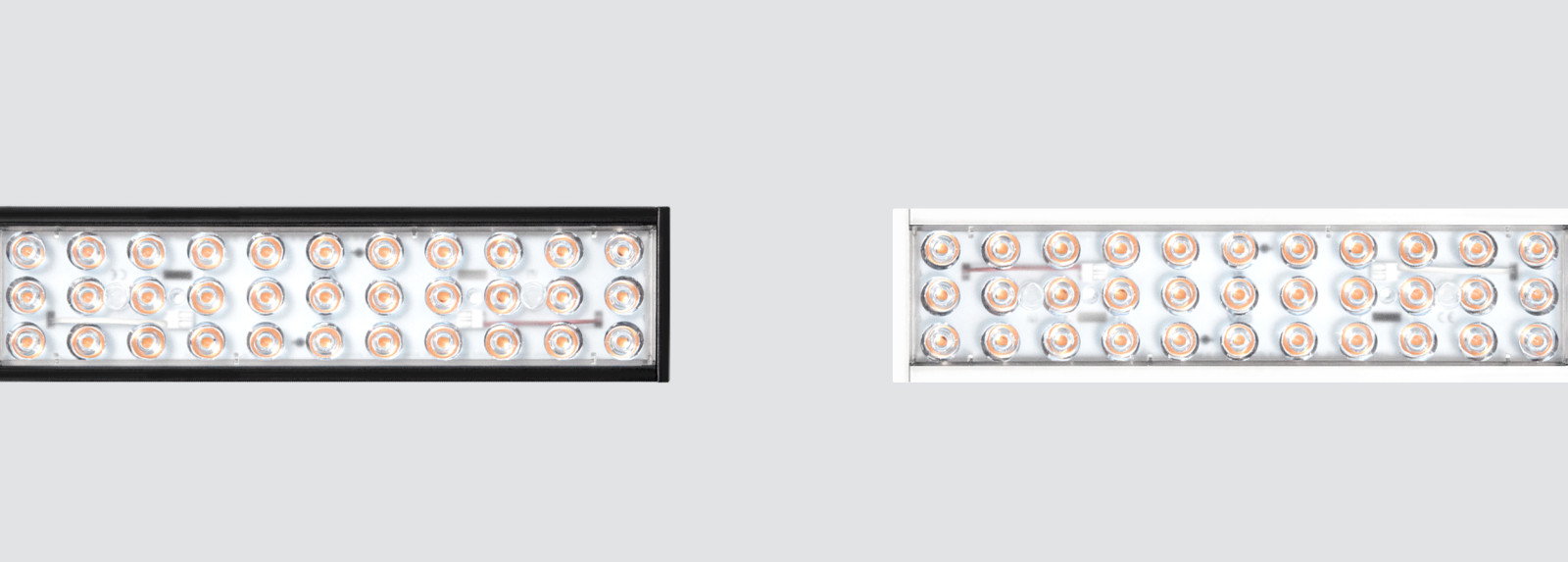

Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Matching products:

  • GOWEL 200 frameless recessed.
  • GOWEL 300 surface mounted.
  • GOWEL 400 pendant.
  • GOWEL 800 projector.
Suggested applications: shopping malls, hospitals, laboratories, warehouses, industrial facilities, schools and universities, offices, retail, showrooms, leisure facilities, gyms and similar installations.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101GRP
17
11.84W
1447lm
80
3000K
582x73
597x84
65mm
101GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
11.84W
1556lm
80
4000K
582x73
597x84
65mm
101GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
11.84W
1583lm
80
5000K
582x73
597x84
65mm
101GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
22.35W
2776lm
80
3000K
582x73
597x84
65mm
101GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
22.35W
2985lm
80
4000K
582x73
597x84
65mm
101GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
22.35W
3030lm
80
5000K
582x73
597x84
65mm
101GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
36.36W
4450lm
80
3000K
582x73
597x84
65mm
101GWL.1-I769
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
36.36W
4787lm
80
4000K
582x73
597x84
65mm
101GWL.1-I776
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
17
36.36W
4850lm
80
5000K
582x73
597x84
65mm
101GWL.1-I783
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
11.84W
1479lm
80
3000K
582x73
597x84
65mm
131GWL.1-I727
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
11.84W
1590lm
80
4000K
582x73
597x84
65mm
131GWL.1-I734
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
11.84W
1618lm
80
5000K
582x73
597x84
65mm
131GWL.1-I741
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
22.35W
2837lm
80
3000K
582x73
597x84
65mm
131GWL.1-I748
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
22.35W
3050lm
80
4000K
582x73
597x84
65mm
131GWL.1-I755
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRP
65
22.35W
3097lm
80
5000K
582x73
597x84
65mm
131GWL.1-I762
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
