RAINA 300

RAINA 300

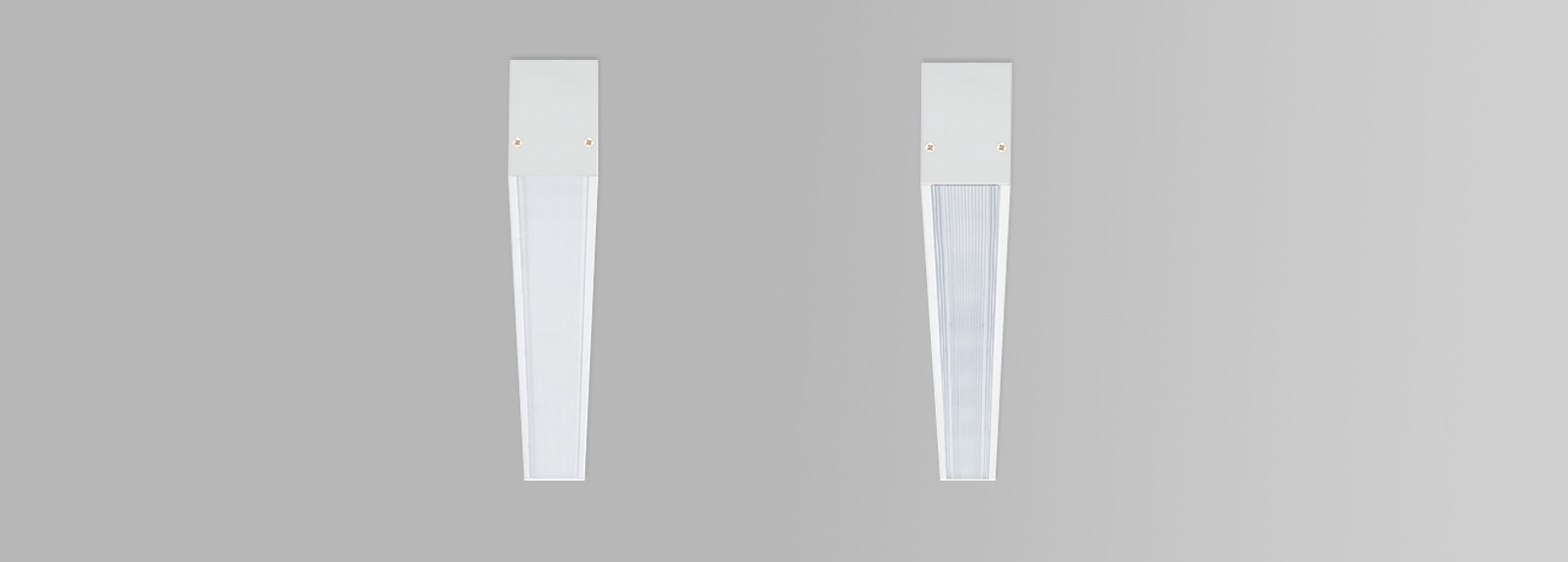

Surface mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixtures available in 5 lengths 569mm, 849mm, 1129mm, 1409mm and 2809mm and in a width of 55mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal and microprismatic diffusers.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using cleats.
Matching products:

  • recessed.
  • frameless recessed.
  • pendant.
  • wall-mounted.
  • projector.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations. Solid ceilings, where it is not possible a recessed installation.

It is possible to combine different lengths to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Diffuser

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F35RAINA
103
7.1W
700lm
80
2700K
569x55
75mm
351RNA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
7.1W
721lm
80
3000K
569x55
75mm
351RNA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
7.1W
755lm
80
4000K
569x55
75mm
351RNA.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
7.1W
755lm
80
5000K
569x55
75mm
351RNA.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
7.1W
622lm
90
3000K
569x55
75mm
351RNA.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
7.1W
649lm
90
4000K
569x55
75mm
351RNA.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1140lm
80
2700K
569x55
75mm
351RNA.1-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1175lm
80
3000K
569x55
75mm
351RNA.1-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1229lm
80
4000K
569x55
75mm
351RNA.1-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1229lm
80
5000K
569x55
75mm
351RNA.1-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1013lm
90
3000K
569x55
75mm
351RNA.1-I735
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
12.08W
1057lm
90
4000K
569x55
75mm
351RNA.1-I736
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
17.21W
1544lm
80
2700K
569x55
75mm
351RNA.1-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
17.21W
1591lm
80
3000K
569x55
75mm
351RNA.1-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F35RAINA
103
17.21W
1666lm
80
4000K
569x55
75mm
351RNA.1-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
