TIRET 300

TIRET 300

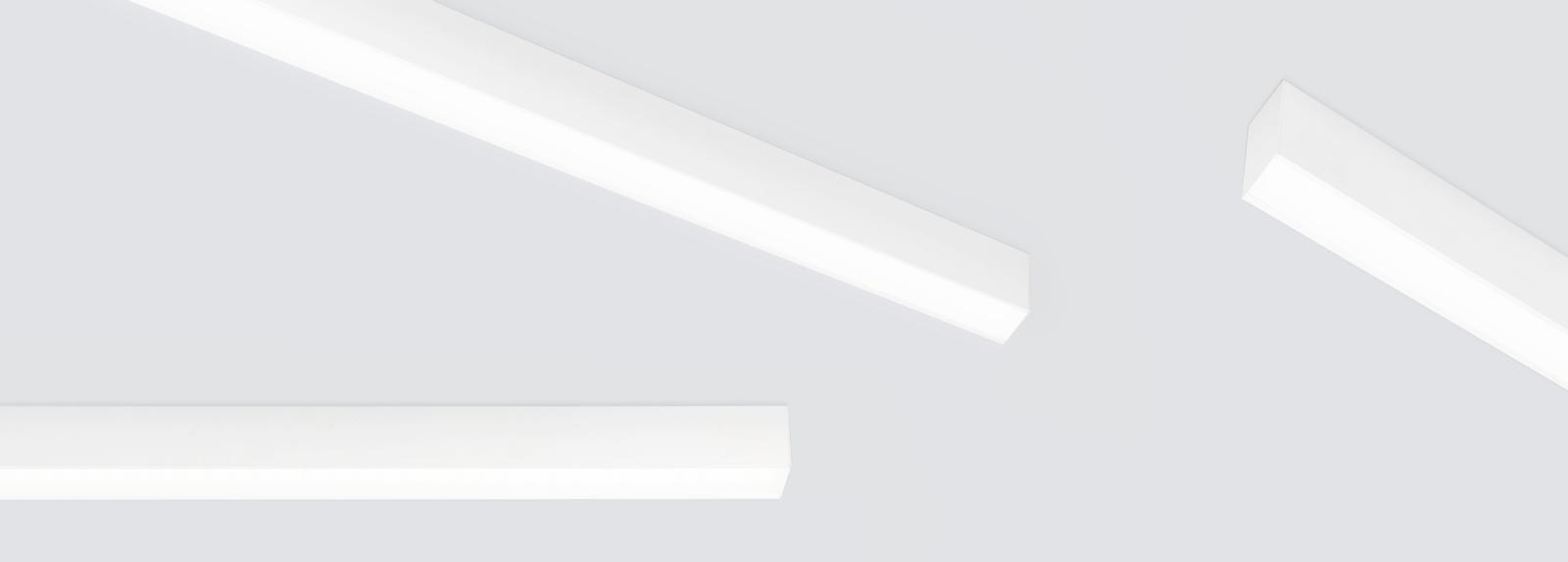

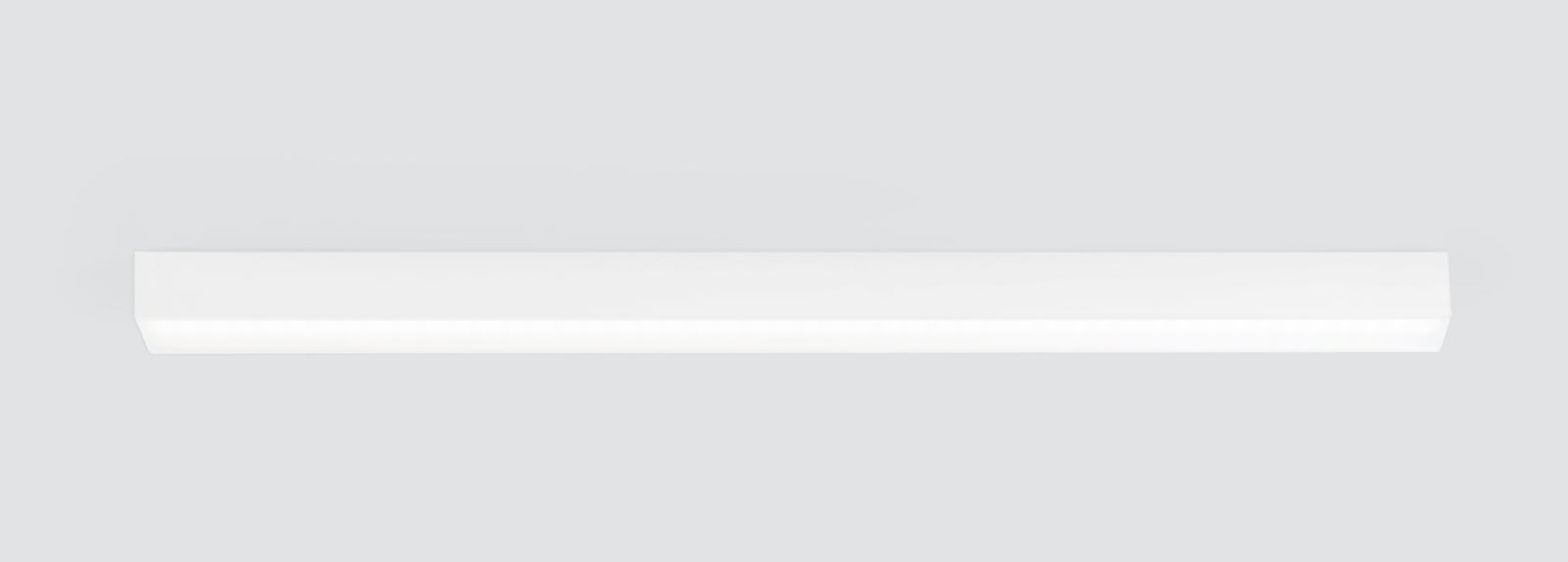

Surface mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.

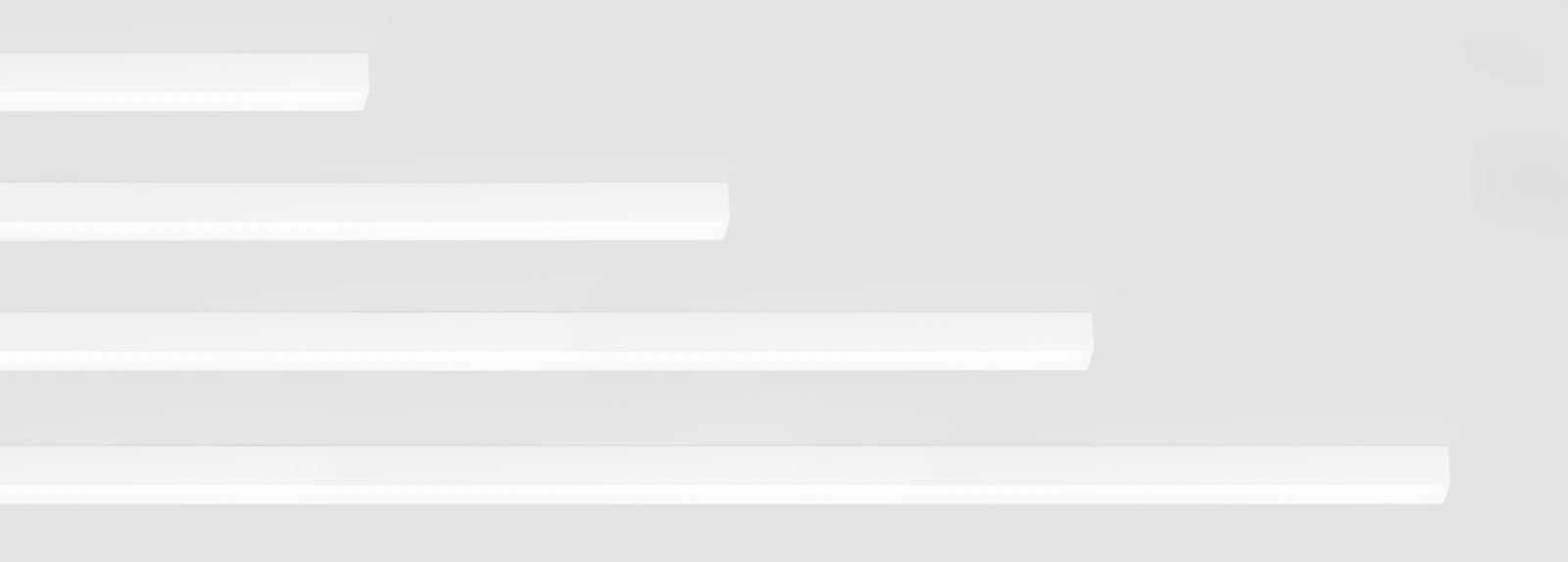

Linear fixtures available in 5 lengths 566mm, 846mm, 1126mm, 1406mm and 2806mm and in a width of 40mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

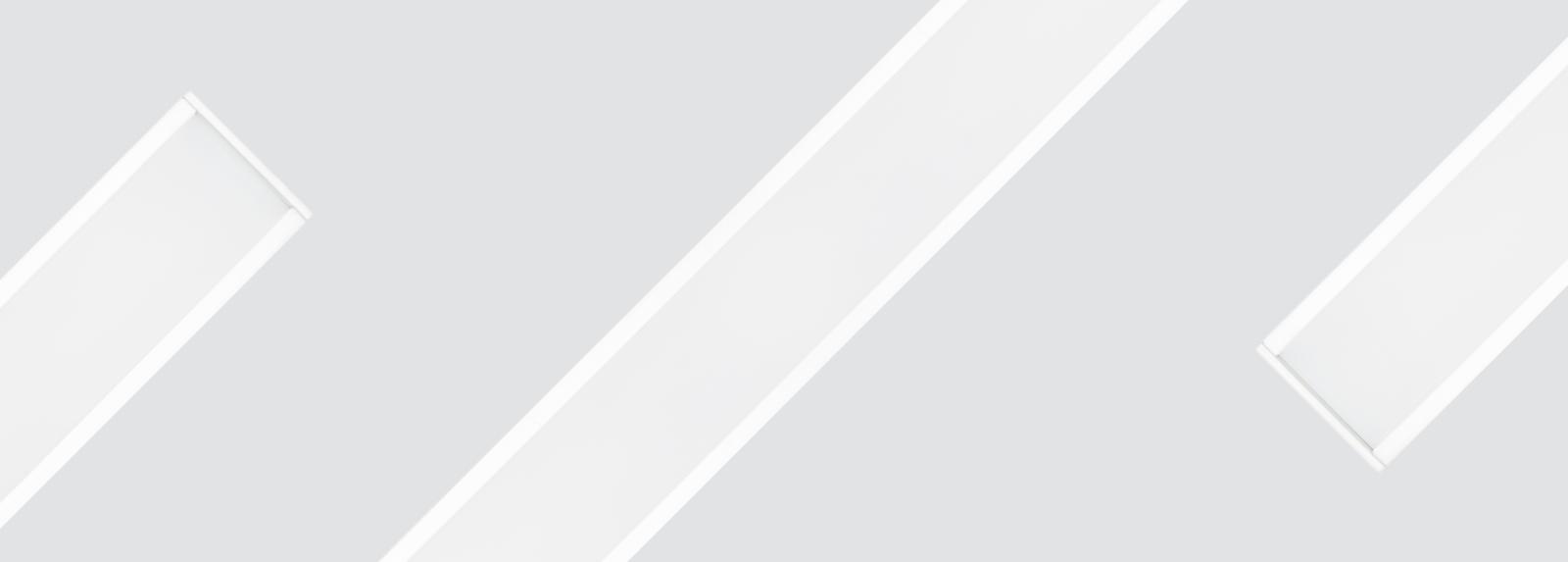

Opal extruded polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using cleats.
Suggested applications: private residences, offices, schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations. Solid ceilings, where it is not possible a recessed installation.

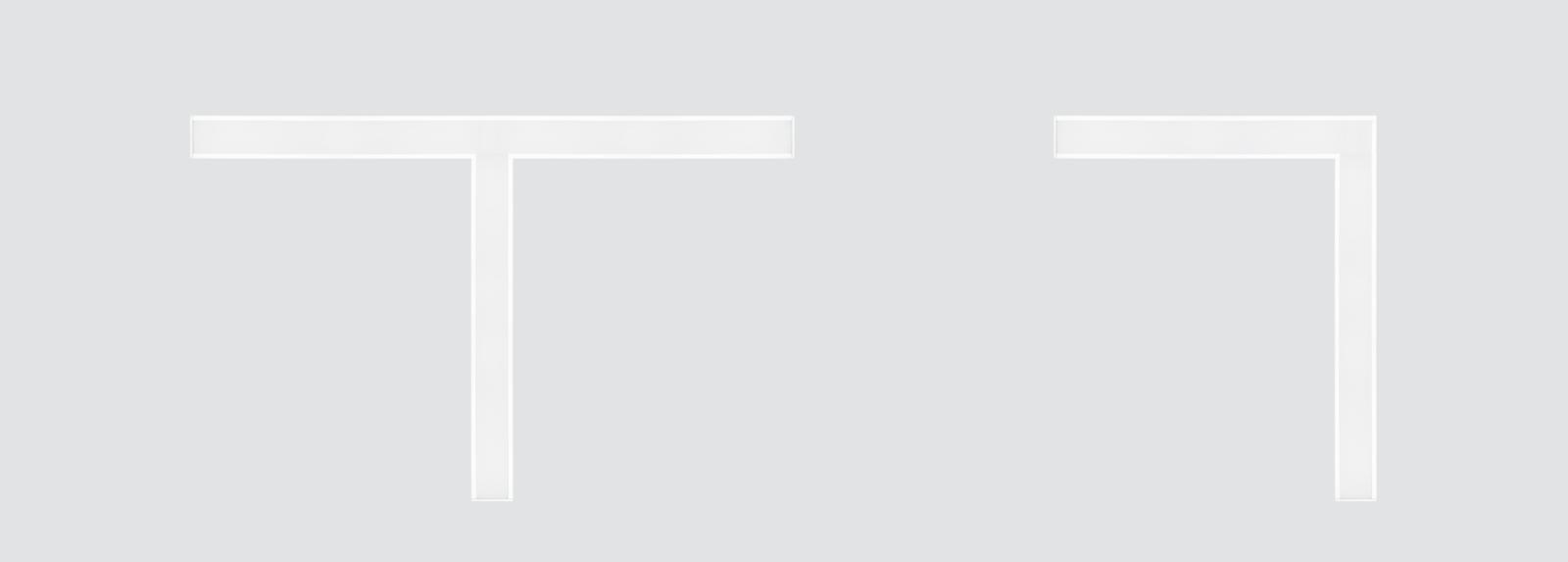

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101TRT
91
7.1W
735lm
80
2700K
566x40
75mm
351TRT.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
7.1W
756lm
80
3000K
566x40
75mm
351TRT.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
7.1W
794lm
80
4000K
566x40
75mm
351TRT.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
7.1W
794lm
80
5000K
566x40
75mm
351TRT.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
7.1W
655lm
90
3000K
566x40
75mm
351TRT.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
7.1W
680lm
90
4000K
566x40
75mm
351TRT.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1197lm
80
2700K
566x40
75mm
351TRT.1-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1235lm
80
3000K
566x40
75mm
351TRT.1-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1292lm
80
4000K
566x40
75mm
351TRT.1-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1292lm
80
5000K
566x40
75mm
351TRT.1-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1065lm
90
3000K
566x40
75mm
351TRT.1-I735
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
12.08W
1109lm
90
4000K
566x40
75mm
351TRT.1-I736
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
17.21W
1622lm
80
2700K
566x40
75mm
351TRT.1-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
17.21W
1670lm
80
3000K
566x40
75mm
351TRT.1-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRT
91
17.21W
1748lm
80
4000K
566x40
75mm
351TRT.1-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
