LYNX

LYNX

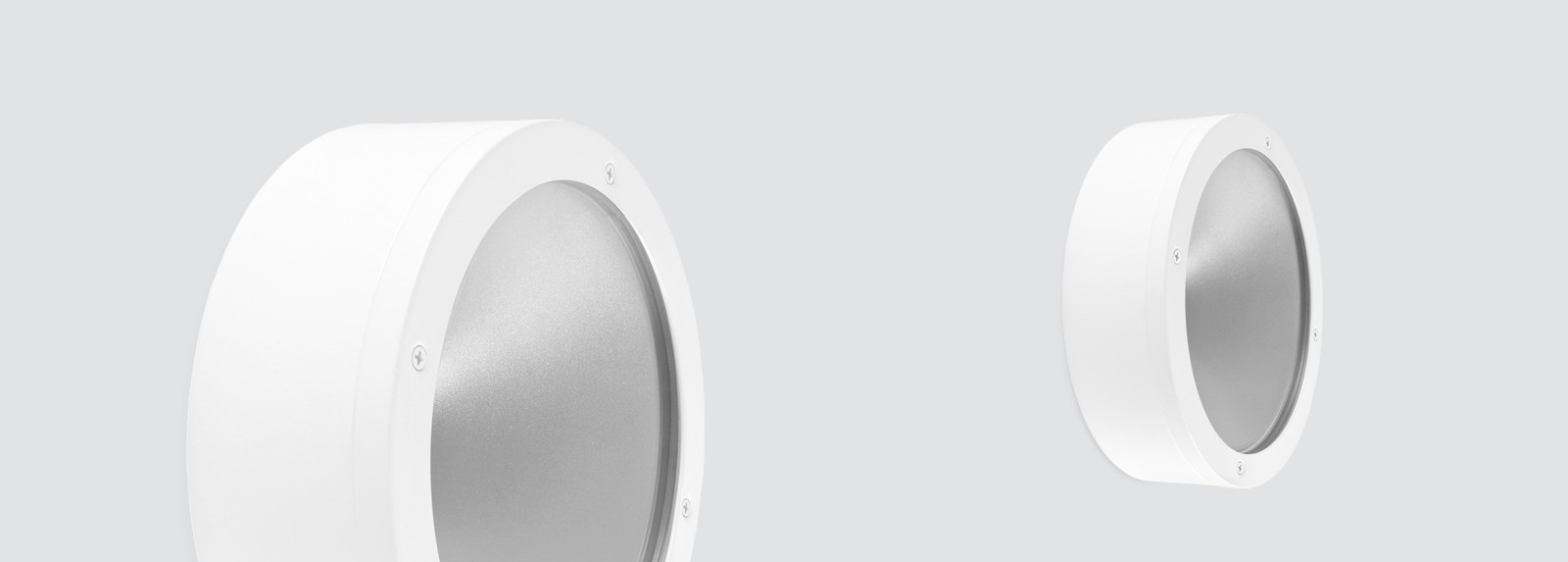

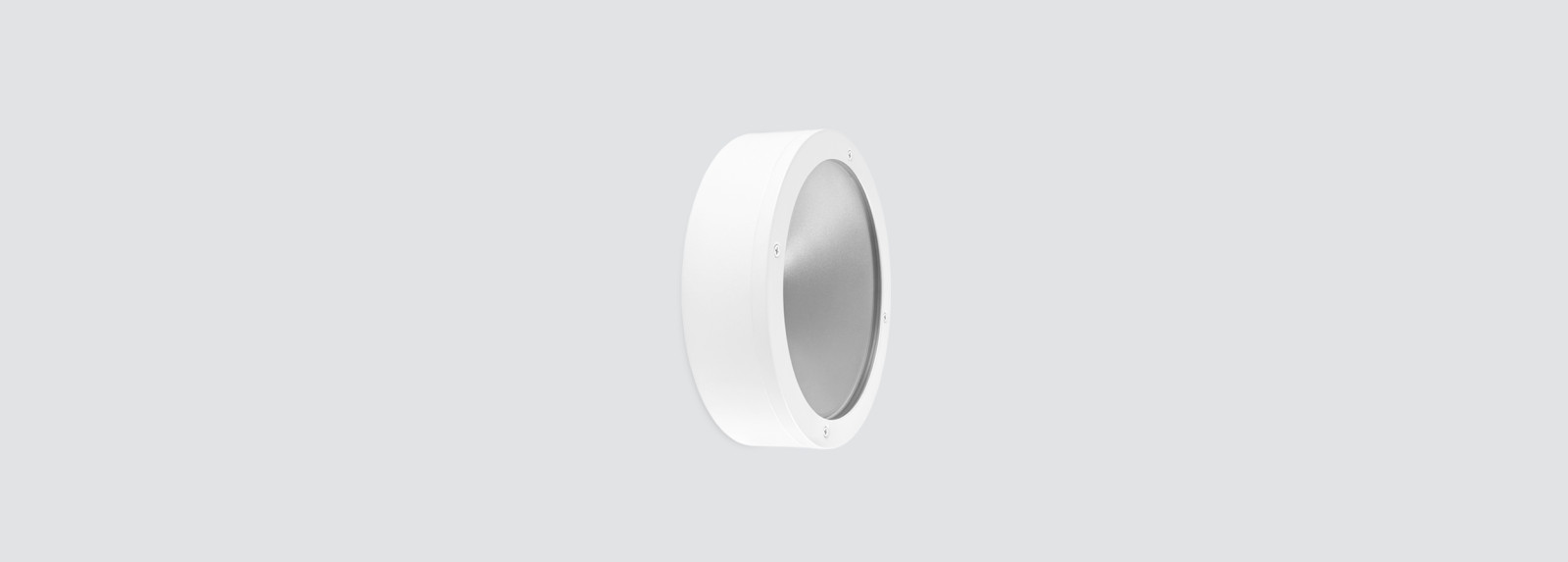

Vandal-resistant surface-mounted fixtures for wall or ceiling with symmetrical light distribution.

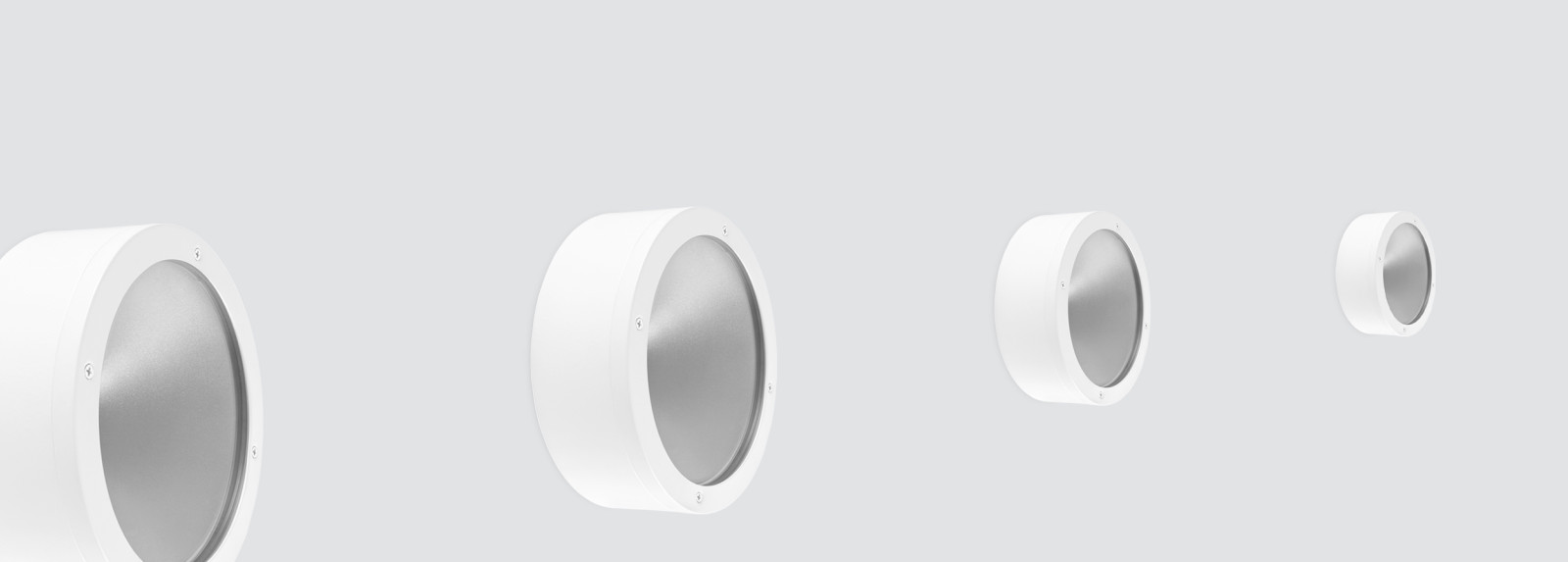

Circular design available in 2 diameters: 265mm and 345mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.

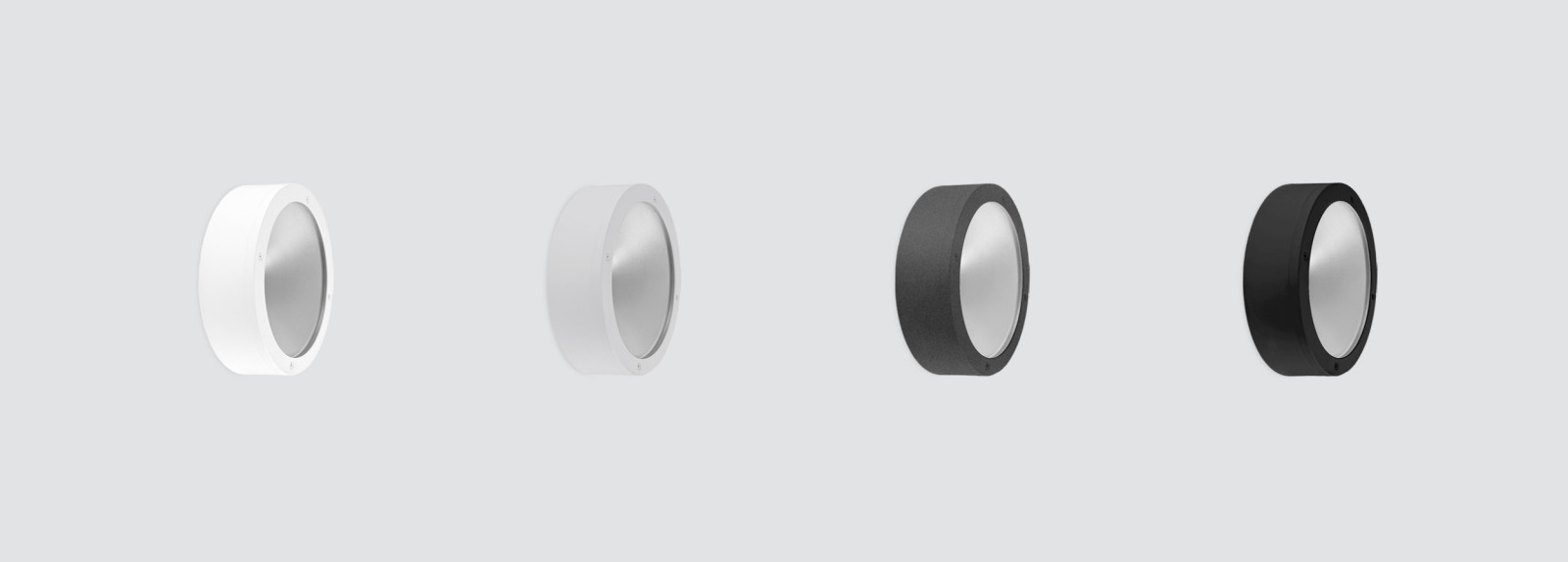

Robust body made of die-cast aluminium, treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Total lighting control: high performance and high efficiency.
High purity sandblasted anodised aluminium reflector.
Impact resistant cover made of clear polycarbonate (IK10).
Optional clear glass diffuser (IK05). Frosted or painted diffuser finishes under request.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included. Electronic standard options for the driver: DALI/DSI.
Optional emergency kit.
Passive temperature management: heat dissipation via the fixture body itself.
Mounting to the ceiling by three securing holes.
Cable entry from the top of the fixture.

Suggested applications: indoor and outdoor spaces in schools, sport areas, healthcare centres, car parks and similar installations.

Product configurator

Tilt

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Total luminaire Power

Accessories

Search results
Beam angle
Reference
Total luminaire Power
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101LNXw
102
12.61W
1235lm
>80
2700K
265mm
70mm
101LNX.1.01-I863.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101LNXw
102
12.61W
1285lm
>80
3000K
265mm
70mm
101LNX.1.01-I864.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101LNXw
102
12.61W
1339lm
>80
4000K
265mm
70mm
101LNX.1.01-I865.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101LNXw
102
18.33W
1736lm
>80
2700K
265mm
70mm
101LNX.1.01-I869.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101LNXw
102
18.33W
1808lm
>80
3000K
265mm
70mm
101LNX.1.01-I870.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F101LNXw
102
18.33W
1884lm
>80
4000K
265mm
70mm
101LNX.1.01-I871.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
12.61W
1548lm
>80
2700K
345mm
80mm
102LNX.1.01-I863.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
12.61W
1612lm
>80
3000K
345mm
80mm
102LNX.1.01-I864.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
12.61W
1679lm
>80
4000K
345mm
80mm
102LNX.1.01-I865.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
18.33W
2176lm
>80
2700K
345mm
80mm
102LNX.1.01-I869.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
18.33W
2267lm
>80
3000K
345mm
80mm
102LNX.1.01-I870.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
85
18.33W
2362lm
>80
4000K
345mm
80mm
102LNX.1.01-I871.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
84
25.33W
2808lm
>80
2700K
345mm
80mm
102LNX.1.01-I881.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
84
25.33W
2923lm
>80
3000K
345mm
80mm
102LNX.1.01-I882.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE


F102LNXw
84
25.33W
3049lm
>80
4000K
345mm
80mm
102LNX.1.01-I883.
DATA SHEET
Description .txt
Installation sheet
Technical drawing
Declaration conformity CE
